Difference between digital truck scale and analog truck scale:

I  The signal collected and transmitted by the weighing sensor of the digital truck scale is directly digital signal. The digital signal will not change due to the interference of transmission distance, temperature, humidity and electromagnetic field, which can ensure the consistency between the weighing display data and the original collected data.

II  The off load debugging of the digital truck scale and the weighing instrument are completed, which eliminates the debugging error caused by manual debugging, and the debugging data stored in the weighing instrument will not change due to vibration, temperature difference and other factors, so as to ensure the accuracy and long-term stability of the weighing data.

III  Once the remote controller is installed on the signal transmission line of the digital truck scale, the weighing instrument display will sense it at the first time and send a command to stop the sensor.

The truck scale is mainly composed of three main parts: load transfer mechanism (scale body), high-precision weighing sensor and weighing display instrument, which can complete the most basic weighing function. According to the requirements of different users, printers, large screen displays, computers and weighing management software can be selected to complete higher-level data management and processing requirements.

Digital electronic weighbridge Features:

■ digital electronic weighbridge solves the problems of weak transmission signal and interference -- Digital Communication

① the maximum output signal of analog sensor is generally several twenty millivolts. In the process of cable transmission of these weak signals, it is easy to be disturbed, resulting in unstable system operation or reduced measurement accuracy. The output signals of digital sensors are about 3-4V, and their anti-interference ability is hundreds of times higher than that of analog signals, so as to solve the problems of weak transmission signal and interference

② adopt RS485 bus technology to realize long-distance signal transmission, and the transmission distance shall not be less than 1000m;

③ the bus structure is convenient for the application of multiple load cells. At most 32 load cells can be connected in the same system.

■ digital electronic weighbridge solves the problem of temperature influence of eccentric load and time effect creep -- Intelligent Technology

① prevent cheating by using simple circuit to change the size of weighing signal;

② digital electronic weighbridge can automatically compensate and adjust the influence caused by eccentric load and temperature change. Good consistency and interchangeability. After multiple sensors are connected in parallel, the linearity, correction and performance compensation can be realized by software method to reduce the system error and simplify the on-site installation, debugging, calibration and adjustment of the scale body.

③ automatic fault diagnosis and error information code prompt function.

④ when the load is applied to a load cell for a long time, its output often changes greatly. The digital load cell automatically compensates the creep through the software in the internal microprocessor

■ digital electronic weighbridge does not need weighing display instrument to reduce the failure rate of electronic weighbridge -- Digital Calibration Technology

① make the eccentric load (four corners) calibration of the weighing instrument complete automatically at one time;

② the range coefficient and zero value of the weighing instrument can be modified as needed to make the coefficient of each sensor consistent with the zero parameter.

③ the digital weighbridge can be directly connected to the computer to display the weighing process, reducing the weighing fault link. Today's computer hardware is extremely reliable, so the weighing system composed of it is more safe and reliable

Analog electronic weighbridge is composed of steel structure modular scale platform, high-precision bridge resistance strain analog sensor, static weighing control display instrument, sealed waterproof junction box, etc

Main features of analog electronic weighbridge:

I. bridge resistance strain analog sensor, excellent moisture-proof sealing, suitable for any harsh working environment.

II. The load-bearing and force transmission mechanism (scale body) transmits the weight of the object to the mechanical platform of the load cell. There are two common types: all steel structure and steel-concrete structure.

The quality of high-precision weighing sensor is directly related to the quality of the whole weighing instrument. It is the core component of the weighbridge and plays the role of converting the weight into the corresponding measurable electrical signal.

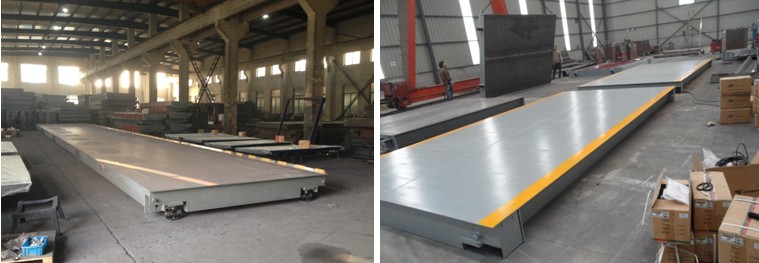

Modular scale platform, U-shaped girder structure, good strength and interchangeability, can be equipped with computer management system. The scale platform structure adopts the assembly and welding of cold-formed steel with U-shaped section. The overall stiffness, torsional resistance and local stiffness of the table have been greatly improved. The scale platform design is modular, standardized and serialized, and can freely form a variety of specifications. This series selects high-precision bridge or column load cells and weighing display instruments with rich functions and strong storage functions to form a multifunctional weighing and metering system [automatic weighing system]

The biggest difference between cement scale | reinforced concrete electronic Weighbridge and full electronic weighbridge, digital electronic Weighbridge and analog electronic weighbridge lies in the difference of scale body structure. The former is reinforced concrete structure and the latter is all steel structure. The instruments, junction boxes, printers and sensors used by these weighbridge scales (electronic weighbridge scales commonly known as weighbridge) are generally the same, the working principle and lightning protection facilities are basically the same, the construction of weighbridge foundation is the same, and there is no essential difference in function. However, the production cycle of cement scale is much longer than that of all steel structure, so if you want to use cement scale as a weighbridge, you'd better negotiate with the manufacturer as soon as possible to avoid delaying the time of putting the weighbridge into use.

　　优点：从根本上解决了全钢结构电子地磅秤使用过程中因雨淋日晒，酸碱腐蚀及结构的热胀冷缩而出现秤体被腐蚀，使用精度降低、使用寿命缩短等问题

Corrosion resistance, stable structure, self weight, accurate positioning, no deformation and maintenance free

It is suitable for public weighing stations, chemical enterprises, ports and terminals, refrigeration industry and other industries with high requirements for anti-corrosion function
