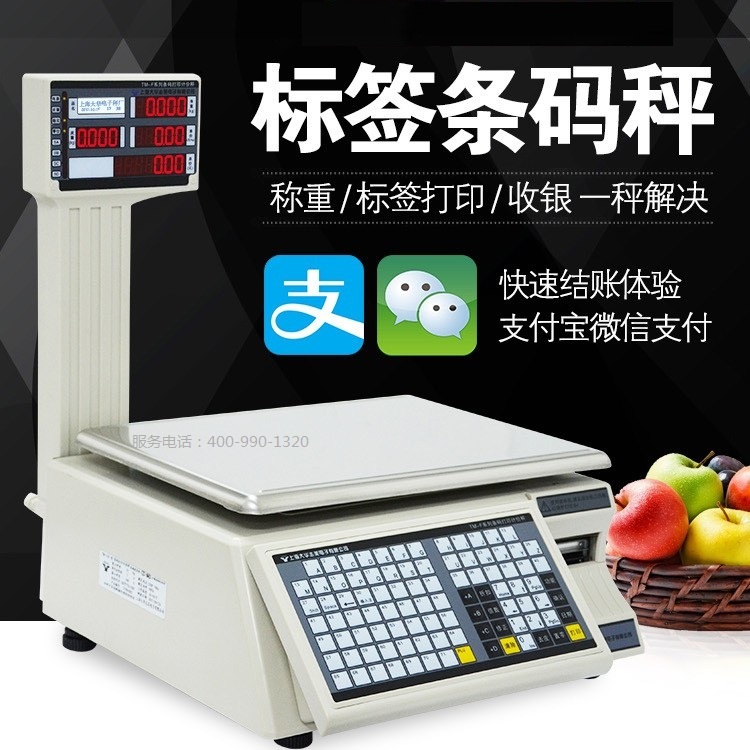

Tm-f Series bar code printing scale

Bar code printing and pricing scale, also known as label bar code scale, belongs to commercial scale

Provide a variety of solutions for different applications: stand-alone application, networking application (high-speed Ethernet and wireless networking), weighing of aquatic products in wet occasions, high-speed pre packaging in bakery, external weighing platform application, etc

The price label bar code scale can be used in the supermarket fresh food counter, supermarket back room packaging, distribution center, and other occasions where bar code labels or receipts need to be weighed and printed, such as chain stores and convenience stores.

Product features

1. The installation is simple and the operation is convenient. The display panel replaces the cumbersome installation of traditional screws, and only needs to be erected;

2. High brightness green light display, which can be used normally whether indoors or outdoors;

3. There are many methods to call PLU, which can be called through commodity code, shortcut key and number key;

4. It can store 9999 product names and set 71 shortcut keys;

5. Continuous cumulative report function can be set;

6. Text content information: up to 16 Chinese character text information and 16 character text information can be set for different label formats;

7. Up to 142 commodity shortcut keys call, easy to operate;

8. Remote control can be realized in the Internet environment;

9. PC (remote control background) can remotely transmit data to the electronic scale through the network;

10. The PC manages the electronic scales of each store in a unified way and views the sales data in real time;

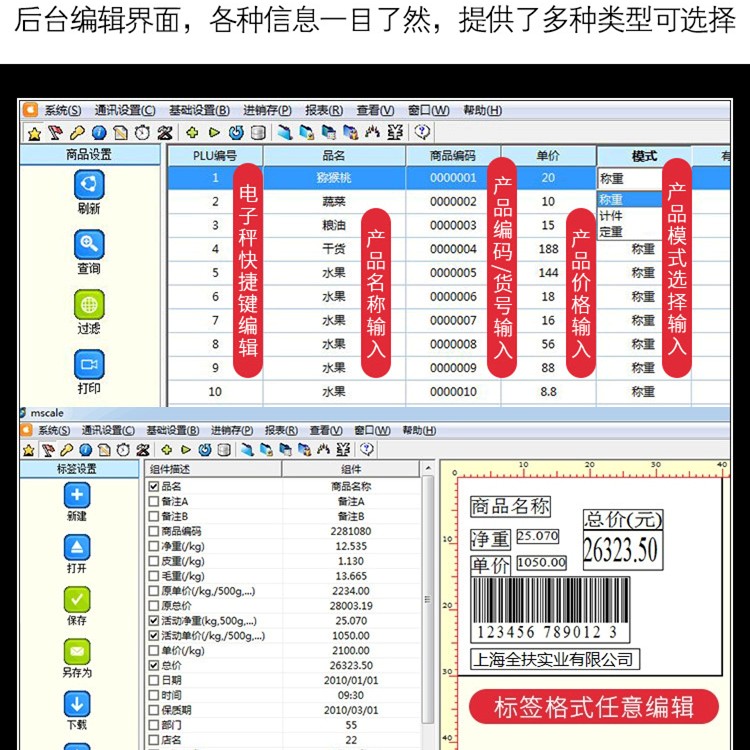

11. Powerful upper computer management software, all information can be uploaded and downloaded at high speed;

12. Various text import formats can be preset, and PLU information text import in various preset formats is supported;

13. The upper computer software has appropriate man-machine operation page, and the operation setting is more humanized;

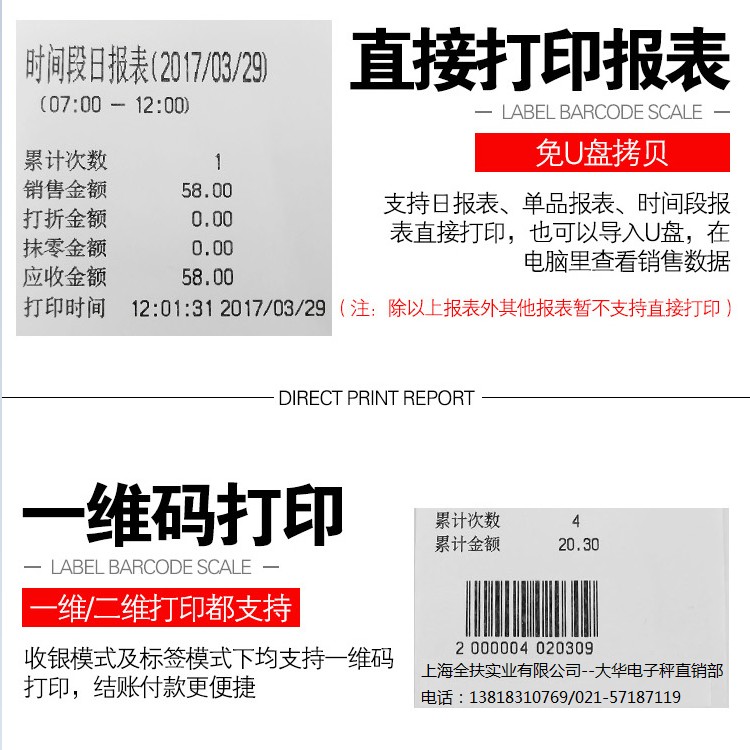

14. Dual printing function of label paper and continuous paper;

15. It can be printed on labels of various specifications. The printing format can be the factory default format or set by the user at will;

16. The format, PLU content, various reports and time can be set on the upper computer software;

17. Counting and pricing contents can be automatically printed;

18. The upper computer software can be mutually guided with other electronic scale files to achieve full compatibility;

Technical parameters:

model：TM-F

Accuracy: 1 / 3000

Measuring range: 3kg, 6kg, 15kg, 30kg

Division value：1g,2g,5g,10g

Double sided display: high brightness red LED digital display and Chinese character display

Printing: thermal small ticket printing or self-adhesive label printing

Common label paper specifications: 30x40mm, 37x50mm, 40x50mm, 40x60mm, etc

Diameter of label paper shaft core: Φ 25mm

Printing speed: 75mm / S

Standard interface: RS232 serial port

Optional interface: RJ45 Ethernet interface, RJ11 cashbox interface, WiFi wireless communication, GPRS interface

Power supply: 220VAC (- 15% ~ + 10%), 50Hz

Working environment: - 10 º C ~ + 40 º C, relative humidity less than 95%, no condensation

Applicable occasions: large, medium and small supermarkets, stores, convenience stores and other occasions requiring weighing and printing labels

Specification parameters:

model	Tm-f bar code scale
Maximum weighing	3kg	6kg	15kg	30kg
Division value	1g	2g	5g	10g
high-precision	0.5g	1g	2g	5g
Minimum weighing	20g	40g	100g	200g

It is applicable to shopping malls, supermarkets, food stores, farmers' markets, vegetable markets, wholesale markets, stores and other retail industries that need to print settlement labels and conduct unified trade settlement.

Note: it can work under different lighting environment and various bagging scenes

Shanghai Quanfu fresh Supermarket bar code scale , weighing electronic bar code scale, Label bar code scale , cash register scale , pricing scale, widely used in supermarket fresh food, food weighing and pre packaging areas. Simplify weighing, sales and category management processes, save costs and improve performance.
