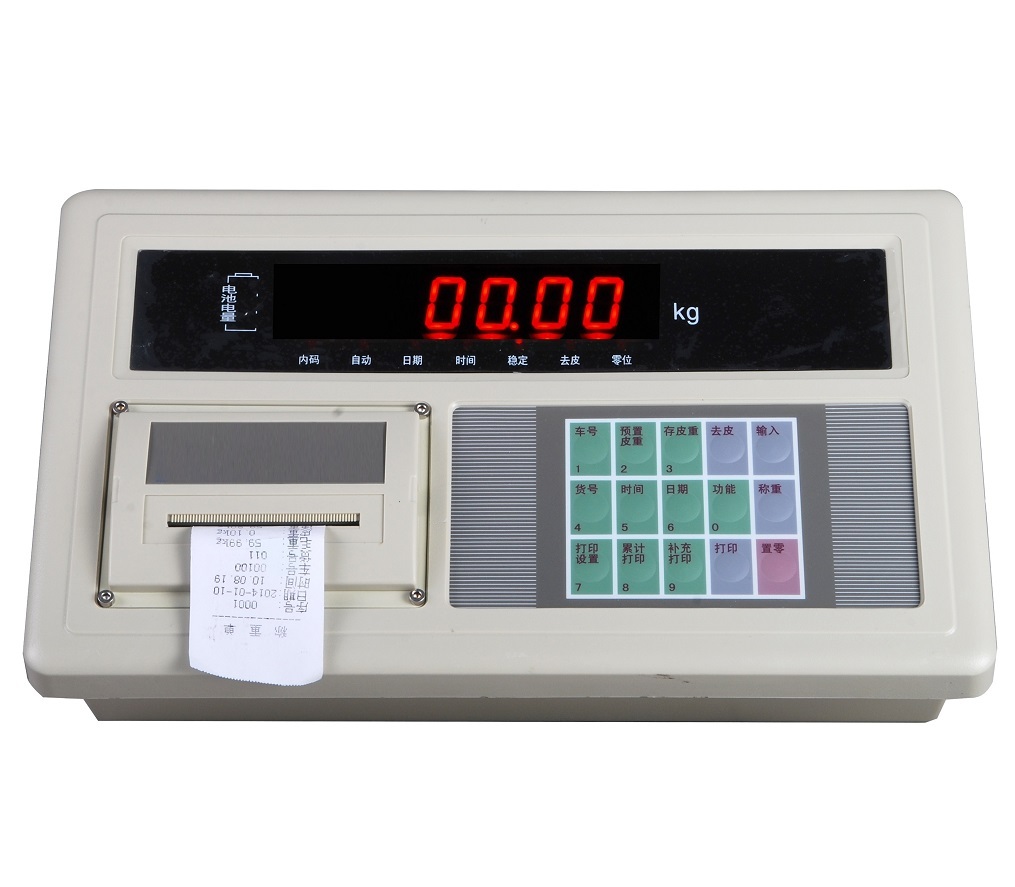

Analog truck scale weighing instrument, weighbridge display
It is applicable to electronic platform scale, electronic ground scale, electronic truck scale, etc
A9 + P built-in needle micro printing
XK3190-A9 weighing and printing instrument adopts high-precision analog-to-digital conversion technology, It is applicable to electronic platform scale, electronic ground scale, electronic truck scale, etc
Basic functions:
Σ-Δ High precision analog-to-digital conversion, which can process signals in the range of - 16 ~ 18MV
There is no need to recalibrate the meter, with high precision and good consistency
The DC interface has anti reverse connection and anti short circuit protection
Strong anti-interference ability, wide applicable environment, AC and DC dual-purpose, optional battery
7-digit 0.8-inch LED display, 3-gear battery power indication
Zero tracking range and zero setting (startup / manual) range can be set respectively
It has two-point linear correction function and two compensation calibration modes
With large storage capacity, it can store 1001 groups of weighing records, 1000 groups of vehicle numbers and tare weights, and 201 article numbers
It can print horizontal and vertical weighing sheets, and print a variety of statistical reports

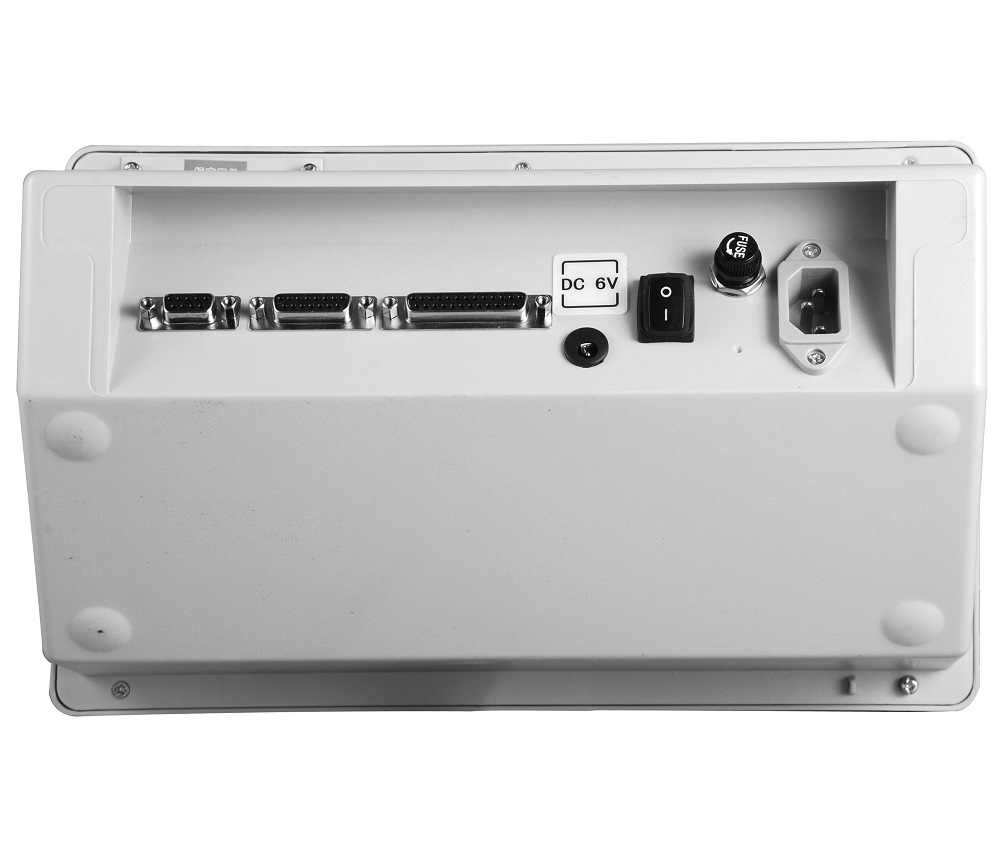

Equipped with RS232 communication port (optional RS422 / RS485), large screen communication port with current ring, standard parallel printing port and thermal micro printer of specified model
Technical parameters:
Conversion principle: Σ-Δ Formula A / D
Input signal range: - 16 mV～18 mV
Conversion speed: 10 times / s, a / D conversion resolution code: 1 million codes
Bridge power supply: DC, 10V, which can connect 8 350 Ω or 16 700 Ω sensors
Connection mode of sensor: 6-wire type, long-wire automatic compensation
Division value: 1 / 2 / 5 / 10 / 20 / 50 / 100 optional
Clock: it can display year / month / day, hour / minute / second and leap year and leap month automatically.
Large screen display interface, transmission mode, 20mA current loop, baud rate 600, transmission distance ≤ 2000m
Serial communication interface transmission mode: RS232C / RS422 (optional) / RS485 (optional)
Baud rate 600 / 1200 / 2400 / 4800 / 9600 optional
Transmission distance: RS232: ≤ 30m; RS422/RS485：≤1200m
Print interface standard parallel output interface
Data storage: it can store 1000 vehicle numbers and tare weights, 201 article numbers and 1001 groups of weighing records
AC power supply: AC220V (- 15% ~ + 10%); 50Hz（-2%~+2%）
DC power supply: DC12V / 7Ah battery (external)
