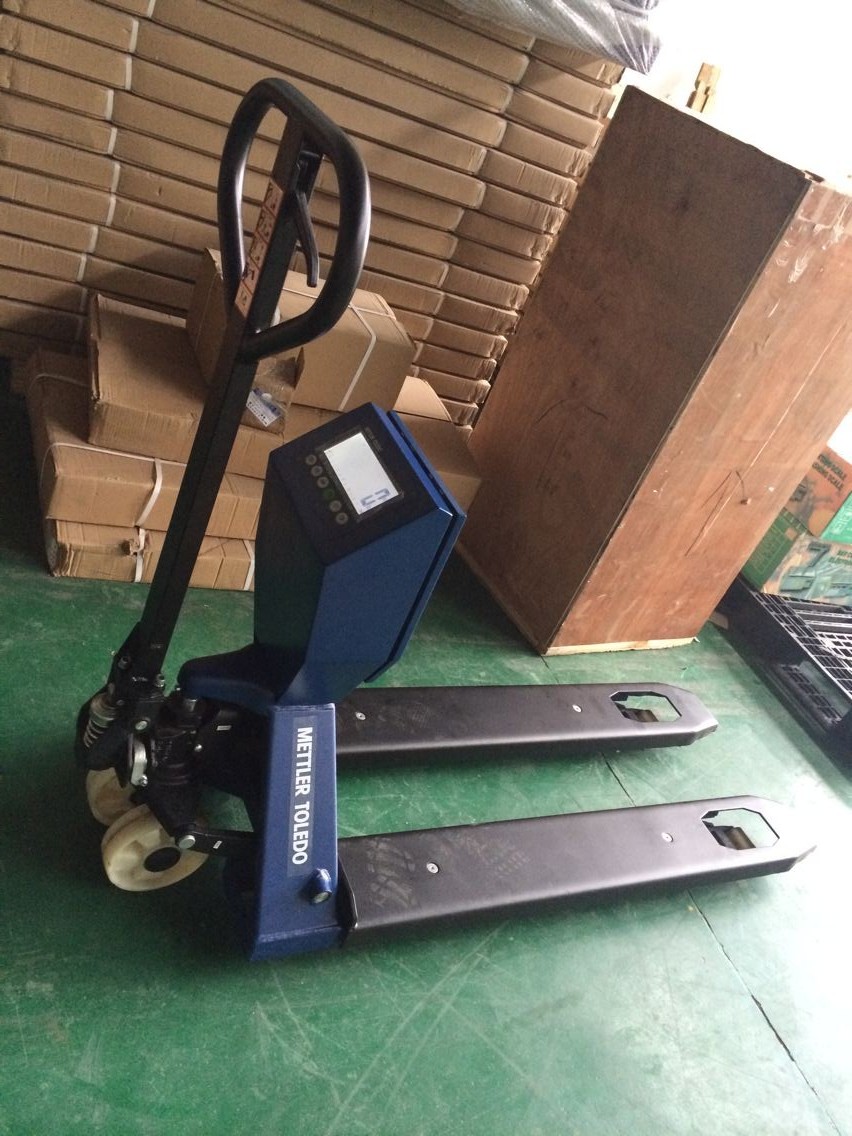

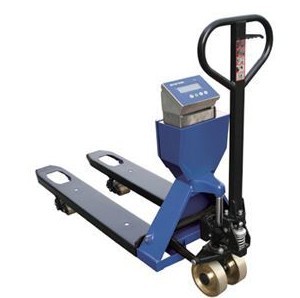

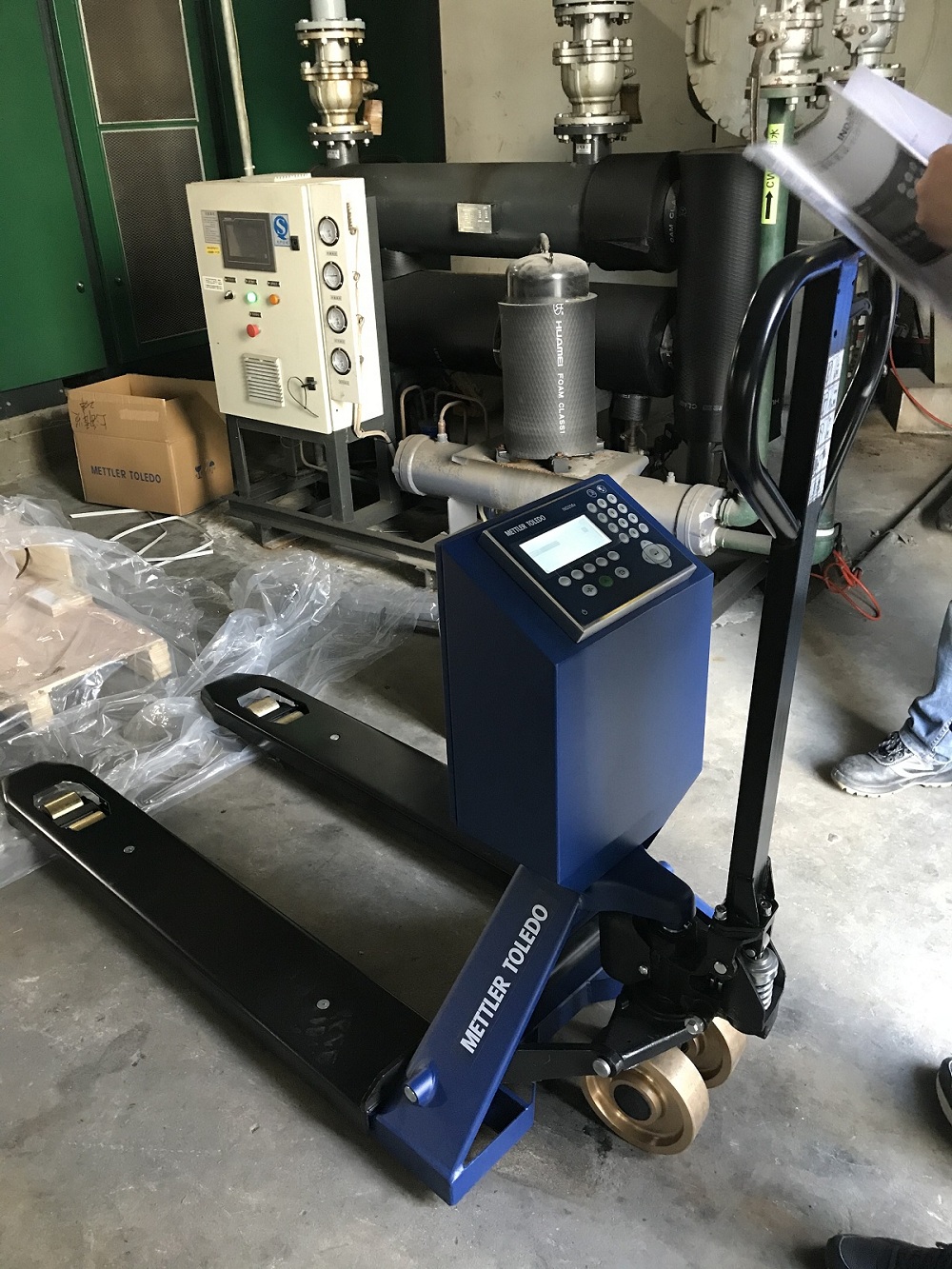

Mettler Toledo bta221 series electronic forklift scale, METTLER TOLEDO bta2221x expansion proof forklift scale

Scs-2t manual forklift scale (bta245-2-555a)

Fork length：1220（mm） Load capacity: 2000 (kg) fork lowest position: 85 (mm)

Walking mode: rechargeable battery hydraulic drive, industrial vehicle: forward forklift, brand: Mettler Toledo

All carbon steel structure scale platform, automatic reset, one-time setting of force transmission mechanism, epoxy baking paint on the outer surface, hydraulic lifting frame, resin roller with ball bearing, instrument installation and scale body

Bta231 forklift scale is applicable to the electronic scale for handling and weighing at the same time

Functional features:

It is especially suitable for weighing goods in logistics operations such as railway, highway, commerce, industry and mining

The scale platform is composed of hydraulic manual handling mechanism and weighing elements

The scale platform is lifted and lowered by hydraulic drive, and the vehicle operation is carried out manually

Special sensor, special weighing instrument

Rechargeable battery powered

Surface spray drying

Applicable to explosion-proof environment

Integrating weighing and handling

Technical indicators:

Product number	Maximum weighing	Division value	Minimum fork height	Forklift width	Fork length
PTS2x-555x1150	2 t	2 kg	85 mm	555 mm	1150mm
PTS2x-690x1220	2 t	2 kg	85 mm	690 mm	1220mm



Bta221x explosion proof forklift scale The electronic forklift scale suitable for explosion-proof occasions integrates weighing and handling. It is equipped with 4 explosion-proof single shear beam load cells, explosion-proof junction boxes, explosion-proof instruments and explosion-proof batteries. It is widely used in explosive gas and explosive dust environments in chemical industries



Scope of supply of explosion-proof forklift scale:

One set of carbon steel structure weighing platform (including one hydraulic lifting frame, one set of copper wheel, four sets of explosion-proof weighing sensors and connectors, and one explosion-proof junction box)

One ex200-h0000 intrinsically safe explosion-proof instrument

One 6227-0009 explosion-proof battery

6229-0008 explosion proof battery pack charger

A copy of product manual

Explosion proof grade: gas ex IA Ⅱ C T5; Dust dip A20 TA, T4



Functions and features

● applicable to explosion-proof environment
● integrating weighing and handling
● copper rolling
● safe and reliable
● equipped with ex200-h0000 intrinsically safe explosion-proof instrument and 6227-0009 intrinsically safe explosion-proof battery
