PFA series electronic platform scales have many different sizes. They are suitable for weighing weights of more than 600 kg to 25000 kg in various industries and applications from pharmaceutical to logistics operation. These scales can be configured separately. To meet the accuracy, quality and environmental needs of users, and a variety of options are available, including hygienic design to simplify cleaning, explosion-proof certification to ensure safety, and a variety of accessories.

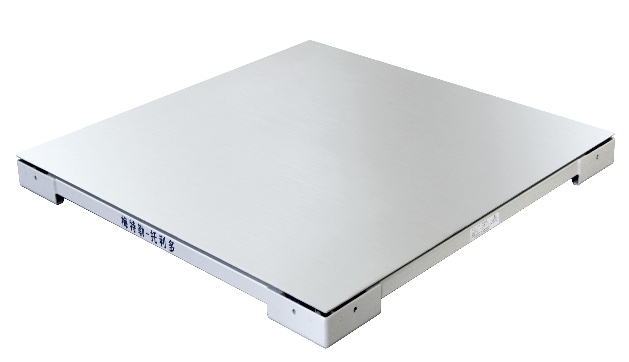

Mettler Toledo pfa774 series electronic platform scale

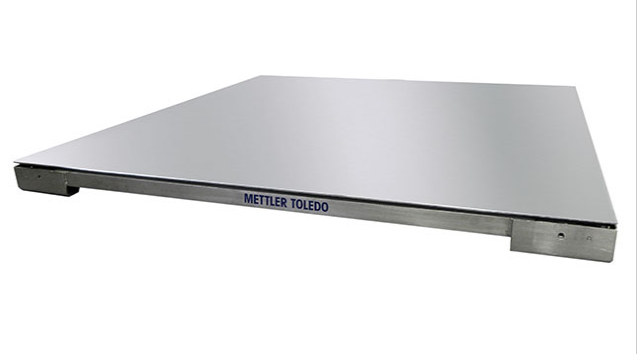

Pfa774 series electronic platform scale has excellent metering performance and can cope with various complex and severe industrial occasions. All parts have been strictly manufactured and inspected before leaving the factory to ensure the consistent high quality of all parts, so as to ensure stable and reliable measurement accuracy and repeatability.

PFA series electronic platform scale can be used for weighing in many occasions, and can be widely used in logistics center, chemical industry, pharmacy and other industrial occasions.

PFA series electronic platform scale includes various specifications, capacities and options to meet the needs of different applications.

PFA series electronic platform scale can be equipped with a variety of METTLER TOLEDO weighing instruments.

Structure:

Scale platform: new structural design, improved rigidity, enhanced strength and extended service life.

Junction box: all stainless steel shell with protection grade of IP68, which greatly reduces the data drift caused by humidity.

Anti corrosion Design of signal cable: greatly reduce the failure caused by cable damage.

New fixing method: both inside and outside the scale can be fixed. The fixing method outside the scale is convenient for customers to install and maintain by themselves.

The frame of the forklift is brand-new and easy to move without deformation.

Green and environmental protection: paint meeting ROHS requirements to protect the environment and the safety of operators.

Technical specifications:

Product name	PFA584/PFA774C/PFA779C/PFA770C
Product model	SCS-□
Accuracy level	III
Maximum capacity	600kg/0.2kg; 1,500kg/0.5kg; 3,000kg/1kg;   6,000kg/2kg
Junction box	304 stainless steel, IP68
Weighing platform material	Countertop or all carbon steel + carbon steel
sensor	SBC sensor, IP67
Platform height	9cm
Scale platform size (W x L)	maximum capacity
	600kg	1,500kg	3,000kg	6,000kg
80cm x 80cm	●	●
100cm x 100cm	●	●	●
125cm x 125cm		●	●
125cm x 150cm		●	●
150cm x 150cm		●	●	●
150cm x 200cm		●	●	●
200cm x 200cm			●	●
Product name	Pfa774c (large size)
Product model	SCS-□
Accuracy level	III
Maximum capacity	3,000kg/1kg； 6,000kg/2kg； 10,000kg/5kg
Junction box	304 stainless steel, IP68
Weighing platform material	All carbon steel
sensor	Sb sensor, IP67
Scale platform size (W x L)	maximum capacity
	3,000kg	6,000kg	10,000kg	15000kg
200cm x 300cm	●	●	●	●
200cm x 400cm	●	●	●	●
Platform height	15cm	15cm	15cm	15cm

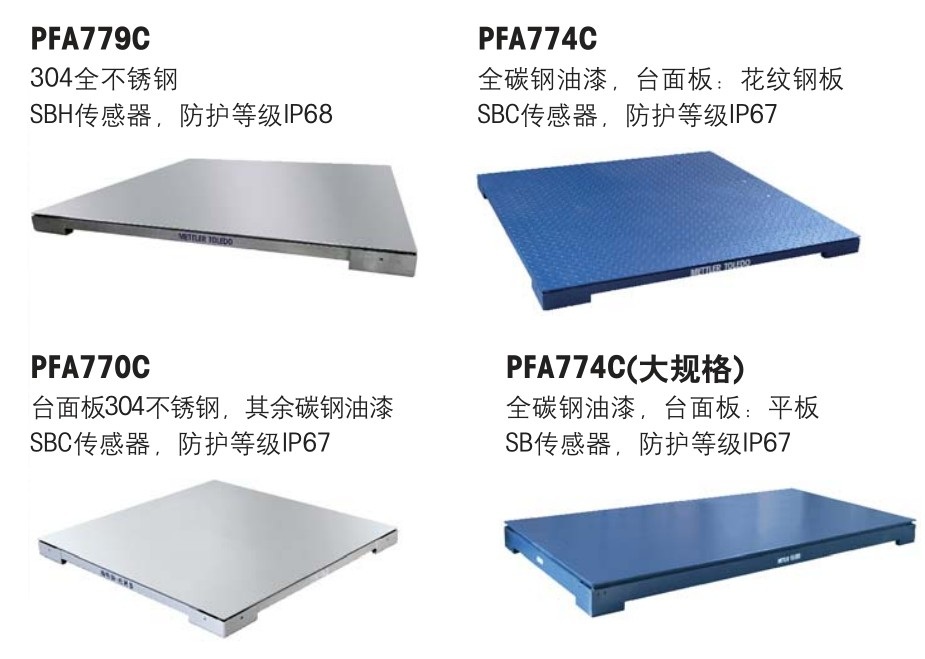

Model differentiation map:

Shanghai Quanfu specialty provides METTLER TOLEDO weighing solution
