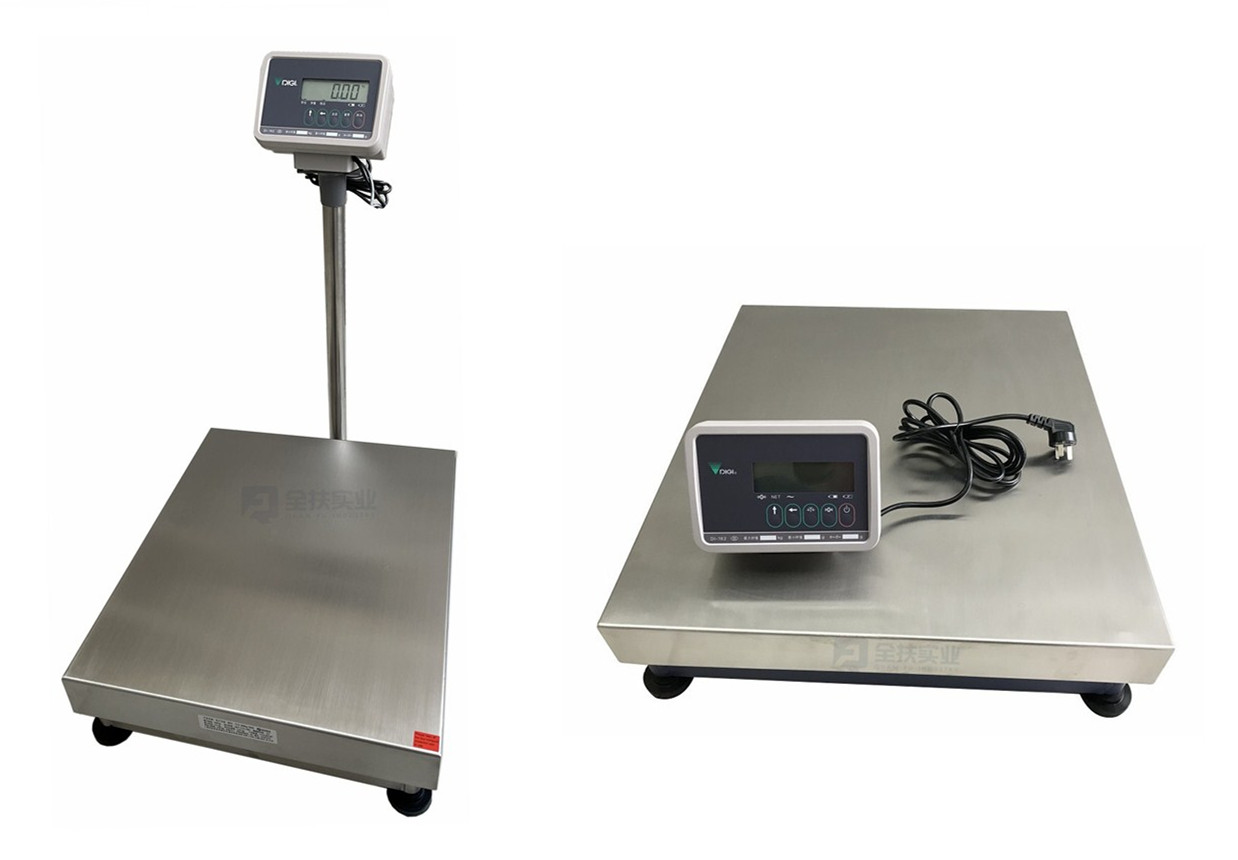

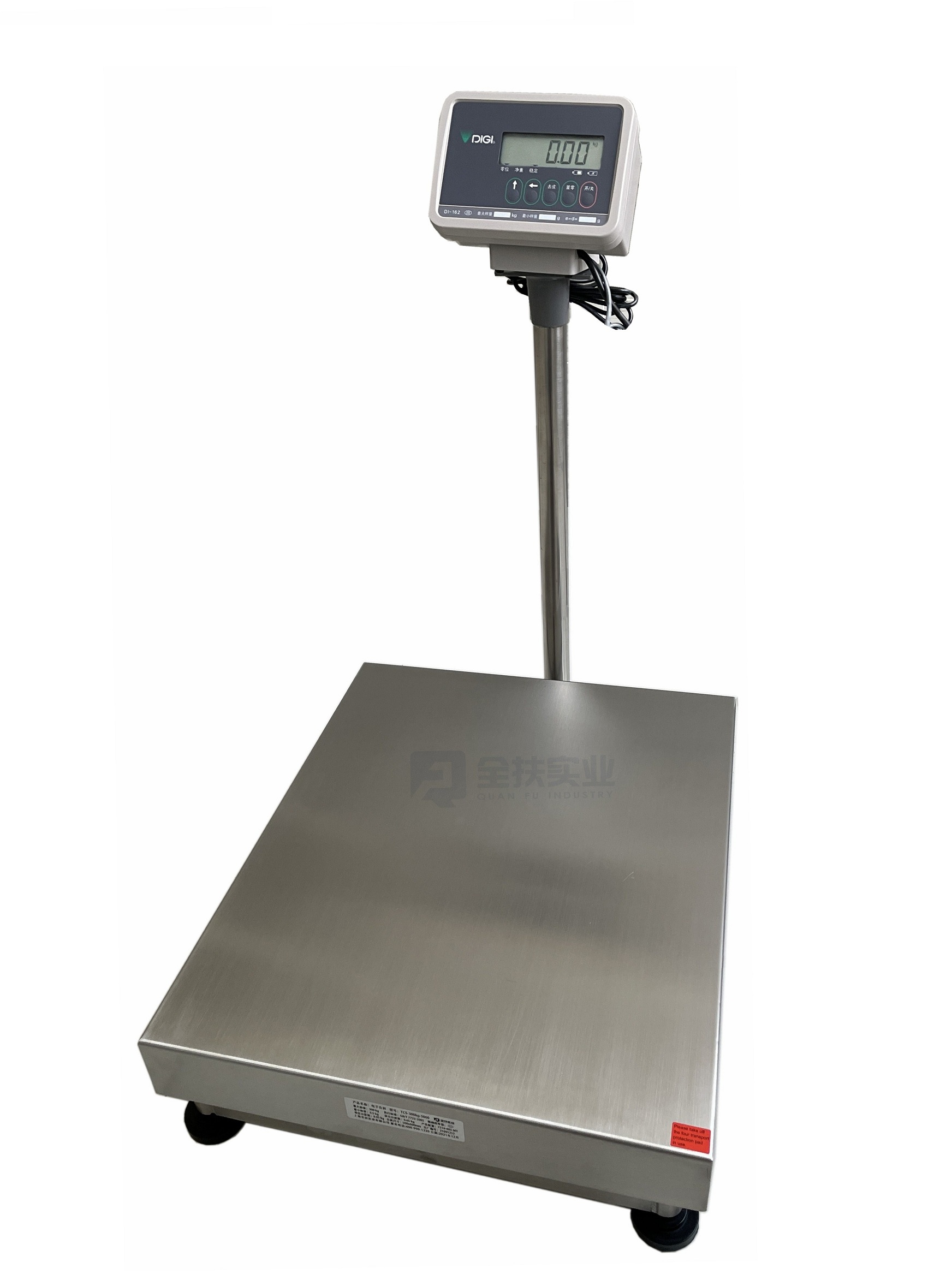

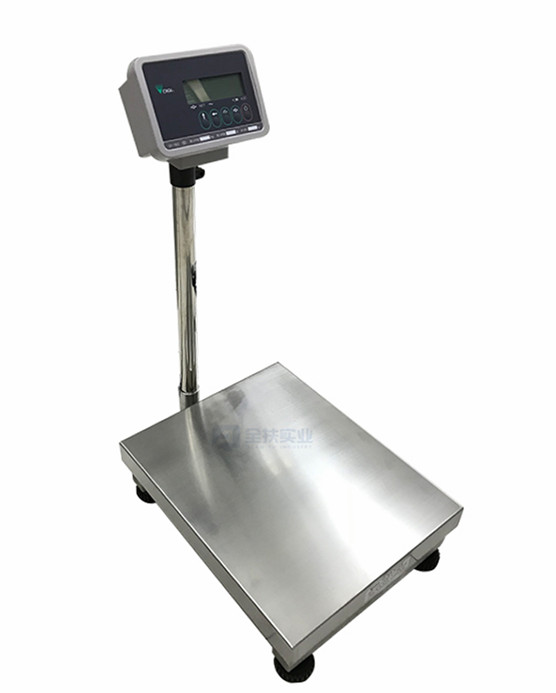

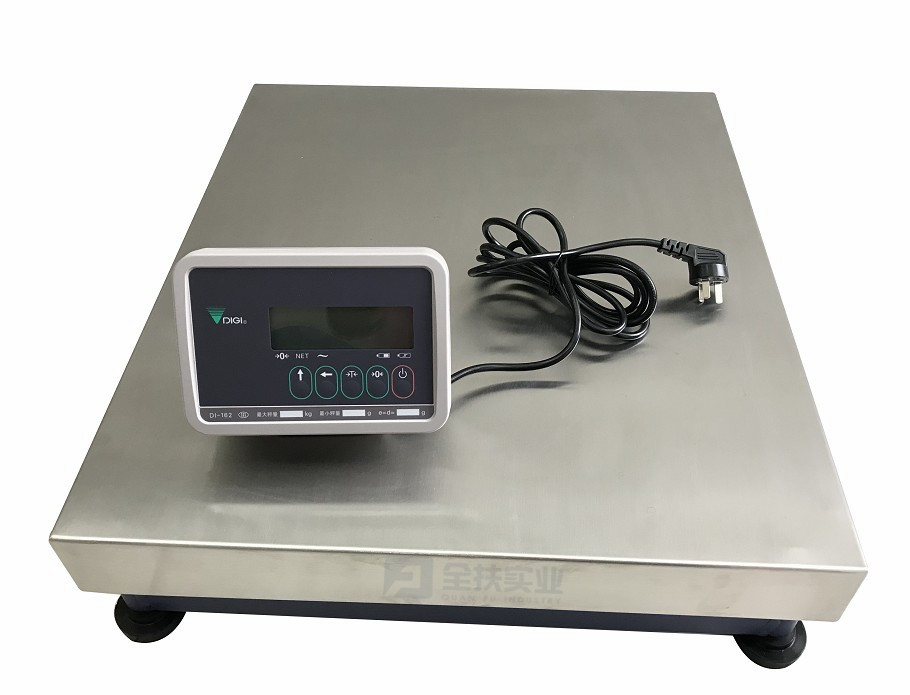

Si gang di-162 electronic platform scale, industrial electronic weighing platform scale

Accuracy class: III

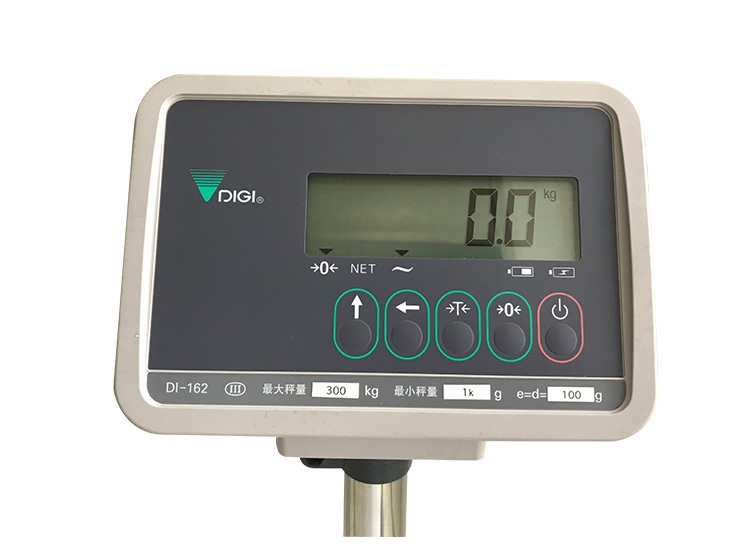

Display: more than 6 digits; 6 decimal places (0.00000 to 000000);

Clear LCD with backlight, internal resolution: 1 / 300000, display resolution: 1 / 10000;

Weighing range: 0 ~ 300kg / 600kg

Display accuracy: 50g / 100g

Power off data holding function; AC / DC dual-purpose power supply;

External remote display can be connected; Two fixed-point outputs;

RS-232C interface data output; Two digital filtering modes (standard mode and live weighing mode);

Zero reset function; Up to 350 Ω sensors can be connected; Kg / lb conversion function;

Full range peeling function; Input sensitivity: 0.4mv/v ~ 4mv/v

Sensor excitation voltage: 5VDC, 60mA (maximum); A / D conversion speed: 20 times / S ~ 30 times / S;

Power supply: AC: 220V (± 10%) / 50Hz, DC: 6V, 12Ah

Executive standard: GB / T 7722-2005

Size of type a conventional weighing platform: 400 * 500mm / 600 * 800mm

Size of type B conventional weighing platform: 480 * 480mm / 700 * 800mm

Scale frame structure: the national standard high-quality carbon steel round pipe is assembled and welded by special fixture, and is treated by electrostatic spraying and baking paint

Panel material: 1.5mm thick stainless steel

Instrument column: the round pipe vertical pole is detachable

Bearing feet: movable and adjustable

Basic functions: weight counting, zero setting, peeling, gross weight, net weight and accumulation

Interface standard: RS-232 mother port nine pin serial communication can be connected to the computer for data transmission

Operating temperature: - 5 ℃ - 40 ℃

Product features: stainless steel countertop, used in waterproof, sanitary and clean environment, high-quality carbon steel weighing frame

Applicable place: generally applicable to weighing fields such as factories, logistics, warehouses and shopping malls (special for pharmaceutical, chemical, food and herb companies)

Remarks: optional with or without vertical pole
