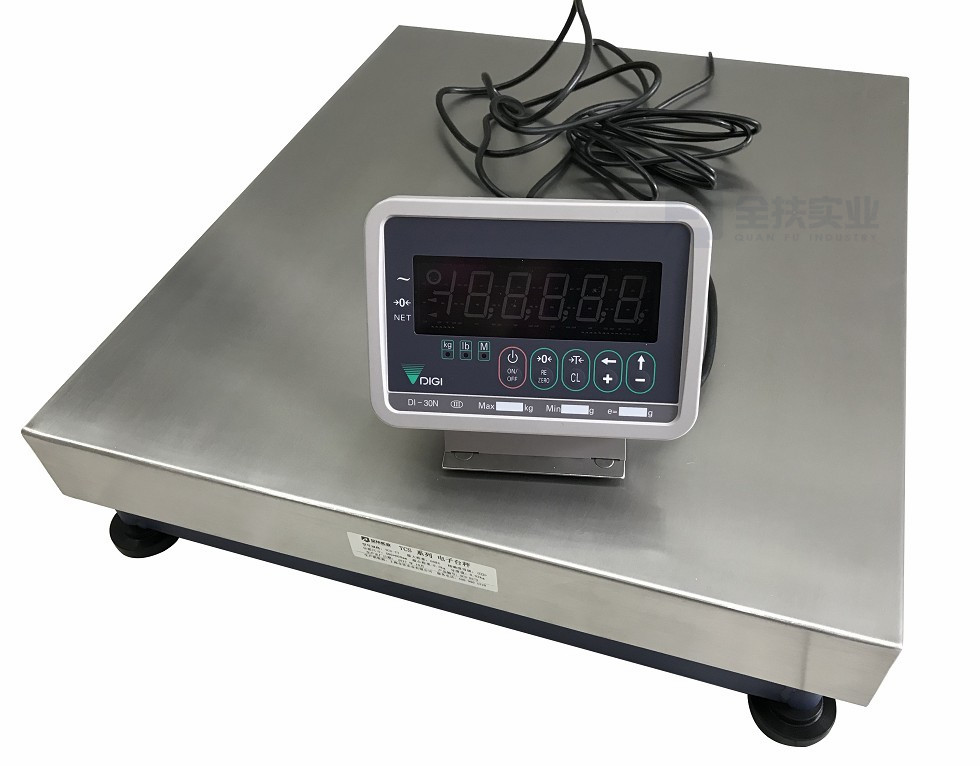

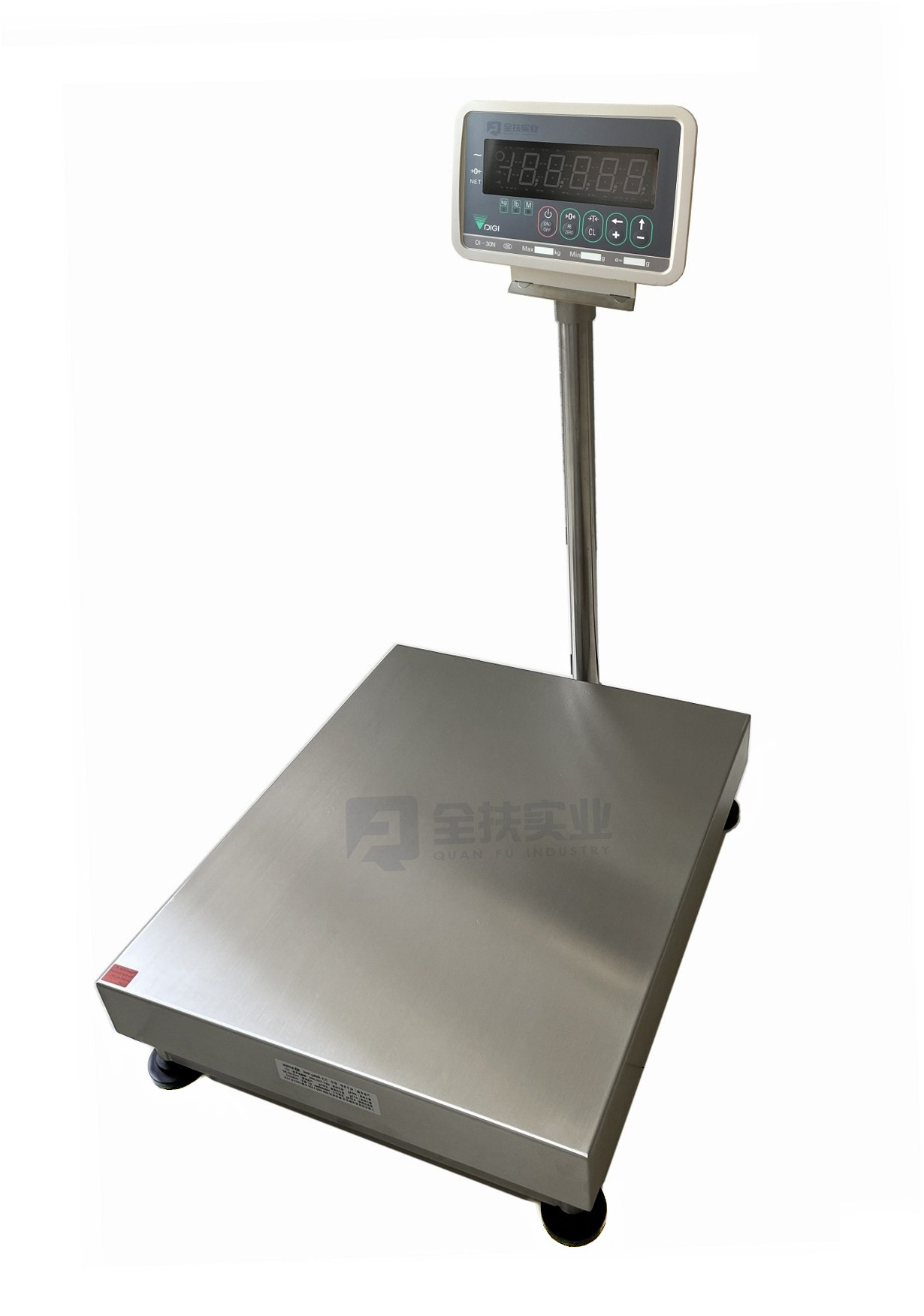

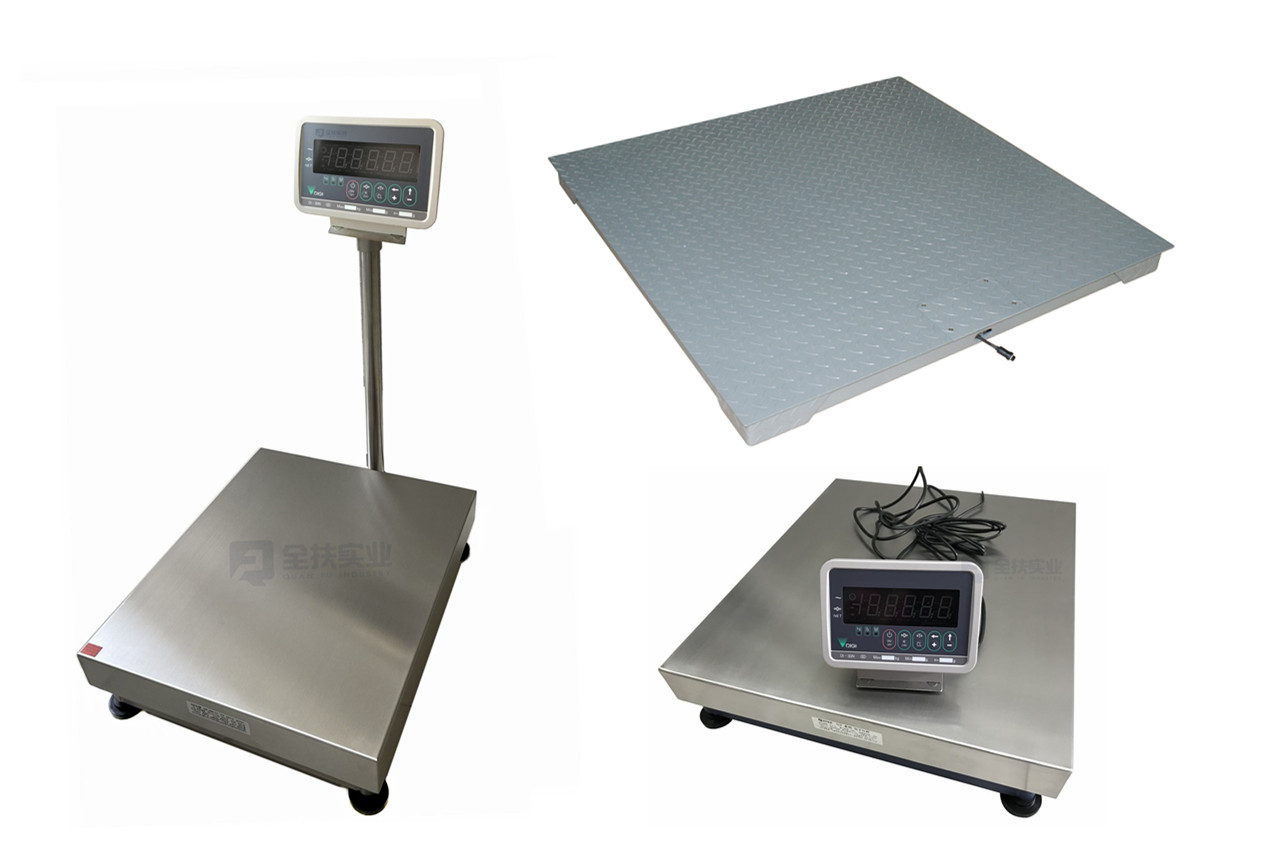

Di-30n electronic platform scale Teraoka industrial electronic platform scale DI-30N Platform scale, sigang ground scale, sigang weighbridge

Carbon steel or stainless steel countertop, with all stainless steel scale platform to choose from

All stainless steel electronic platform scale is used in waterproof and moisture-proof environment. It can be equipped with large weighing platform, i.e. 1t ~ 3T platform scale. Larger weighing is optional

Specification parameters:

Accuracy class: III

Maximum weighing: 30kg / 60kg / 15kg / 300kg

Minimum weighing: 0.05kg

Scale size: 400 * 500mm / 480 * 480 / 600 * 800mm

Executive standard: GB / T 7722-2005

Input sensitivity: 0.4mv/v ~ 4mv/v

Sensor excitation voltage: 5VDC, 60mA (maximum)

A / D conversion speed: 20 times / S ~ 30 times / S

Display: 6-digit LED digital display, 6 decimal places (0.00000 to 000000)

Power supply: AC: 220V (± 10%) / 50Hz, DC: 6V, 12Ah

Scale frame structure: the national standard steel round pipe is assembled and welded by special fixture

Panel material: 1.5mm thick stainless steel table

Instrument column: stainless steel round tube

Bearing feet: movable and adjustable

Built in software functions: weight counting, zero setting, peeling, gross weight, net weight and accumulation

Interface standard: RS-232 nine pin female port

Operating temperature: - 5 ℃ - 40 ℃

Applicable place: generally applicable to weighing fields such as factories, logistics, warehouses and shopping malls (special for pharmaceutical, chemical, food and herb companies)

Note: more weighing and weighing platform sizes can be produced on order, and the delivery time is 30 days.
