Current Position: Home > Company Products >Small table scale > Qf-7 intelligent electronic scale counting scale
Intelligent electronic scale computerization of intelligent scale weighing management
Humanized high-definition touch screen to meet the measurement needs of all walks of life
It can download weighing software, Android system and provide SDK for secondary development

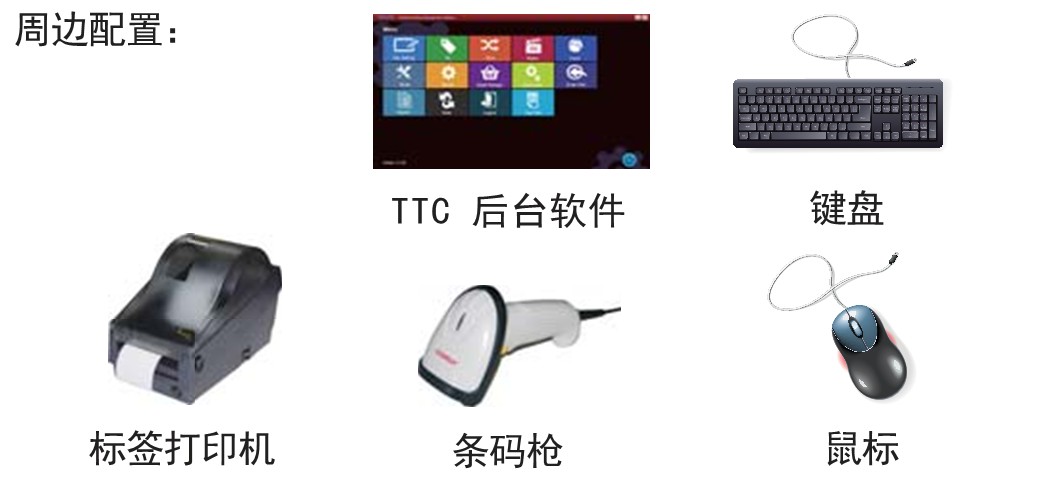

The weighing printer can be connected to customize and edit the printing format
WiFi or serial port / Bluetooth transmission is optional

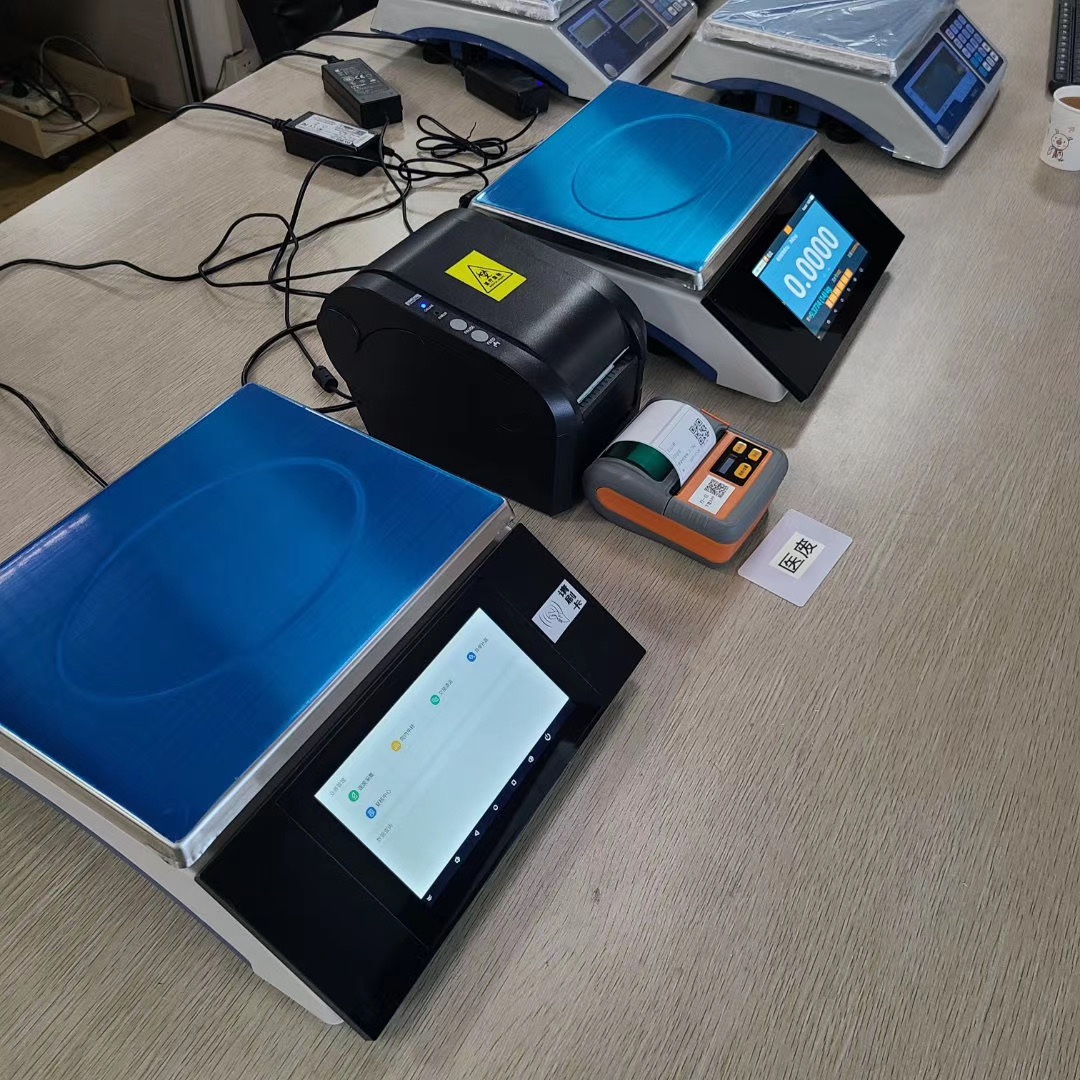

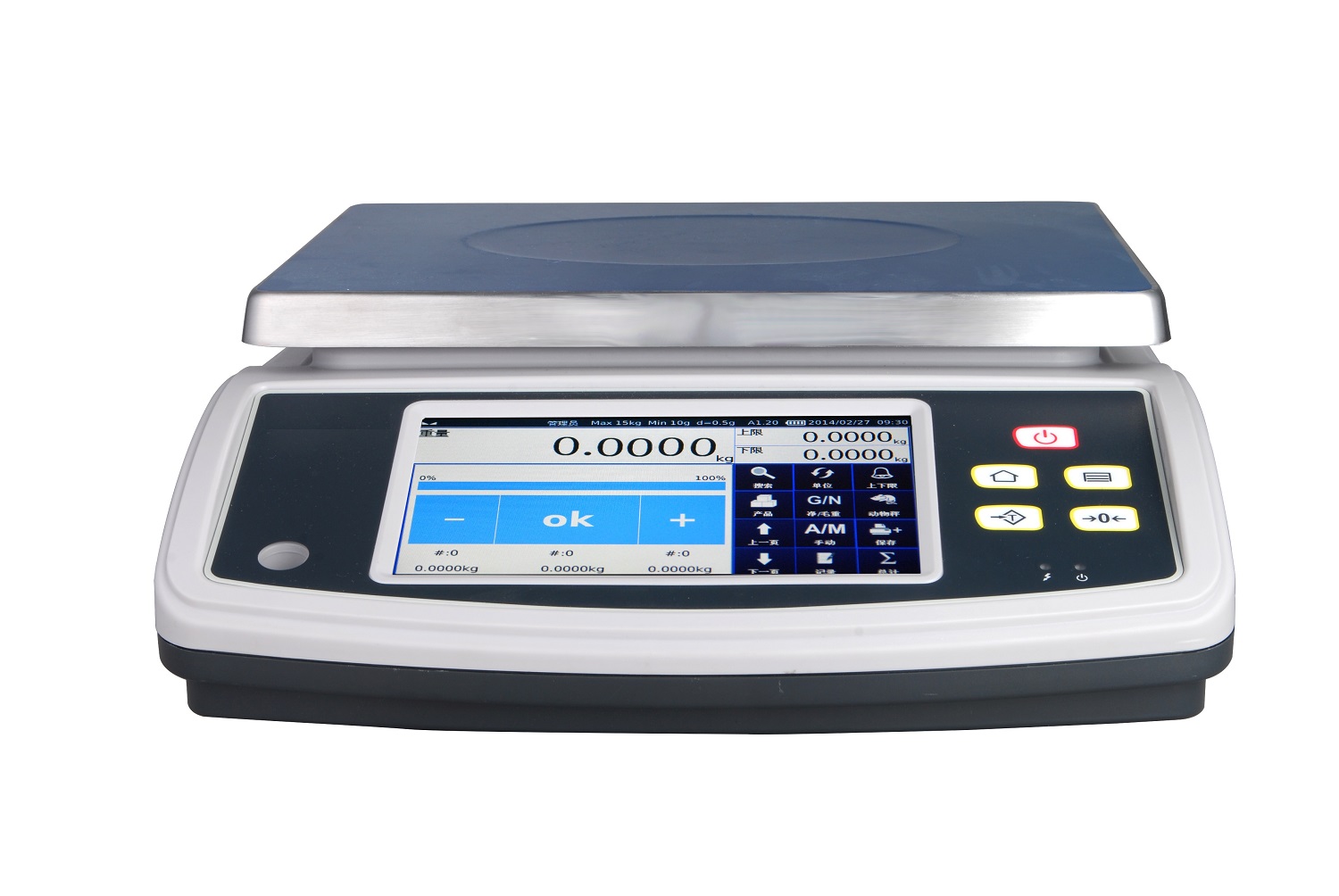

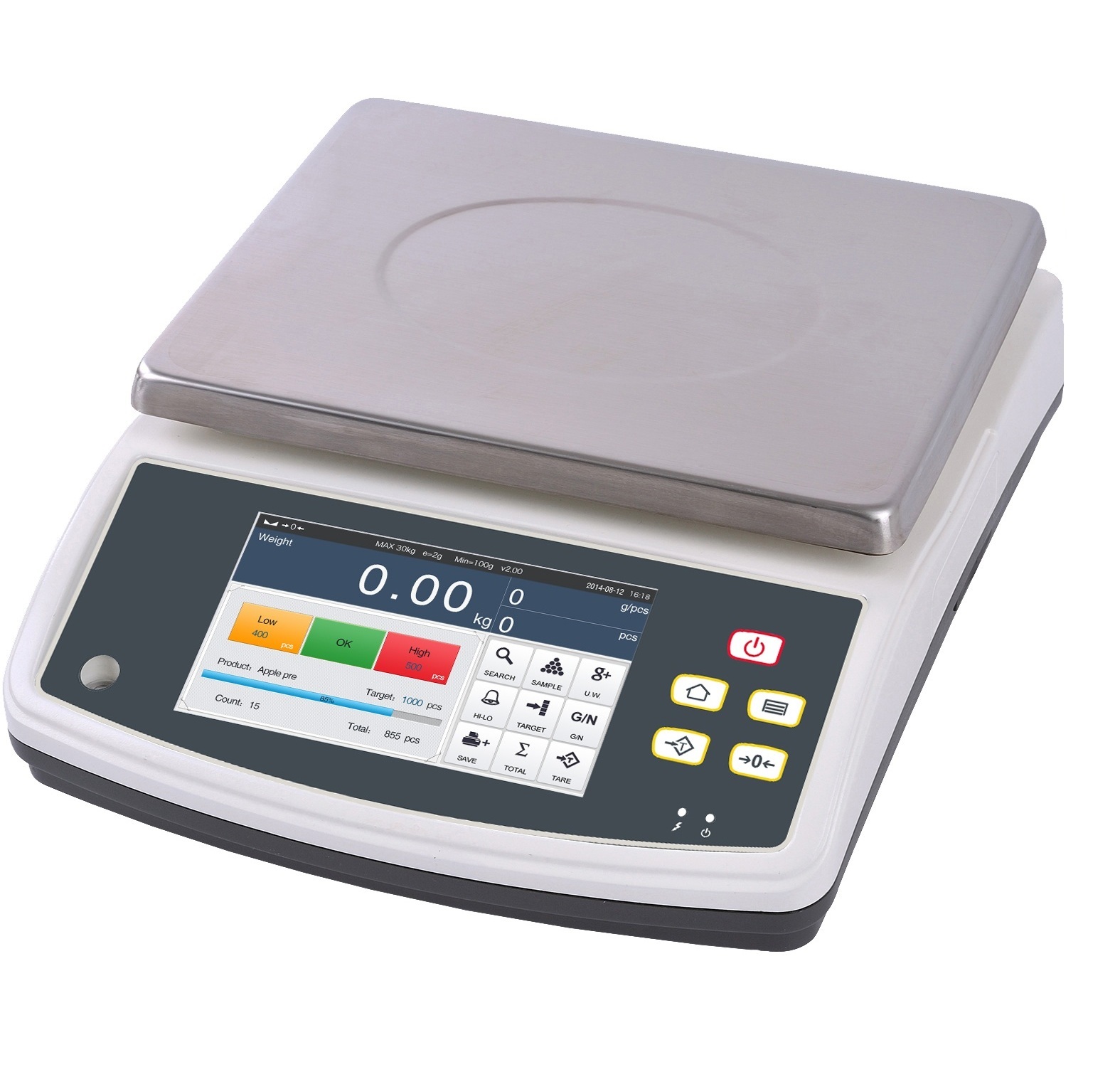

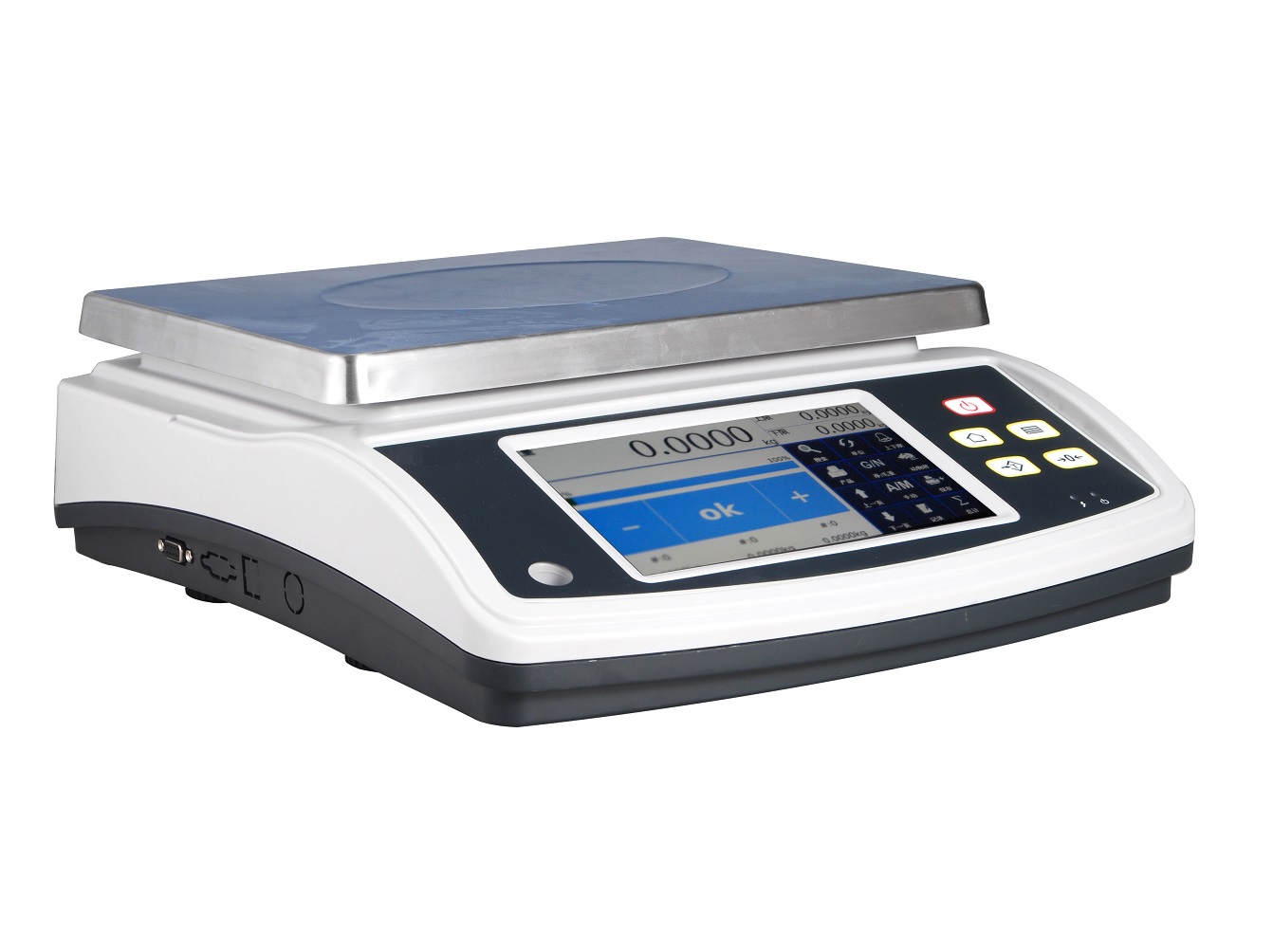

Qf-7 series intelligent electronic scale, intelligent counting scale
Graphical direct viewing operation screen to avoid operation errors and reduce labor cost
Automatically generate weighing records and various management reports, with strong extensibility
Technical parameters:
Accuracy class: III
Weighing display: 7-inch resistive touch screen (display resolution 800 * 480)
Range: 3kg / 6kg / 15kg / 30kg
Display accuracy: 0.1g/0.2g/0.5g/1g
Weighing display speed: ≤ 1 ~ 2 seconds, weighing reflects quickly
Weighing unit: G, kg, LB
Operating system: Embedded Linux operating system (optional Android system)
Cup and memory: 9 single core, 1GB memory, 8GB flash memory (expandable)
Structural features: ABS plastic scale body, stainless steel scale pan, 5 mechanical keys
Operating environment: working temperature - 10C ~ + 40 ℃
Working power supply: output AC100-240V, 50 / 60Hz, input DC12V / 2500ma
Basic functions:
Weight checking, counting (sampling, setting single weight), zeroing, preset peeling, accumulation and unit switching
The 8 ID product setting attributes can be customized and edited, and the preset 9999 product information can be stored and called, which is convenient and fast
Automatically generate weighing records and report management (daily report, monthly report, product report, customer report, operator report, etc.)
A variety of printing formats are available (label format, bill format, total label format and total bill format), which can be customized, edited and printed
Multi language switching, support Chinese Pinyin input, multiple weighing units are optional
It supports importing and exporting product data and printing format through USB flash disk
The remote data can be synchronously summarized through WiFi networking
The background management software is optional, which can view the status information of the scale in real time and manage product information and report data
Standard communication interface: 2 RS232, 2 USB2 0 and 1 RJ45
The standard 6V / 4ah rechargeable battery can be used continuously for 60 hours
Specification model:
model | Q7-3 | Q7-6 | Q7-15 | Q7-30 |
maximum capacity | 3kg | 6kg | 15kg | 30kg |
Minimum sensitivity | 0.1g | 0.2g | 0.5g | 1g |
Pan size | 200x230mm | |||
Note: WiFi or 4G applications can be selected, Android system can be customized, and SDK is available for secondary development and application.
Intelligent electronic scale, order receiving production
The weighing range of 30kg explosion-proof electronic scale is optional
High precision explosion-proof electronic scale, adjustable precision, stainless steel small explosion-proof scale
Stainless steel, intrinsically safe explosion-proof, explosion-proof optional
Weighing below 1kg ~ 30kg
Intelligent electronic scale computerization of intelligent scale weighing management
Humanized high-definition touch screen to meet the measurement needs of all walks of life
It can download weighing software, Android system and provide SDK for secondary development
The weighing printer can be connected to customize and edit the printing format
WiFi or serial port / Bluetooth transmission is optional
All stainless steel waterproof electronic scale all sealed waterproof scale
It can be efficiently applied to production, packaging, inventory management and shipping
For complex applications in humid and harsh environments
Waterproof electronic scale for food processing factory, double-sided red LED display
3kg ~ 30kg weighing, all stainless steel high-precision waterproof scale
It is suitable for weighing aquatic products, meat food, vegetable processing, chemical industry and pharmaceutical industry
Weighing range: 3kg ~ 30kg, double-sided red LED display
Plastic shell scale body, stainless steel scale pan, high-precision waterproof scale
It is suitable for weight measurement in aquatic products, meat food, vegetables and other processing industries
High precision counting scale, used for weighing and counting precious materials
The maximum weighing is 3kg ~ 30kg, the display accuracy is 0.1g ~ 1g, the weighing response is fast and the accuracy is high
It has the functions of weighing, counting, weight checking, number checking, accumulation and so on
Good quality counting scale can replace Teraoka or Toledo electronic counting scale
High quality electronic scale can replace Teraoka dc-180 counting scale
1 / 30000 high-precision weighing scale, weighing below 30kg, 0.1g ~ 1g accuracy display
Weighing precious materials, fast reaction speed and high accuracy
It has the functions of weighing, counting, weight checking, number checking, accumulation and so on
Industrial high-precision counting scale Factory quality material counting and weighing
Maximum weighing capacity of 3kg~30kg, 1g display accuracy, fast weighing response, and high accuracy
Equipped with functions such as weighing, counting, weight checking, counting, and accumulation
Diversified weighing management applications such as production manufacturing, packaging weight inspection, quality control, etc
Industry High precision weighing scale 6kg and 15kg electronic scales
3kg ~ 30kg weighing, 1g display accuracy, fast weighing response and high accuracy
It has the functions of weighing, counting, weight checking, number checking, accumulation and so on
It can be easily used in every corner of the factory
