Current Position: Home > Company Products >Small table scale > Ex30 intrinsically safe explosion-proof case scale
The weighing range of 30kg explosion-proof electronic scale is optional
High precision explosion-proof electronic scale, adjustable precision, stainless steel small explosion-proof scale
Stainless steel, intrinsically safe explosion-proof, explosion-proof optional
Weighing below 1kg ~ 30kg

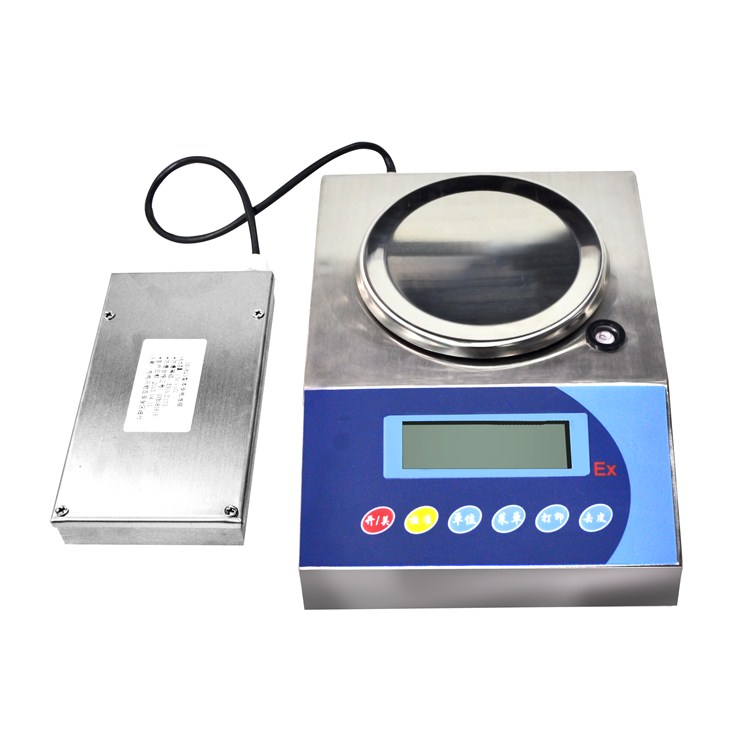

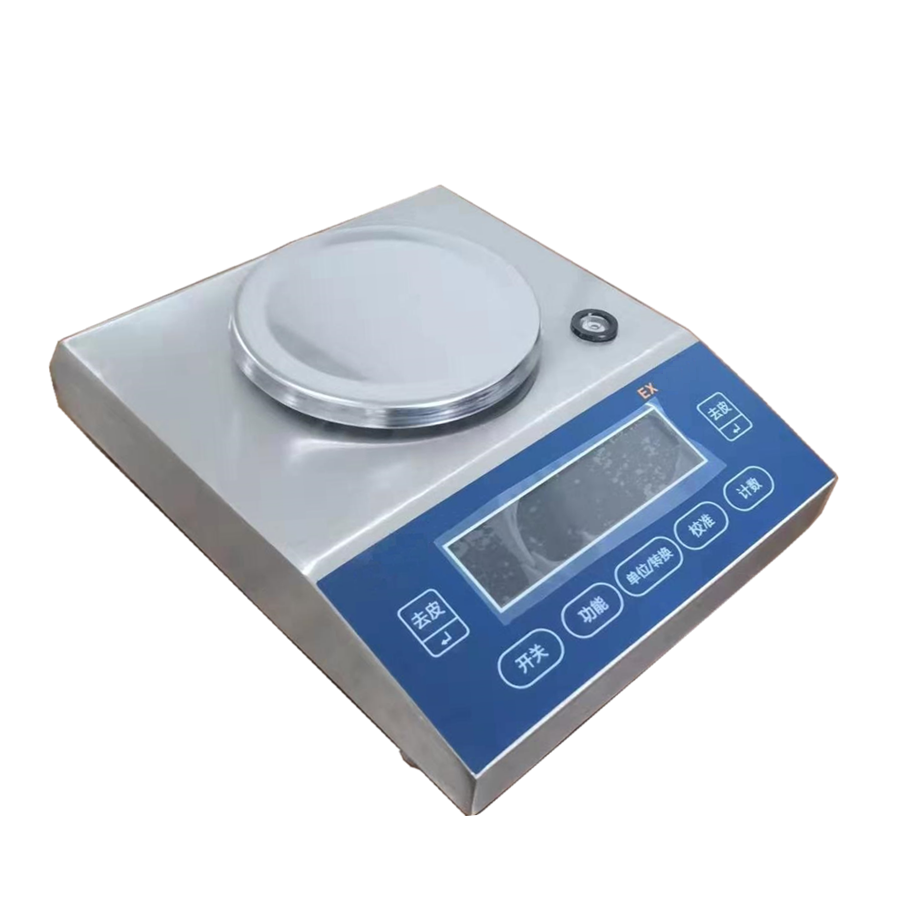

Ex30 series explosion-proof electronic scale / explosion-proof desk scale / explosion-proof scale
Technical parameters:
Explosion proof sign: exib Ⅱ CT5 or ex IB IIC T4 GB
Accuracy grade: III
EX-1 square pan explosion-proof scale: 1kg ~ 30kg, weighing pan size: 220x260mm; Overall dimension: 335x250x108mm
EX-3 round pan explosion-proof scale: 100g-1kg, weighing pan size: φ 110mm or φ 130mm。;
Division value:6000e; 15000e; 30000d; 60000d
Functions include:
It can be automatically cleared, peeled and shut down
Weighting has the advantages of fast response, reliable precision, simple operation and convenient maintenance
It has general weighing and counting weighing functions and unit conversion functions
Display mode: 6-bit segment code LCD, green backlight or white backlight.
Charging mode: intrinsically safe battery pack (the charging process must be carried out in a safe area) or intrinsically safe explosion-proof power supply
Ultra low power consumption, ultra long standby, standby for about 60 hours when fully charged
Optional RS-232 communication interface, special printer and connection to computer can realize data printing and management.
Applications: petroleum, chemical, pharmaceutical, smelting, coking, gunpowder, granary, coating, flour mill, finishing and other occasions.
Main components: Stainless steel scale body, mainboard, intrinsically safe sensor, intrinsically safe battery pack
Specification selection:
Product model | weighing | Division value | Pan size |
Ex-1 | 100g~1kg | 0.001g | φ 130mm |
EX-3 | 2t~3kg | 0.01g | 220x260mm |
EX-3 | 5kg~6kg | 0.1g | 220x260mm |
EX-3 | 15kg~30kg | 1g | 220x260mm |
Note: the explosion-proof case scale (explosion-proof scale) is combined with the actual use and fully complies with GB3836. 1-2010 electrical equipment for explosive gas environment Part 4: intrinsically safe type "I", which is an ideal choice for the total amount of inflammable, explosive and other high-risk fields
The weighing range of 30kg explosion-proof electronic scale is optional
High precision explosion-proof electronic scale, adjustable precision, stainless steel small explosion-proof scale
Stainless steel, intrinsically safe explosion-proof, explosion-proof optional
Weighing below 1kg ~ 30kg
Intelligent electronic scale computerization of intelligent scale weighing management
Humanized high-definition touch screen to meet the measurement needs of all walks of life
It can download weighing software, Android system and provide SDK for secondary development
The weighing printer can be connected to customize and edit the printing format
WiFi or serial port / Bluetooth transmission is optional
All stainless steel waterproof electronic scale all sealed waterproof scale
It can be efficiently applied to production, packaging, inventory management and shipping
For complex applications in humid and harsh environments
Waterproof electronic scale for food processing factory, double-sided red LED display
3kg ~ 30kg weighing, all stainless steel high-precision waterproof scale
It is suitable for weighing aquatic products, meat food, vegetable processing, chemical industry and pharmaceutical industry
Weighing range: 3kg ~ 30kg, double-sided red LED display
Plastic shell scale body, stainless steel scale pan, high-precision waterproof scale
It is suitable for weight measurement in aquatic products, meat food, vegetables and other processing industries
High precision counting scale, used for weighing and counting precious materials
The maximum weighing is 3kg ~ 30kg, the display accuracy is 0.1g ~ 1g, the weighing response is fast and the accuracy is high
It has the functions of weighing, counting, weight checking, number checking, accumulation and so on
Good quality counting scale can replace Teraoka or Toledo electronic counting scale
High quality electronic scale can replace Teraoka dc-180 counting scale
1 / 30000 high-precision weighing scale, weighing below 30kg, 0.1g ~ 1g accuracy display
Weighing precious materials, fast reaction speed and high accuracy
It has the functions of weighing, counting, weight checking, number checking, accumulation and so on
Industrial high-precision counting scale Factory quality material counting and weighing
Maximum weighing capacity of 3kg~30kg, 1g display accuracy, fast weighing response, and high accuracy
Equipped with functions such as weighing, counting, weight checking, counting, and accumulation
Diversified weighing management applications such as production manufacturing, packaging weight inspection, quality control, etc
Industry High precision weighing scale 6kg and 15kg electronic scales
3kg ~ 30kg weighing, 1g display accuracy, fast weighing response and high accuracy
It has the functions of weighing, counting, weight checking, number checking, accumulation and so on
It can be easily used in every corner of the factory
