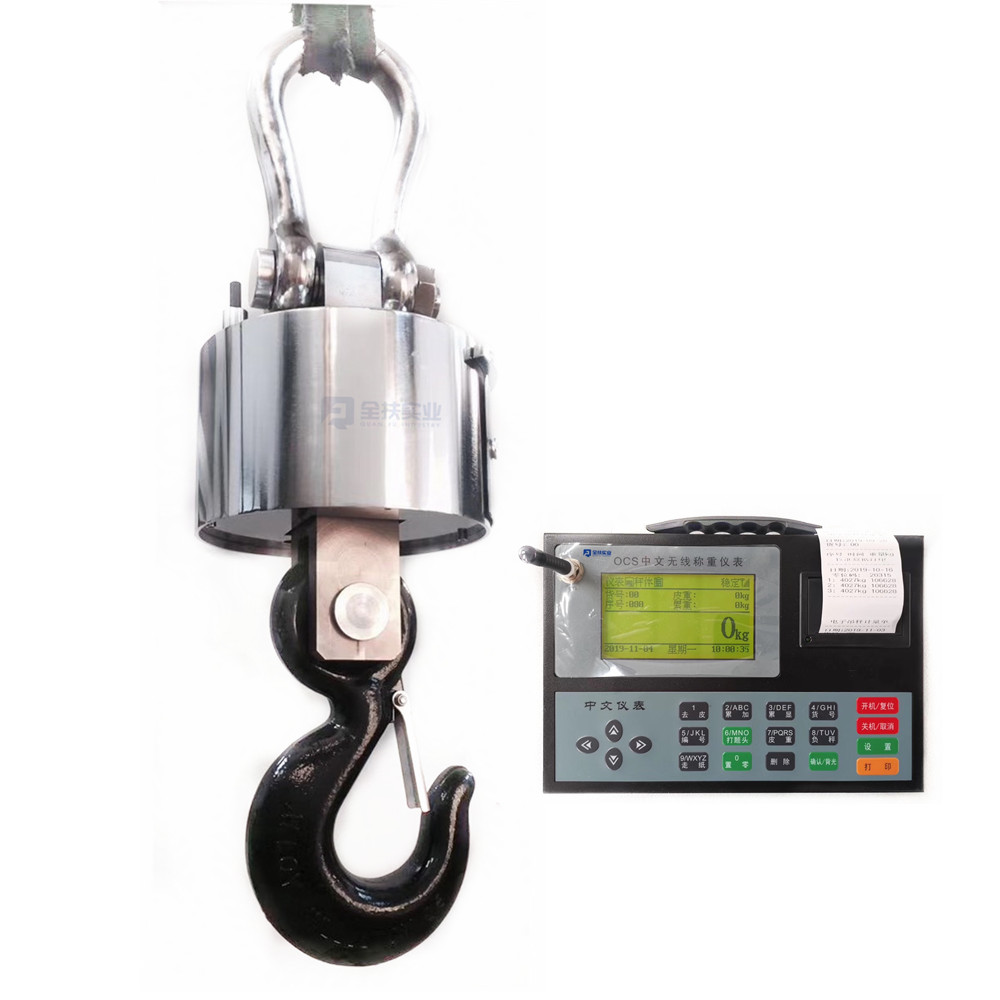

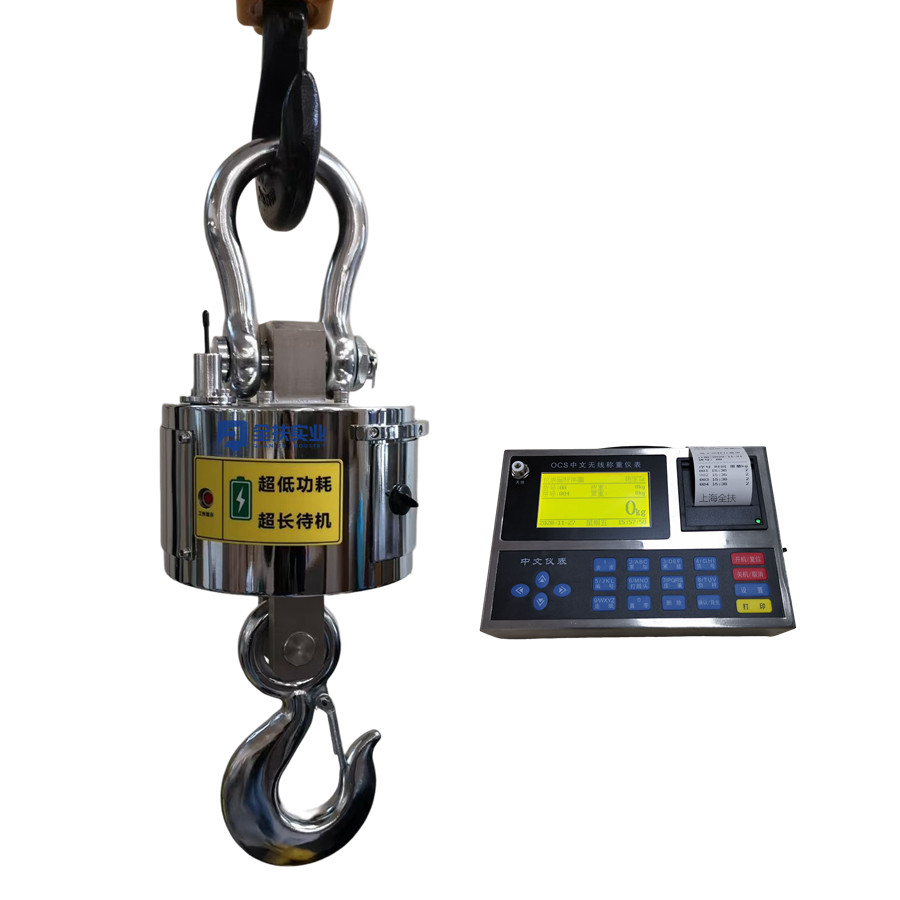

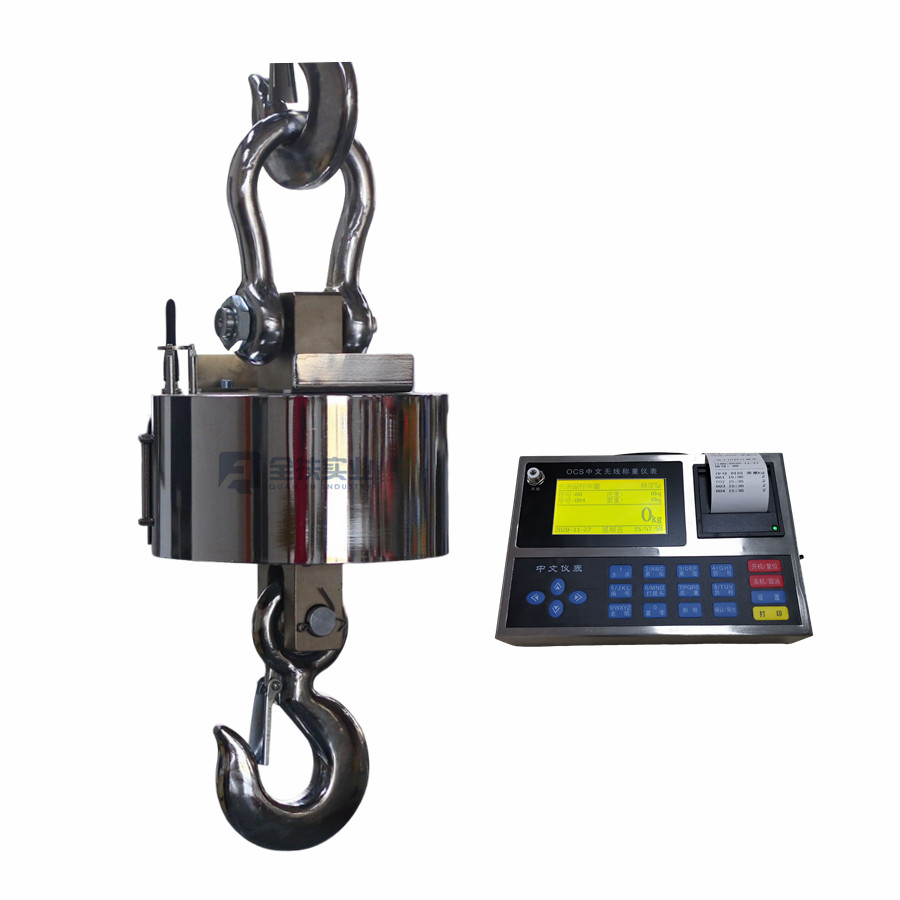

OCS-XS-C (1t~50t) Series Wireless Data Transmission Electronic Hanging Scale OCS Series Wireless Hanging Scale

All steel structure weighing body, stable, reliable, accurate and safe weighing management

Ultra low power consumption design, lasting battery life; Three layer sealing design, better rain proof and dust proof;

Built in special antenna, safe and reliable communication, ultra-high strength hook and loop, ensuring safe use;

The whole steel structure scale body is earthquake resistant and impact resistant, and the whole process monitoring log is more convenient for management.

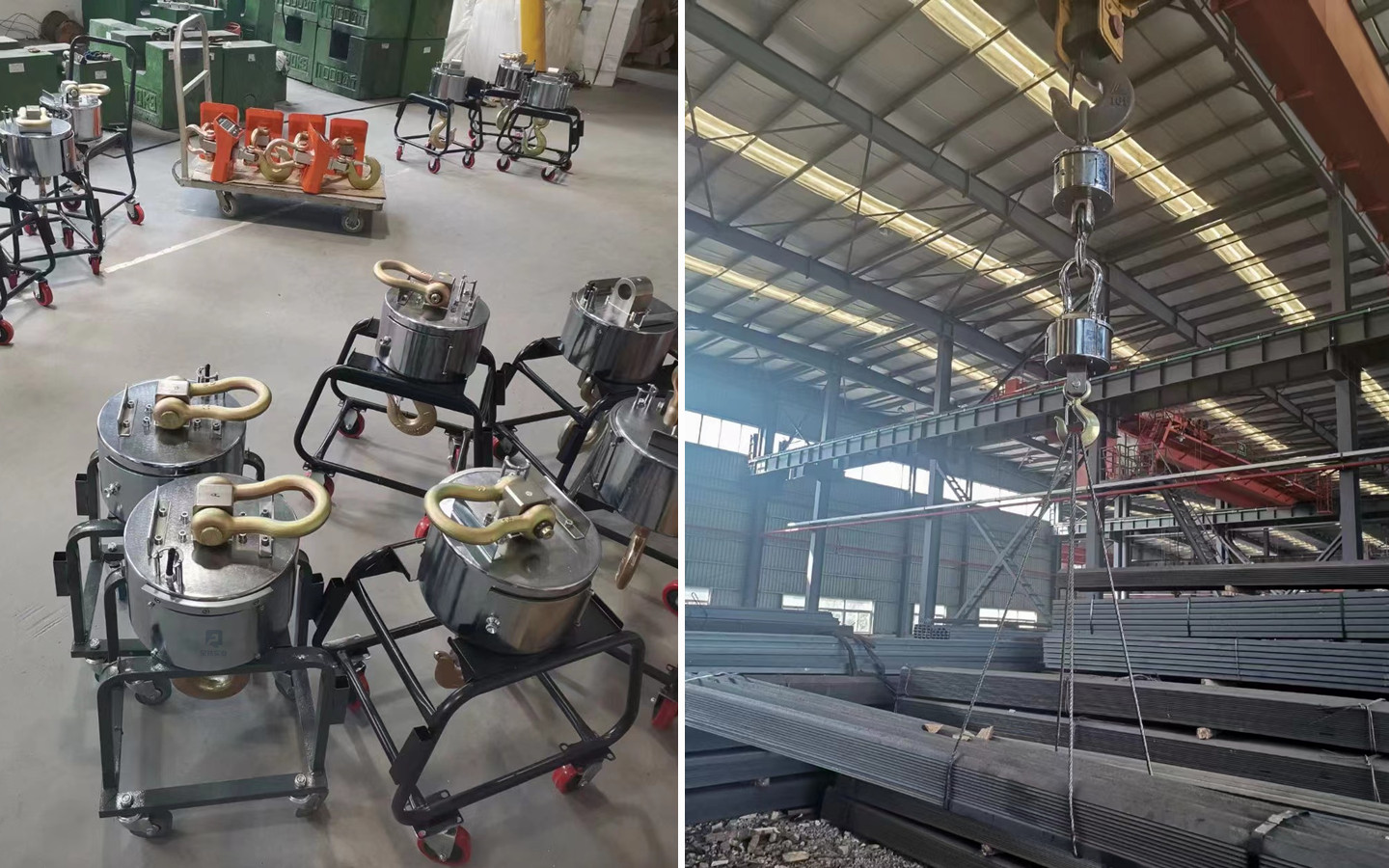

It is used in iron and steel metallurgy, railway loading and unloading, ports and docks, processing and manufacturing, energy mines, logistics and warehousing, etc.

[Scale body performance]

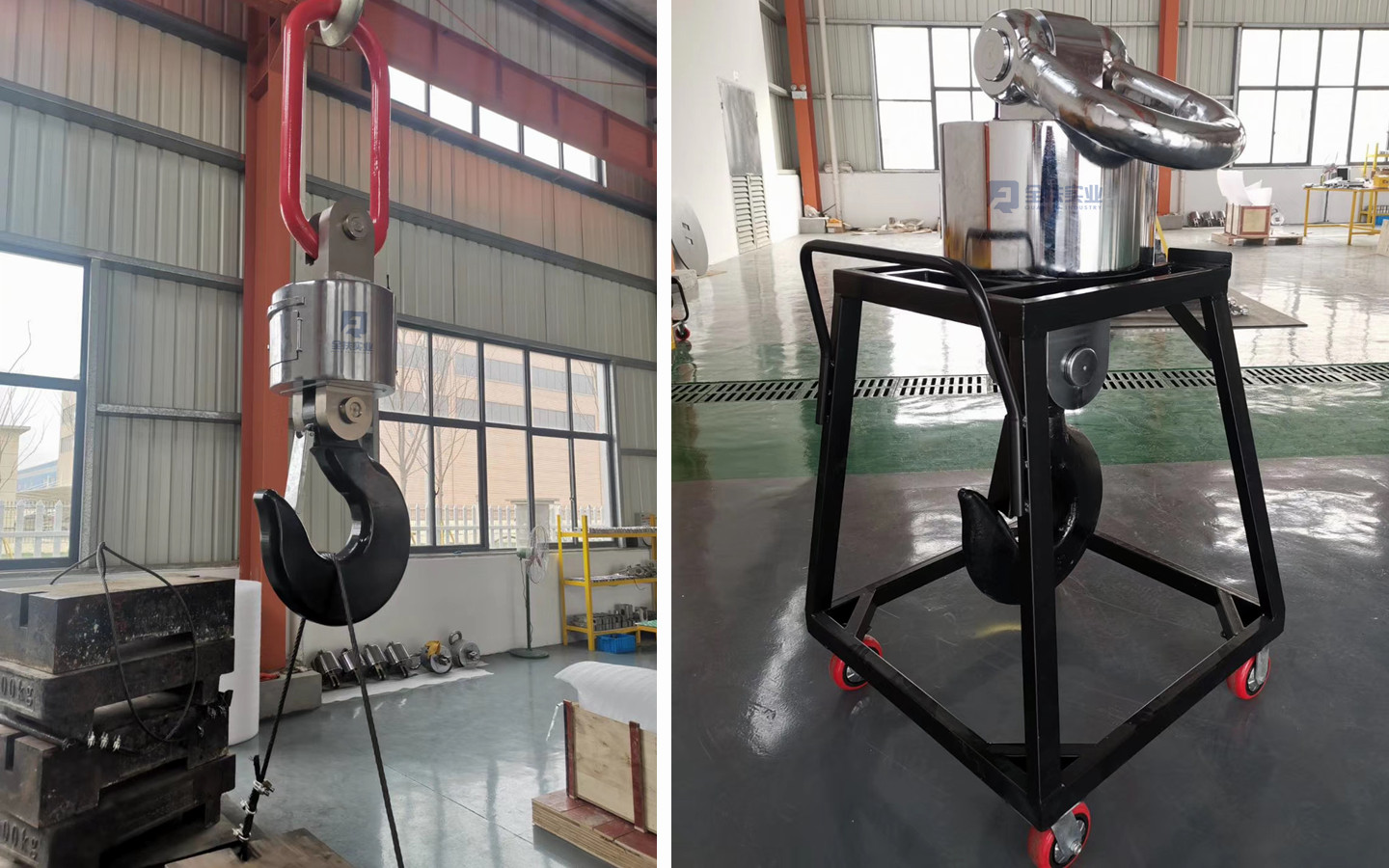

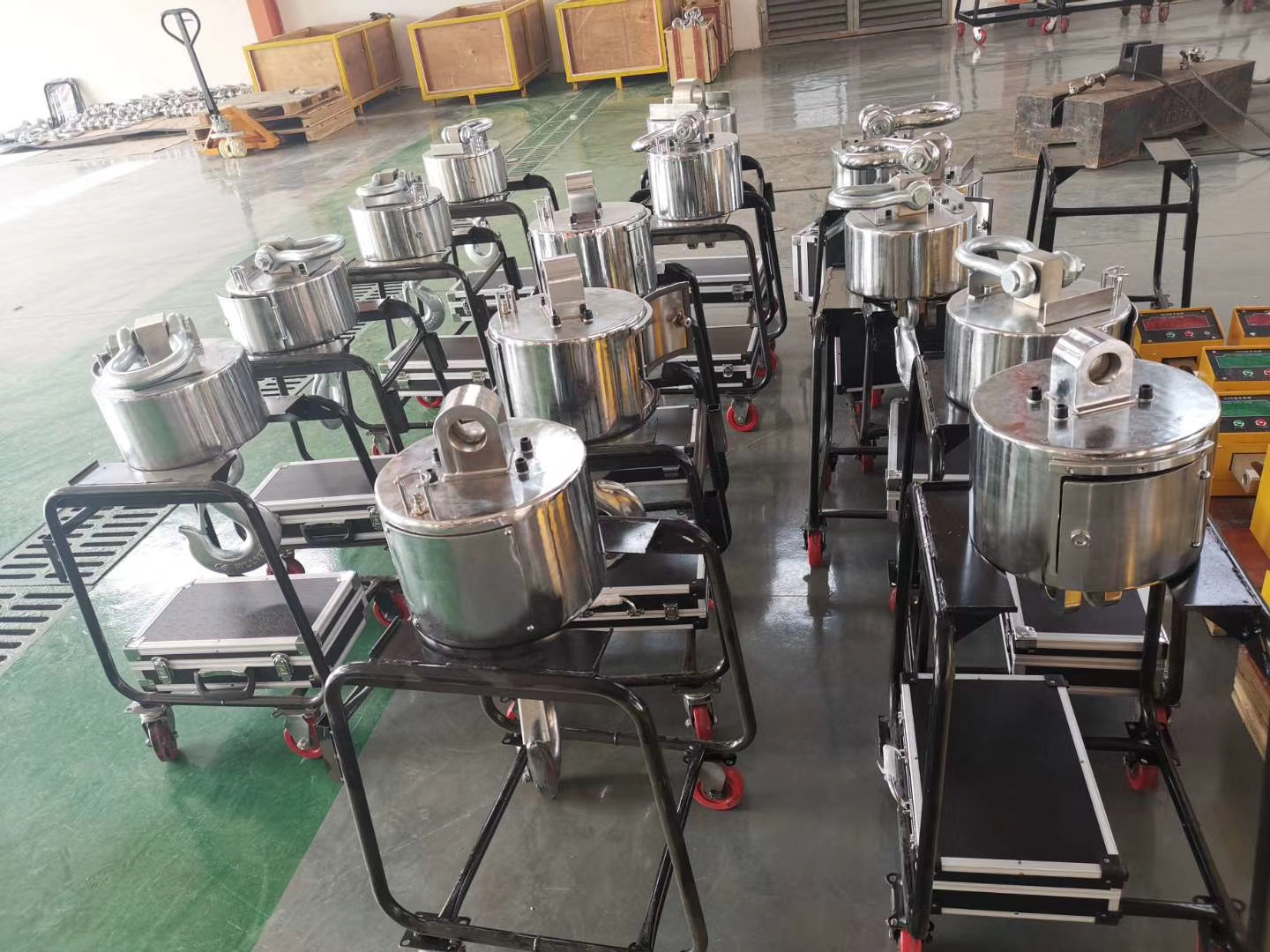

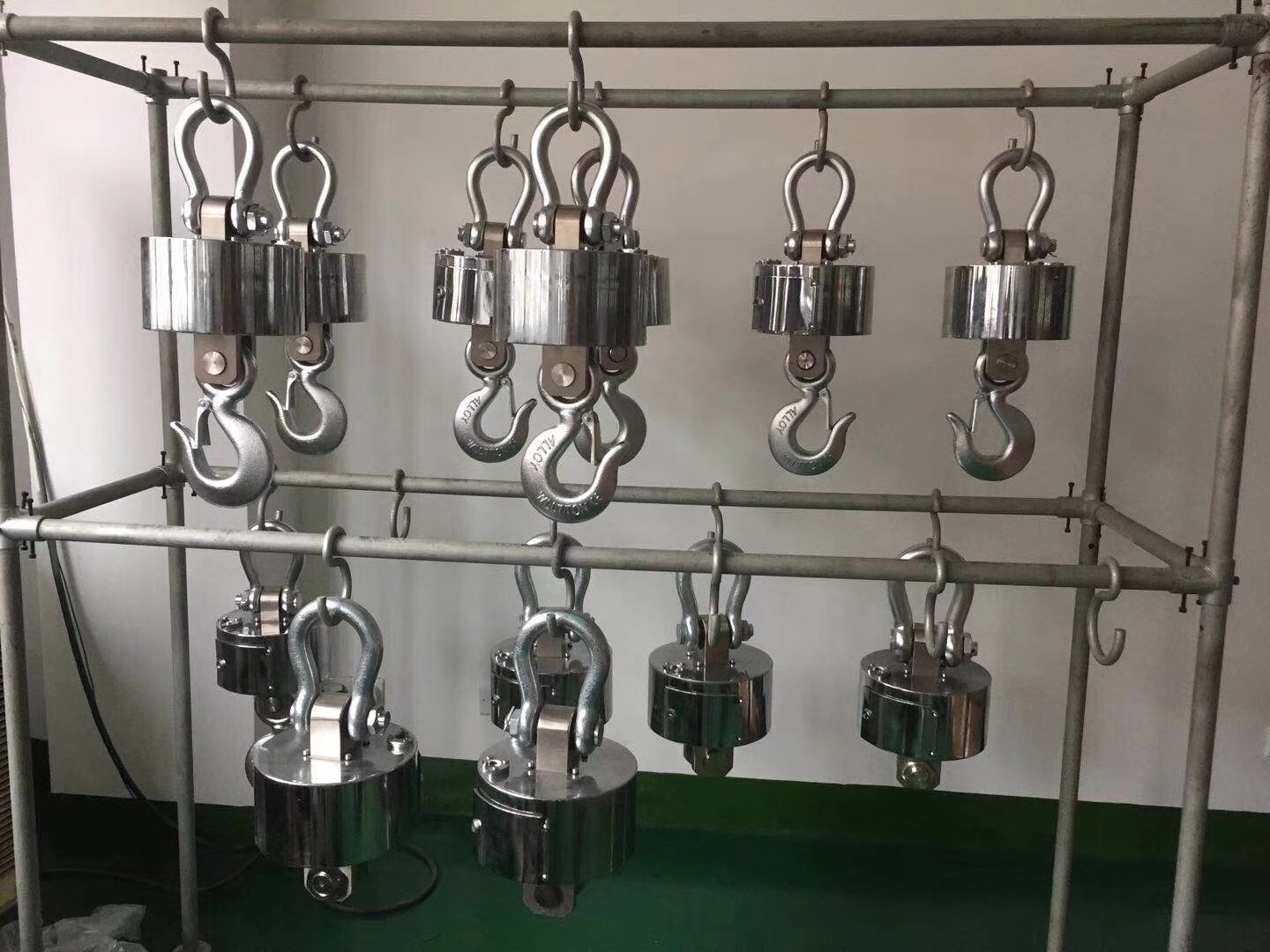

The scale body is made of all steel structure, which is anti vibration and impact resistant. The built-in top of the electrical appliance is installed with anti-collision and rain protection. The scale body is nickel plated on the outside, rust proof, and equipped with a small cart for handling. High precision and high impedance sensor (optional with imported brand sensor) fully sealed electrical box to ensure weighing performance. Built in receiving and transmitting paper and transmitting antenna, durable.

Technical Parameters

Accuracy class: III (GB/T11883-2002)

Reading stabilization time:<10 seconds

Safe overload: 150% F.S

Limit overload: 500% F.S. (400% F.S. above 20t)

Wireless transmission frequency range: 2.4GHz

Wireless transmission distance (visual distance): 200m (under open conditions)

Operating temperature: - 20 º C~+50 º C

Relative humidity:<95%

Protection grade: IP65 (electrical part of scale body)

Scale power supply: optional special battery or customized special battery for large capacity weigher (can be used continuously for more than 200 hours once charged)

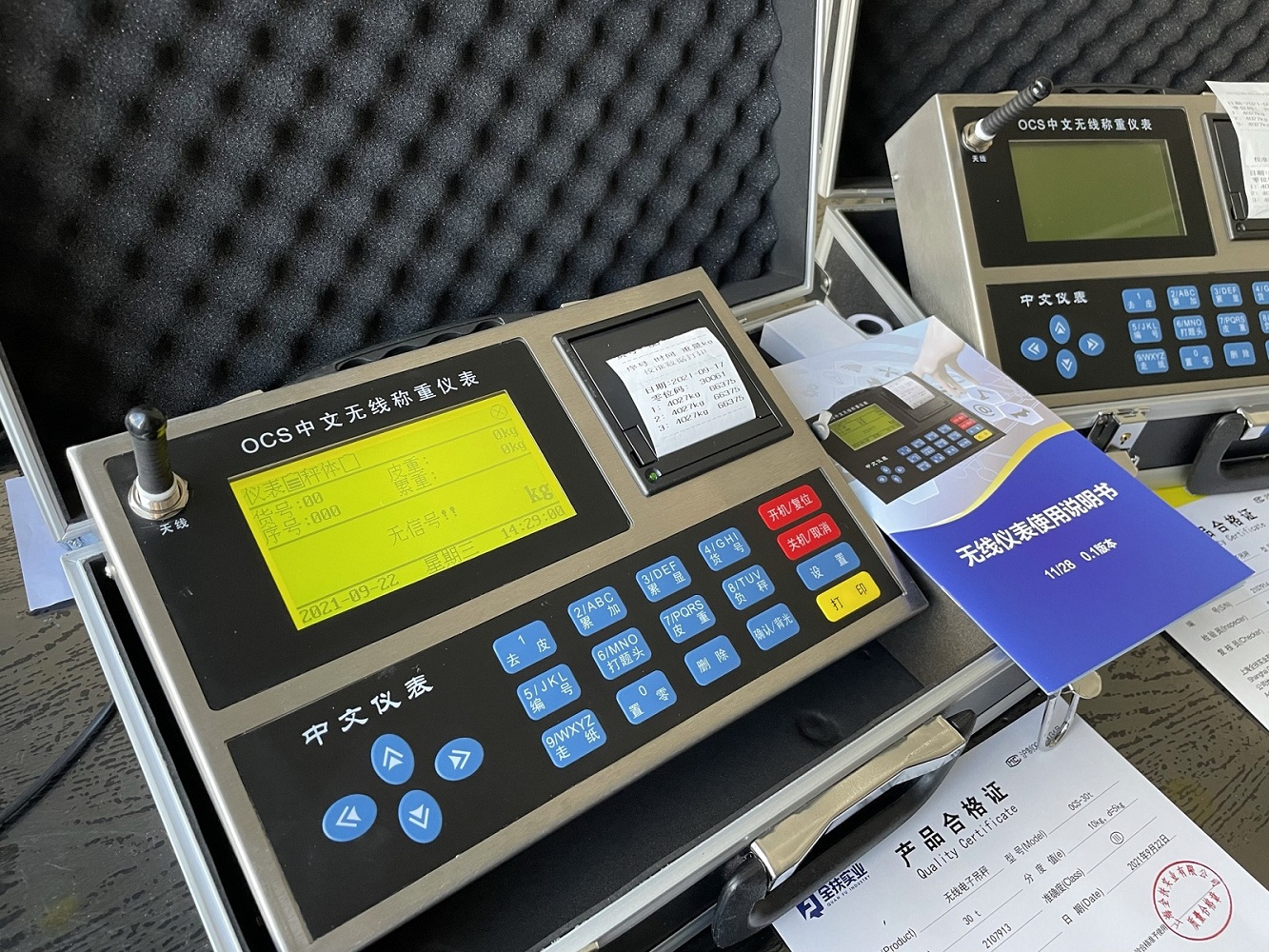

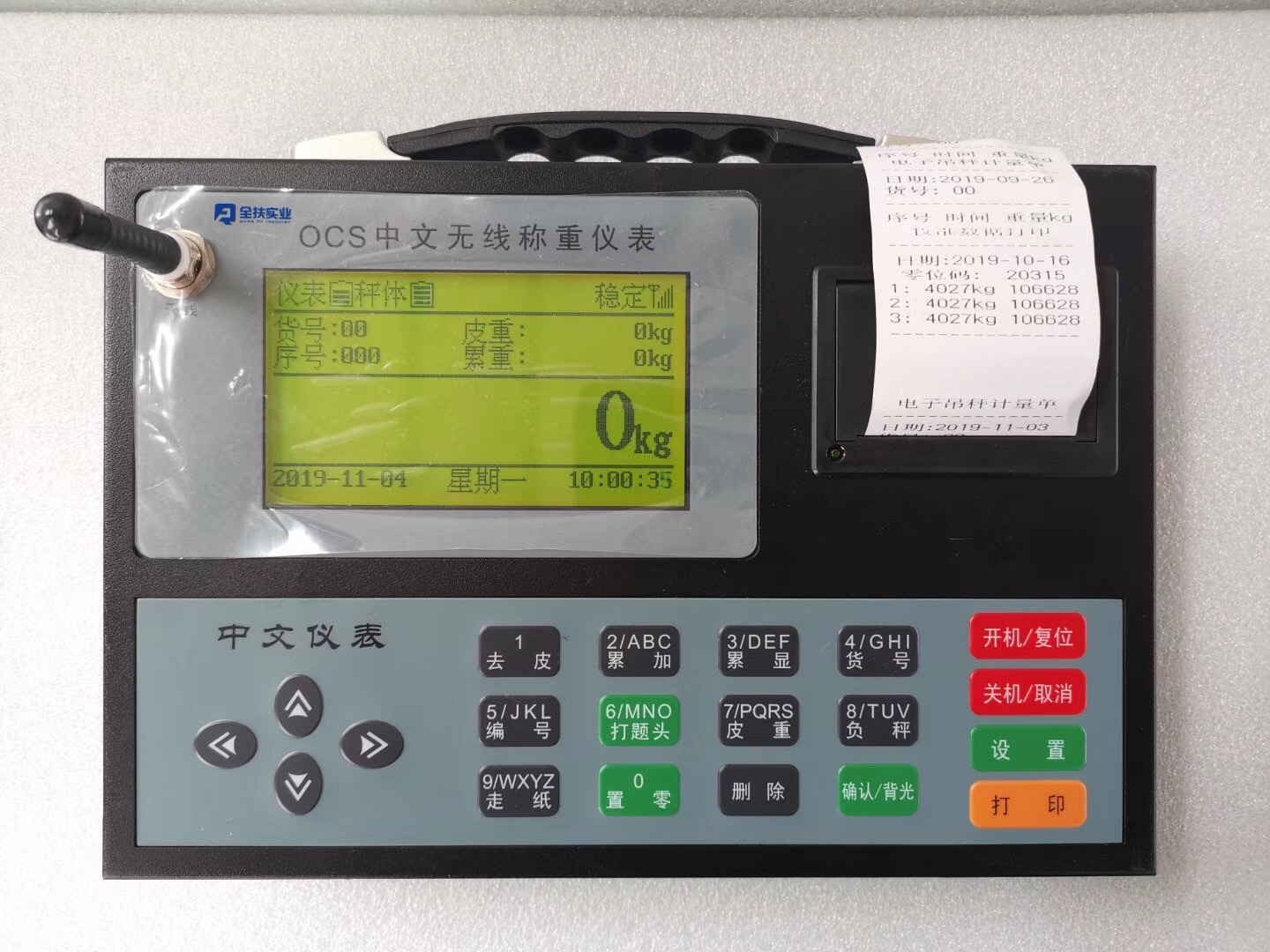

[Weighing display instrument]

Stainless steel+ABS shell, Chinese LCD menu as interface, dynamic monitoring and digital filtering, high comfort button type;

Built in thermal printer, with 3000~30000 divisions, and 8 display updates per second;

AC: 100~240VAC, 49~51HZ, connected to special power adapter; DC: 7.2VDC built-in nickel hydrogen rechargeable battery;

Wireless transmission communication frequency: 2.4GHz universal free band, communication distance: ≥ 200m (visual distance), built-in 3dB high-frequency antenna;

Equipped with RS232 communication interface, it can be connected to computer, large screen, printer and other external devices.

It has the functions of peeling, peeling, printing, zero clearing, constant value alarm or prompt after printing, TTL level output, etc.

999 data storage (including label, serial number, time, date, gross weight, tare weight and net weight), power failure protection;

Quick label function: there are 10 one key labels from 0 to 9, and Chinese, letters, numbers and other labels can be customized;

The instrument can control the scale body to sleep and wake up, and the shortcut key can be used for label input and query, which is super fast;

Press the label accumulation function to view or clear the automatic printing or storage function, the internal locking function of printing, and the echo function of the last steady weight;

The weighing log recording function can query the number of times of weighing, etc;

The thermal printer is equipped with 57 ± 0.5mm wide thermal paper with diameter less than 40mm, the printing width is 48mm, and the printing speed is 20mm/sec

The life of the thermal head piece is 50km (printing amount ≤ 15%).

Remark: Shanghai Quanfu Industry Co., Ltd. specializes in high-precision hanging scales, including direct viewing electronic hanging scales, wireless data transmission printing hanging scales, and high temperature resistant hanging scales. Our hanging scales can be customized according to the actual weighing and accuracy requirements of users to ensure that they meet the needs of non applications. They can be widely used in the fields of logistics and warehousing, nonferrous metals, iron and steel metallurgy, coal energy, metal and metal processing industrial and mining enterprises, such as cargo handling, material import and export statistics Warehouse stock control, process flow measurement, finished product weight identification and weighing.

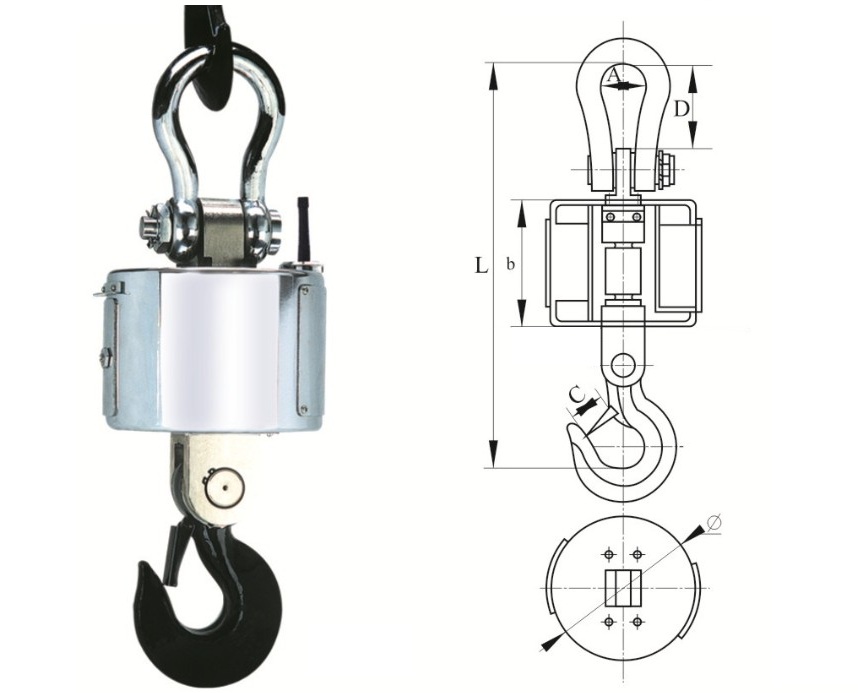

Specifications

range	Graduation value	A	b	C	D	L	Φ
1t	0.5kg	76	105	34	95	460	190
2t	0.5kg
3t	1kg	75	140	40	95	500	240
5t	2kg	75	195	56	92	620	270
10t	5kg	106	195	70	117	712	270
15t	5kg	150	220	86	118	897	295
20t	10kg
30t	10kg	150	220	103	172	1050	320
40t	20kg	214	300	105	274	1263	375
50t	20kg

【备注】可非标定制加大吊环或加大吊钩，各种range/精度可任意搭配可定制。

可非标定制100t及200t超大range吊秤。

Optional imported sensors, customized high-end quality hanging scales to replace imported brands

Standard Configuration

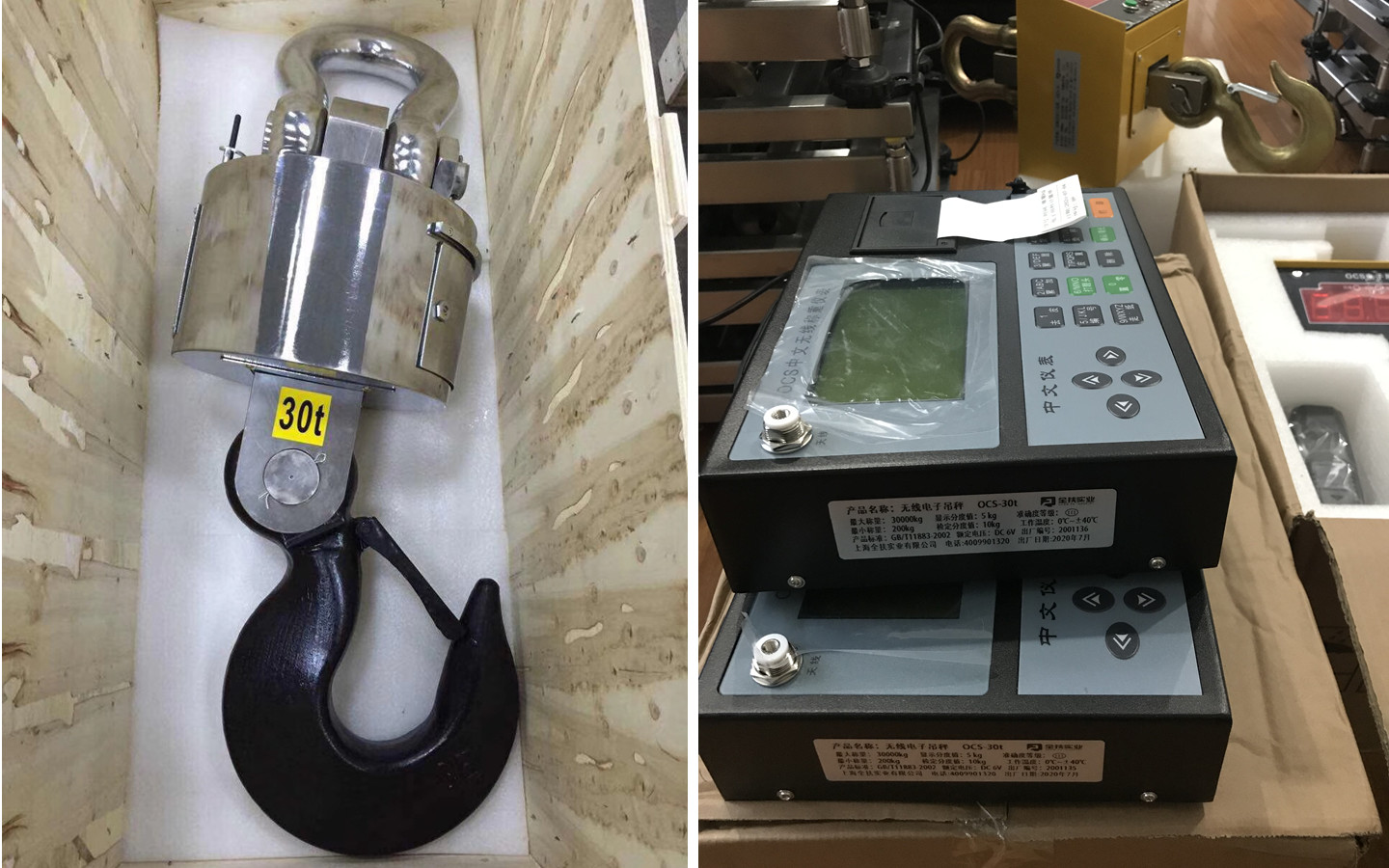

One set of standard scale body (including weighing printing instrument, weighing sensor and high-strength shackle)

Two rechargeable batteries, one set of charger (optional with external large screen)

A set of user manual and warranty card

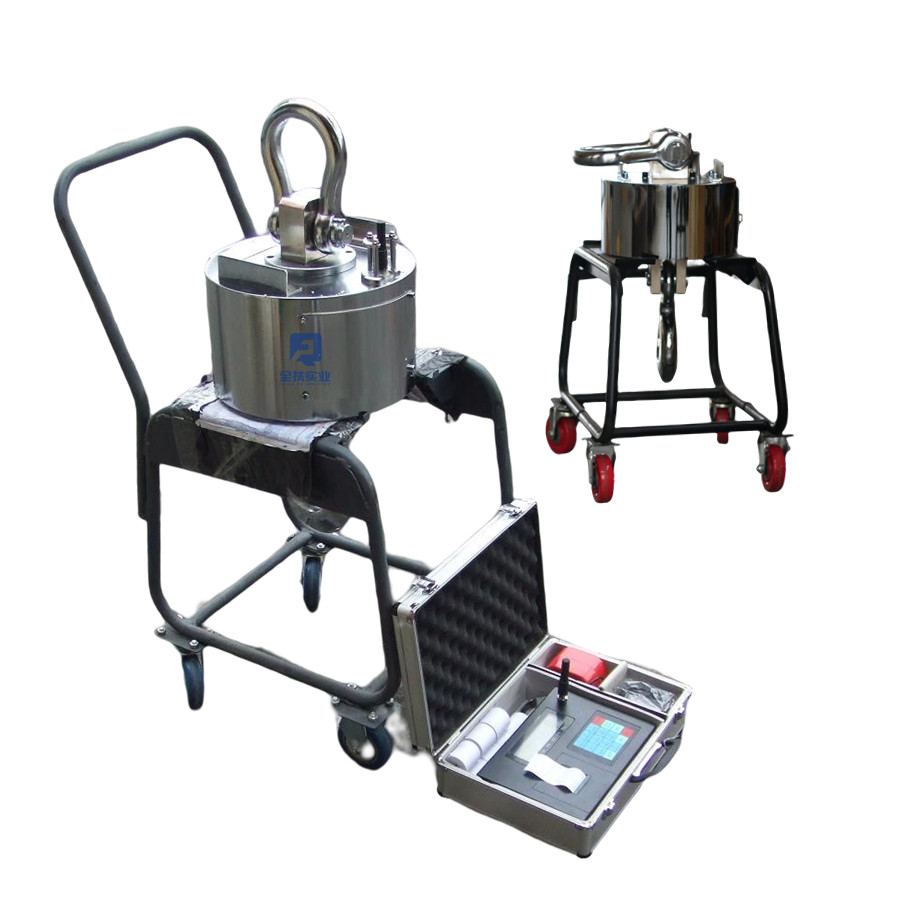

秤体存放小推车一个（15trange以上标配）

Note: Small weighing, large weighing optional, high-end imported configuration can be produced by order.
