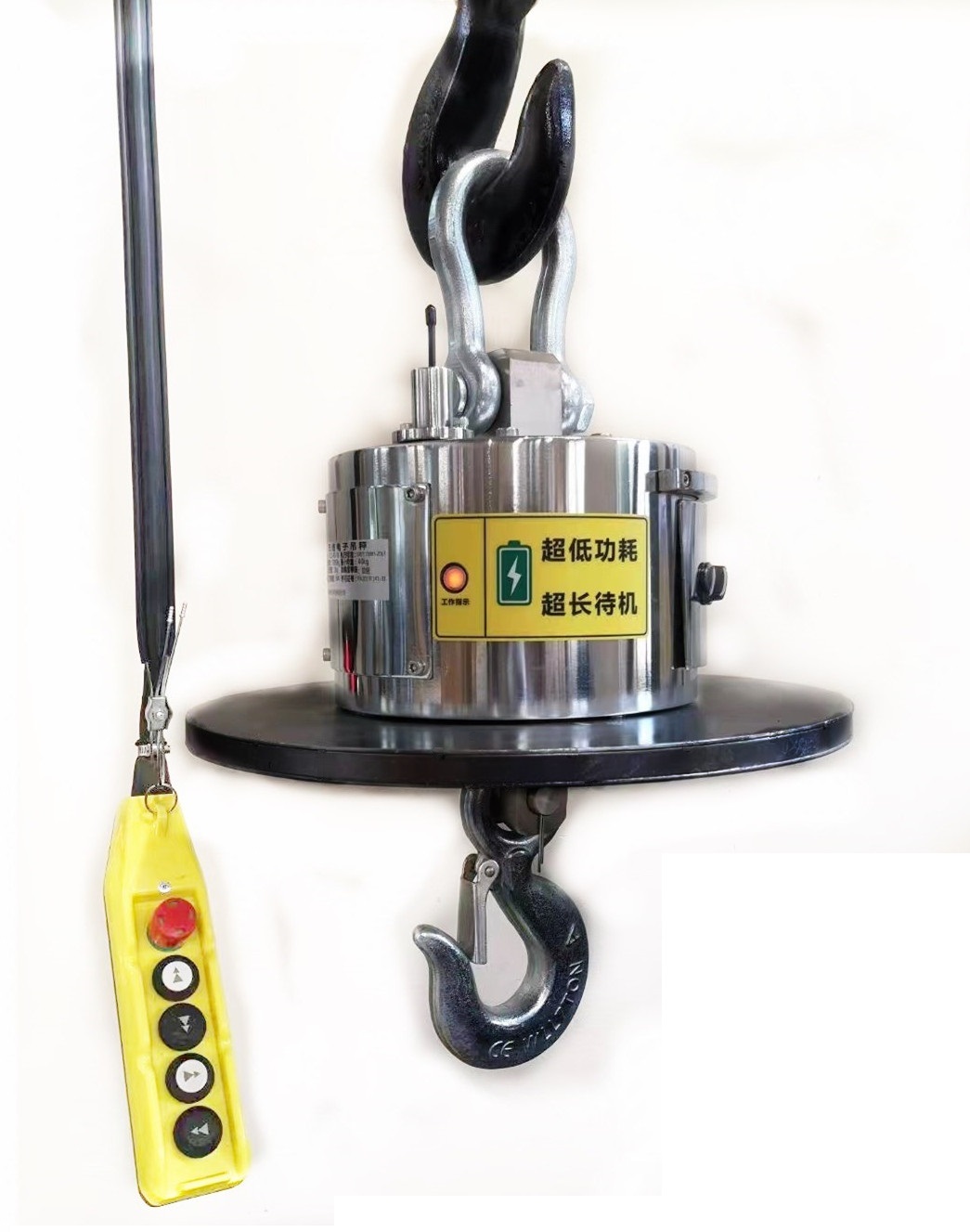

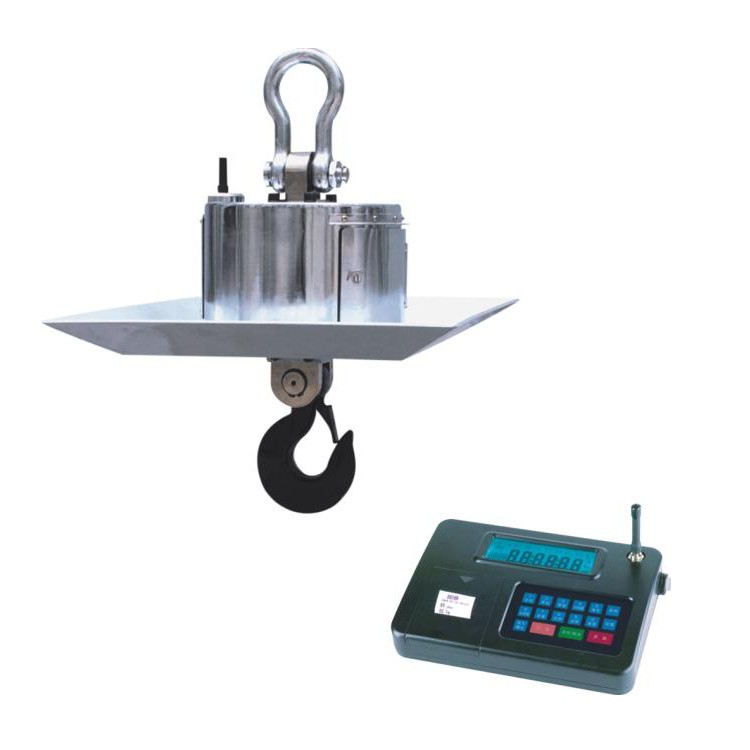

Ocs-xsc wireless high temperature resistant electronic Hanging Scale

Wireless high temperature resistant hanging scale all steel structure high temperature resistant wireless hanging scale

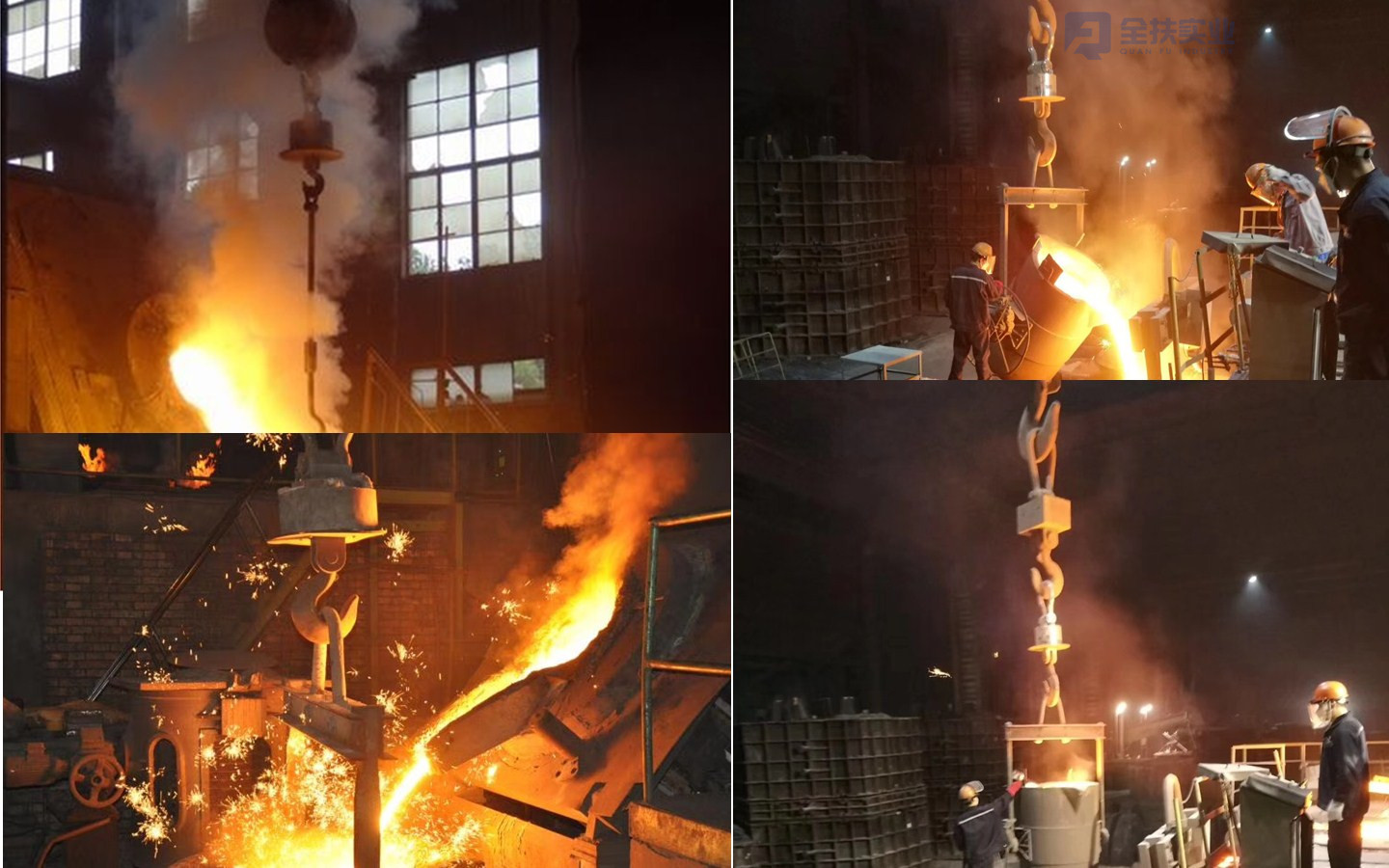

High temperature resistant electronic hanging scale is a hanging high temperature resistant weighing and measuring equipment specially designed for the weighing of ladle, molten iron ladle, electrolytic aluminum ladle and electromagnetic suction cup in metallurgy, steel plant, nonferrous metal smelting and other casting industries

13818310769

Product Details

Ocs-xsc series wireless high temperature resistant electronic Hanging Scale

[product features]

K-type high temperature resistant hanging scale has been specially designed and improved on the basis of the original ordinary scale body

The unique special sensor for thermal hanging scale is adopted to ensure better accuracy in high temperature environment

Install high-temperature heat insulation board to effectively block heat source radiation:

The size of heat insulation board of 2-10t high temperature resistant hanging scale is 400mm in diameter and 5kg in plate

The size of heat insulation board of 20t-30t high temperature resistant hanging scale is 500mm in diameter and 7.5kg in plate

The size of heat insulation board of 40t-50t high temperature resistant hanging scale is 600mm in diameter and 10kg in plate

A thermal insulation protective layer is added in the cavity of the scale body to further block the penetration of heat source

With the function of negative scale, it is especially suitable for occasions with quantitative casting requirements

The wireless high temperature resistant hanging scale adopts anti high temperature sensor, anti high temperature polishing heat radiation plate and polymer composite heat insulation and damping plate. The safe distance between the scale body of high temperature resistant hanging scale and ladle liquid or high temperature weight is 1600 ℃ - 1.8m and 1800 ℃ - 2m.

[technical parameters]

Accuracy class: III

Executive standard: GB / T 11883-2002

Reading stabilization time: & lt; 10s

Visual distance: 15m

Safety overload: 125% F.S

Limit overload: 400% F.S

Remote control distance: 10 ~ 15m

Service temperature: - 20 ~ + 60 ℃

Relative humidity: & lt; 95%

Scale power supply: 12 / 15Vdc (optional Ni MH rechargeable battery)

Remote control power supply: 3VDC

Basic functions: peeling, zeroing, locking, accumulation, query and printing. The wireless transmission distance of weighing instrument is greater than 100m

[scale performance]

High strength hook and loop system ensures safe use, saves energy, reduces frequent charging of high-capacity batteries, wireless remote weight display, suitable for a variety of weighing occasions, hand-held key operation, convenient and simple, with weight retention, zeroing and division value switching functions, all steel scale body, solid and beautiful, durable and strong long-term stability. The back can be opened and closed to replace the battery.

[specification parameters]

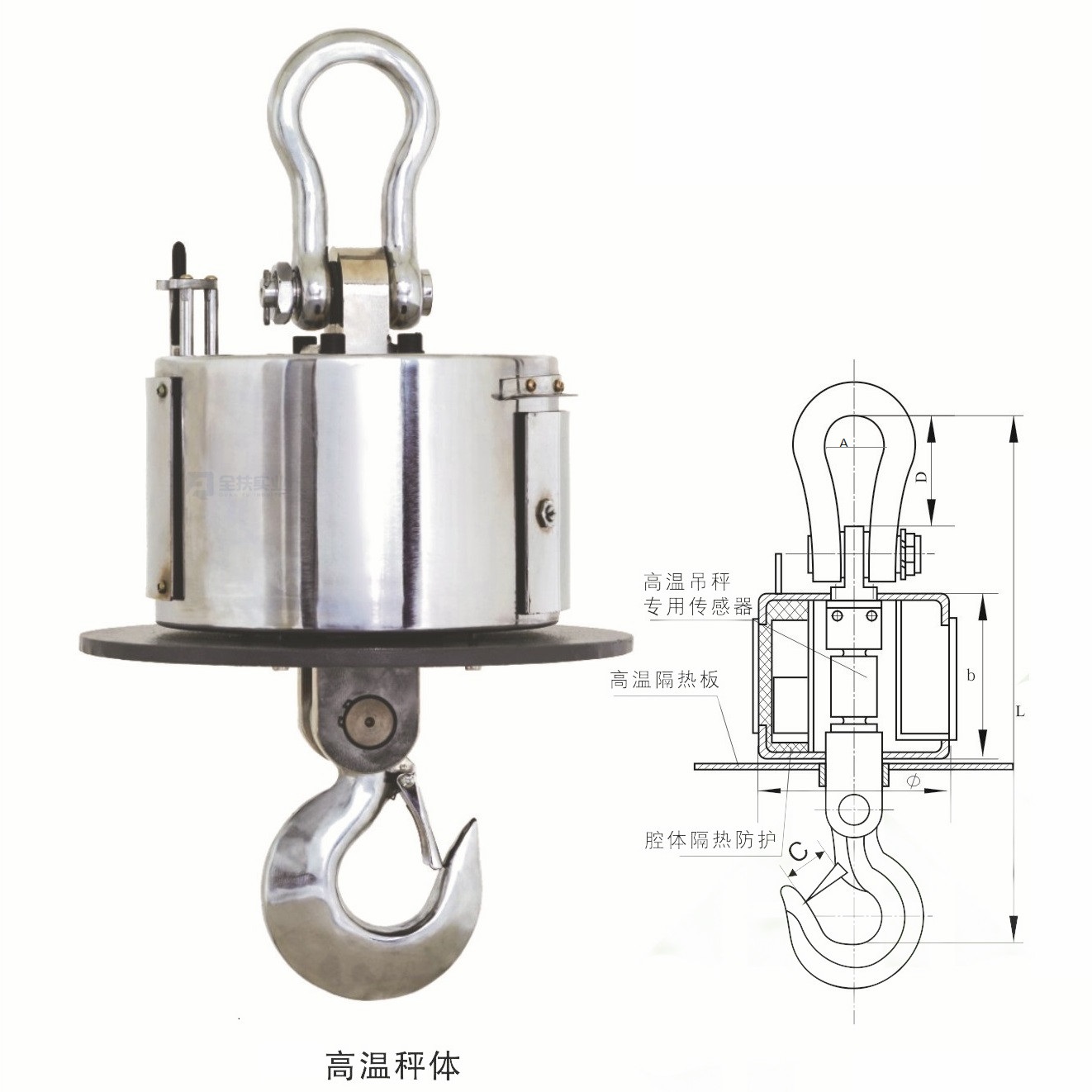

model	range	Division value	A	B	C	D	L	diameter
OCS-1t	1t	0.2kg	76	105	34	95	460	190
OCS-2t	2t	0.5kg	76	105	34	95	460	190
OCS-3t	3t	1kg	75	140	56	95	500	240
OCS-5t	5t	2kg	75	195	56	92	620	300
OCS-10t	10t	5kg	106	195	72	117	712	320
OCS-15t	15t	5kg	150	220	98	118	897	320
OCS-20t	20t	10kg	150	220	98	118	897	320
OCS-30t	30t	10kg	150	220	102	172	1050	345
OCS-50t	50t	20kg	214	300	110	274	1263	375


Note: the scale can be customized according to customer requirements

Note: the distance between the bottom surface of the hook of the scale body and the heat source to be lifted must be greater than 1600mm for all hanging scales working in high temperature environment

The maximum temperature of the lifted object shall not exceed 1800 ℃
