Current Position: Home > Company Products >Truck scale > Scs-a small truck scale ground scale
Measuring range: 10t ~ 50t weighbridge, 60t truck scale
Table size: 2.5m × 4m~3m × 7m, customizable
Scale body material: high quality steel plate, U-shaped steel structure, precision welding, complete set of shot blasting and plastic spraying treatment on the surface
Sensor: shear beam or bridge load cell

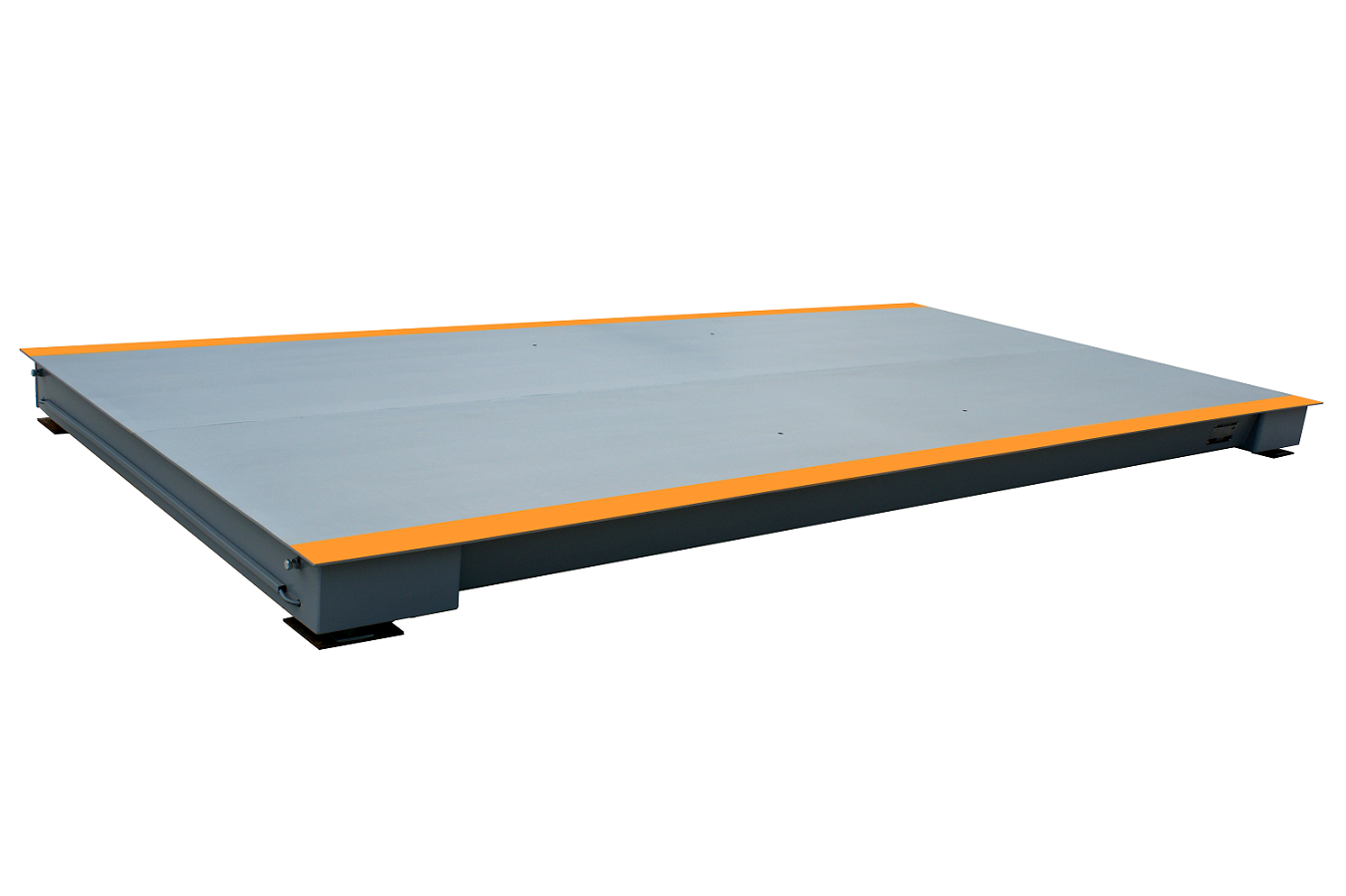

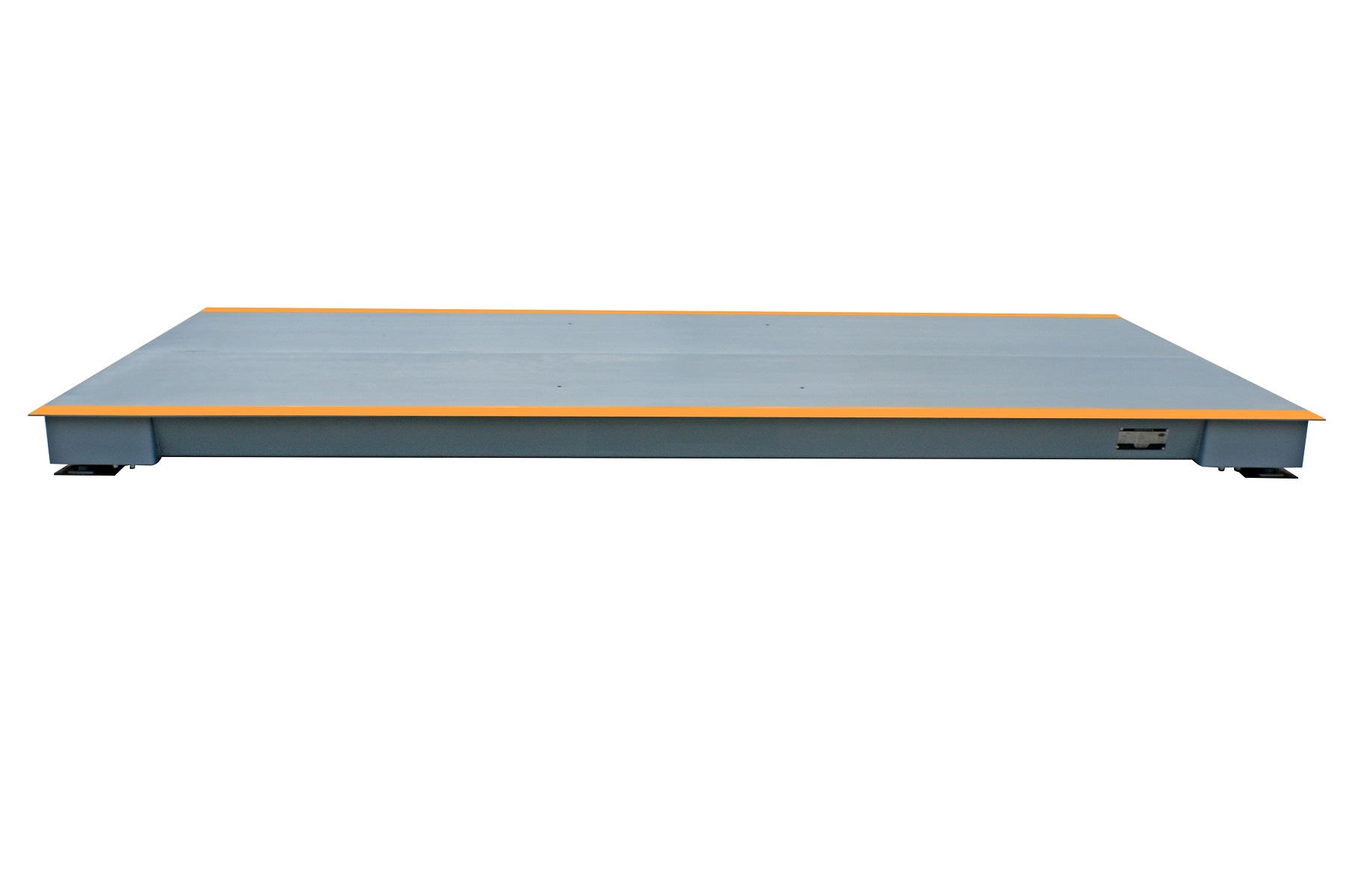

Scs-a series small truck scale 20t weighbridge 30t weighbridge
1、 Product description
Shanghai Quanfu high-quality all electronic truck scale has high-end quality and high configuration technical level. The weighing is fast and accurate, digital display, intuitive, easy to read, stable, reliable and easy to maintain. It adopts computer-aided design, no cover plate, convenient lapping, and integrates the remarkable characteristics of modularization, standardization, batch and specialization. It has solid structure, fine workmanship, beautiful appearance and durability. The main beam of the weighing platform adopts modern bridge core technology, and is made of U-section closed rib cold-formed steel. Large components are assembled and welded by automatic continuous welding. The middle seam of the panel adopts submerged arc welding, the whole weighing body is shot blasted and electrostatic plastic sprayed, Ensure super anti-corrosion performance. The installation form without foundation pit is adopted, which is simple in installation, commissioning and maintenance and low in infrastructure investment. The weighing system is equipped with stable and reliable high-precision weighing sensor and intelligent weighing display controller, which has high sensitivity, high resolution and rich software functions. Through the standard output interface of the instrument, the weighing data can be recorded by the printer or connected with the computer to form a weighing management system. It can be reliably used in various industrial and trade occasions for a long time, such as metallurgy, mining, construction, chemical industry, port, warehouse and factory enterprises. It is an ideal weighing and measuring equipment for all kinds of heavy cargo vehicles.
2、 Product specification:
model | SCS-10T | SCS-20T | SCS-25T | SCS-30T | SCS-40T | SCS-50T | SCS-60T |
Maximum weighing | 10t | 20t | 25t | 30t | 40t | 50t | 60t |
Division value | 5kg | 10kg | 10kg | 10kg | 10kg | 10kg | 10kg |
accuracy | OIML III International legal accuracy level 3 | ||||||
Standard width | 2m、2.5m、3m | ||||||
Regular length | 2.5m、4m、5m、6m、7m、8m、9m、10m | ||||||
Number of combined sections | Section 1 and 2 | ||||||
remarks | The scale platform size can be combined freely. Shanghai Quanfu can customize the truck scale with non-standard scale body size for customers | ||||||
3、 Product configuration:
The standard configuration of the electronic truck scale consists of the scale body of the mechanical part, the sensor, instrument, junction box, cable and other accessories of the electrical part. The optional parts include large screen, computer and management software, printer, power protector, PLC control, etc.
Shanghai Quanfu Industrial Co., Ltd. has been manufacturing and serving precision electronic scales for more than ten years. Its products are used in
laboratory
、
manufacturing
and
Retail services
。
Shanghai Quanfu provides weighing and Analytical balance and Industrial Weighing Detection solution .
Provided by Shanghai Quanfu Industrial weighing apparatus 、 Electronic balance 、 Commercial Weighing Instrument and weighing system And other high-end products.
Shanghai Quanfu helps customers simplify processes, improve productivity, ensure that products meet legal and regulatory requirements and optimize costs.
