YTC/EX-YTC Drum scale It is an electronic scale composed of high accuracy weighing sensor and intelligent weighing display instrument. The equipment has the advantages of high accuracy, rapid weighing, stable and reliable operation, simple and convenient installation and maintenance. The scale is mainly used in the feeding and batching process of coating and other chemical industries. It is applicable to the weighing of standard sheet iron drums, which can be turned 180 ° on the scale. It can replace METTLER TOLEDO py series drum scale.

Technical parameters:

Accuracy: III

Maximum weighing: 300kg ~ 500kg

Division value: 0.1kg

Weighing function: zero setting, peeling and weighing

Weighing features: single arm beam structure, single high-precision sensor, stable weighing and high precision

Product features:

High quality oil cylinder, fast lifting speed and 1.5m lifting height (customized for lifting height above 2m)

Integrated handle and moving roller (wear-resistant nylon caster or polyurethane wheel), equipped with braking device, weighing stability

The door frame is made of special rolled channel steel or C-shaped steel

The anti rust baking paint on the surface of the scale structure can slightly prevent the corrosion of chemical raw materials and water to the structure

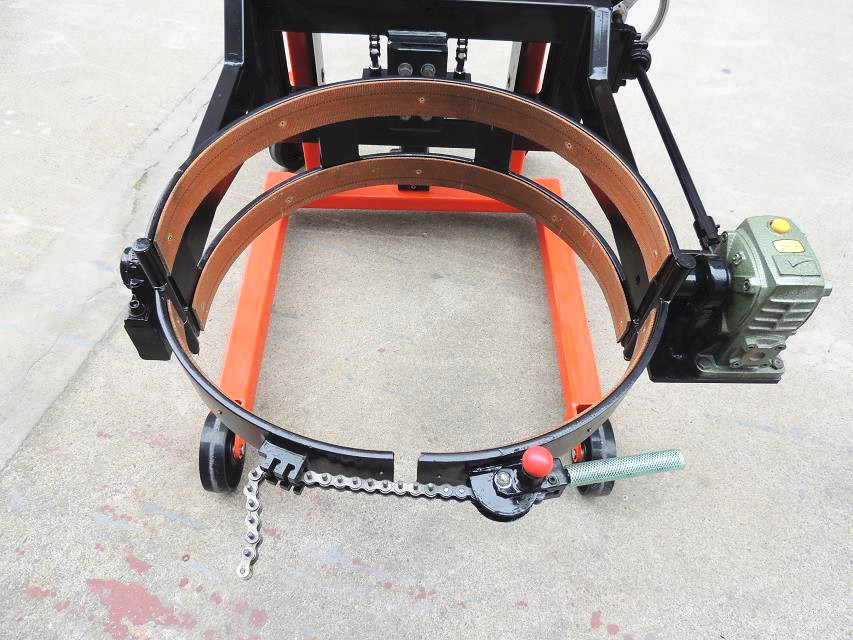

Manual hydraulic lifting, manual implementation, after the oil barrel is clamped and lifted, it can turn or stay more than 180 degrees in the air to achieve full dumping.

Specification parameters:

model	YTC
load	300kg	500kg
accuracy	100g	200g
Lifting height	1.5m
Bucket holding mode	Hook / hold / hook / hold dual purpose
Turning radius	1.25m
Vehicle length	1.25m
Vehicle width	1.1m
Vehicle height	2.1m
Suitable for oil drum size	200L (55 gallon) steel drum or plastic drum
dead weight	220kg

Application:

It is mainly applicable to the loading, unloading, handling and stacking of oil drums in factories, workshops, warehouses and oil depots.

Manual oil drum scale It is especially suitable for handling, loading and unloading, stacking, dumping or batching of liquid liquids such as chemical industry, food workshop, coating, adhesive, petroleum, printing workshop and edible oil.

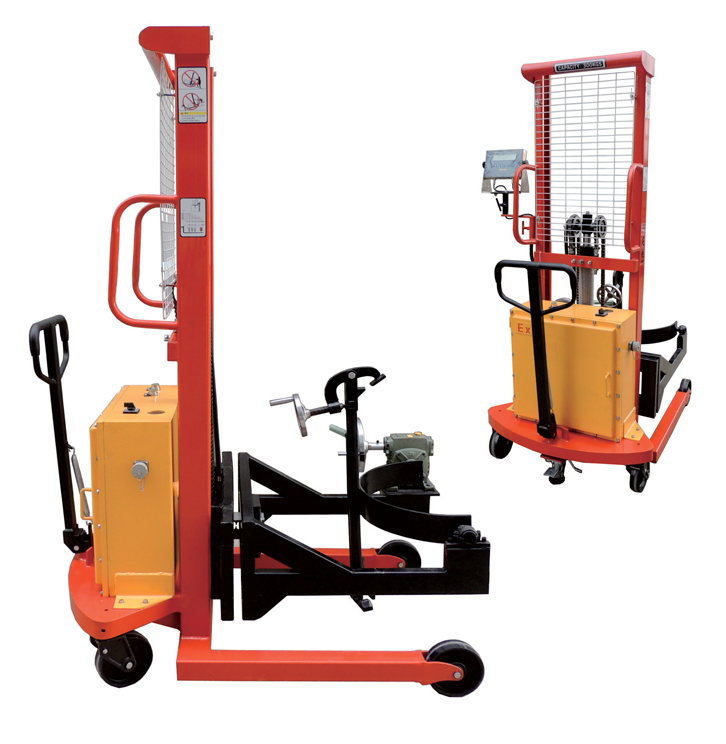

remarks: Customizable heightening type Electric Oil drum scale The stacking height of oil drums can be up to 3m, and the holding type and hook type can be selected arbitrarily, Ex explosion proof configuration is optional.
