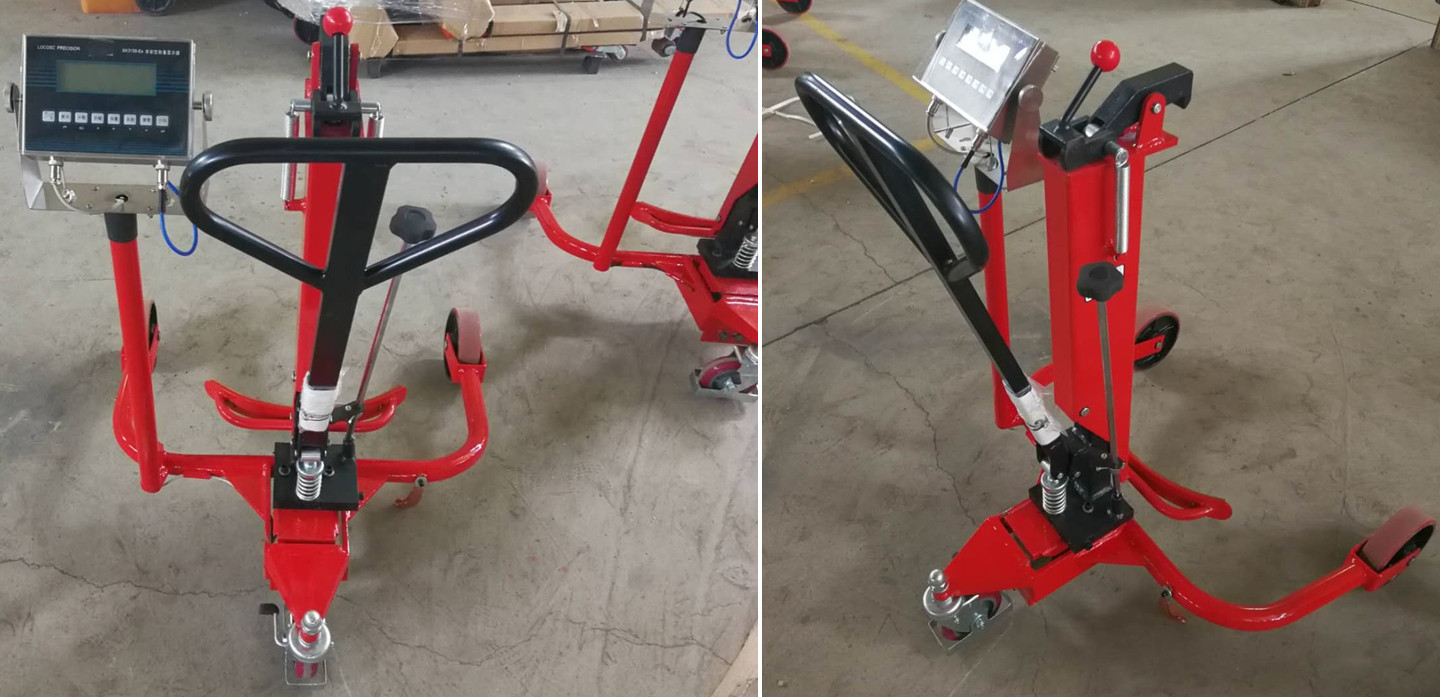

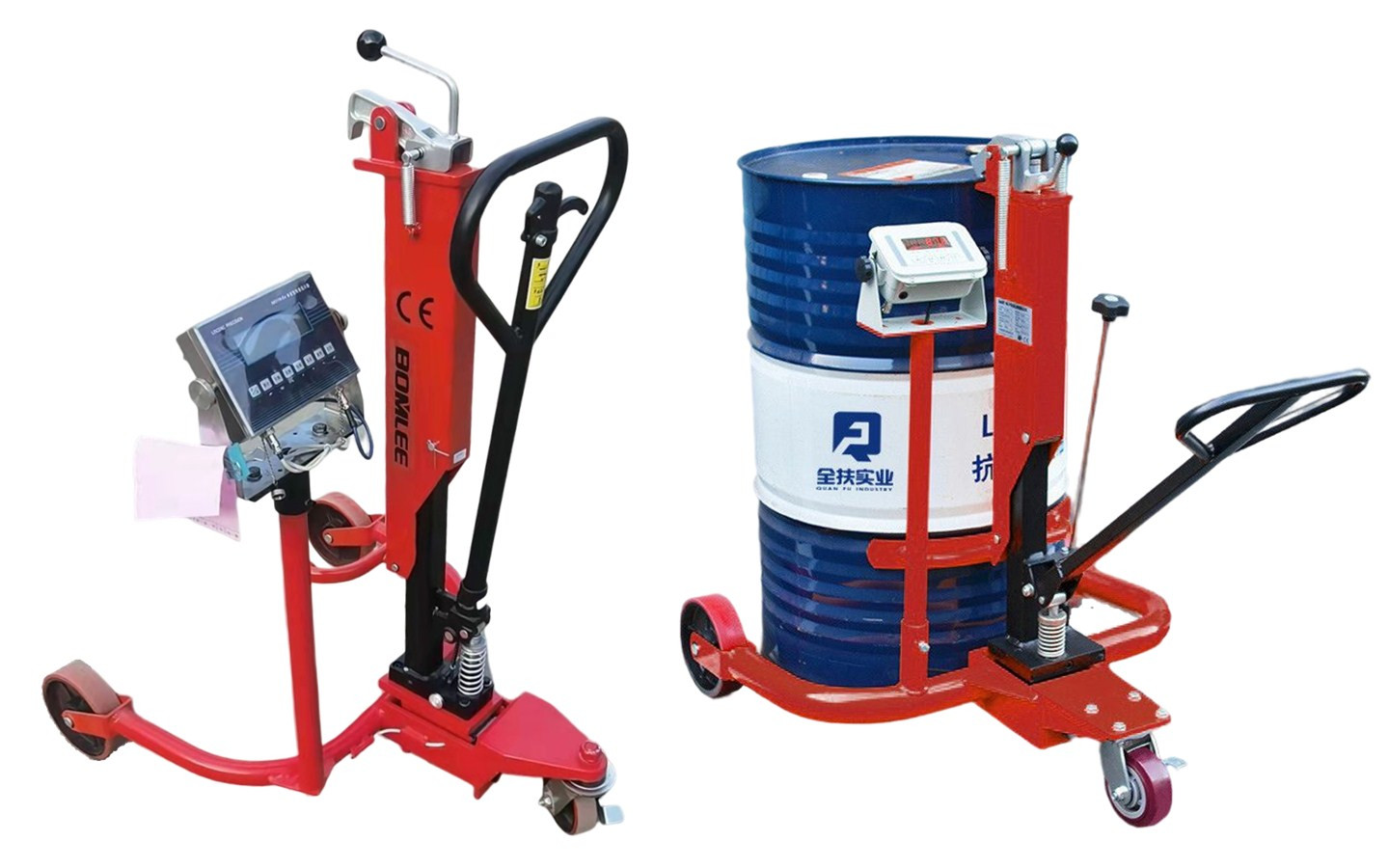

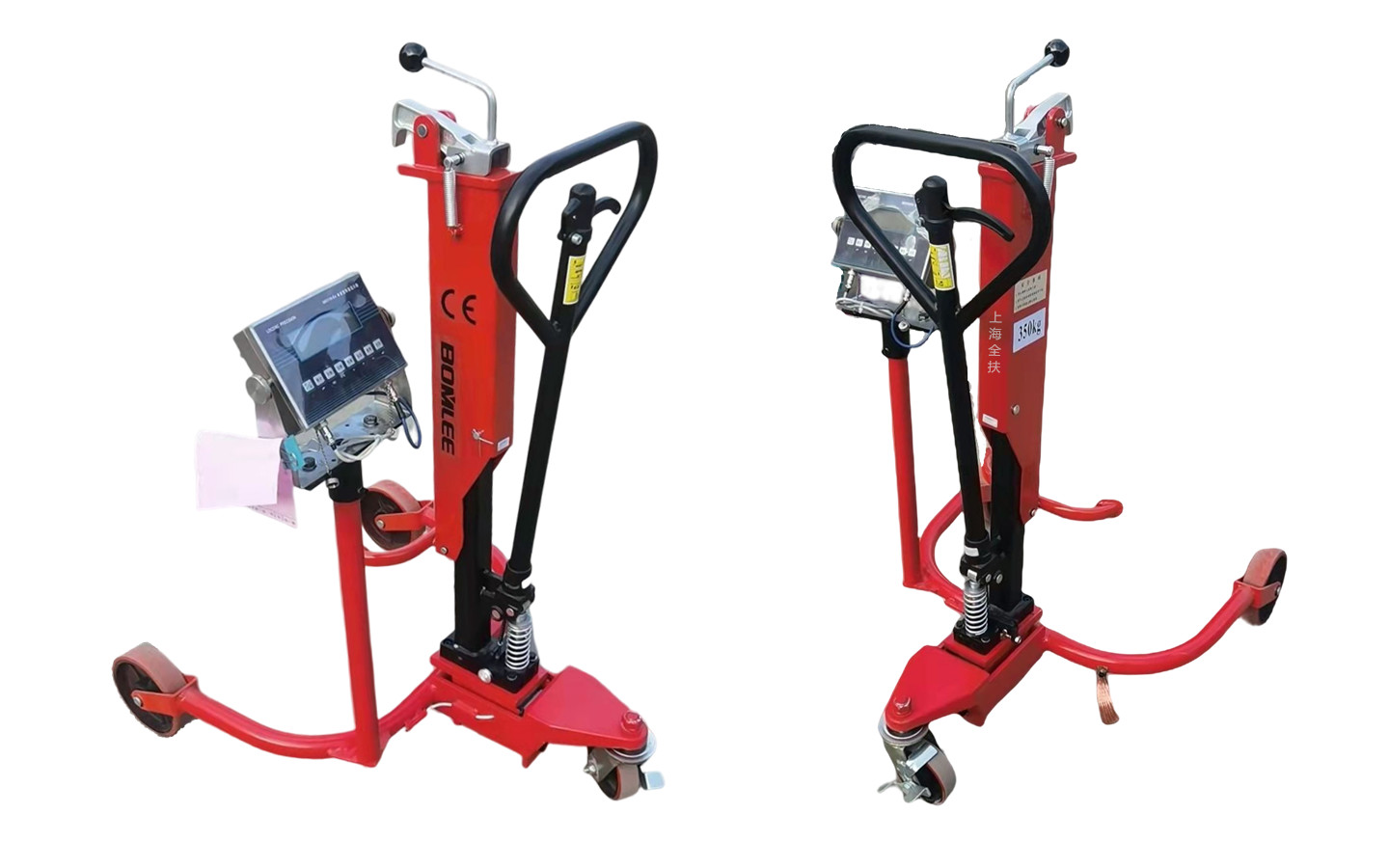

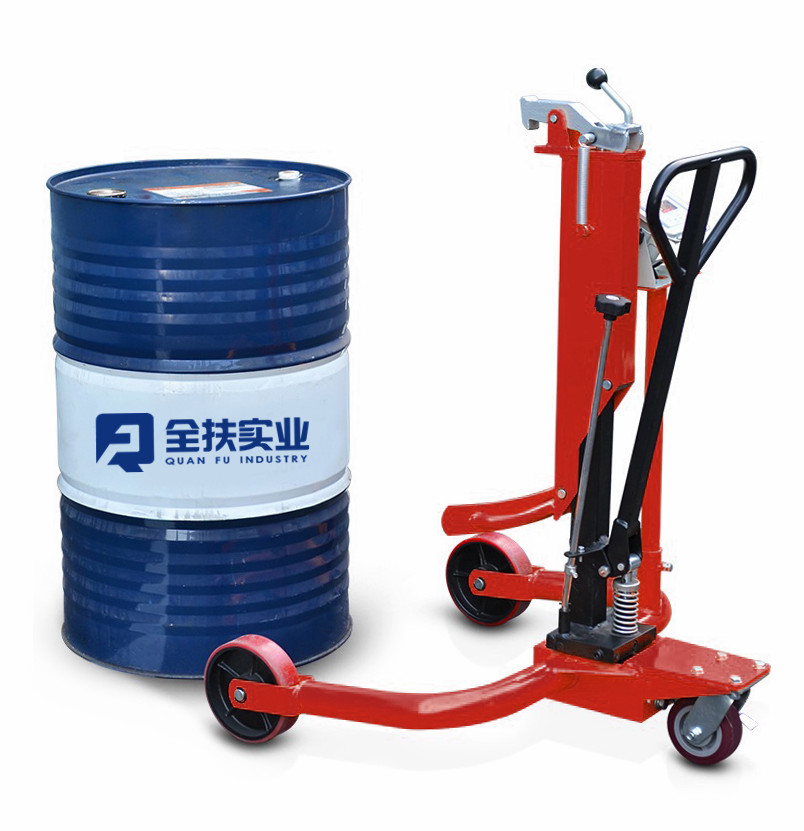

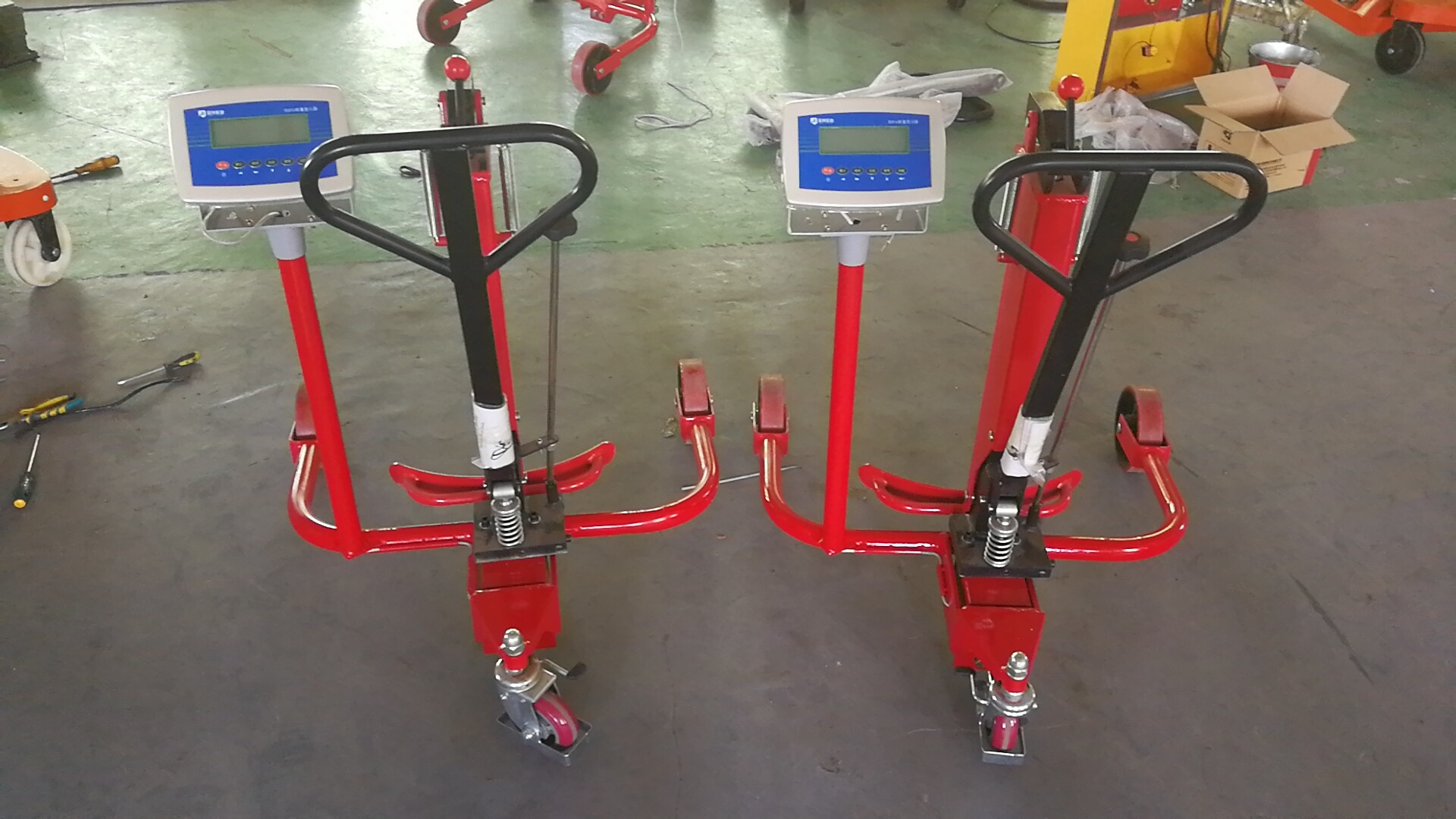

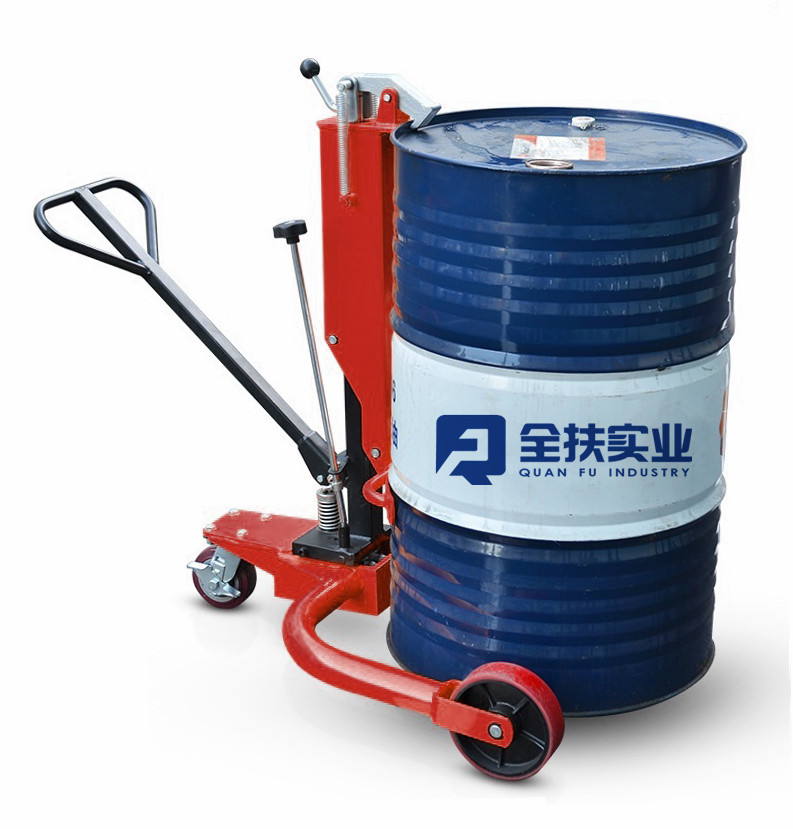

DTW-350 Oil drum handling scale   Oil drum truck handling scale in coating chemical plant and oil drum scale in resin plant

Shanghai Quanfu high-quality oil drum handling scale, preferably high-end oil drum truck, reinforced structure, precision manufacturing and high-end configuration

Technical parameters:

Accuracy: III

Maximum weighing: 350kg ~ 450kg

Division value: 0.05kg ~ 0.1kg

Structural features: the handling and weighing are integrated, the weighing is simple and intuitive, and the pointed eagle beak design has the advantages of simple and light structure, simple and labor-saving operation, with brake

Basic functions: zero setting, peeling and weighing. The instrument is equipped with rechargeable battery and weighing instrument with various functions All printing instruments Optional

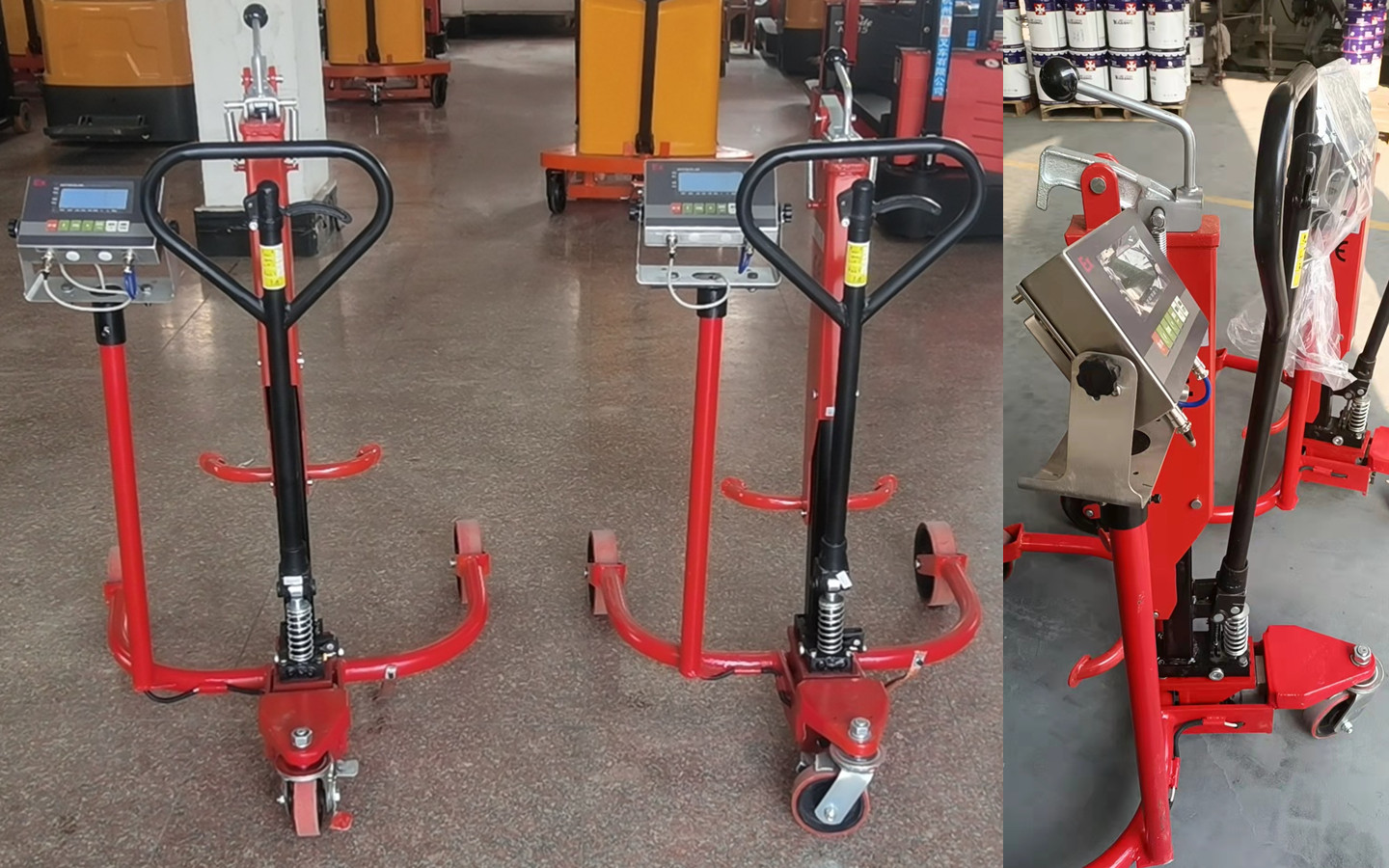

Optional: optional explosion-proof instrument in chemical area, explosion-proof grade: ex IB IIC T3 / T4 GB

Specification parameters:

model	DTW-350
load (kg)	350kg	450kg
accuracy (g)	50g	100g
Lifting height	20cm
Promotion mode	Manual hydraulic lifting
Maximum diameter of oil drum	60cm
Vehicle length	0.82m
Vehicle width	0.63m
Vehicle height	1.2m
Suitable for oil drum size	210L(55 gallon ) Steel bucket or plastic bucket
dead weight	110kg

Application: It is applicable to the handling, loading and unloading, stacking, dumping or batching of oil barrels of liquid liquids such as chemical, food workshop, dye, coating, adhesive, petroleum, printing workshop and oil depot.

Note: explosion proof and non explosion proof are optional. Shanghai Quanfu is equipped with ds-516 weighing instrument as standard, and other functional instruments can be selected according to user requirements.
