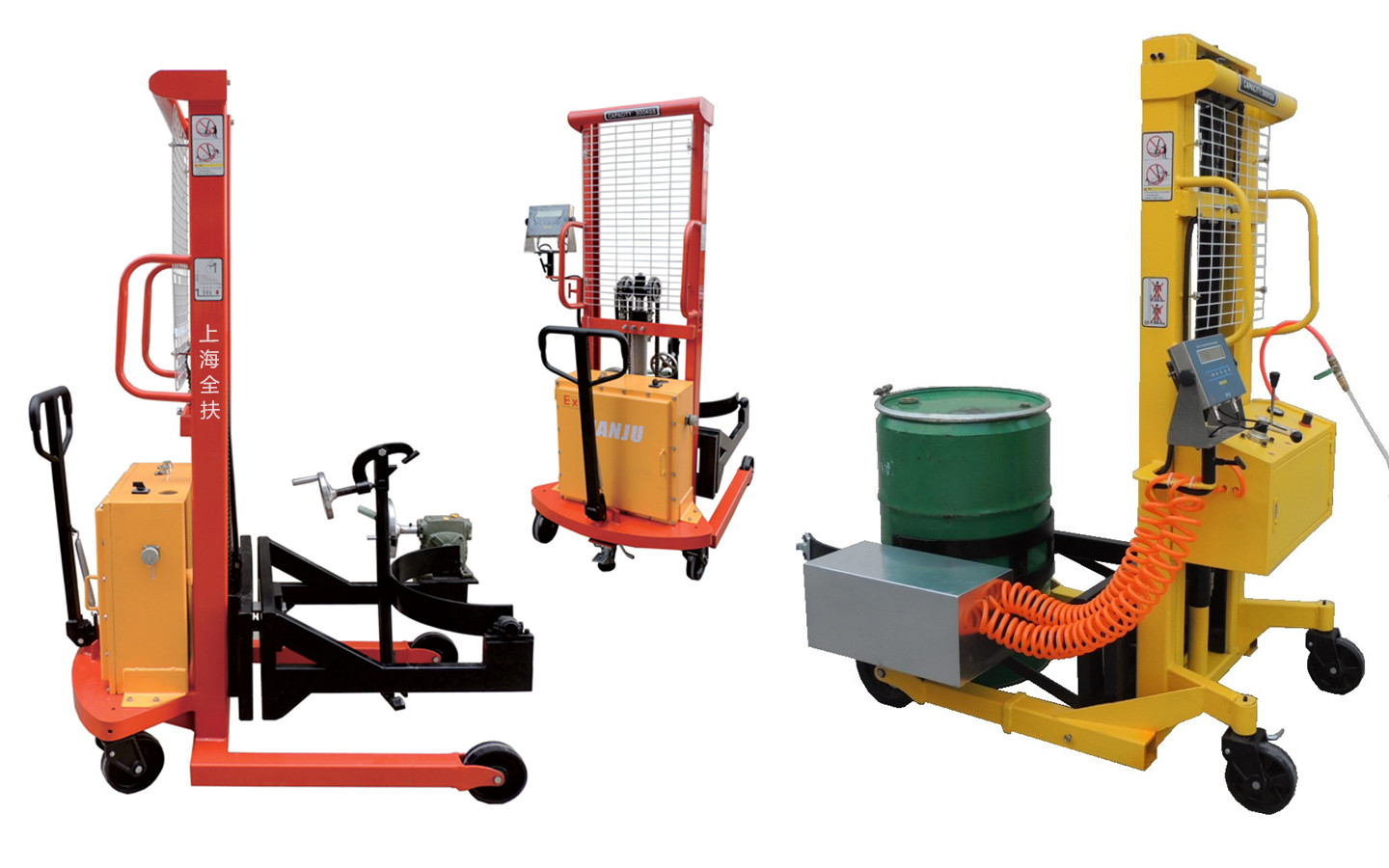

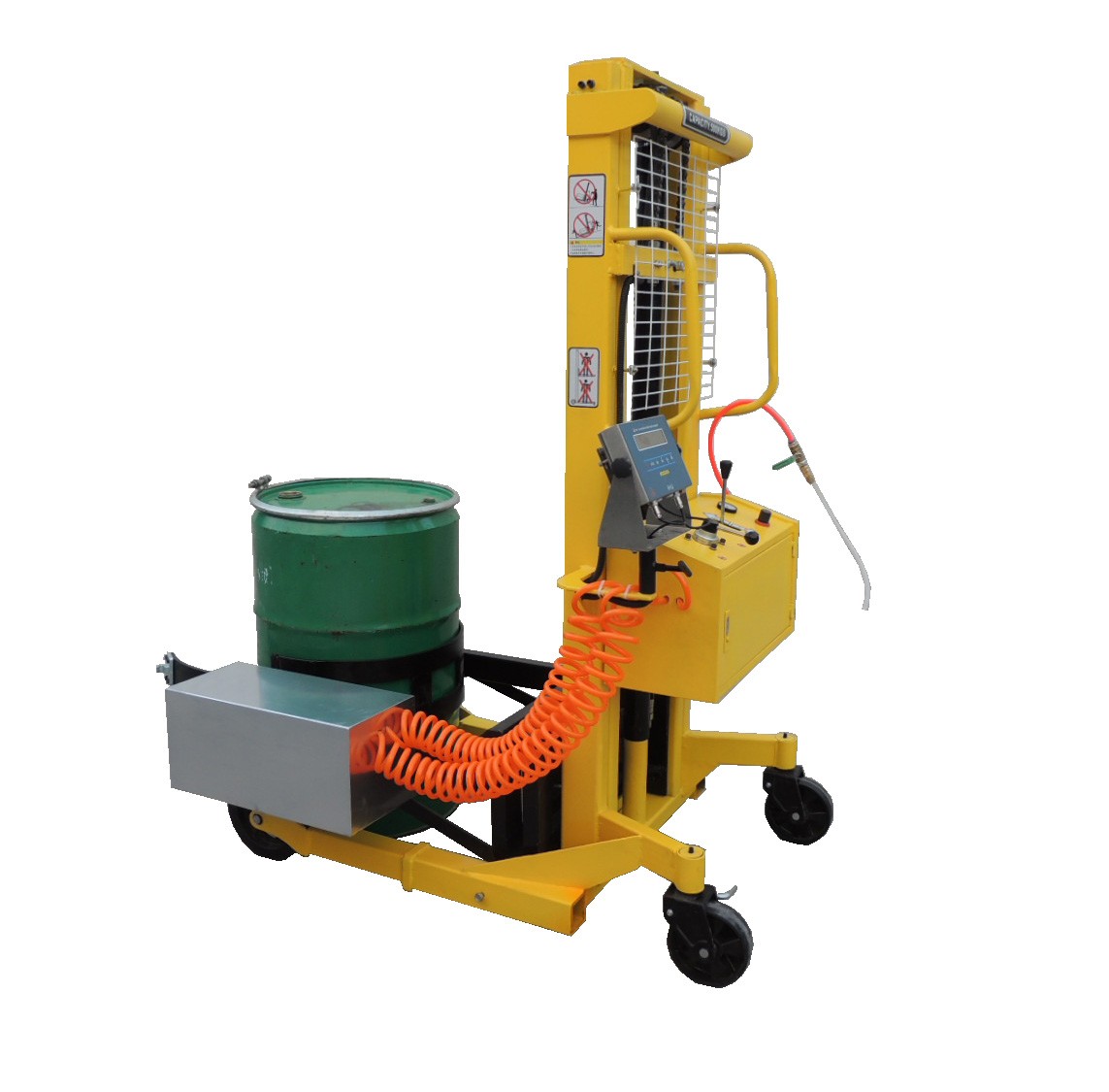

DDE Series electric explosion-proof bucket scale, intrinsically safe explosion-proof oil bucket scale, pneumatic explosion-proof oil bucket scale

Technical parameters:

Accuracy: III

Maximum weighing: 300kg ~ 500kg

Division value: 0.1kg

Weighing function: zero setting, peeling and weighing

Weighing features: single arm beam structure, single high-precision sensor, stable weighing and high precision

Product features:

Manual / electric turbine bucket pouring, integrating round handling and weighing

High quality hydraulic pump station is selected, with strong power, maintenance free battery and long-lasting power

High quality oil cylinder, fast lifting speed, lifting height 1.5m

C-shaped steel portal frame made by special rolling process is firm and safe

The anti rust baking paint on the surface of the scale structure can slightly prevent the corrosion of chemical raw materials and water to the structure

Integrated handle and moving roller (wear-resistant nylon caster or polyurethane wheel), equipped with braking device, weighing stability

Electric lifting, electric turning or manual turning, manual pushing. After the oil barrel is clamped and lifted, it can turn or stay more than 180 degrees or 360 degrees in the air to achieve full dumping.

Specification parameters:

model	DDE
load	300kg	500kg
accuracy	100g	200g
Flip mode	Electric / manual
Lifting electrode	1.6kw
Explosion proof battery / charger	12V/100Ah/15A
Lifting height	1.5m/1.6/3m (customizable)
Lifting speed	120mm/s
Speed ratio of reducer	1:16
Air turnover	＞180°
Bucket holding mode	Hook / hold / hook / hold dual purpose
Turning radius	1.5m
Vehicle length	1.5m
Vehicle width	1.1m
Vehicle height	2.1m
Suitable for oil drum size	200L (55 gallon) steel drum or plastic drum
dead weight	420kg

Application: suitable for handling, loading and unloading, stacking, dumping and batching of liquid liquids such as chemical industry, food workshop, dye, coating, adhesive, petroleum, printing workshop and edible oil.

Remarks: the heightening oil drum scale can be customized. The stacking height of oil drums can be up to 2 ~ 3M. The holding type and hook type can be selected arbitrarily. The intrinsically safe explosion-proof or flameproof type Explosion proof configuration is optional.
