Current Position: Home > Company Products >Forklift scale > PTZ customized large electronic forklift scale

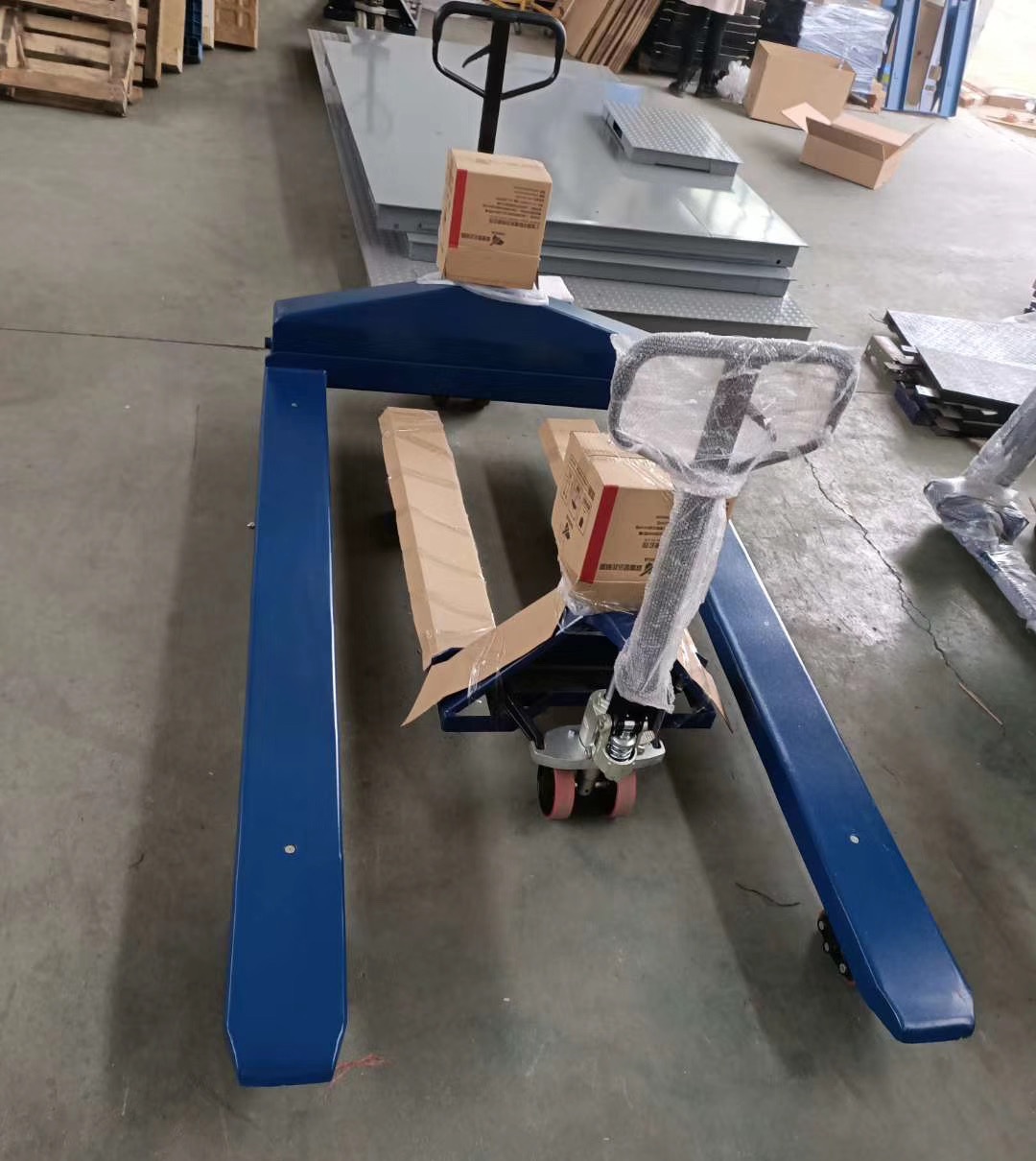

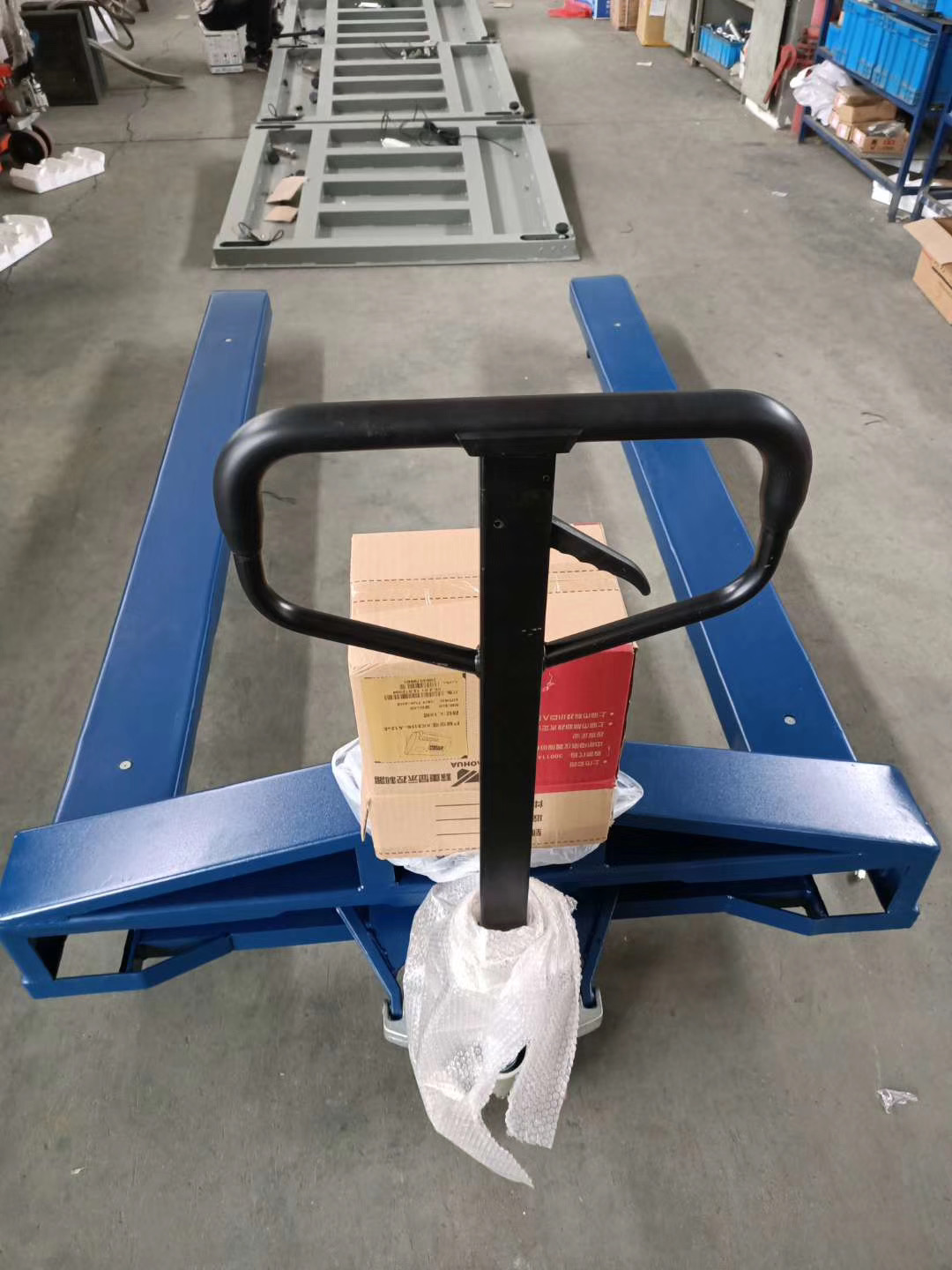

Large tonnage forklift scale, customized forklift electronic scale

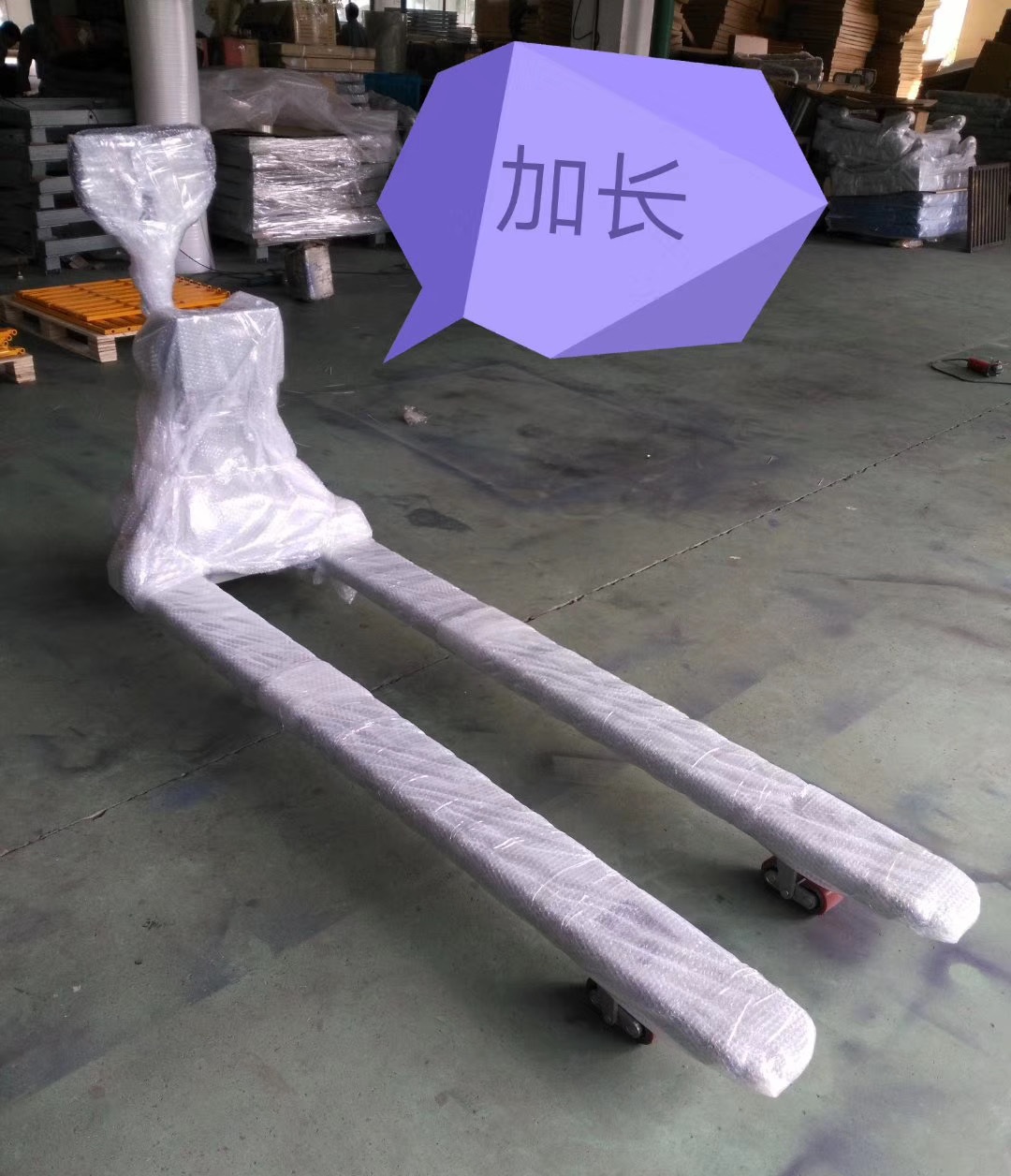

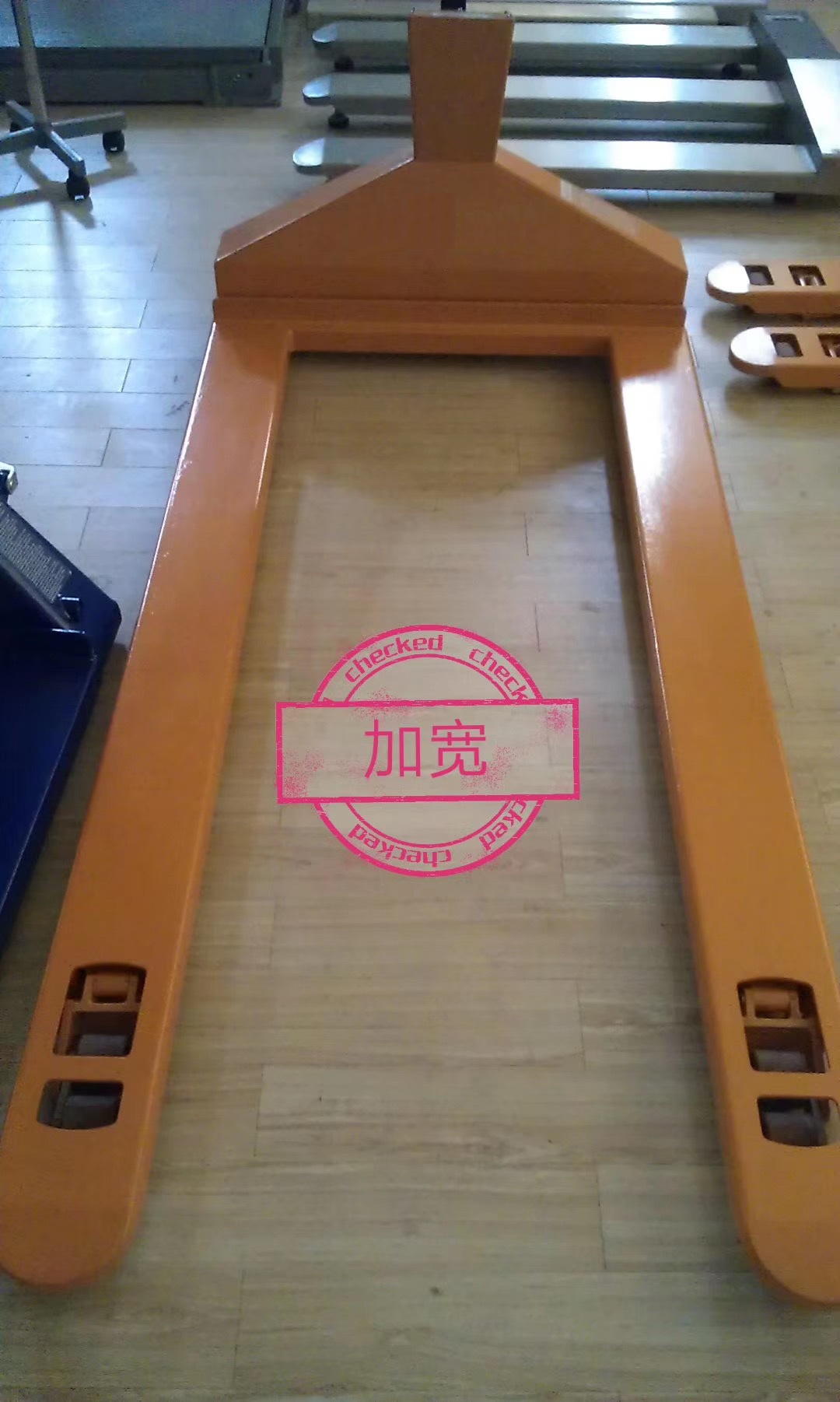

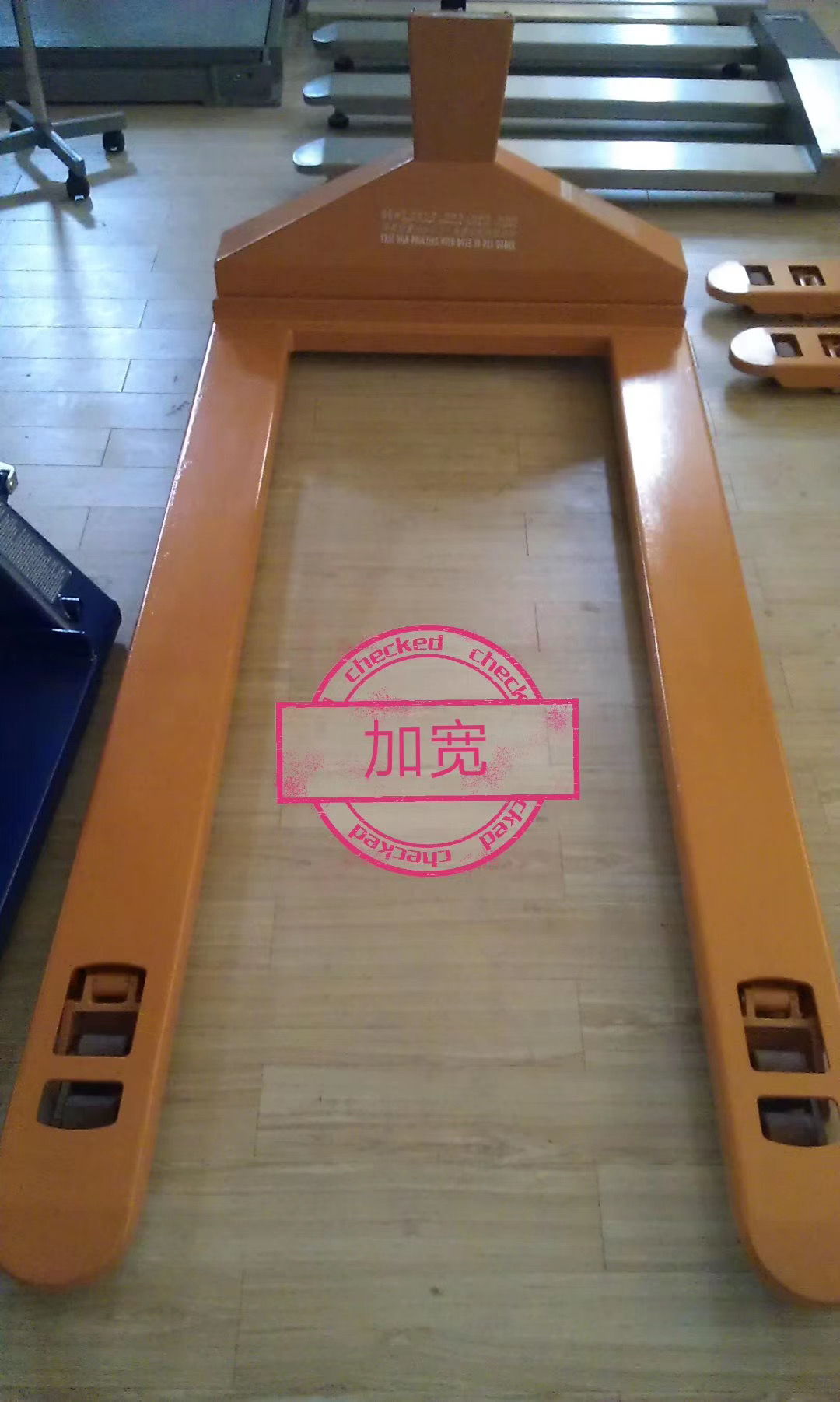

According to user requirements, we can customize non-standard customized electronic forklift scales such as heightening, lengthening and widening
PTZ series Customized electronic forklift scale ，可根据用户要求customized加高、加长、加宽等非标Customized electronic forklift scale
Technical parameters:
Accuracy class: III
Range: 0.5T, 1t, 2T, 3T, 5T
Operating environment: working temperature - 10 ℃ ~ + 40 ℃
Working power supply: built-in lead-acid battery dc6v4ah or dc9v adapter
Basic functions: weight counting, zero setting, peeling, accumulation, counting, printing, explosion-proof, etc
Scale body material: high quality carbon steel or stainless steel material is optional
Scale structure: pallet car structure, high-strength nylon wheel, copper wheel or silent polyurethane wheel to ensure lighter implementation and quieter and stable movement
Structural features: reinforced channel steel or full frame U-shaped frame, with higher rigidity of scale body and smaller weighing deviation. The overall shot blasting, plastic spraying and paint baking treatment process of carbon steel has the characteristics of anti-corrosion and rust prevention; All stainless steel material is polished and brushed, with strong corrosion resistance and precision manufacturing.
Basic configuration: the scale body contains four load cells, a junction box and signal lines. It is equipped with weighing instruments and weighing components as standard, and explosion-proof can be selected
Specification parameters:
model | PTE-05 | PTE-1t | PTE-2t | PTE-2.5t | PTE-5t |
Weighing Range | 500kg | 1t | 2t | 2.5t | 5t |
accuracy | 0.2kg | 0.2kg | 0.5kg | 1kg | 2kg |
Fork height | 80~195mm Or customized | 100~220mm | |||
Fork width | 160mm Or customized | 180mm | |||
Narrow fork | 1150mm*560mm Or customized（货叉长 * (width) | customized | |||
Wide fork | 1220mm*680mm Or customized（货叉长 * (width) | customized | |||
Remarks: non-standard products, order production, self-contained hydraulic lifting system, manual implementation. It is widely used in logistics, warehousing, workshops, coal mines, ports, buildings and railway transportation where goods and pallet weighing need to be moved frequently.
Note: non standard customized Forklift Scales are produced on order.
Electric truck scale 2T electric pallet handling forklift scale
Electric travel, electric lifting, electric handling and weighing are integrated
It has strong braking performance and will not slip even when working on slopes and truck tail plates
Large tonnage forklift scale, customized forklift electronic scale
According to user requirements, we can customize non-standard customized electronic forklift scales such as heightening, lengthening and widening
Explosion proof forklift scale, intrinsically safe explosion-proof hydraulic truck scale
It is widely used in explosive gas environment in chemical industry and other industries
Copper wheel configuration is optional, scale body material and sensor configuration are optional
High quality configuration can replace METTLER TOLEDO forklift scale
Platform forklift scale, hydraulic mobile weighbridge
Equipped with hydraulic lifting system, manual implementation and fixed weighing and handling functions
Electronic forklift scale with printing, high-quality hydraulic handling scale
Hydraulic handling, weighing and printing are integrated, with high-precision configuration
Automatic weighing can be carried out while loading materials or weighing pallets
Stainless steel electronic forklift scale, high precision stainless steel forklift scale
It is used in humid, harsh and hygienic environments such as food, chemical industry and pharmacy
It can be equipped with an integrated printing mechanism, which can weigh and print in real time
High precision forklift scale, hydraulic handling scale, pallet scale
Suitable for weighing pallets from 600 kg to 2000 kg
The load cell has high configuration, good overall quality and strong weighing stability
Hydraulic truck electronic scale economic hydraulic forklift electronic scale
2 ton electronic truck scale, used in storage, logistics and other fields
