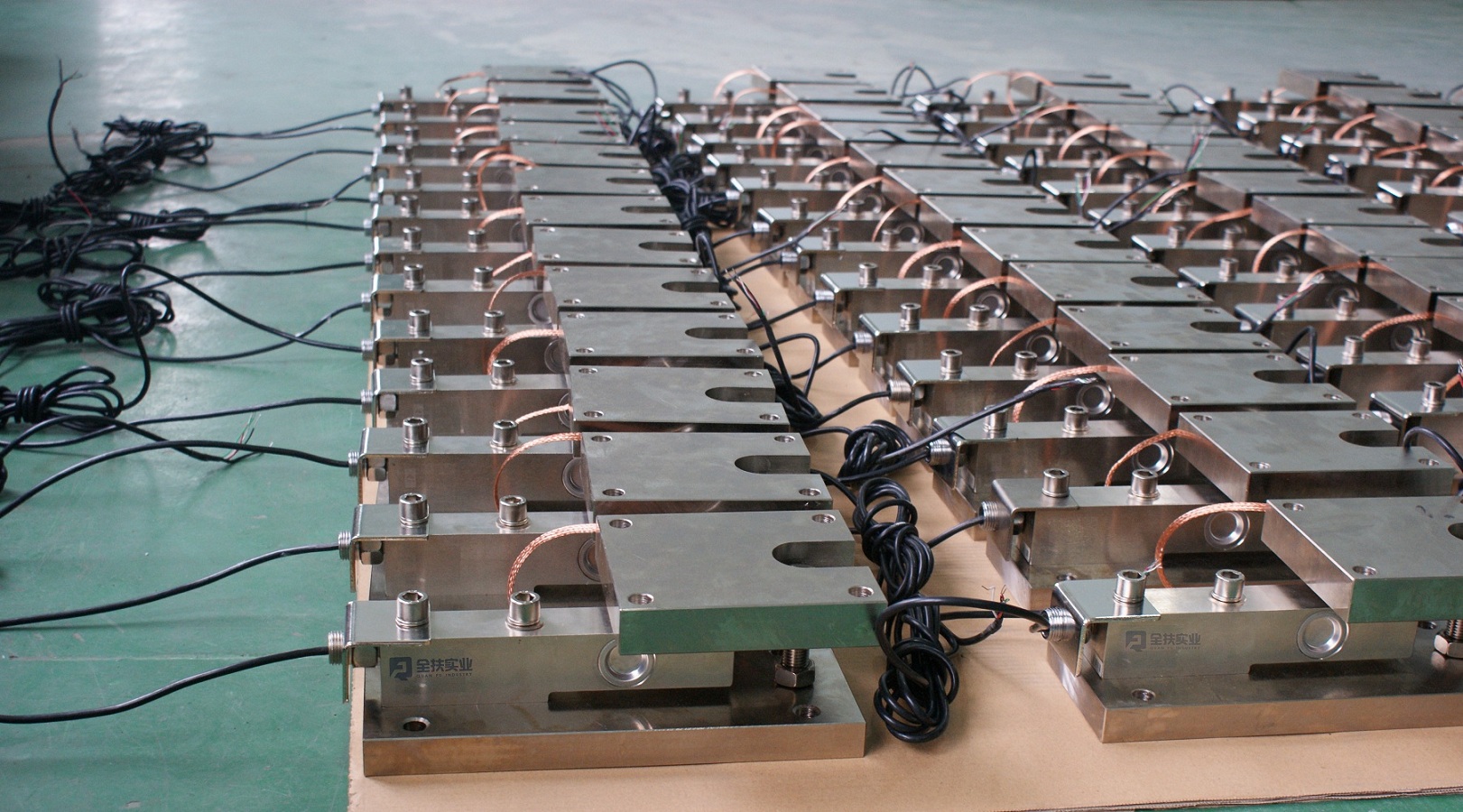

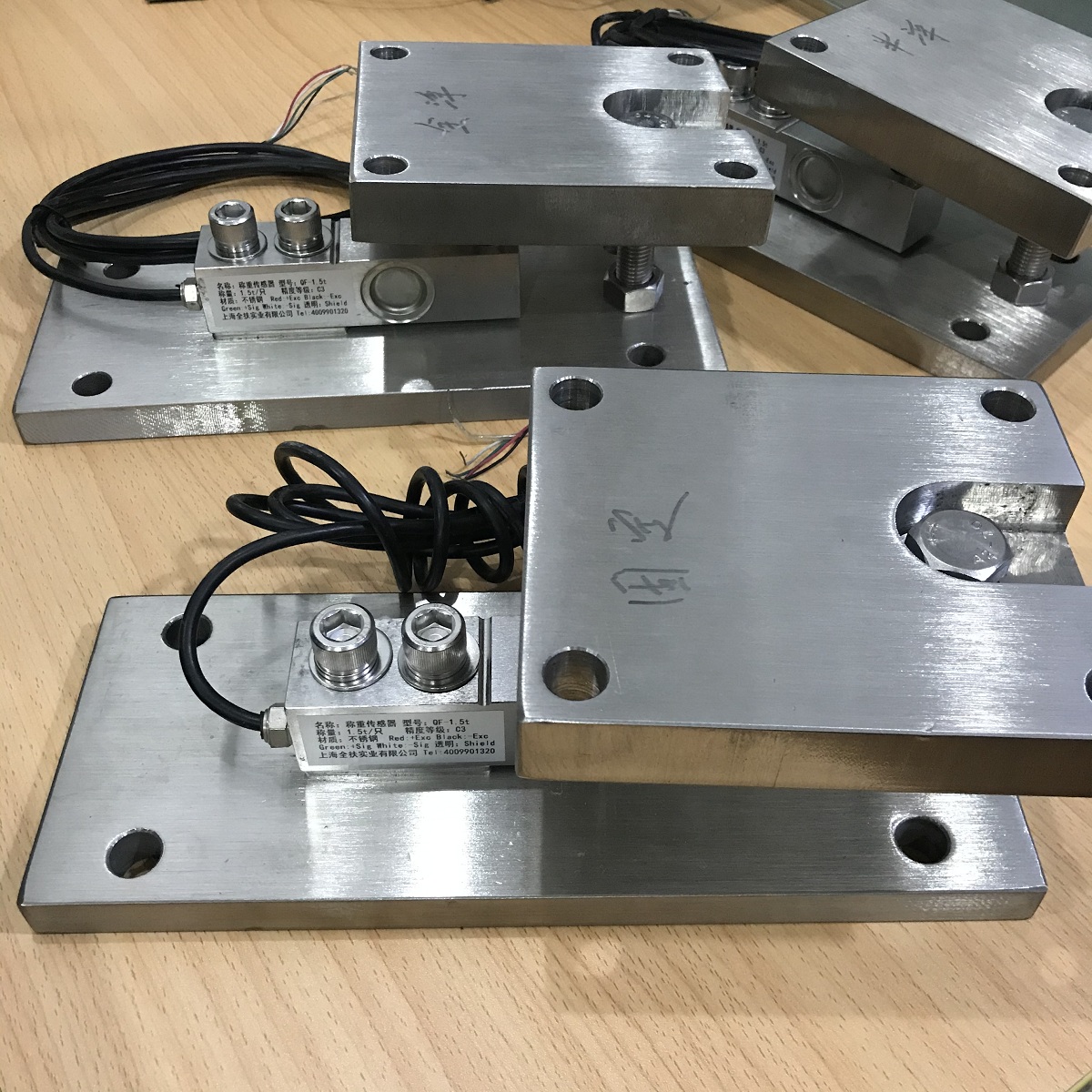

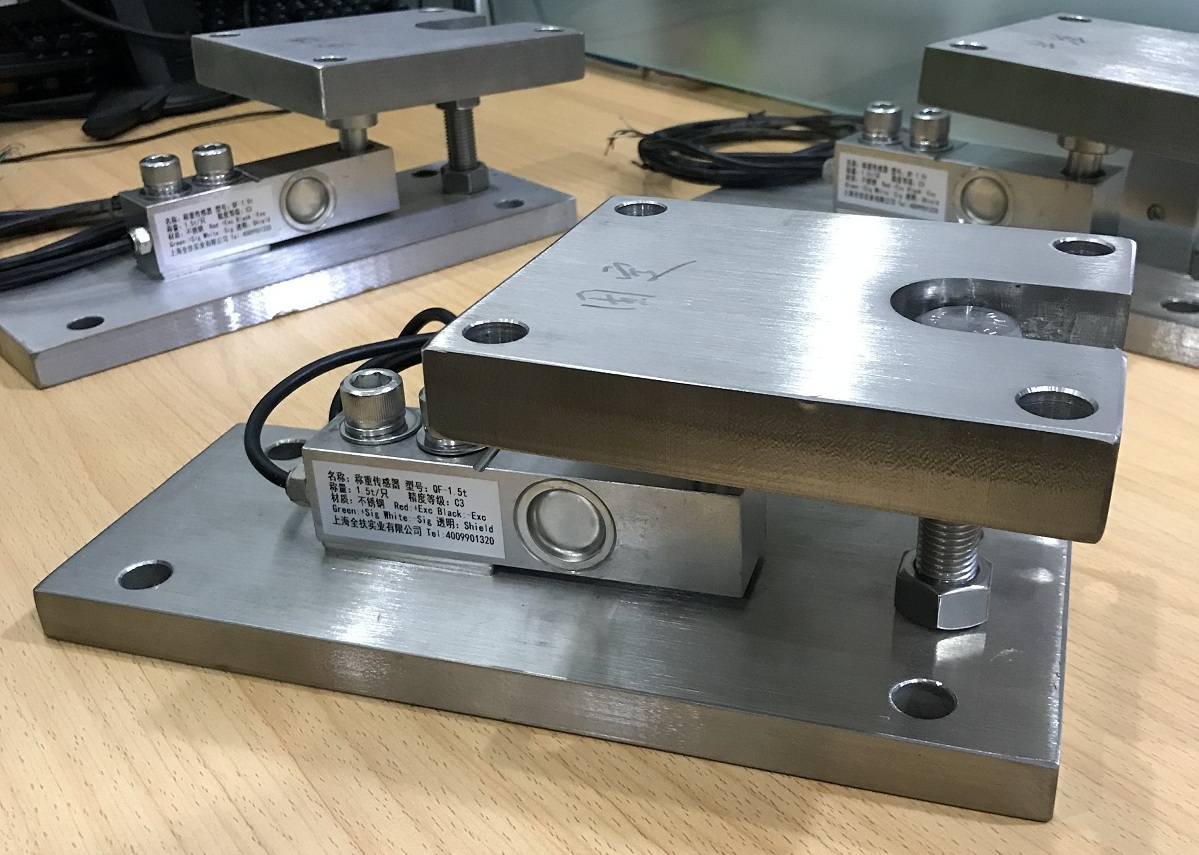

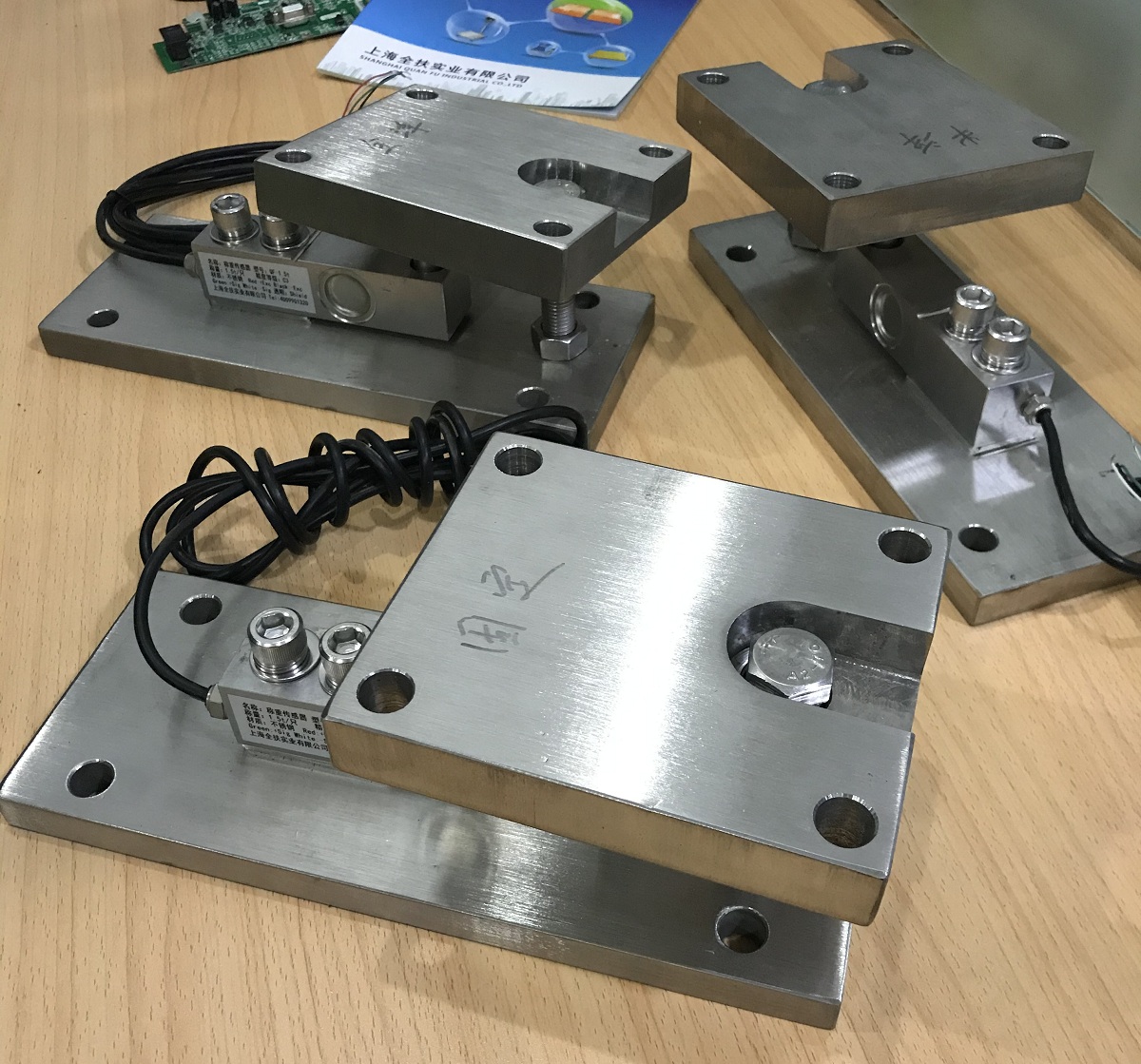

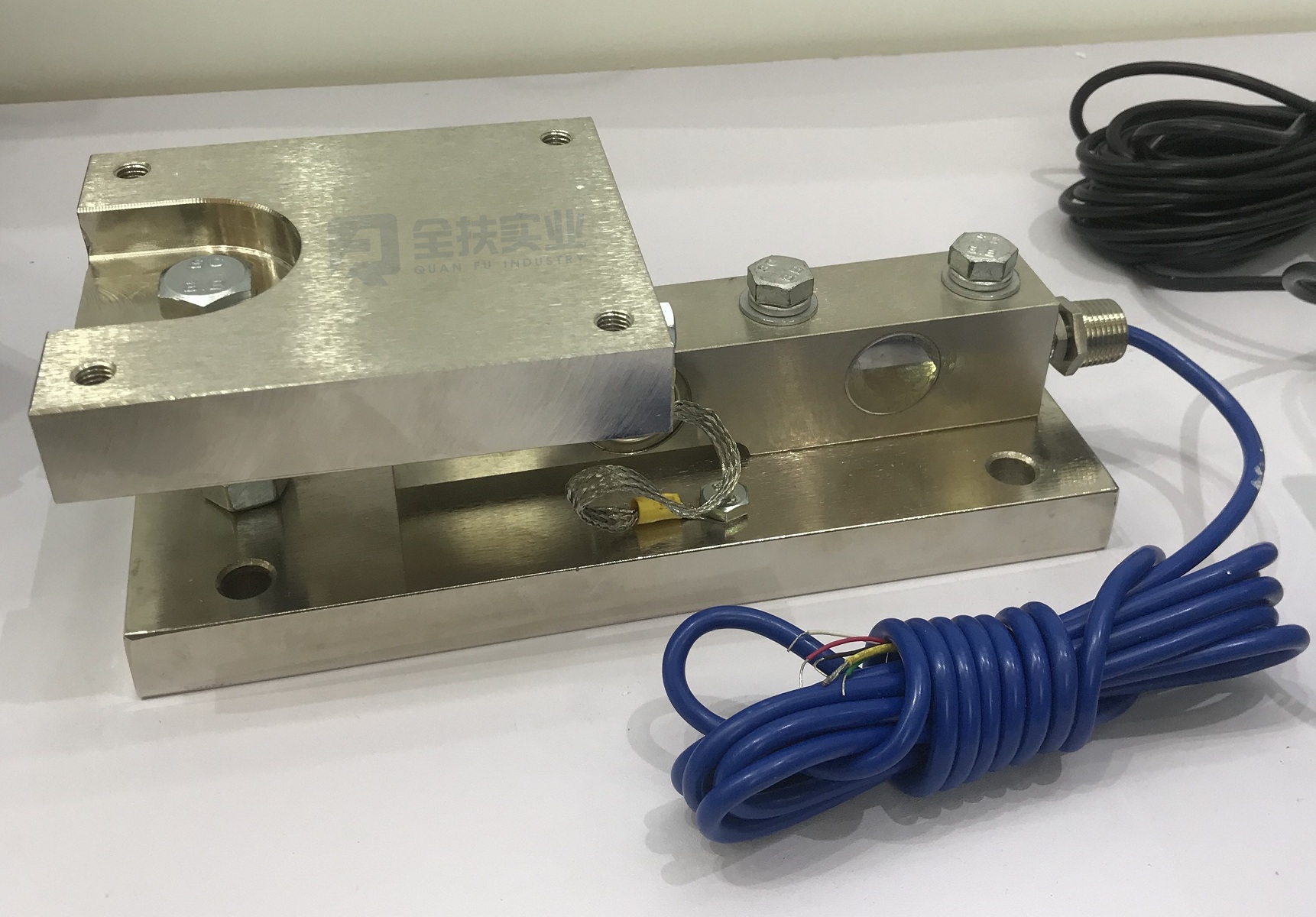

FW series Static load weighing module It is an economical and simple weighing element, which combines the weighing sensor, load transfer device, installation connector and other components, which can be easily connected with mechanical devices of various shapes, and can convert the tank body or other structures into a weighing device, so as to increase the process weighing capacity. The spherical connector can always maintain the vertical weighing state of the module, and the weighing performance can be guaranteed whether static weighing or dynamic weighing. It can also be used for electromechanical transformation of mechanical scale.

Technical parameters:

Range: 0.5T, 1t, 2T, 3T, 5T, 10t, 20t

Accuracy class: C3 assembled high-quality load cell

Material: carbon steel nickel plated or stainless steel, compact structure and good long-term stability

Structure: a roof structure (fixed, semi floating and floating) can eliminate the weighing error caused by thermal expansion and cold contraction of the tank. It is simple and fast to install. It is designed with overload protection and support bolts to prevent the equipment from overturning and has the function of self reset

Basic functions: weight measurement, zero setting, peeling, accumulation, constant value and batching. It is applicable to the weighing control of batching process in tank

Optional functions: RS232 / 485, 4-in-4-out control, MODBUS, PROFIBUS, DP bus, 4-20mA analog output, relay switching output, etc

Sensor options: Toledo, HBM, AVIC, Coriolis, etc

Explosion proof optional: explosion proof sign ex ia IIC T4 GA

Combination mode:

In a weighing system, one fixed weighing module, one semi floating weighing module and the rest fully floating weighing modules are used

The standard combination is:

1. Three piece set: one fixed, one semi floating and one full floating module

2. Four piece set: one fixed module, one semi floating module and two full floating modules

The whole set of equipment includes: top plate, bottom plate, load cell, pressure head and support bolt, junction box, cable, weighing controller and other components. Optional insulating material pad to reduce vibration, vibration and heat transfer.

Specification model:

model	FW-05	FW-1	FW-2	FW-3	FW-5	FW-10	FW-15	FW-20
Maximum weighing	500kg	500kg	1t	2t	5t	10t	15t	20t
Division value	0.2kg	0.2kg	0.2kg	0.5kg	2kg	5kg	10kg	10kg
Safety overload	150%
Ultimate Overload	300%
Degree of protection	IP65
Cable length	4/5/6/10m

Remarks: the bottom plate and top plate can be installed and customized according to customer requirements, and the sensors and weighing instruments can be selected according to customer requirements

Application: various industrial automatic weighing occasions, small silo, tank, hopper, roller conveying, quantitative control, batching control, etc. can be connected with PLC or DCS system, and explosion-proof in dangerous areas can be selected.
