The large tonnage weighing module adopts column or bridge sensor

It is equipped with upper and lower base plates, which are composed of load-bearing head, horizontal pull rod and anti overturning bolt

It has the characteristics of high precision, good stability and convenient installation

It is especially suitable for weighing device of large tonnage silo

Column type weighing module adopts column type sensor

It is equipped with upper and lower base plates, which are composed of load-bearing head, horizontal pull rod and anti overturning bolt

It has the characteristics of high precision, good stability and convenient installation

It is especially suitable for the weighing device of large tonnage silo.

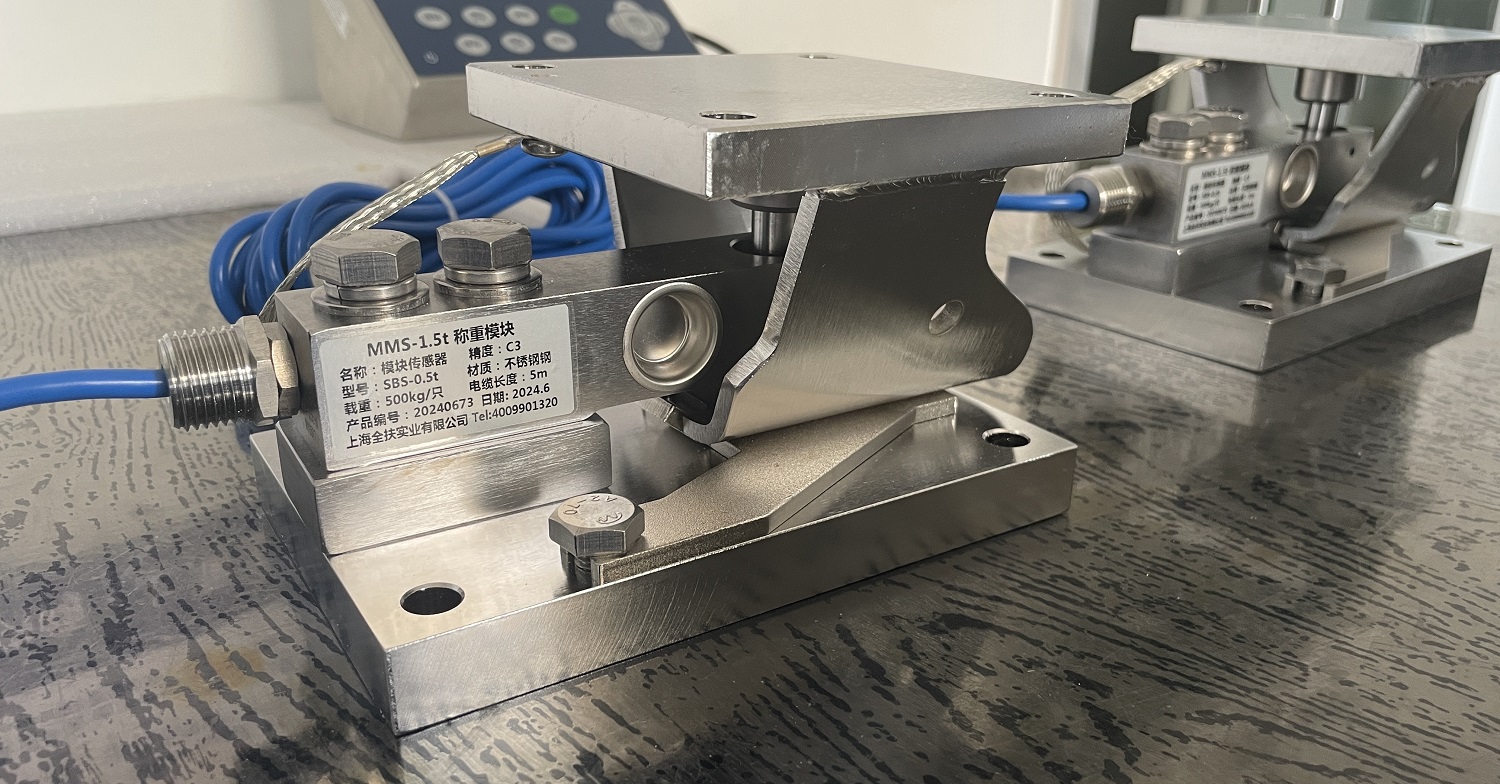

500kg~20t dynamic load weighing module dynamic load cell

Regardless of installation and combination, including upper and lower mounting plates, sensors and vertical anti overturning bolts

Widely used to transform tank or other mechanical structures into weighing devices

Such as raceway, platform, vertical tank, tank, hopper, etc

It is especially applicable to the weighing control of tank batching process

300kg ~ 20t static load weighing module combined weighing scale

Fixed module, semi floating module and full floating module

According to different assembly methods, it can be divided into these three types of combination methods

This module combination can eliminate the influence of the change of the force point of the sensor caused by the stress deformation or thermal expansion and cold contraction of the container, and is widely used to transform the tank or other mechanical structures into weighing devices

Such as raceway, platform, vertical tank, tank, hopper, etc

Dynamic and static weighing module with horizontal tie rod

The shear beam weighing sensor is adopted, which has high precision and good long-term stability

It is equipped with upper and lower bottom plates, pressure heads, horizontal pull rods and anti tilt bolts to form a dynamic and static load weighing module

The problems of horizontal limit and anti overturning of bearing equipment are solved

Small range weighing module, high precision weighing module

It is used for inspection scale, belt scale, sorting scale, packaging scale, batching scale, hopper weighing, etc

Including upper and lower mounting plates, bellows sensors and vertical anti overturning bolts

Material: carbon steel, nickel plated, stainless steel optional
