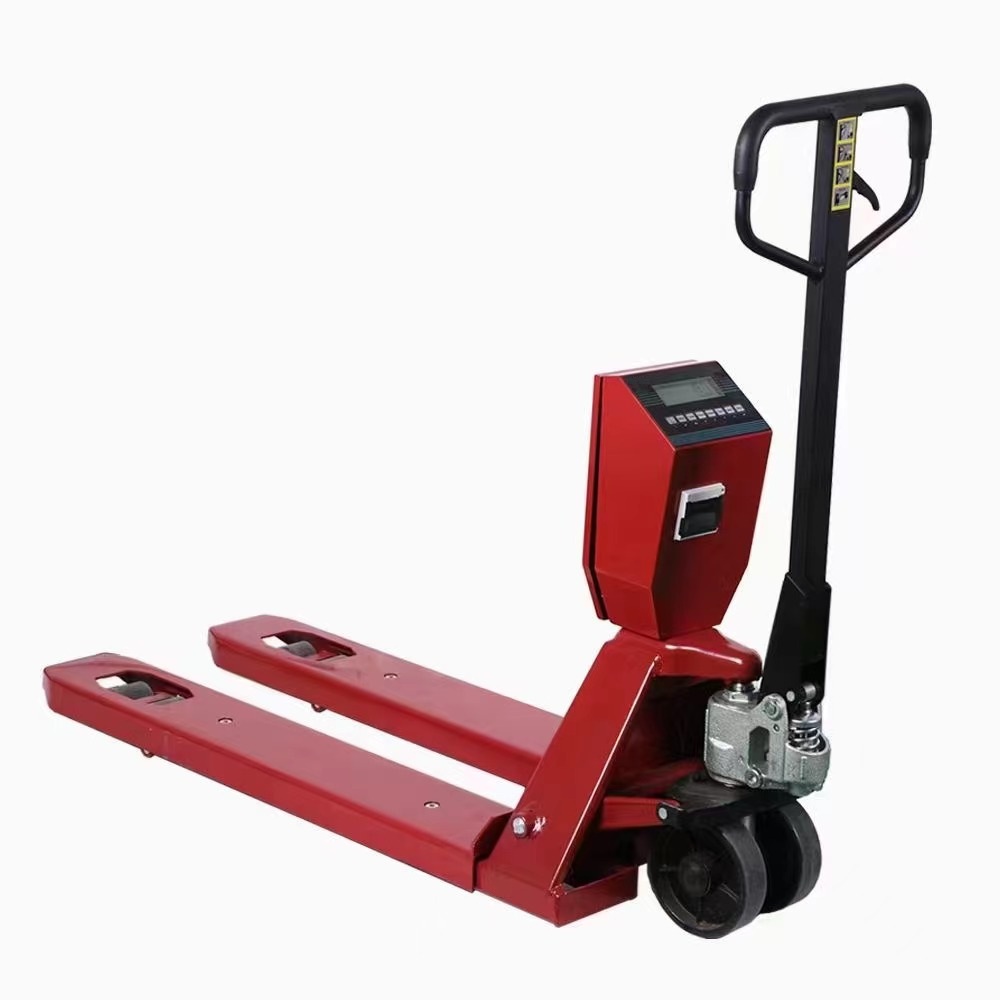

Electronic forklift scale with printing, high-quality hydraulic handling scale
Hydraulic handling, weighing and printing are integrated, with high-precision configuration
Automatic weighing can be carried out while loading materials or weighing pallets
LP series electronic forklift scale with printing function integrates hydraulic handling, weighing and printing. It can carry out automatic weighing while loading materials or weighing pallets. It can set automatic printing after weighing is stable or manual printing of weighing data. It is widely used in factory workshops, warehousing, materials and other fields.
Technical parameters:
Accuracy class: III
Range: 0.5T, 1t, 2T, 2.5t, 5T
Operating environment: working temperature - 10 ℃ ~ + 40 ℃
Working power supply: built-in lead-acid battery dc6v4ah, or dc9v adapter
Basic functions: weight counting, zero setting, peeling, accumulation, counting and built-in printing
Scale body material: high quality carbon steel or stainless steel material is optional
Scale structure: pallet car structure, high-strength silent polyurethane wheel, lighter implementation, quieter and stable movement
Structural features: reinforced channel steel or C-steel structure, carbon steel overall shot blasting, plastic spraying and paint baking treatment process, strong corrosion resistance, special alloy steel sensor, strong lateral force resistance and overload capacity, stable performance and high reliability, full frame U-shaped frame, higher rigidity of scale body and smaller weighing deviation.
Basic configuration: four alloy steel sensors, a junction box, signal wires, instruments and weighing components
Specification parameters:
model | LP-05 | LP-1t | LP-2t | LP-2.5t | LP-5t |
Weighing Range | 500kg | 1t | 2t | 2.5t | 5t |
accuracy | 0.2kg | 0.2kg | 0.5kg | 1kg | 2kg |
Fork height | 80~195mm | 100~220mm | |||
Fork width | 160mm | 180mm | |||
Narrow fork | 1150mm * 560mm (fork length * width) | customized | |||
Wide fork | 1220mm * 680mm (fork length * width) | customized | |||
It is widely used for weighing goods in logistics, warehousing, workshops, coal mines, ports, buildings and railway transportation.
Hydraulic lifting system, manual implementation. It can carry out automatic weighing while loading materials, which is suitable for pallet weighing and other occasions that need to be moved frequently.
Electric truck scale 2T electric pallet handling forklift scale
Electric travel, electric lifting, electric handling and weighing are integrated
It has strong braking performance and will not slip even when working on slopes and truck tail plates
Large tonnage forklift scale, customized forklift electronic scale
According to user requirements, we can customize non-standard customized electronic forklift scales such as heightening, lengthening and widening
Explosion proof forklift scale, intrinsically safe explosion-proof hydraulic truck scale
It is widely used in explosive gas environment in chemical industry and other industries
Copper wheel configuration is optional, scale body material and sensor configuration are optional
High quality configuration can replace METTLER TOLEDO forklift scale
Platform forklift scale, hydraulic mobile weighbridge
Equipped with hydraulic lifting system, manual implementation and fixed weighing and handling functions
Electronic forklift scale with printing, high-quality hydraulic handling scale
Hydraulic handling, weighing and printing are integrated, with high-precision configuration
Automatic weighing can be carried out while loading materials or weighing pallets
Stainless steel electronic forklift scale, high precision stainless steel forklift scale
It is used in humid, harsh and hygienic environments such as food, chemical industry and pharmacy
It can be equipped with an integrated printing mechanism, which can weigh and print in real time
High precision forklift scale, hydraulic handling scale, pallet scale
Suitable for weighing pallets from 600 kg to 2000 kg
The load cell has high configuration, good overall quality and strong weighing stability
Hydraulic truck electronic scale economic hydraulic forklift electronic scale
2 ton electronic truck scale, used in storage, logistics and other fields
