Current Position: Home > Company Products >Forklift scale > PTX explosion proof electronic forklift scale
Explosion proof forklift scale, intrinsically safe explosion-proof hydraulic truck scale
It is widely used in explosive gas environment in chemical industry and other industries

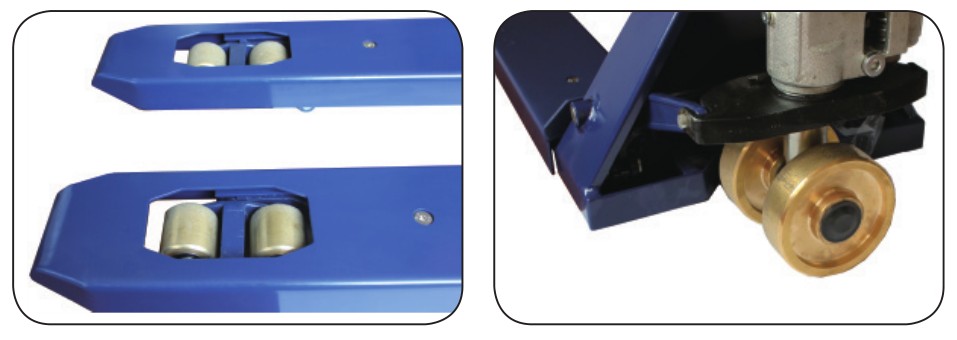

Copper wheel configuration is optional, scale body material and sensor configuration are optional
High quality configuration can replace METTLER TOLEDO forklift scale

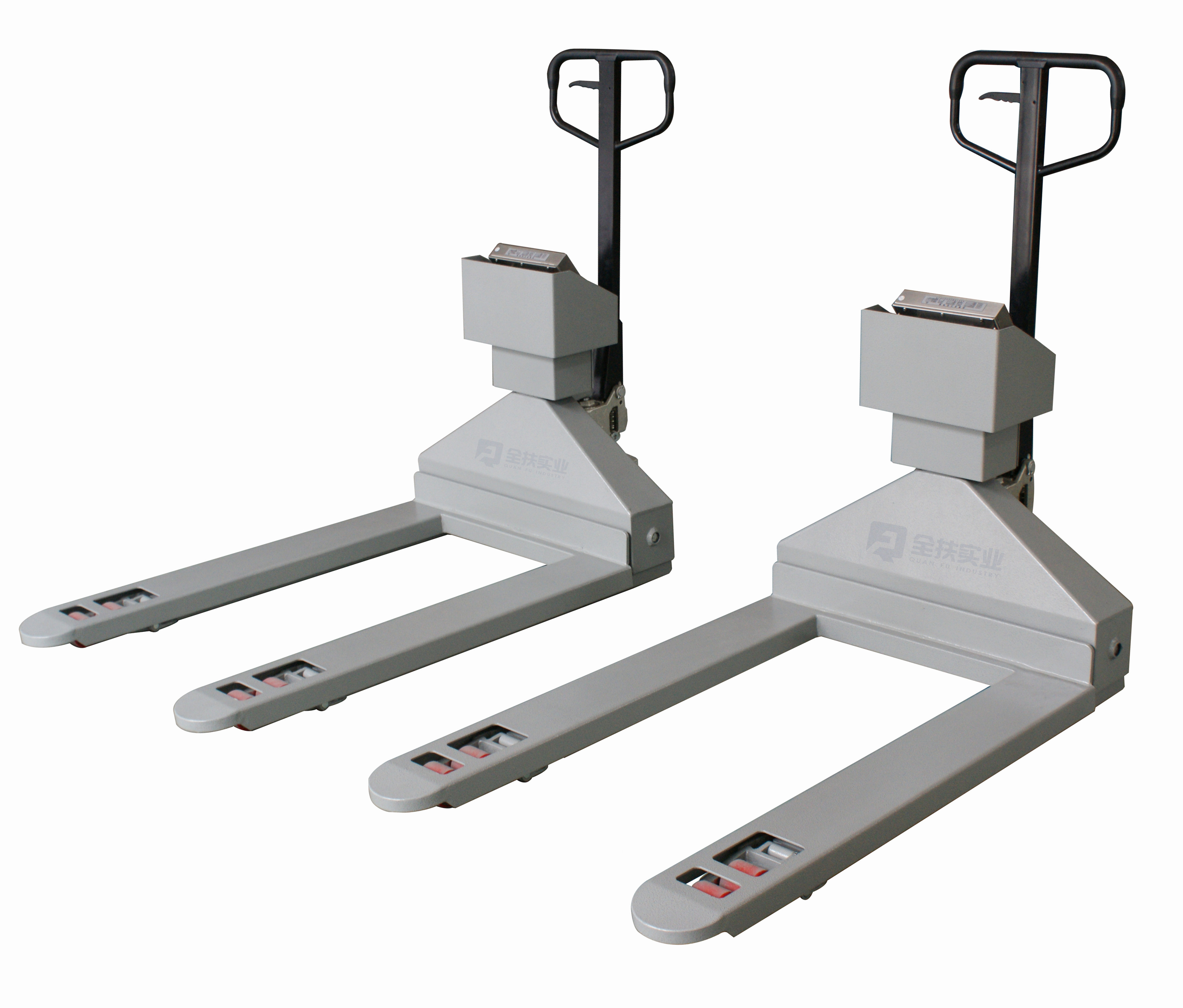

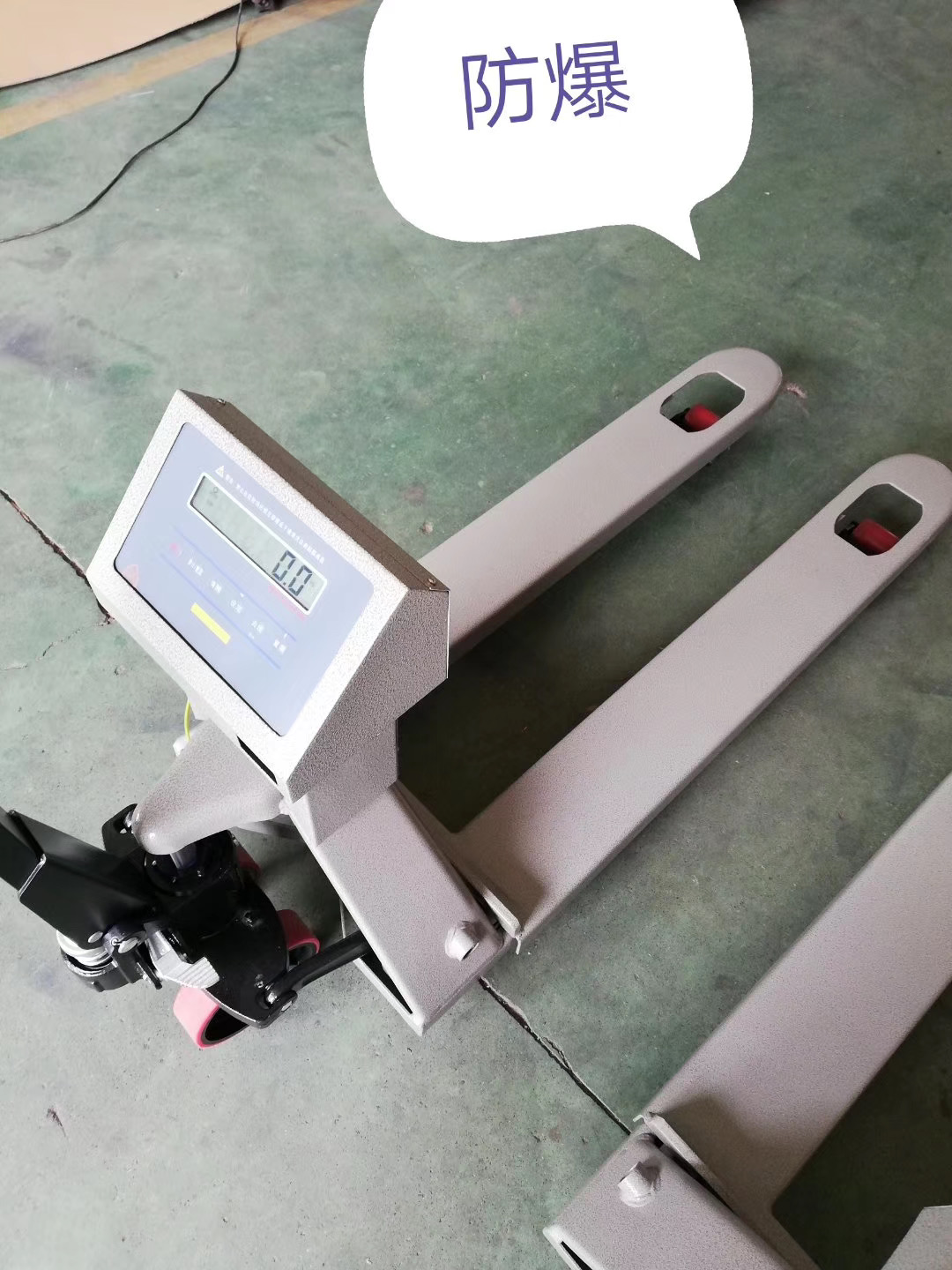

PTX series explosion-proof electronic forklift scale, Explosion proof forklift scale The weighing system is composed of tray body, explosion-proof weighing sensor, explosion-proof junction box and explosion-proof weighing instrument; It has the characteristics of movable, simple operation, fast weighing, stability and reliability.
Technical parameters:
Accuracy class: III
Explosion proof sign: exib iict4gb
Range: 0.5T, 1t, 2T, 3T
Operating environment: working temperature - 10 ℃ ~ + 40 ℃
Working power supply: explosion-proof battery dc6v4ah or explosion-proof power supply
Basic functions: weight counting, zero setting, peeling and accumulation (printing optional)
Scale body material: high quality carbon steel or stainless steel material is optional
Scale structure: pallet car structure, high-strength nylon wheel or copper wheel, easy to carry out and move smoothly
Structural features: full frame U-shaped frame, higher rigidity of scale body, high weighing accuracy, overall shot blasting, plastic spraying and paint baking treatment process of carbon steel, strong corrosion resistance, special alloy steel sensor, strong resistance to lateral force and overload, stable performance and high reliability.
Explosion proof weighing box and four explosion-proof signal wires
Specification parameters:
model | PTX-05 | PTX-1t | PTX-2t | PTX-2.5t | PTX-5t |
Weighing Range | 500kg | 1t | 2t | 2.5t | 5t |
accuracy | 0.2kg | 0.2kg | 0.5kg | 1kg | 2kg |
Fork height | 80~195mm | 100~220mm | |||
Fork width | 160mm | 180mm | |||
Narrow fork | 1150mm*560mm (fork length) * (width) | customized | |||
Wide fork | 1220mm*680mm (fork length) * (width) | customized | |||
It is widely used in places where goods are mobile weighed in places with explosion hazards such as petrochemical industry, coating, paint, pharmacy, chlorine, military industry and so on.
Electric truck scale 2T electric pallet handling forklift scale
Electric travel, electric lifting, electric handling and weighing are integrated
It has strong braking performance and will not slip even when working on slopes and truck tail plates
Large tonnage forklift scale, customized forklift electronic scale
According to user requirements, we can customize non-standard customized electronic forklift scales such as heightening, lengthening and widening
Explosion proof forklift scale, intrinsically safe explosion-proof hydraulic truck scale
It is widely used in explosive gas environment in chemical industry and other industries
Copper wheel configuration is optional, scale body material and sensor configuration are optional
High quality configuration can replace METTLER TOLEDO forklift scale
Platform forklift scale, hydraulic mobile weighbridge
Equipped with hydraulic lifting system, manual implementation and fixed weighing and handling functions
Electronic forklift scale with printing, high-quality hydraulic handling scale
Hydraulic handling, weighing and printing are integrated, with high-precision configuration
Automatic weighing can be carried out while loading materials or weighing pallets
Stainless steel electronic forklift scale, high precision stainless steel forklift scale
It is used in humid, harsh and hygienic environments such as food, chemical industry and pharmacy
It can be equipped with an integrated printing mechanism, which can weigh and print in real time
High precision forklift scale, hydraulic handling scale, pallet scale
Suitable for weighing pallets from 600 kg to 2000 kg
The load cell has high configuration, good overall quality and strong weighing stability
Hydraulic truck electronic scale economic hydraulic forklift electronic scale
2 ton electronic truck scale, used in storage, logistics and other fields
