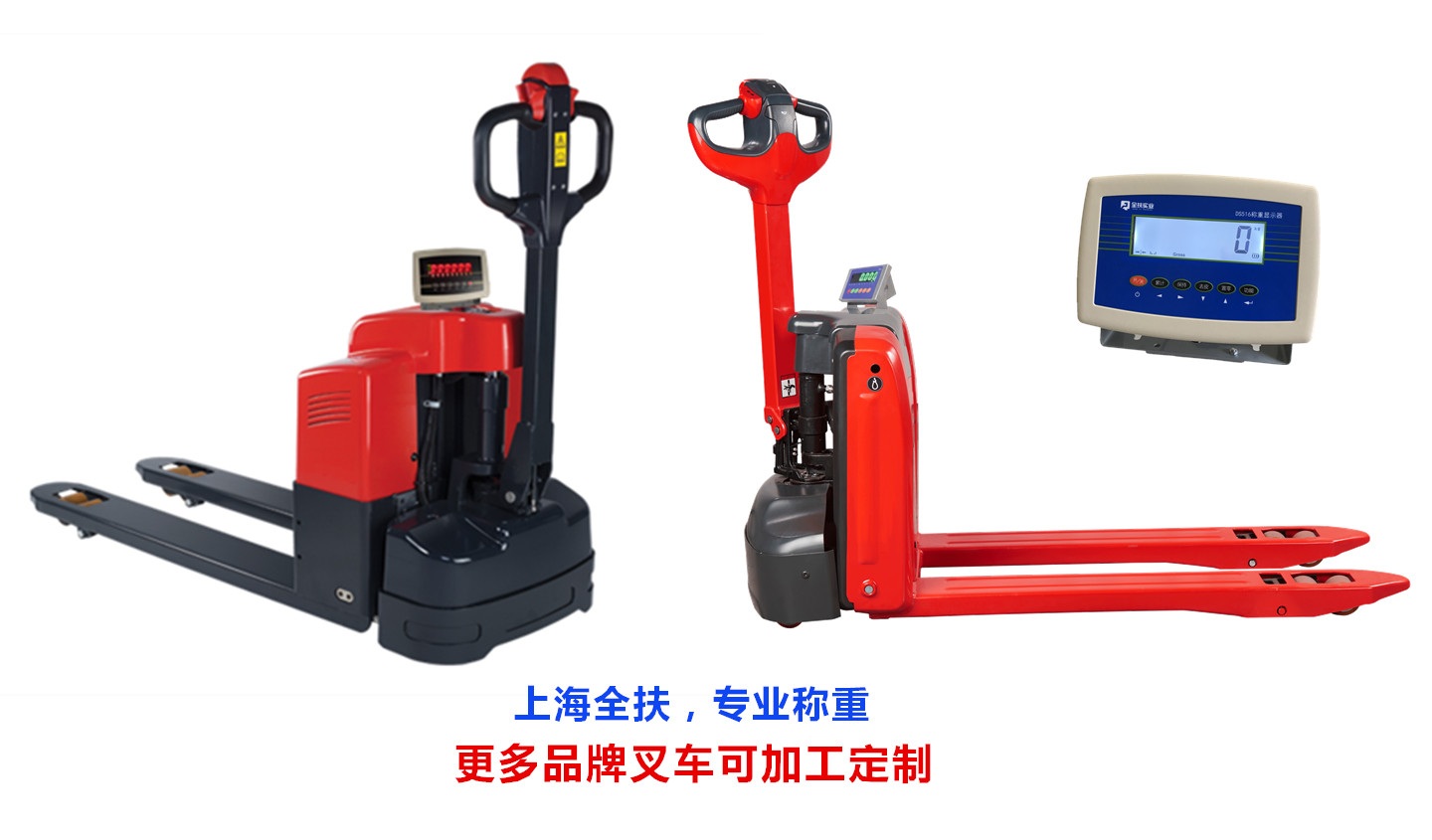

1 ton, 2 ton and 3 ton electric pallet handling forklift scale

Shanghai Quanfu high-quality electric forklift scale and low circular arc body effectively protect the effective safety distance between the operator and the forklift.

Features of electric forklift scale:

Centralized joystick with hand protection function. The driving motor drives the driving and lifting of the forklift to reduce the heavy physical labor. The electric forklift has a slow driving button, which can also realize easy and accurate steering in a narrow space. The electric driving speed proportional control can automatically change the driving speed according to the distance between the tiller and people. When higher performance is required, torque can be increased to adapt to various working conditions.
Four sets of large capacity maintenance free lead-acid batteries are equipped as standard, with strong endurance. The built-in charger is easy to operate and can be charged at any time. With battery over discharge protection, the forklift will automatically cut off the lifting function when the battery is low, so as to ensure higher battery life.

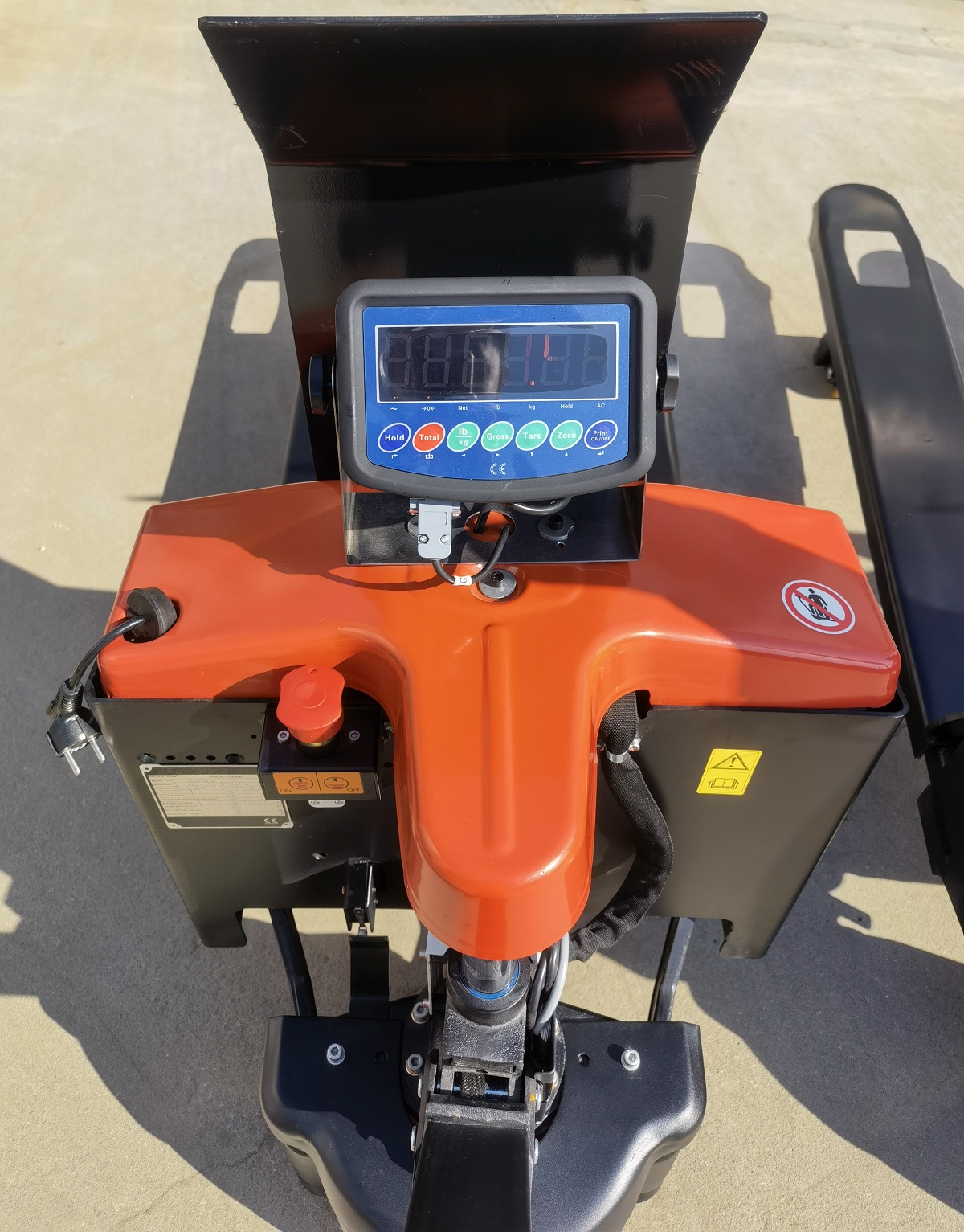

It is equipped with high-precision weighing sensor, junction box, signal line and high-precision weighing display as standard, The basic weighing function has the functions of weighing, counting, zeroing, peeling, printing and so on.

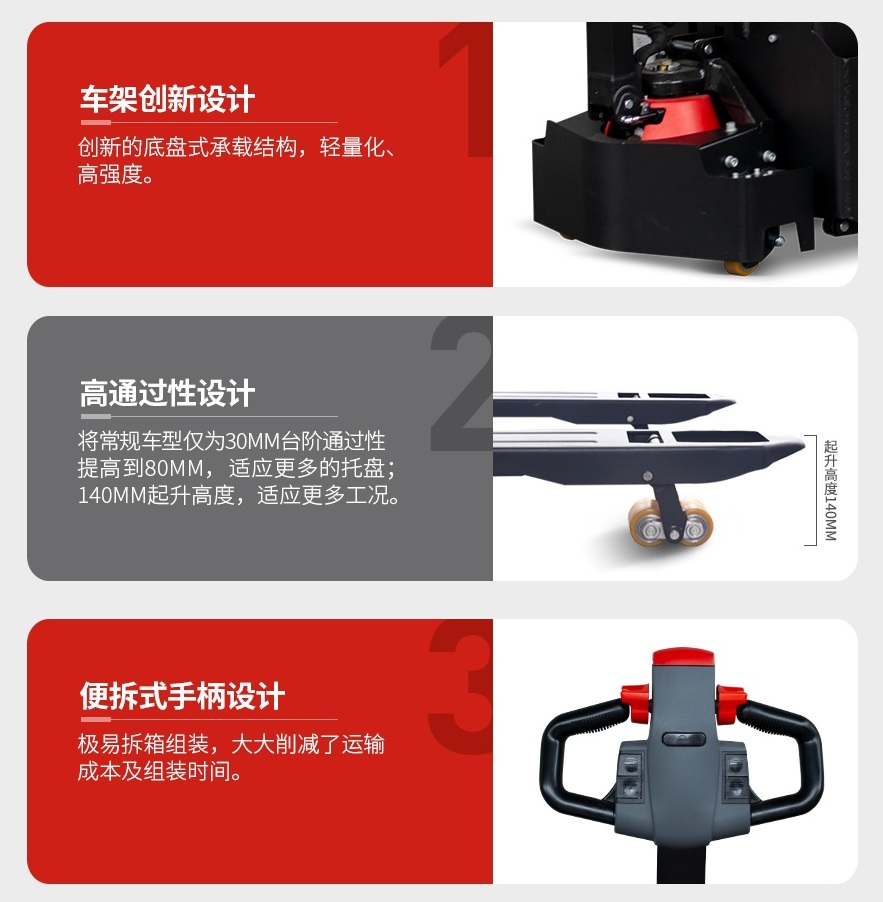

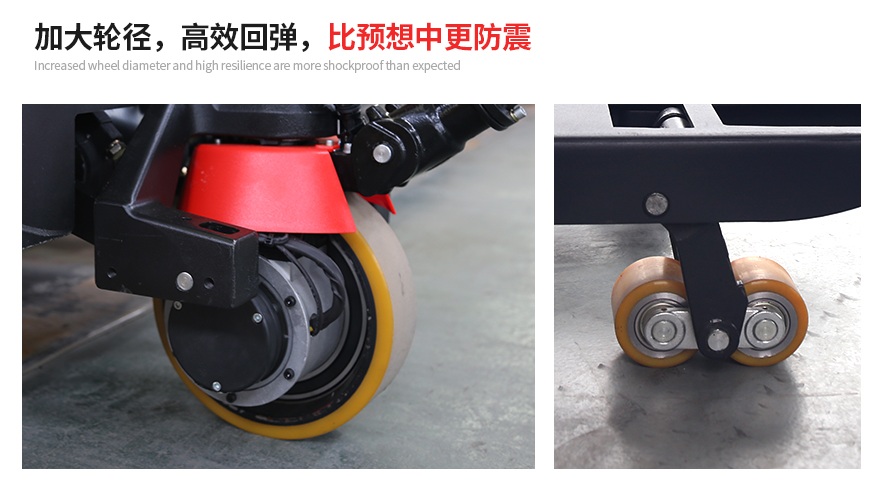

The car body adopts solid metal cover plate to effectively protect the driving system and weighing system, and provide foot protection for the operator at the same time. Reinforced fork design, high-quality weighing device, stable and reliable. Polyurethane moving wheel and universal balance wheel, shock absorption of the whole vehicle, low noise, stable handling of goods and high efficiency.

The compact electric forklift scale is not only beautiful in appearance, but also firm and durable. The light and comfortable new composite car body has high compression resistance on the car body surface. The motor cover plate is flexible and firm, which effectively protects all electrical components inside the car body. Each fork can carry more than 2 tons of goods without deformation.

Parameters of electric forklift scale:

model	PTD-1500	PTD-2000	PTD-2500
weighing	1500kg	2000kg	2500kg
accuracy	0.5kg	0.5g	1kg
Truck width	560/690mm	560/690mm	560/690mm
Fork length	1150mm	1150mm	1150mm
Minimum height	80mmm	80mmm	80mmm
Lifting height	140mm	140mm	140mm
Turning radius	1550mm	1550mm	1550mm
Lifting / lowering speed	0.037/0.038/m/s	0.037/0.038/m/s	0.037/0.038/m/s
Driving speed	4/4.5km/h	4/5.5km/h	4/5.5km/h
Gradient	8/16%	8/16%	8/16%
Battery voltage / capacity	48V/30Ah	48V/30Ah	48V/30Ah
Driving brake	electromagnetism	electromagnetism	electromagnetism
dead weight	240	260kg	280kg

Shanghai Quanfu electric handling forklifts have passed the anti slip slope test, with strong power, stable weighing, strong durability and the best weighing solution for small logistics equipment. Four groups of 12v30ah maintenance free batteries can work continuously for more than 8 hours after charging, which can fully meet the handling work of one day.

More imported brand forklift scales can be customized and equipped with imported brand weighing components. Shanghai Quanfu only provides you with high-quality weighing equipment.
