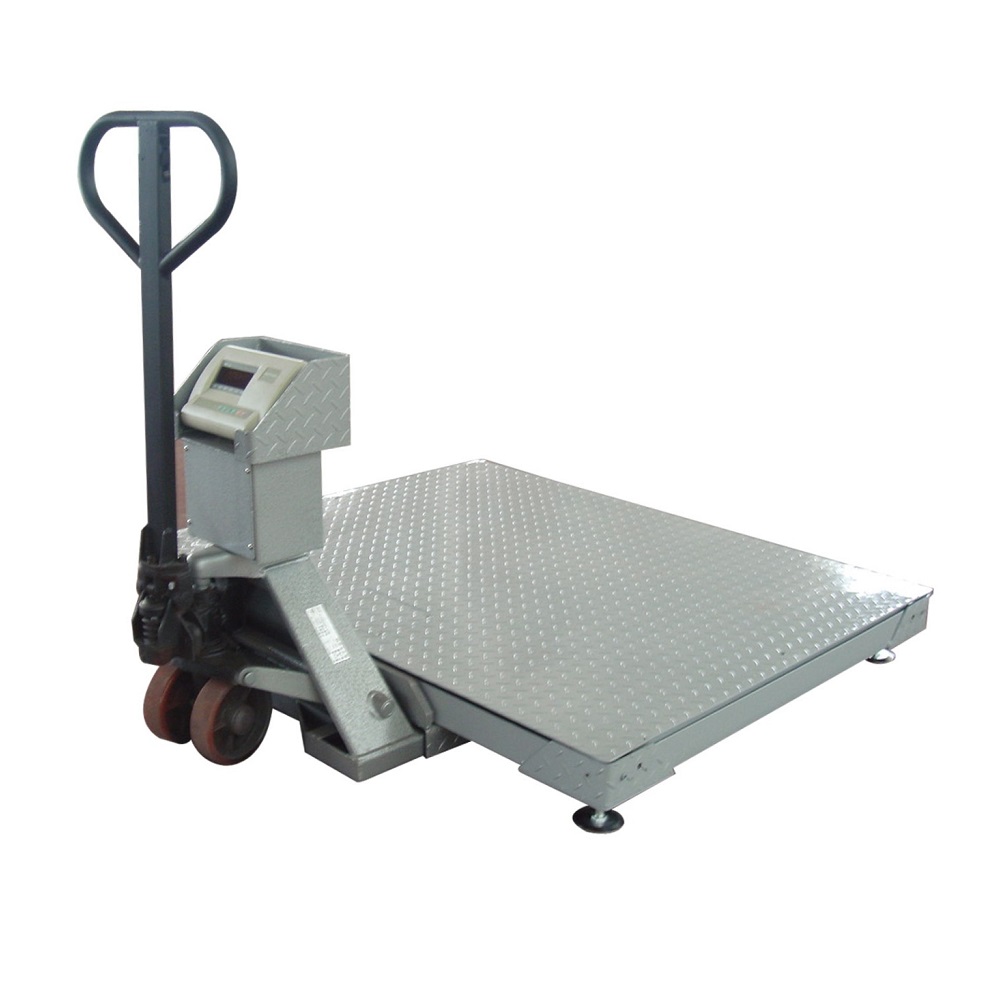

Platform forklift scale, hydraulic mobile weighbridge
Equipped with hydraulic lifting system, manual implementation and fixed weighing and handling functions
PTE Series platform forklift scale is a non-standard weighing equipment customized by the combination of frame platform scale and hydraulic forklift.
Equipped with hydraulic lifting system, manual implementation and fixed weighing and handling functions. It is widely used in factory workshops, storage, materials and other fields.
Technical parameters:
Accuracy class: III
Range: 1t, 2T, 3T, 5T
Operating environment: working temperature - 10 ℃ ~ + 40 ℃
Working power supply: built-in lead-acid battery dc6v4ah, or dc9v adapter
Basic functions: weight counting, zero setting, peeling, accumulation, counting, and printing functions are optional
Scale body material: high quality carbon steel or stainless steel material is optional
Scale body structure: frame type double-layer scale body, with limit device and good self resetting performance (combination of double-layer Weighbridge and hydraulic pallet truck)
Structural features: reinforced U-shaped steel structure, higher rigidity of scale body, zero weighing error, overall shot blasting, plastic spraying and paint baking treatment process of carbon steel, strong corrosion resistance, special alloy steel sensor and scale foot, strong resistance to lateral force and overload, stable performance and high reliability.
Specification parameters:
model | PTE-1t | PTE-2t | PTE-3t | PTE-5t |
Weighing Range | 1t | 2t | 3t | 5t |
accuracy | 0.2kg | 0.5kg | 1kg | 2kg |
Scale size | 1200*1200mm~1500*1500mm | |||
It is widely used for weighing goods in logistics, warehousing, workshops, coal mines, ports, buildings and railway transportation.
It can carry out automatic weighing while loading materials, which is suitable for pallet weighing and other occasions that need to be moved frequently.
Electric truck scale 2T electric pallet handling forklift scale
Electric travel, electric lifting, electric handling and weighing are integrated
It has strong braking performance and will not slip even when working on slopes and truck tail plates
Large tonnage forklift scale, customized forklift electronic scale
According to user requirements, we can customize non-standard customized electronic forklift scales such as heightening, lengthening and widening
Explosion proof forklift scale, intrinsically safe explosion-proof hydraulic truck scale
It is widely used in explosive gas environment in chemical industry and other industries
Copper wheel configuration is optional, scale body material and sensor configuration are optional
High quality configuration can replace METTLER TOLEDO forklift scale
Platform forklift scale, hydraulic mobile weighbridge
Equipped with hydraulic lifting system, manual implementation and fixed weighing and handling functions
Electronic forklift scale with printing, high-quality hydraulic handling scale
Hydraulic handling, weighing and printing are integrated, with high-precision configuration
Automatic weighing can be carried out while loading materials or weighing pallets
Stainless steel electronic forklift scale, high precision stainless steel forklift scale
It is used in humid, harsh and hygienic environments such as food, chemical industry and pharmacy
It can be equipped with an integrated printing mechanism, which can weigh and print in real time
High precision forklift scale, hydraulic handling scale, pallet scale
Suitable for weighing pallets from 600 kg to 2000 kg
The load cell has high configuration, good overall quality and strong weighing stability
Hydraulic truck electronic scale economic hydraulic forklift electronic scale
2 ton electronic truck scale, used in storage, logistics and other fields
