Current Position: Home > Company Products >Height scale > Qf-200 ultrasonic height and weight scale
Intelligent height and weight scale, measuring instrument, height and weight BMI
Voice broadcast, WiFi, Bluetooth data transmission, automatic measurement

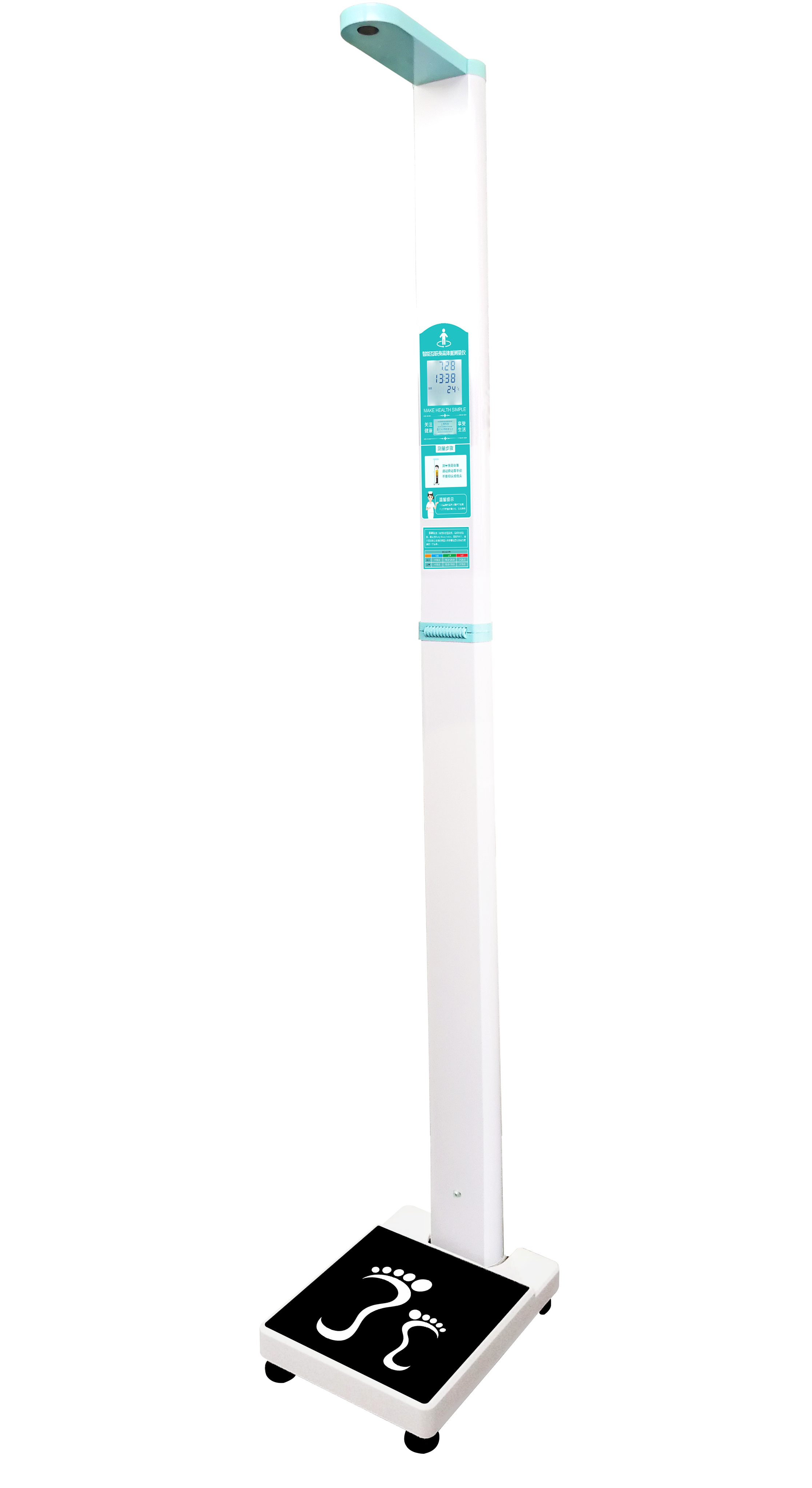

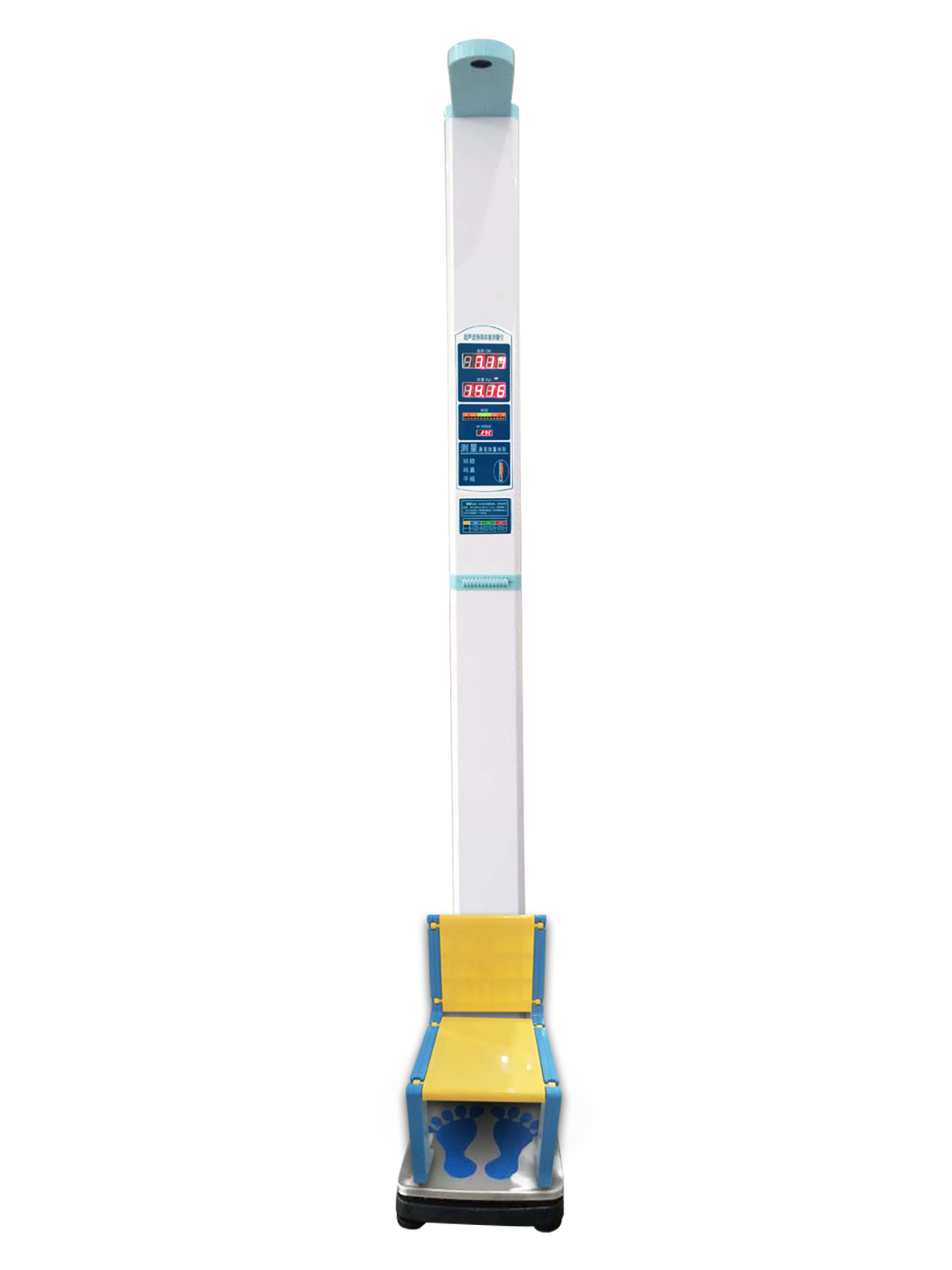

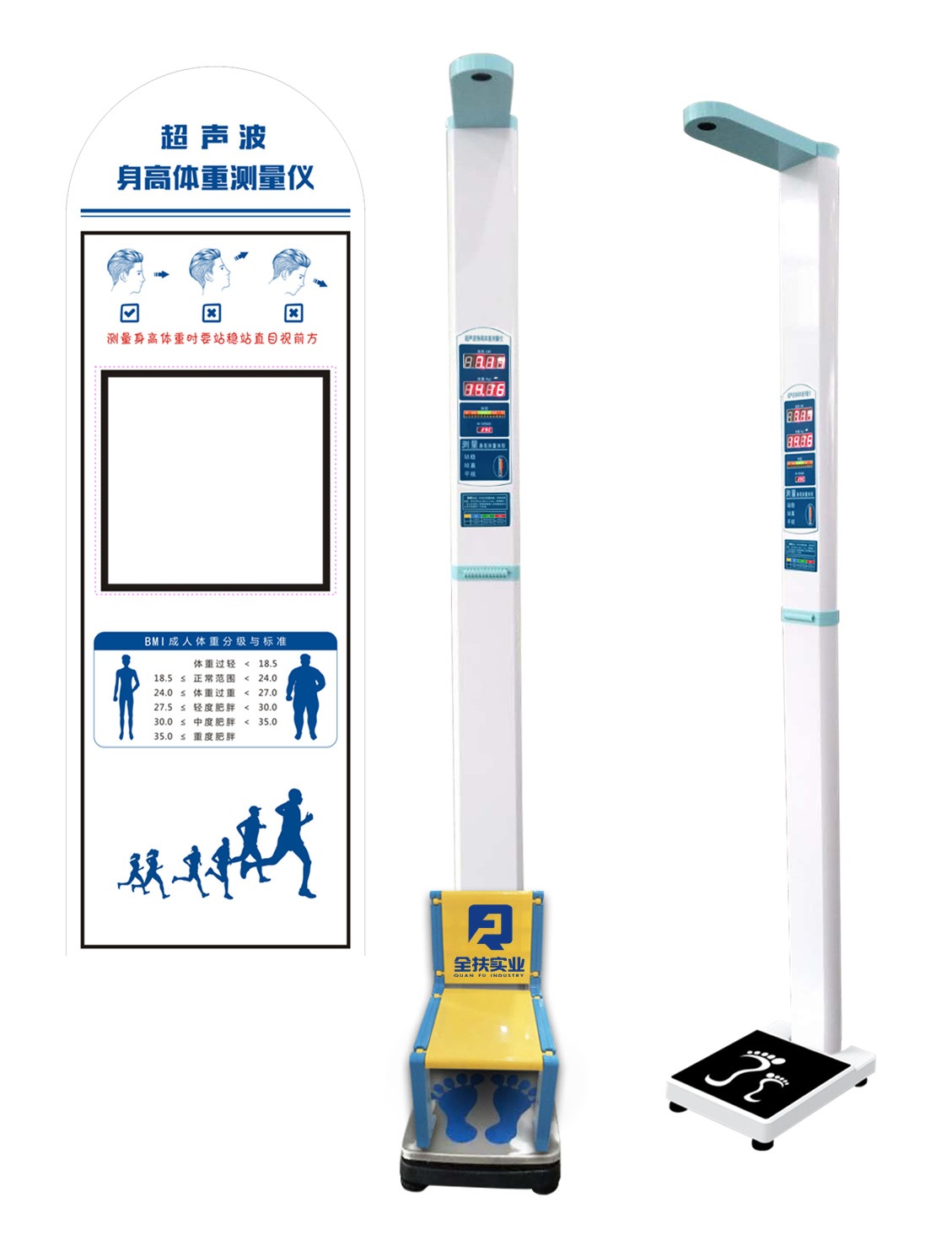

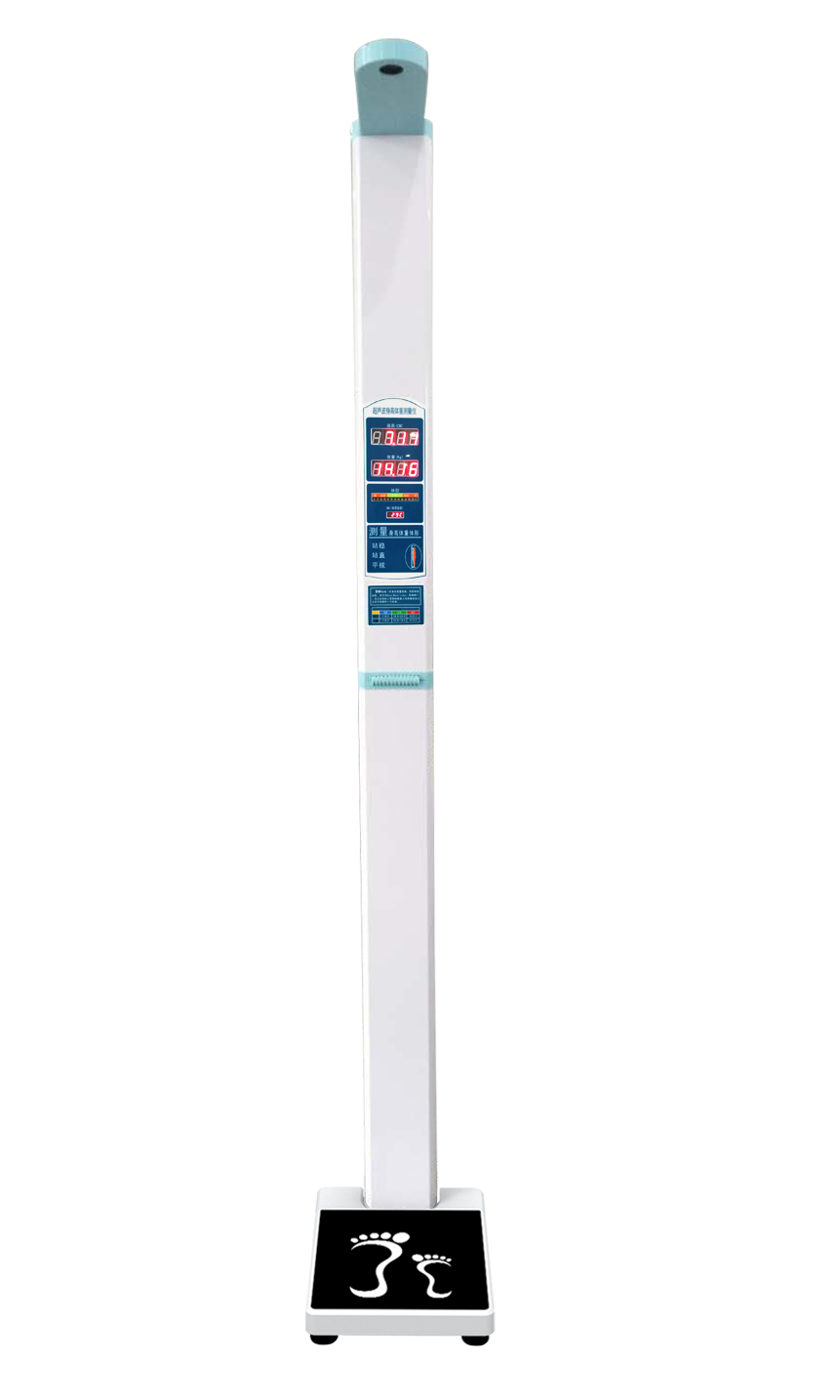

Qf-200 series medical type Ultrasonic height scale , Intelligent height and weight measuring instrument

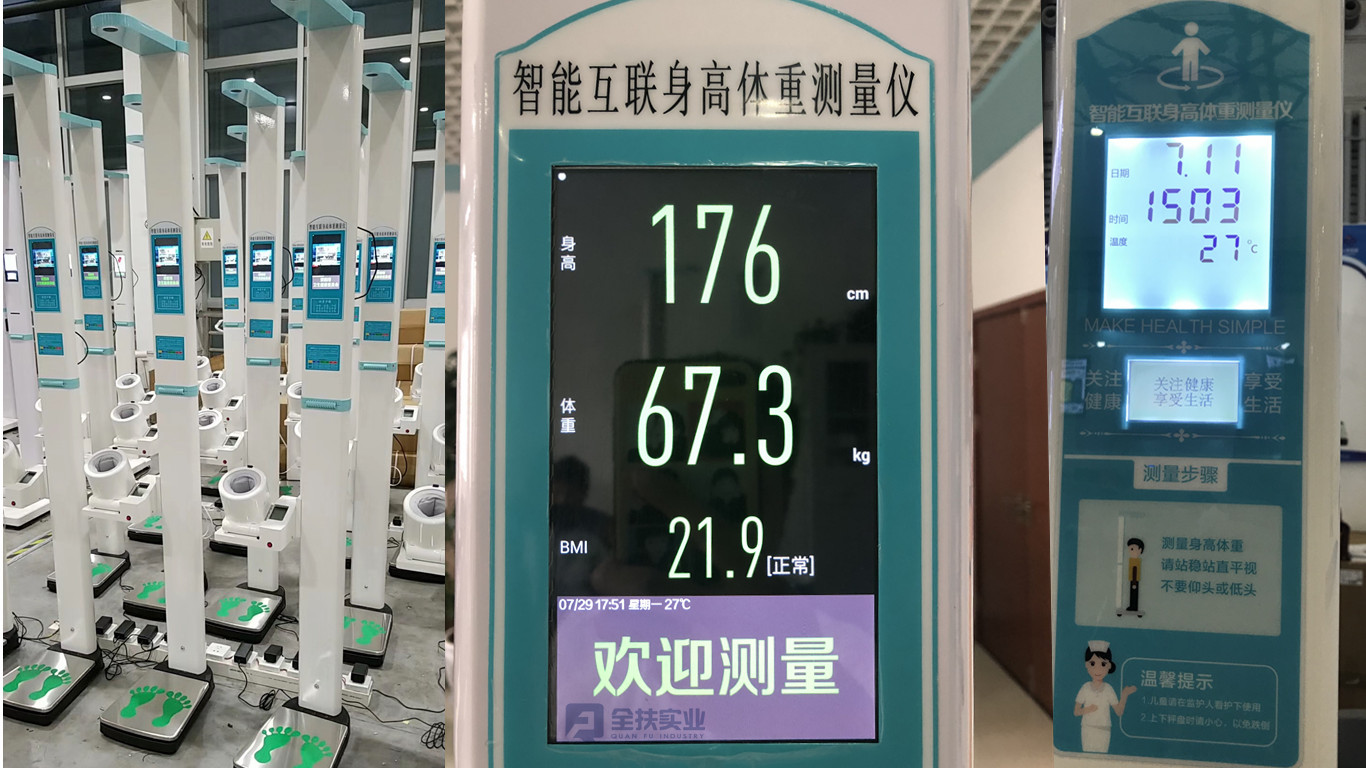

Digital LED display screen, or LCD display screen, can display measurement results and set screen text slogans;
Foldable, the scale body is equipped with wheels, and the height after folding is only 1.2m, which can be easily placed in the medical examination vehicle;
Scan the QR code on the device, and the measurement results can be directly sent to mobile wechat;
Support RS232 and Bluetooth, and the measurement results can be directly sent to the computer;
Support export customization business, multi language, optional coin function;
Support identification, such as "ID card / IC card / barcode / QR code", and can be configured with code scanning gun;
Technical parameters:
model | Qf-200 (LED display) or qf-201 (LCD display) |
Display mode | Digital LED display Or dual LCD, large screen 5.0 inches, small screen 3.0 inches |
Altimeter range | 80-200cm, accuracy: 0.2cm |
Weighing range | 2-300kg, division value 0.1kg |
Wechat Internet | The code scanning measurement results are directly sent to the mobile wechat (with LCD) |
advertising | Text slogans can be set on the 3-inch small screen, such as "welcome to XXX hospital" (LCD) |
Weight measurement method | Precision balance beam pressure sensor |
Height measurement method | ultrasonic sensor |
data communication | RS232, WiFi, Bluetooth, cloud interface, 3G / 4G, etc |
Measuring speed | Measurement 600 times / hour |
Power Supply | AC100V-240V（50Hz/60Hz) |
Power consumption | ≤ 15W, about 60 hours, 1 kWh |
work environment | Temperature: - 10 ℃ ~ + 40 ℃ |
Overall dimension | The height of the whole machine is 230cm, Height after folding 120cm |
Optional function | Identification of printer, Bluetooth, coin, payment, IC card / ID card, etc |
Net weight of complete machine | 22kg (carton packaging) |
Package size | 500 * 310 * 2350 / length, width and height (mm) |

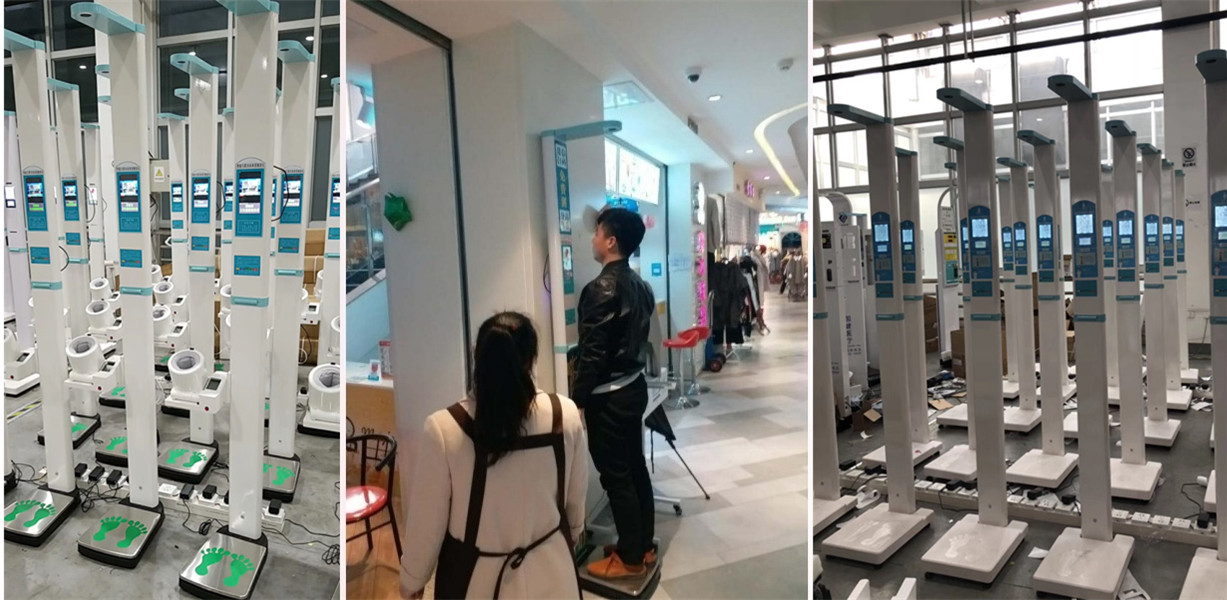

Application fields: Major hospitals, community physical examination, schools, physical examination centers, troops, beauty and fitness clubs, shopping malls, pharmacies, pedestrian streets and other places.
Intelligent height and weight measuring instrument price: due to different function configurations, the price is different. Please contact the salesperson of our company for specific purchase.
