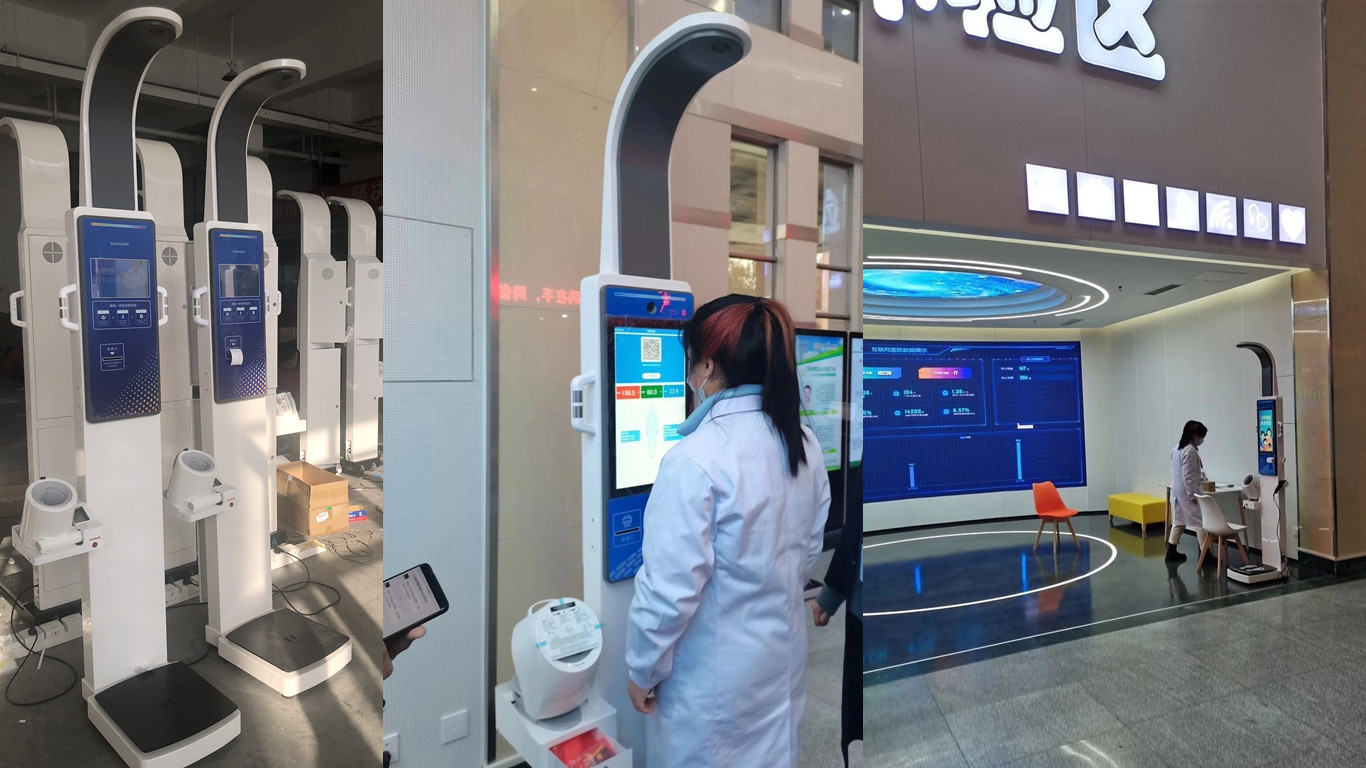

QF-10 intelligent health cabin all-in-one machine, which can carry out face recognition Multifunctional health all-in-one machine scale

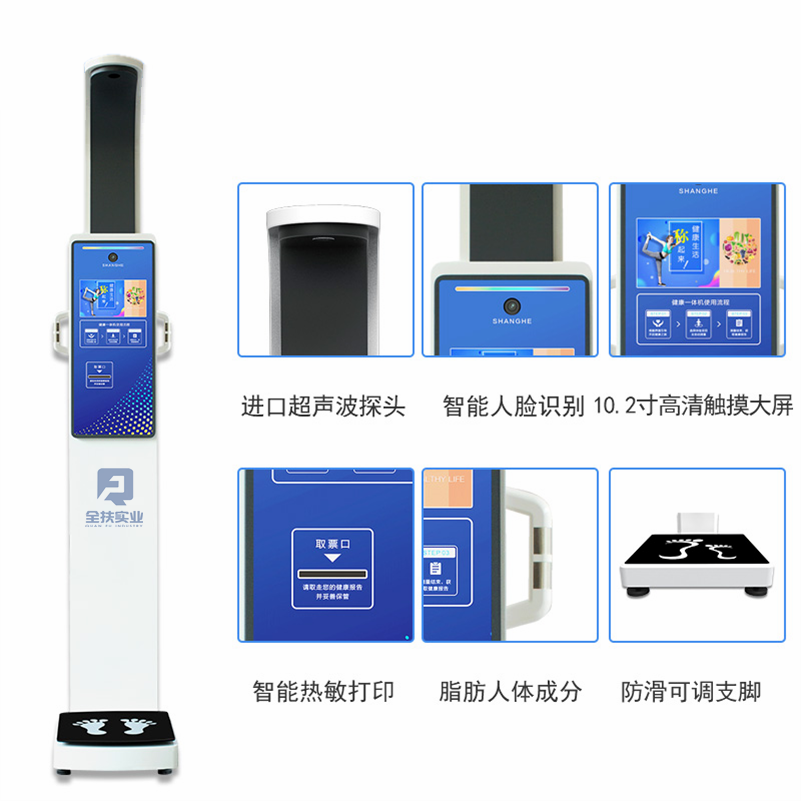

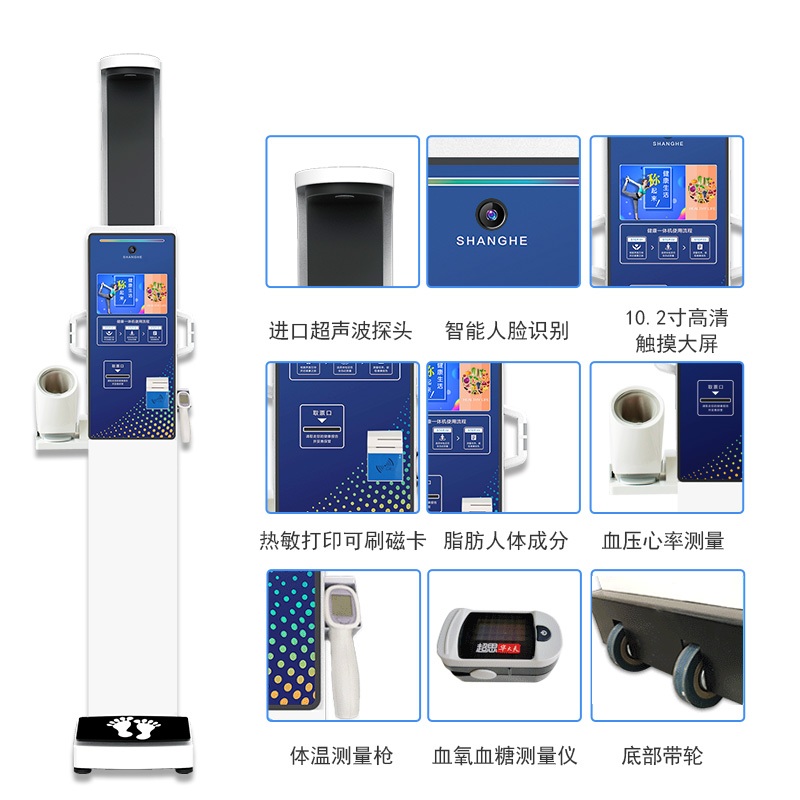

Product features:

High end AI intelligent chip can carry out face recognition, collect identity information, compare faces, and connect with third-party systems.

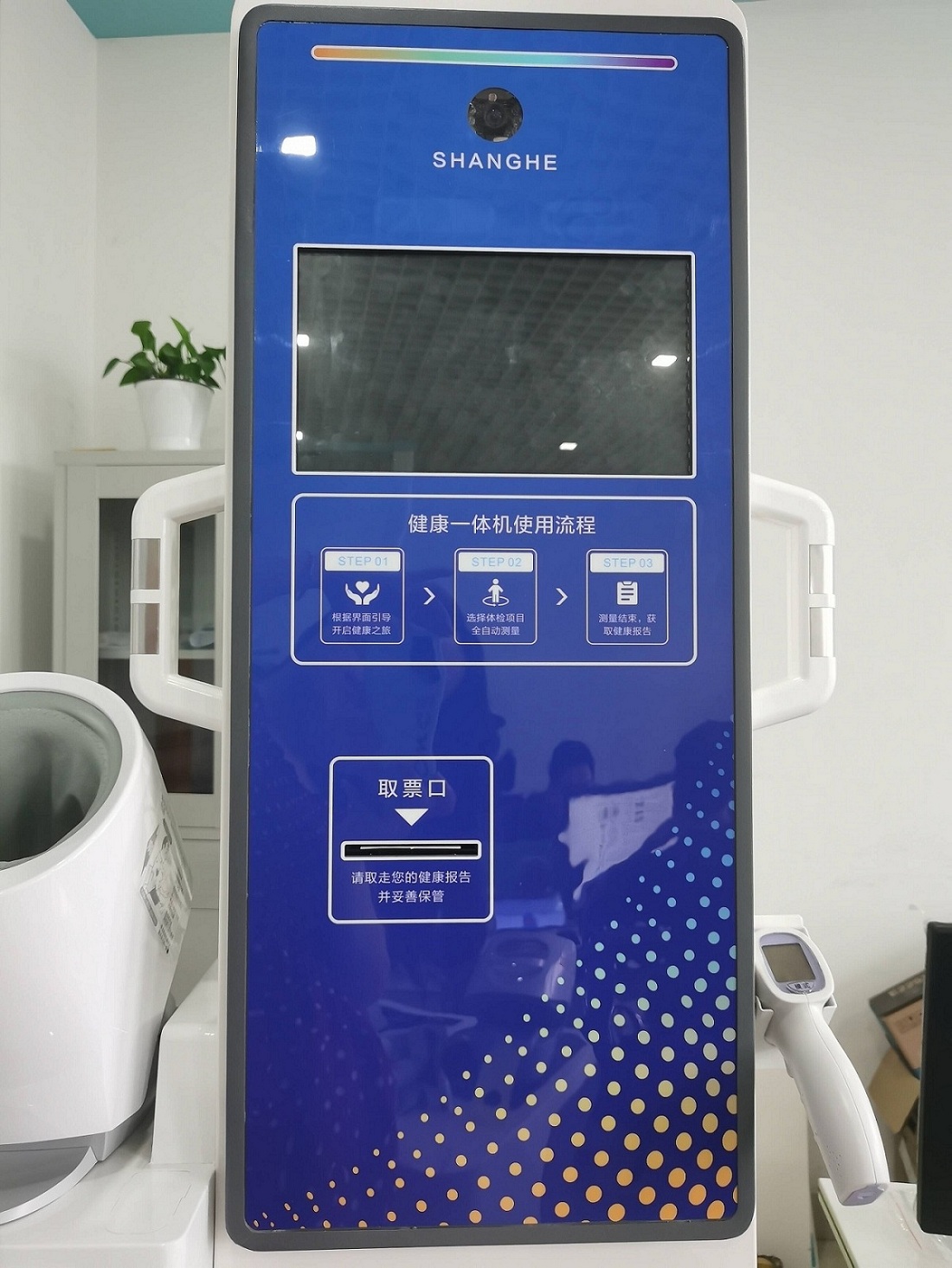

10.2-inch high-definition LCD (optional touch screen), real-time display of measurement process and results, standby can play video / pictures, and the screen can be set with advertising words, such as "XXX people's Hospital wishes you health".

More than ten physical health indicators are completed in one stop, such as height, weight, BMI, blood pressure, heart rate (pulse), body fat, body water, muscle mass, basic metabolism, protein, blood oxygen saturation, body temperature, blood glucose, etc.

Equipped with large brand Omron / Panasonic sphygmomanometer, it can measure the left and right arms, making the measurement of blood pressure more comprehensive.

Intelligent thermal printing, automatic paper cutting, and propaganda slogans can be set on the printing paper, such as "XXX people's Hospital wishes you health".

Scan the QR code on the device, and the measurement results can be directly sent to mobile wechat;

Support export customization business, multi language, optional coin function;

Support identification, such as "ID card / IC card / ID card / social security card / bar code / QR code";

Compatible with hospital, electronic medical record, his system, app, etc., and supporting data cloud transmission;

Support cloud transmission, WiFi connection, Bluetooth, serial port transmission, and multiple intelligent data transmission modes.

It can expand the optional face recognition, folding, coin, bracelet, code scanning gun, wechat / Alipay payment and other functions;

Specification parameters:

model	QF-10 intelligent health cabin all-in-one machine (card swiping optional)
Screen size	10.2 Inch HD LCD
Altimeter range	20-210cm, Division value: 0.1cm perhaps 0.5cm
Weighing range	Division value: 0.2-500kg
Blood pressure range	0-299mmHg, 40-180 jump / branch
Fat range	75.0-1500.0 Ω
Intelligent identification	Support face recognition, ID card, medical insurance card and other identity recognition, which can be configured as needed
advertising	support MP4 、 FLV 、 AVI 、 JPG 、 PNG Video and picture formats
Weight measurement method	Precision resistance strain sensor
Height measurement method	Ultrasonic sensor imported from the United States
Fat measurement method	Human biological electrode 4 electrode
Blood pressure measurement method	OMRON / Panasonic electronic sphygmomanometer, intelligent pressurization technology and oscillographic measurement, which can measure the left and right arms
data communication	RS232 Serial port WiFi , Bluetooth, cloud interface 3G/4G etc.
System compatibility	HIS System, computer APP 、电子病历etc.
Power Supply	AC100V-240V （ 50Hz/60Hz)
Power consumption	≤ 15W , about 60 hour 1 Degree electricity
work environment	temperature -10 ℃  ~+40 ℃
Overall dimension	580*575*2320 / Length, width and height（ mm)
Equipment weight	Net weight: 41.5kg, packing: 46.5kg
Optional function	Face recognition, coin, code scanning payment, bracelet / 扫码枪etc.身份识别

Application fields: various hospitals, health huts, communities, chronic disease prevention and control centers, physical examination centers, troops, banks, high-end clubs and other occasions.

Tip: price of QF-10 intelligent body weight meter, quotation of all-in-one machine of health Cabin:

Due to different functions and configurations and different prices, Shanghai Quanfu health cabin all-in-one machine supports multi-function customization and data upload. The unit price can be calculated according to the actual demand. Please contact the salesperson of our company for detailed quotation.
