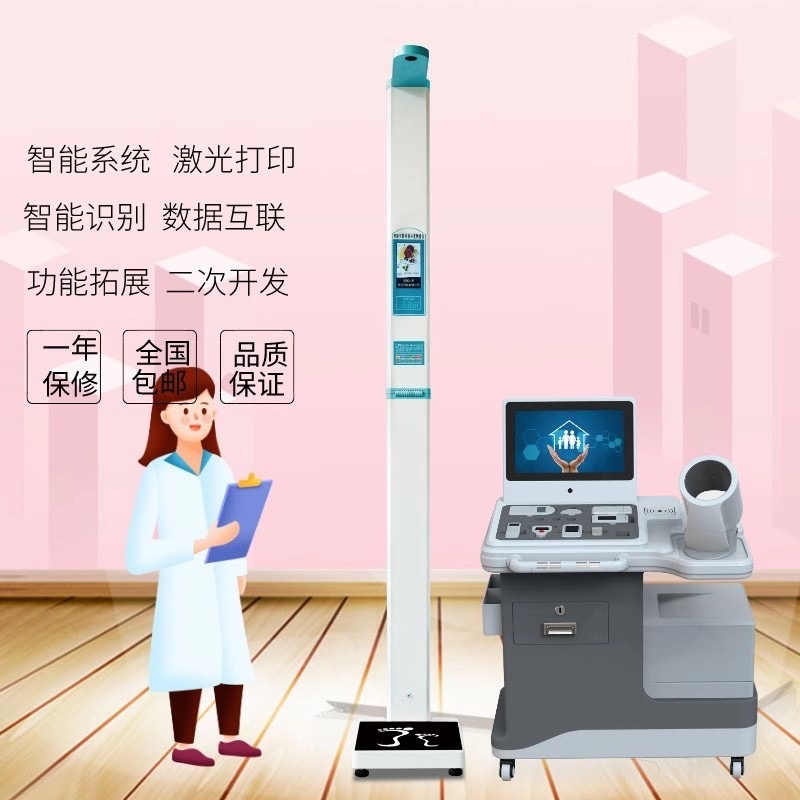

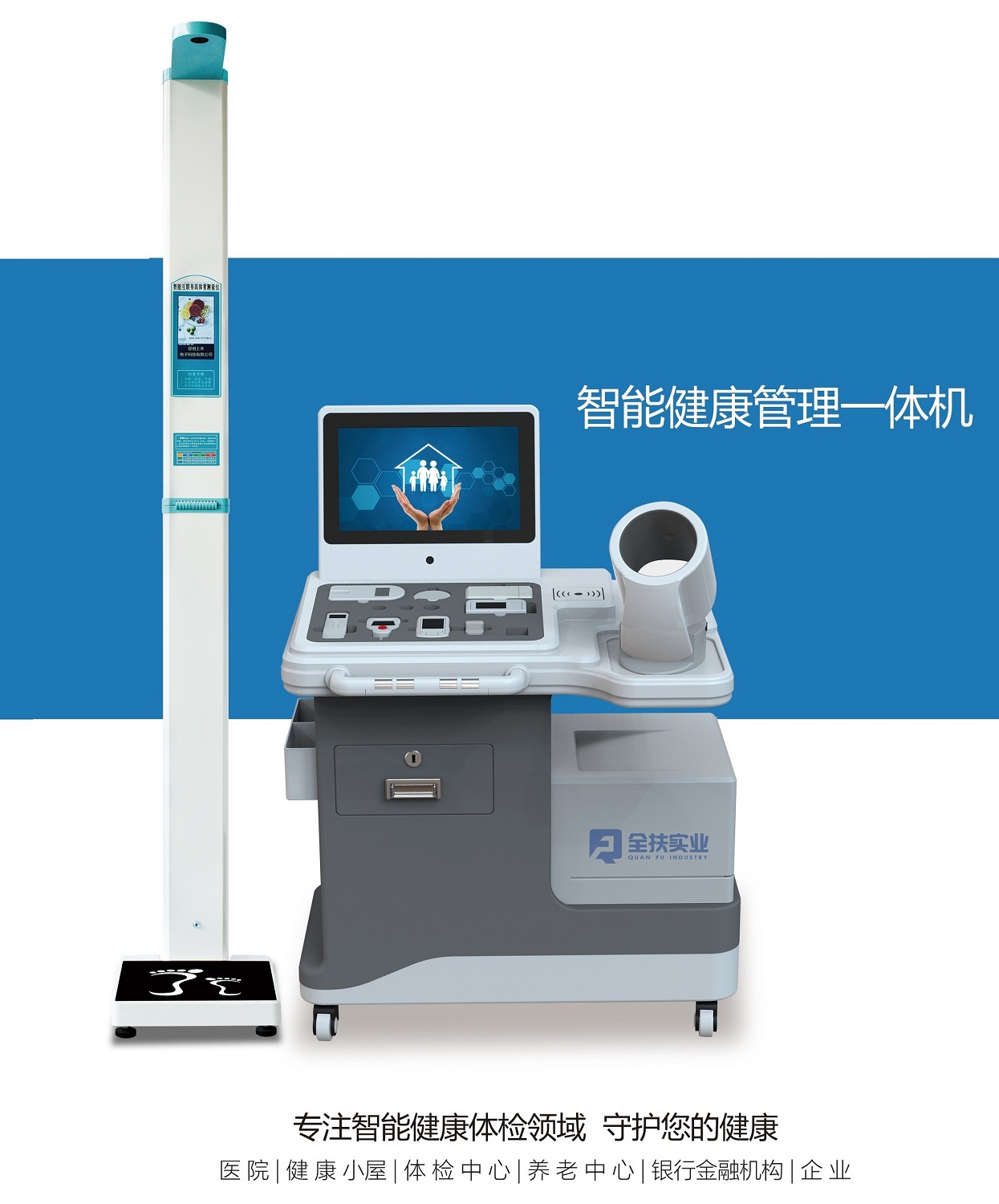

Desktop intelligent health management integrated machine health cabin scale
Height, weight, blood pressure, fat, blood oxygen, body temperature
Blood glucose, hemoglobin detection, TCM Constitution identification, 12 channel ECG
Uric acid, total cholesterol, waist hip ratio, urinalysis, alcohol detection, etc
Guided automatic measurement, voice broadcast, A4 paper color printing
Qf-16 intelligent health all-in-one machine is a desktop health management all-in-one machine with beautiful equipment and complete functions. It can measure more than 50 health indicators at one time and print the physical examination report in real time. At the same time, the measurement data can be uploaded to the corresponding public health system in real time. It can also be connected to the regional standardization system for free. It is a chronic disease prevention and treatment, health cabin and elderly health care center.
Product features:
Qf-16 can measure height, weight, blood pressure, heart rate, body temperature, fat, waist circumference, TCM Constitution identification, 12 channel ECG, uric acid, total cholesterol and many other health indicators;
Intelligent filing and self-service measurement. Support ID card brushing, face recognition, mobile phone number input and other methods for filing and authentication. The whole process of measurement has clear voice guidance and prompt, and the measurement items can be completed by self-service;
The physical examination report can be obtained immediately. After the measurement is completed, the medical examination report can be printed by color A4 printer, which can be typed immediately without waiting. The paper report is convenient for carrying and inspection;
It supports wechat scanning code to view measurement results. The measurement results can be obtained by wechat scanning code and viewed at any time on mobile wechat;
Support the input of mobile phone number / card number for identification. Touch screen operation, support mobile phone number, card number and other methods for authentication, which is more convenient and more suitable for users' habits;
Support data upload and docking with various systems. It can upload data through serial port, Bluetooth, WiFi, cloud transmission and other methods, connect with various public health systems, hospital his / LIS systems, bank customer management systems, health management software, etc., and provide communication interfaces free of charge to support secondary development; It can also be connected to the regional standardization system for free.
Specification parameter:
parameter | Qf-16 health all in one machine |
Screen size | 15.6-inch HD LCD |
Altimeter range | 20-210cm, division value: 0.1cm or 0.5cm |
Weighing range | 2.0-300kg, division value 0.1kg |
Blood pressure range | 0-299mmhg, 40-180 hops / min |
Fat range | 75.0-1500.0Ω |
Blood glucose / uric acid / cholesterol | Standard resistance bar test; Unit of measurement: mmol / L |
Hemoglobin measurement | Test content: Hemoglobin and red blood cell backlog (optional) |
Four measurements of blood lipid | Test content: total cholesterol, triglyceride, high density lipoprotein, low density lipoprotein (optional) |
Blood oxygen measurement | Measuring range: 35% - 100%; Accuracy within 75% - 100% ± 2%; ± 3% in the range of 50% - 74% |
Urinalysis | Test content: 12 items such as leukocyte and nitrite |
Temperature detection | Test content: measurement range: 32.0 ℃ - 42.5 ℃ Resolution: 0.1 ℃, measuring distance: 1-5 |
TCM Constitution identification | Test content: automatic judgment and analysis of nine constitutions of traditional Chinese Medicine |
Rapid ECG measurement | Measurement part: the measured ECG signal is standard lead I, between right hand and left and right (optional) |
12 lead ECG | Ⅰ, Ⅱ, Ⅲ, AVF, AVR, AVL, V1, V2, V3, V4, V5, V6 (optional) |
Wechat Internet | The code scanning measurement results are directly sent to the mobile wechat |
advertising | Support MP4, flv, avi, JPG, PNG and other video and picture formats |
Weight measurement | Precision resistance strain sensor |
Height measurement | ultrasonic sensor |
Fat measurement | Human biological electrode 4 electrode |
Blood pressure measurement | Omron / Panasonic electronic sphygmomanometer, intelligent pressurization technology, oscillographic measurement |
data communication | RS232, WiFi, Bluetooth, cloud interface, 3G / 4G, etc |
Intelligent identification | Identity recognition: it supports face recognition, ID card, medical insurance card and mobile phone number, which can be configured as needed; |
System compatibility | His / LIS system, computer, app, electronic medical record, various health / member management systems, etc |
Printing system | Printing configuration: color page inkjet printer, standard A4 paper to print physical examination report; |
Power Supply | AC100V-240V（50Hz/60Hz) |
Power consumption | Power consumption: 15W standby, 25W average during operation; |
work environment | Temperature: - 10 ℃ ~ + 40 ℃, humidity: 20% - 85% pH |
Applicable fields: hospitals, communities, health huts, chronic disease prevention and treatment centers, elderly care centers, communities, banks, schools and other enterprises and institutions

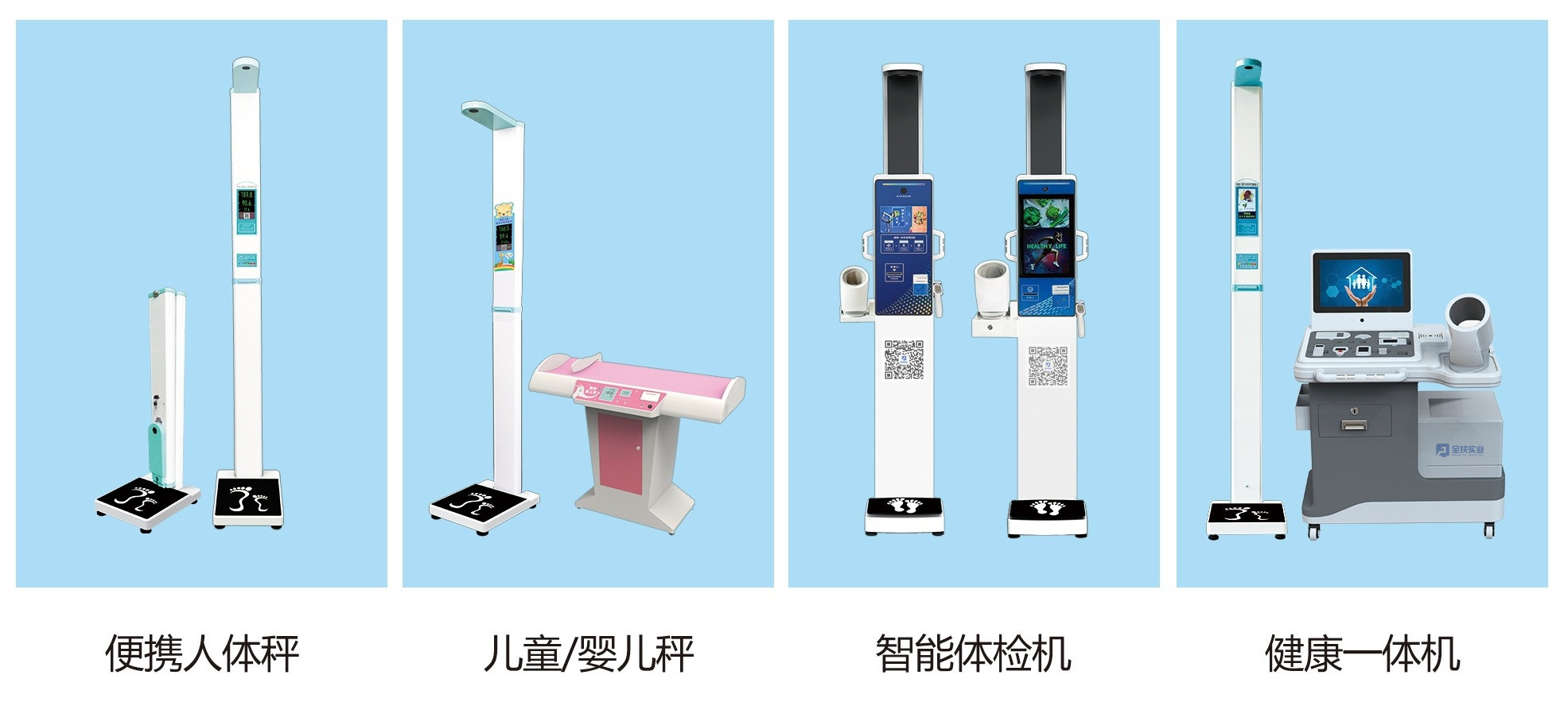

More smart scales available:
Hospital weighbridge, wheelchair weighbridge
Wheelchair platform scale, hand scale, dialysis scale

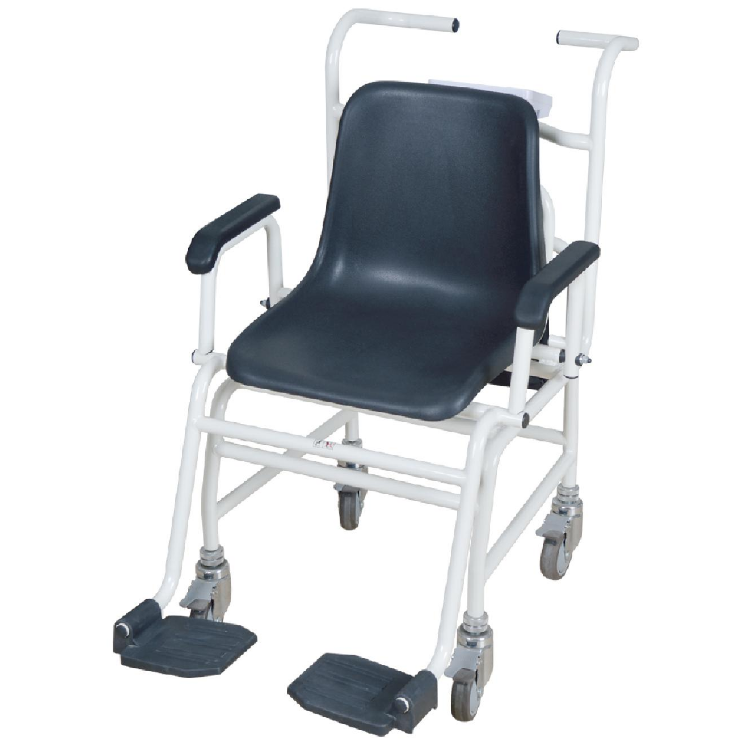

Wheelchair electronic scale and chair scale for hospital
Intelligent child care scale, baby height and baby weight scale
Automatic measurement, LCD electronic display, voice broadcast

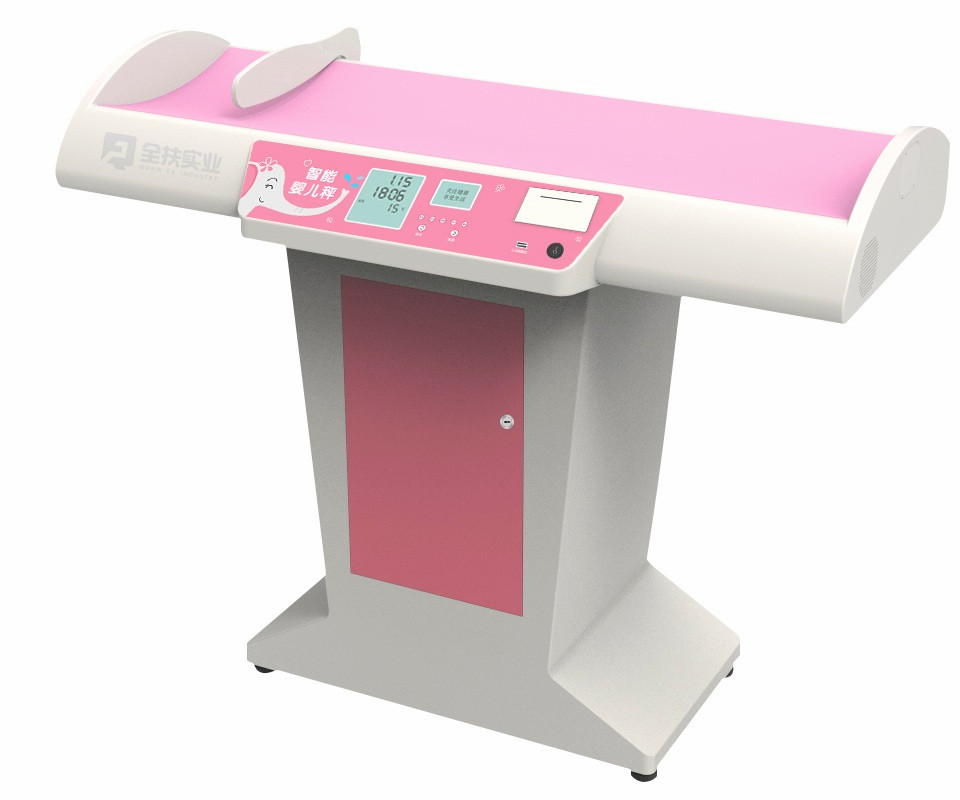

Ultrasonic intelligent baby scale
Desktop intelligent health management integrated machine health cabin scale
Height, weight, blood pressure, fat, blood oxygen, body temperature
Blood glucose, hemoglobin detection, TCM Constitution identification, 12 channel ECG
Uric acid, total cholesterol, waist hip ratio, urinalysis, alcohol detection, etc
Guided automatic measurement, voice broadcast, A4 paper color printing

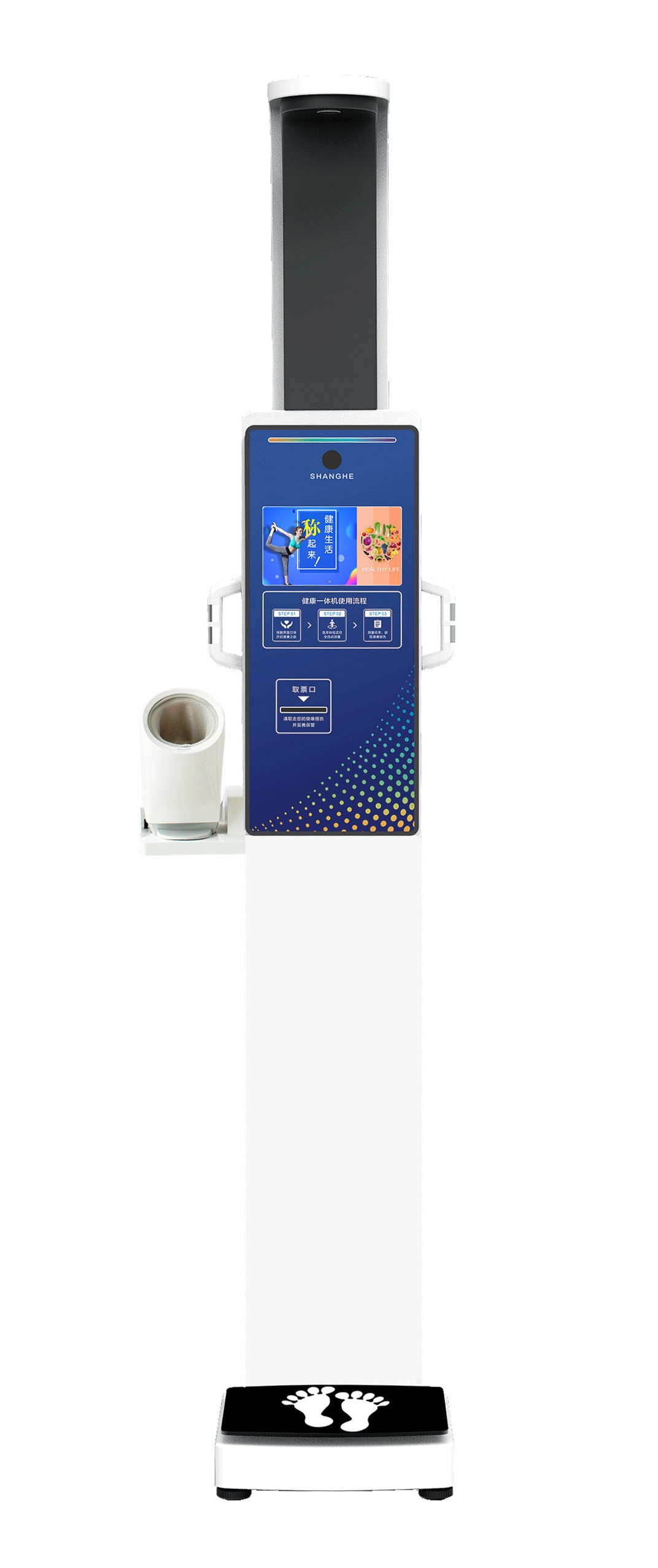

Intelligent height and weight meter, BMI, blood pressure, heart rate, fat scale
Body temperature, blood oxygen, blood glucose, etc., can be swiped to measure, face recognition
Guided full-function one-stop measurement, voice broadcast and data upload

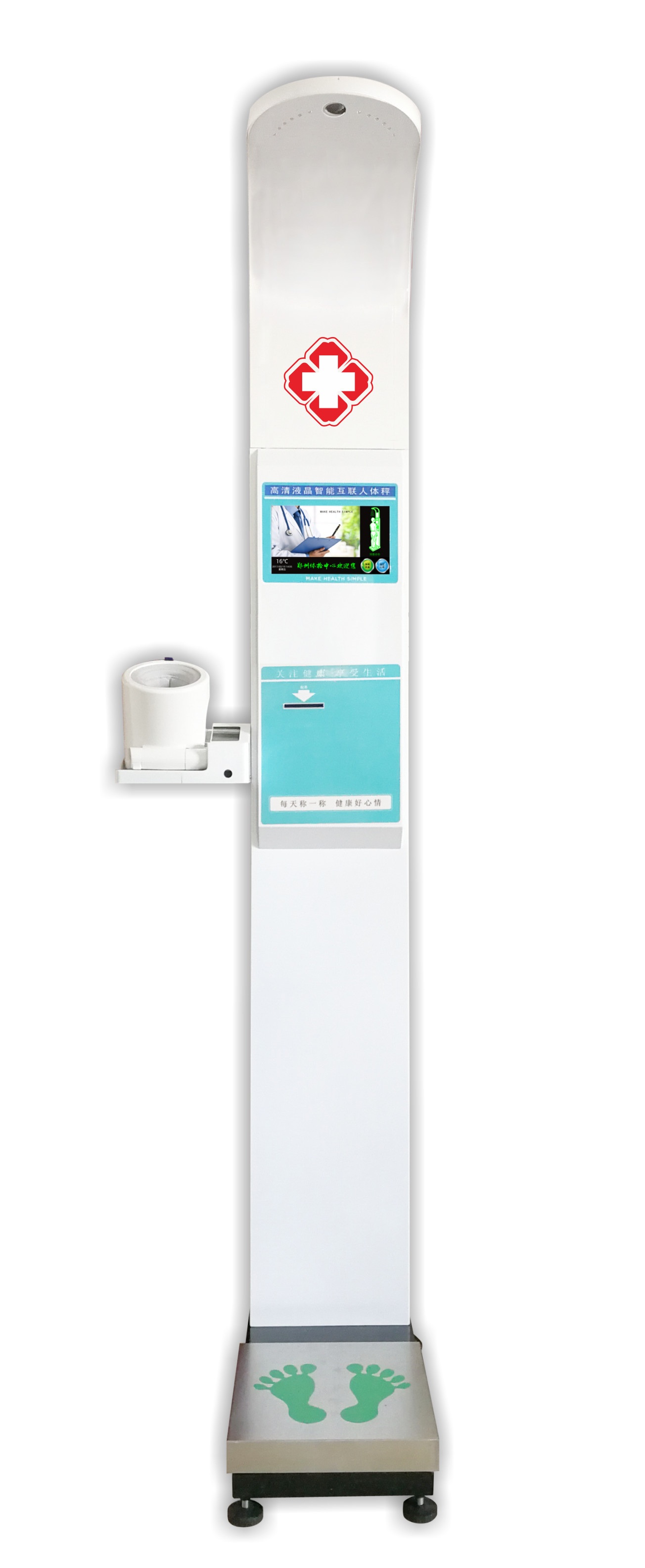

Ultrasonic intelligent weight scale

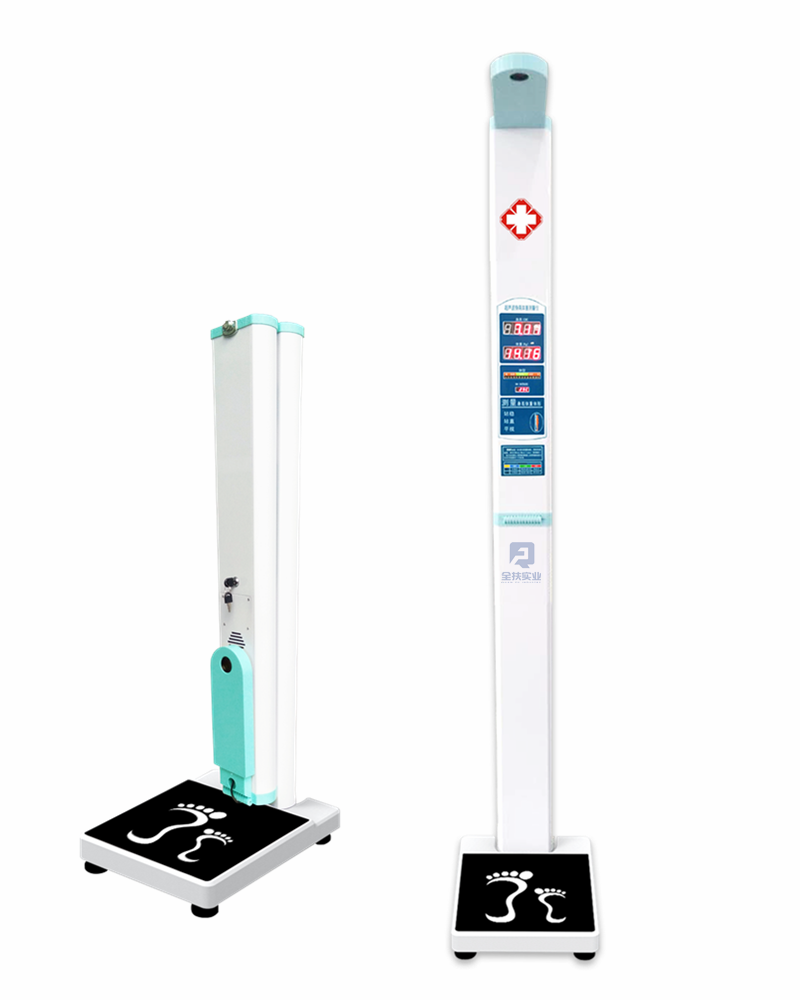

Ultrasonic measuring instrument for height, weight, blood pressure and heart rate
Height, weight, BMI, heart rate and blood pressure all in one machine
Automatic measurement, LCD electronic display, voice broadcast

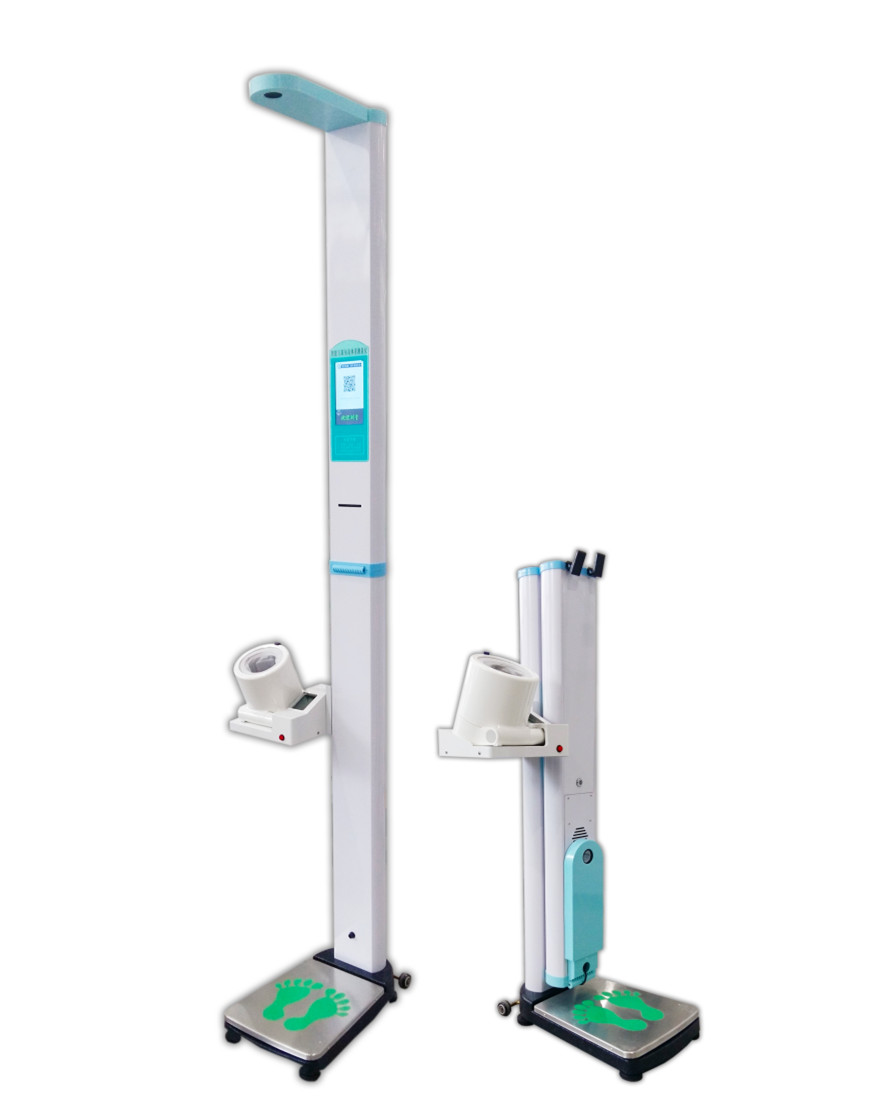

Intelligent height and weight measuring instrument with blood pressure
