Current Position: Home > Company Products >Height scale > Qf-3000 medical infant height and weight scale
Intelligent child care scale, baby height and baby weight scale
Automatic measurement, LCD electronic display, voice broadcast
Ultrasonic intelligent baby scale

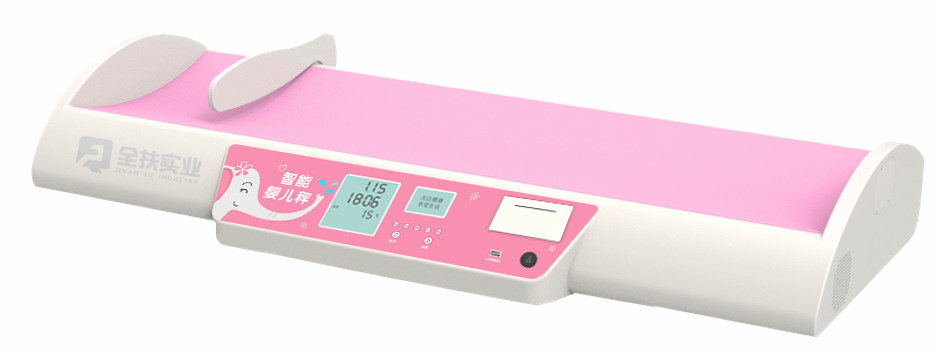

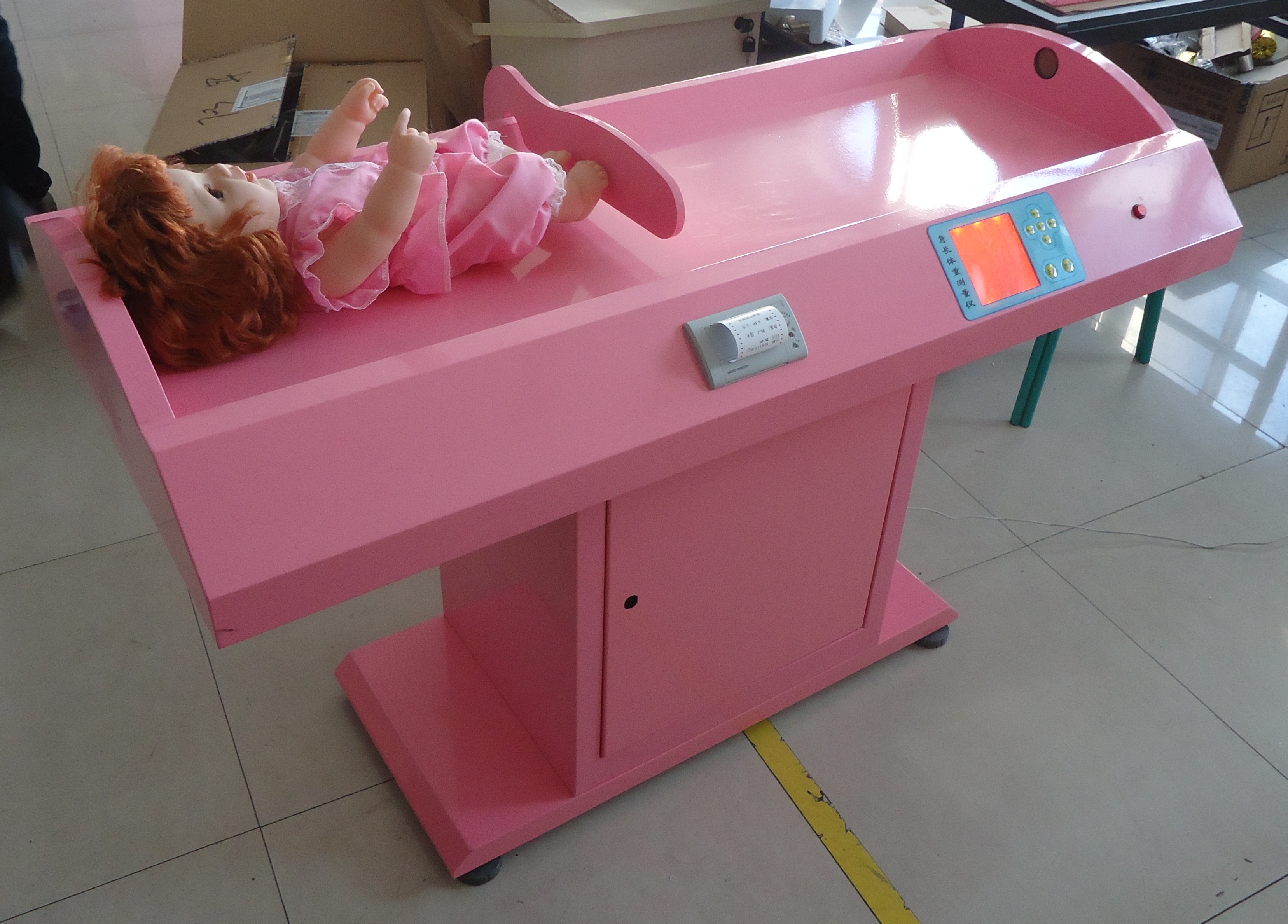

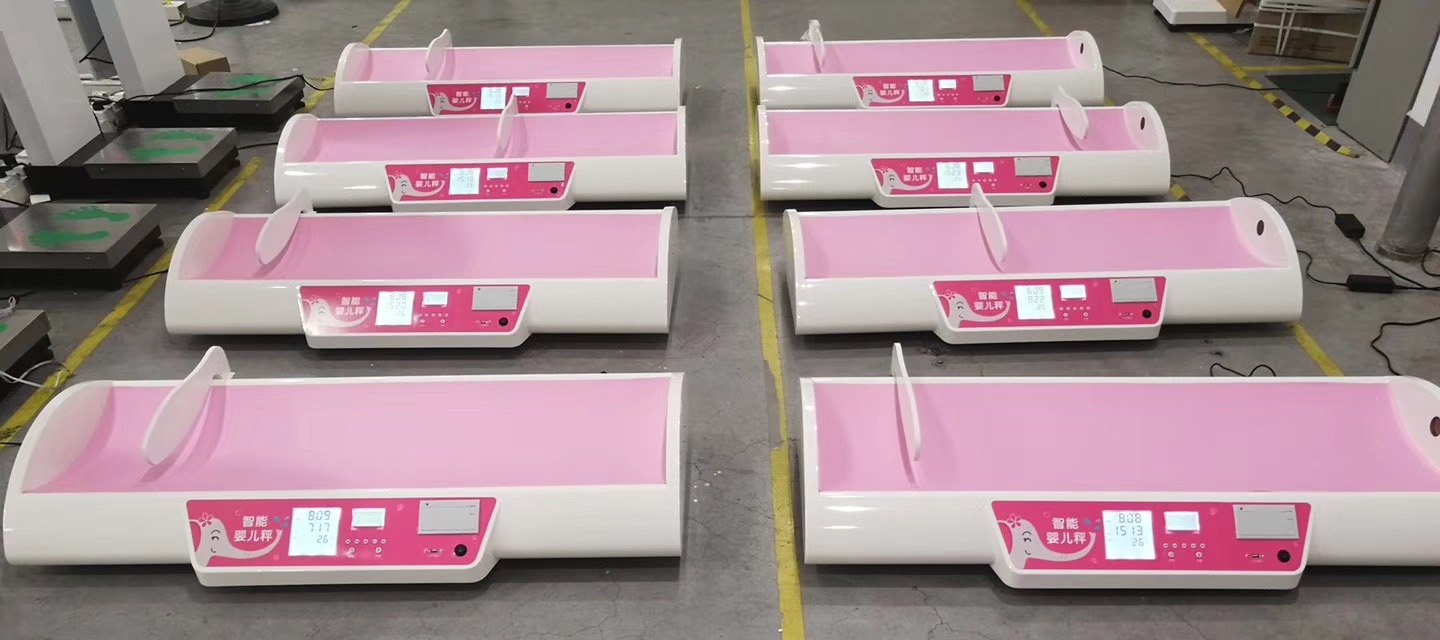

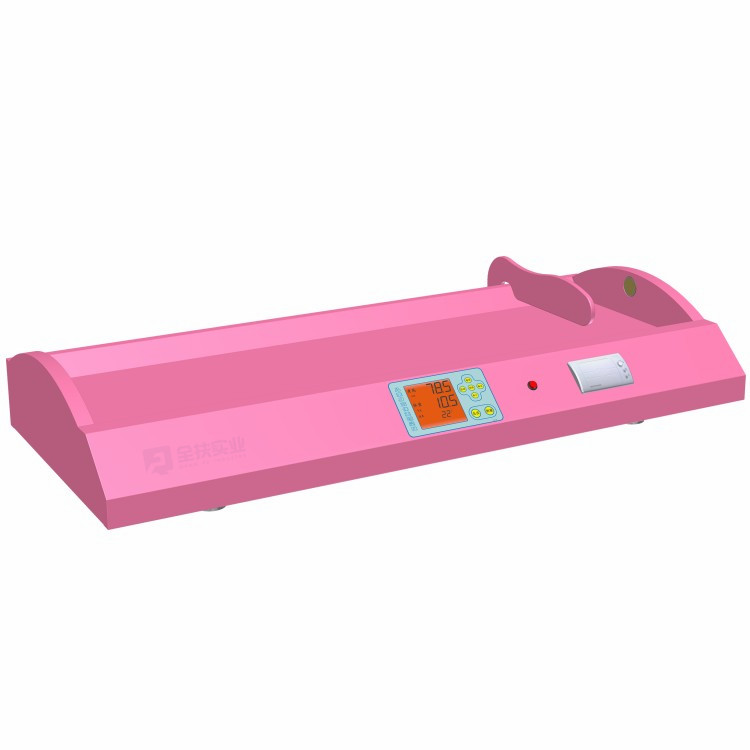

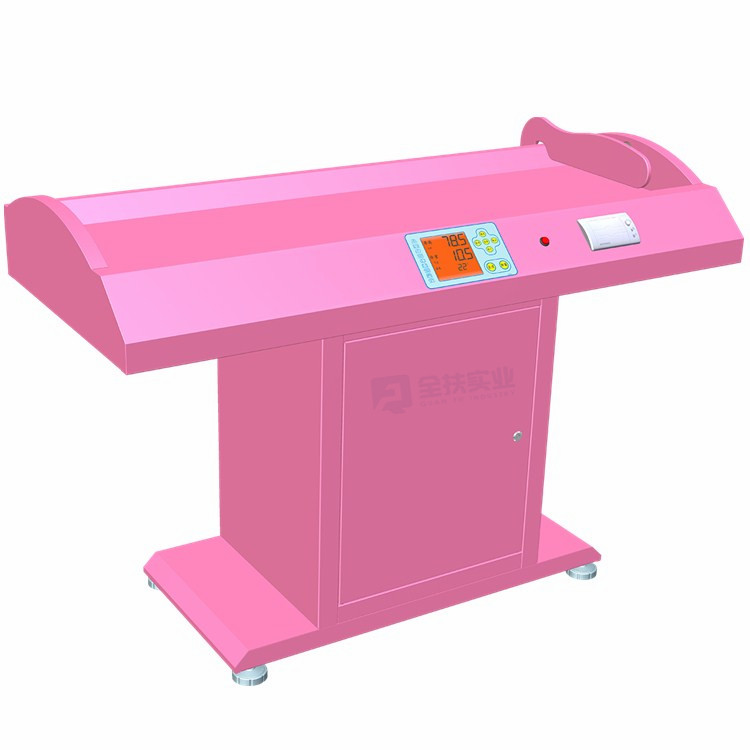

Qf-3000 type Intelligent ultrasonic Baby Scale Medical baby height and weight measuring instrument
Medical baby length and weight measuring instrument The horizontal baby height and weight measuring instrument adopts ultrasonic to measure the baby's height without touching and will not cause harm to the baby; It can measure the length and weight of infants and young children. It uses high-definition LED or LCD display to measure the results and time. The built-in automatic printer can be optional; Synchronous voice broadcasting; Real time clock display; The measurement results can be printed, and the hospital name, Department, contact number, etc. can also be designed and printed as needed.
Intelligent baby height scale characteristic:
Appearance design in line with baby ergonomics, beautiful and luxurious style, and improve the grade of users
Large screen digital LED or LCD automatic display to measure the baby's length and weight;
Support QR code scanning, and send measurement results directly to parents' mobile phones;;
High precision ultrasonic sensor and movable baffle can measure the baby's length more accurately;
There is a reset button to realize the peeling function;
Support various data transmission and identification (optional)
Specification parameters:
model | QF-3000 / QF-3008 |
Screen size | Dual LCD screen, large screen 5.0 inches, small screen 3.0 inches |
Altimeter range | 20-100cm, division value: 0.1cm |
Weighing range | 0.1-50kg, division value 0.01kg |
Wechat Internet | The code scanning measurement results are directly sent to the mobile wechat |
LCD display | Large screen 5 inches, showing height and weight; The small screen is 3 inches, displaying the slogan of the user, such as "welcome to XXX hospital", displaying the two-dimensional code, and the code scanning results directly to the mobile phone |
Weight measurement method | Double precision balance pressure sensor |
Height measurement method | Ultrasonic sensor with sliding baffle |
data communication | RS232, Bluetooth, etc |
Reset operation | The reset button can easily peel and weigh |
System compatibility | Computer, app, electronic medical record, etc |
Power Supply | AC100V-240V（50Hz/60Hz) |
Print module | Micro thermal printer, printing paper size 57 * 50mm |
Power consumption | 10W, about 100 hours, 1 kWh |
work environment | Temperature: - 10 ℃ ~ + 40 ℃ |
Overall dimension | 1250*600*200mm |
Equipment weight | Net weight: 17kg, Packing: 21kg |
Optional | Printing, Bluetooth, foot switch, base cabinet |
Application fields: various children's hospitals, maternal and child health centers, pediatrics of general hospitals, child health departments, mother and baby stores, neonatal rehabilitation centers, community hospitals, physical examination centers, etc
