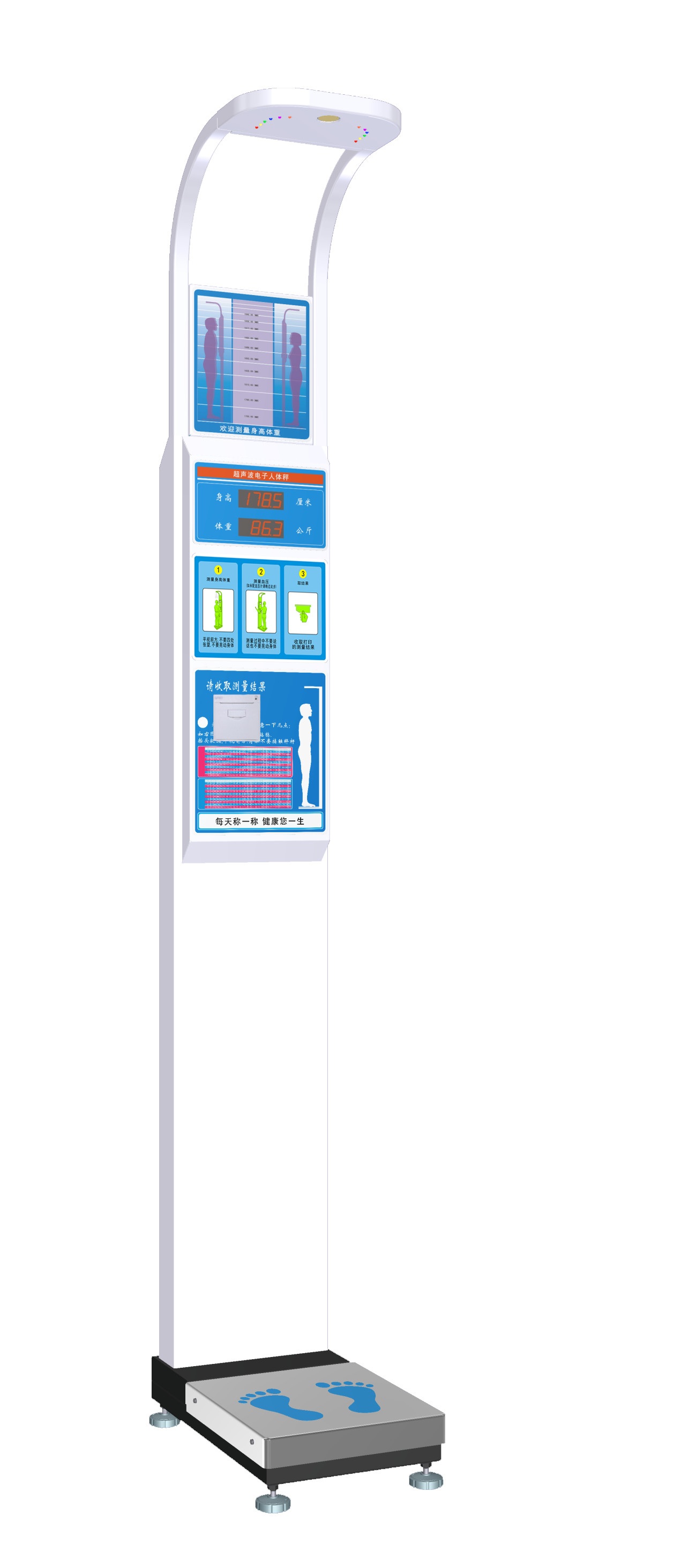

Qf-800 intelligent ultrasonic height and weight meter

Ultrasonic intelligent weight scale

Ultrasonic measuring instrument for height, weight, blood pressure and heart rate

Height, weight, BMI, heart rate and blood pressure all in one machine

Automatic measurement, LCD electronic display, voice broadcast


Product Details

Qf-800 intelligent interconnected height, weight, blood pressure and heart rate measuring instrument

The metal durable body can store more than 1 million data, and can be equipped with thermometer, fat meter and other extended functions

Automatic measurement of height, weight, body mass index, blood pressure, heart rate, intelligent voice, LCD multimedia advertising (Video + picture + wechat promotion), intelligent interconnection (wechat / WiFi / 3G / RS232 / Bluetooth / APP / cloud interface)

Optional and customized, supporting the supporting scheme of chain organization and health all-in-one machine.

Product features:

Color LCD touch display, intelligent guided voice / animation prompt, accurate body shape calculation, and the measurement results can be sent to the user's mobile phone;

Support multiple intelligent interconnection modes and complete intelligent self inspection system;

It can be connected to computer, hospital his system, etc., and support multiple ways of data transmission;

Support export customization business, multi language, optional coin function;

Support identification, such as "ID card / IC card / barcode / QR code", and can be configured with code scanning gun;

Optional thermometer, oximeter, etc;

This product has a one-year global warranty and lifelong technical and after-sales service

Provide software and hardware system customization services

Specification parameters:

model

QF-800

Screen size

10.1-inch HD LCD

Altimeter range

20-210cm, division value: 0.1cm or 0.5cm

Weighing range

2-500kg, division value 0.1kg

Blood pressure range

0-299mmhg, 40-180 hops / min

Wechat Internet

The code scanning measurement results are directly sent to the mobile wechat

advertising

Support MP4, flv, avi, JPG, PNG and other video and picture formats

Weight measurement

Precision resistance strain sensor

Height measurement

ultrasonic sensor

data communication

RS232, WiFi, Bluetooth, cloud interface, 3G / 4G, etc

System compatibility

His system, computer, app, electronic medical record, etc

Power Supply

AC100V-240V(50Hz/60Hz)

Power consumption

≤ 15W, about 60 hours, 1 kWh

work environment

Temperature - 10 ℃ &+ 40℃

Overall dimension

500 * 340 * 2350 / length, width and height (mm)

Equipment weight

Net weight: 41kg,   Packing: 46kg

Optional function

Folding, body temperature, fat, coin, payment, IC card / ID card and other identification

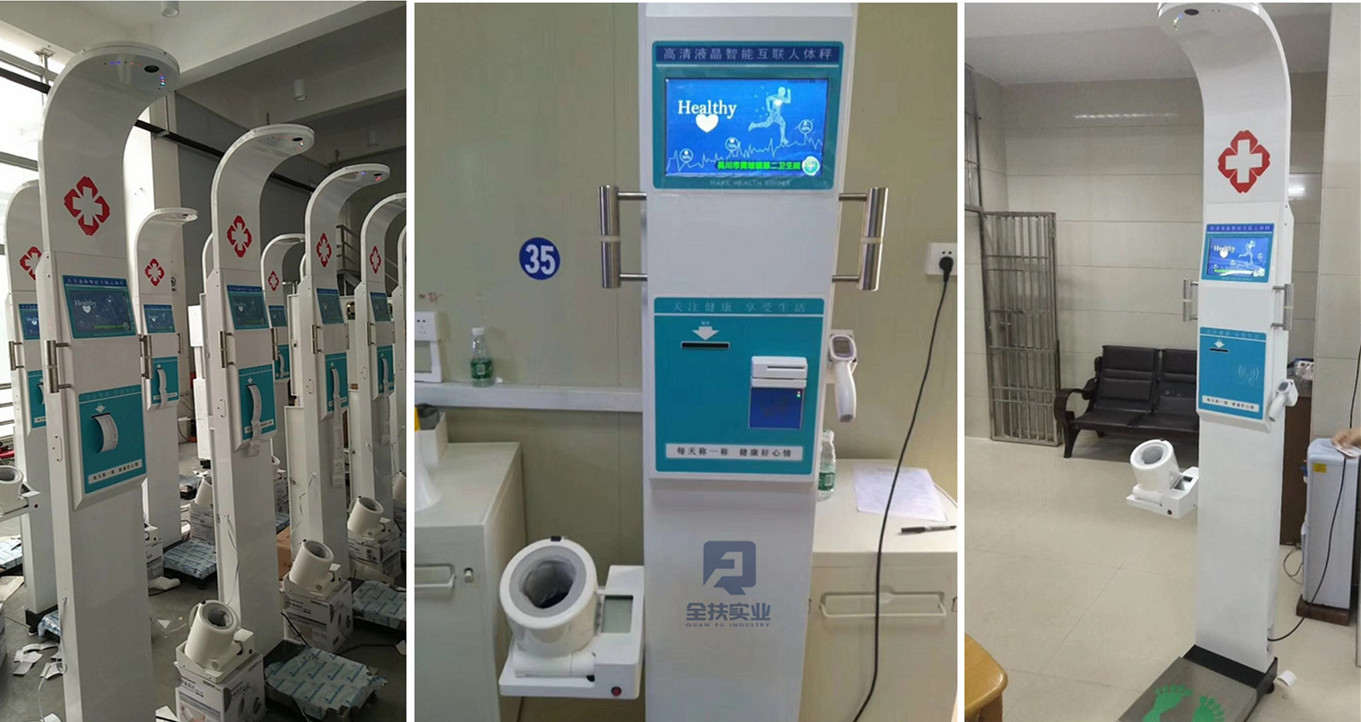

Application fields: major hospitals, schools, physical examination centers, troops, pharmacies, fitness clubs, beauty clubs, shopping malls and other places.
