Weigh and store liquid chlorine, ammonia and other chemical products Cylinder electronic scale
It is suitable for chemical, chlor alkali, tap water, textile, printing and dyeing, pesticide manufacturing and other industries
304 no Rusty steel cylinder scale Steel cylinder scale with water storage tray (optional)

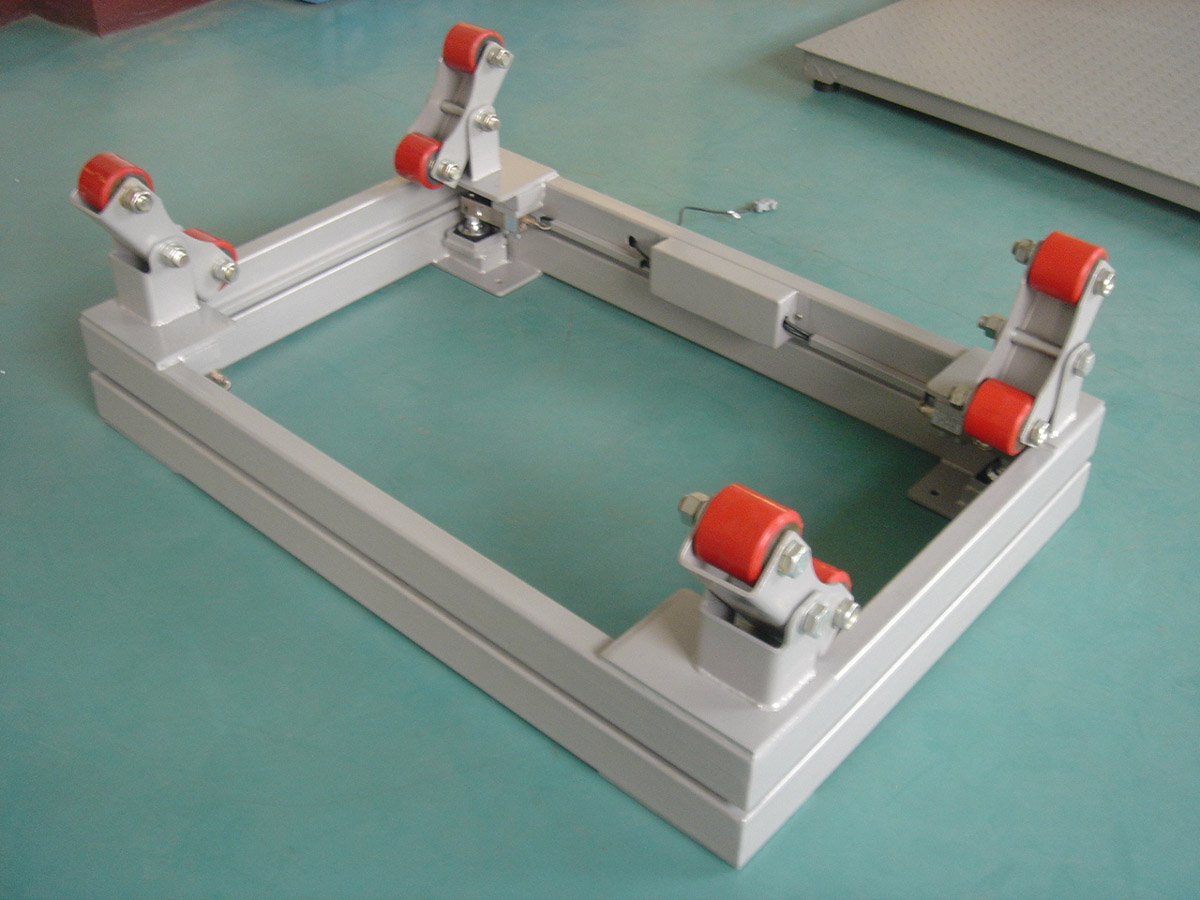

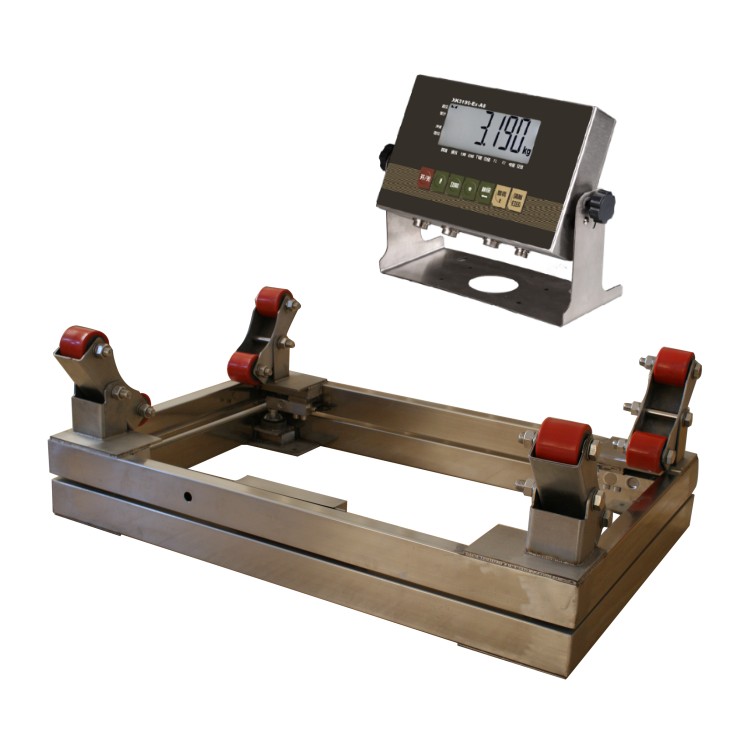

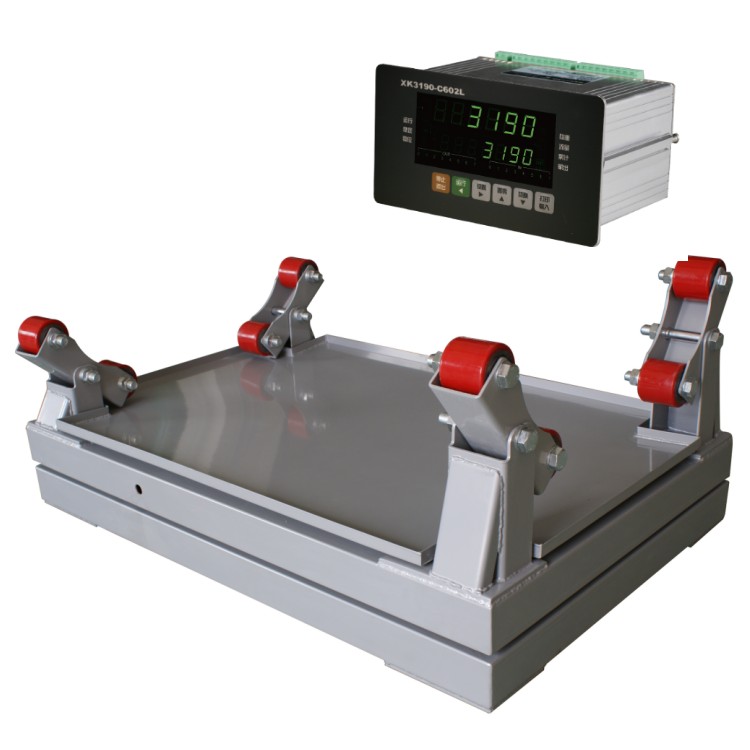

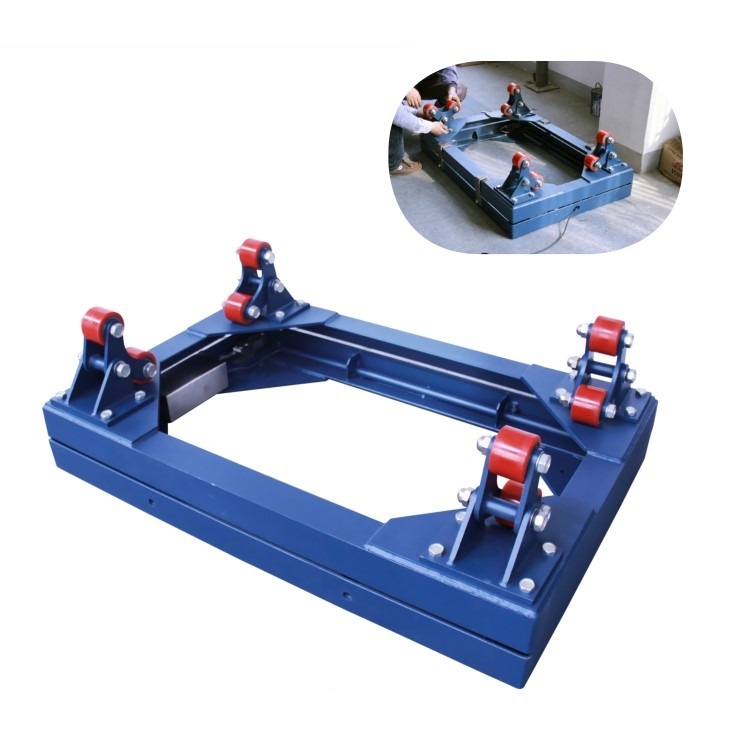

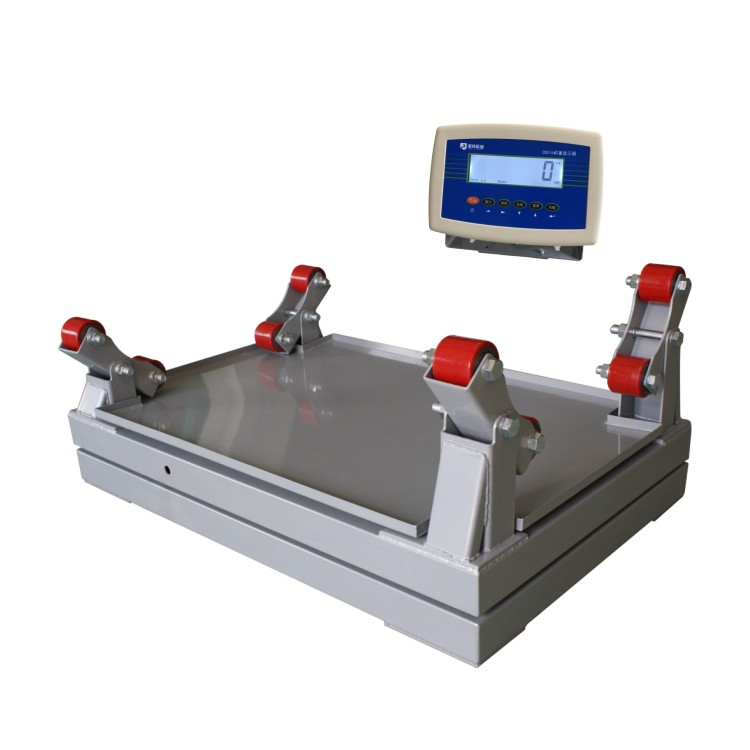

Electronic cylinder scale It is a special electronic platform scale specially designed for cylinder weighing. The weighing system is composed of double-layer scale platform, pipe wheel support, four shear high-precision weighing sensors, weighing junction box and intelligent weighing instrument; It has the characteristics of high precision, corrosion resistance, stable weighing and strong impact resistance; It is widely used in chemical industry, water treatment plant and other occasions requiring steel cylinder weighing.
Technical parameters:
Accuracy class: III
Operating temperature: - 10 ℃ ~ + 40 ℃
Power supply: AC 110-220V 50-60Hz or DC4 ~ 6V 4ah
Structural features:
Frame structure scale platform, easy to clean the environment (optional water storage tray)
Solid double-layer frame structure, impact resistance and good long-term stability
Special roller structure design, suitable for cylinders with different diameters
The surface of carbon steel scale platform is shot blasted and plastic sprayed, and coated with anti-corrosion coating, with strong corrosion resistance
Stainless steel scale platform, polished and brushed
Cylinder roller support is set, which can place steel cylinders of various specifications
Four alloy steel or stainless steel sensors
Special anti-corrosion treatment and sensor surface treatment
Basic functions: Zero setting, peeling, accumulation Weight counting, counting, weight checking, sorting and batching
Basic options: printing, communication interface RS232 / 485 4-20mA analog output Preset point relay output, etc
Specification and model:
Product number | Platform size | maximum capacity | Division value | Platform height | dead weight |
PP-1/2/3/-0812 | 0.8m*1.2m | 1t/2t/3t | 0.5kg/1kg | 500mm | 130kg |

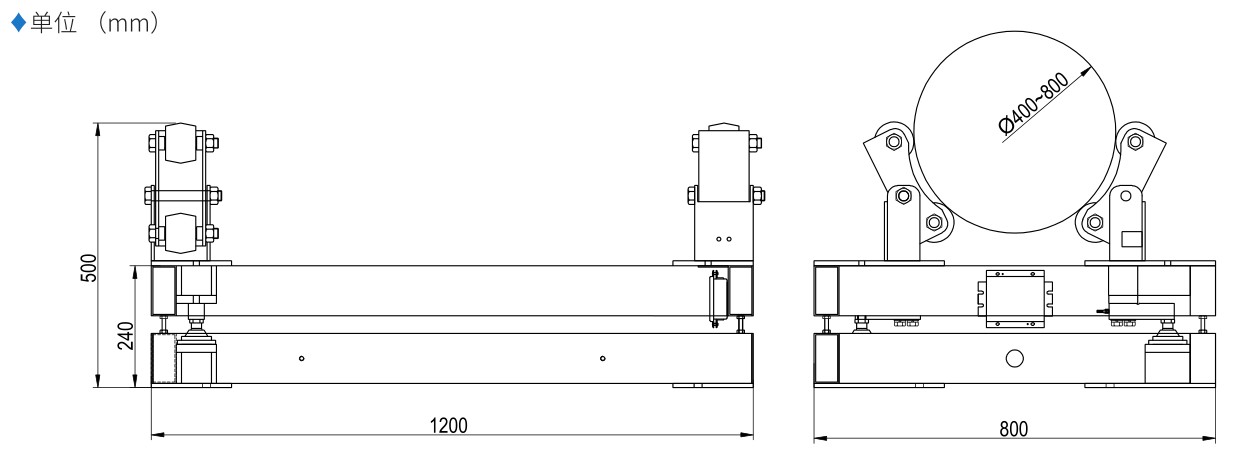

Overall dimension:

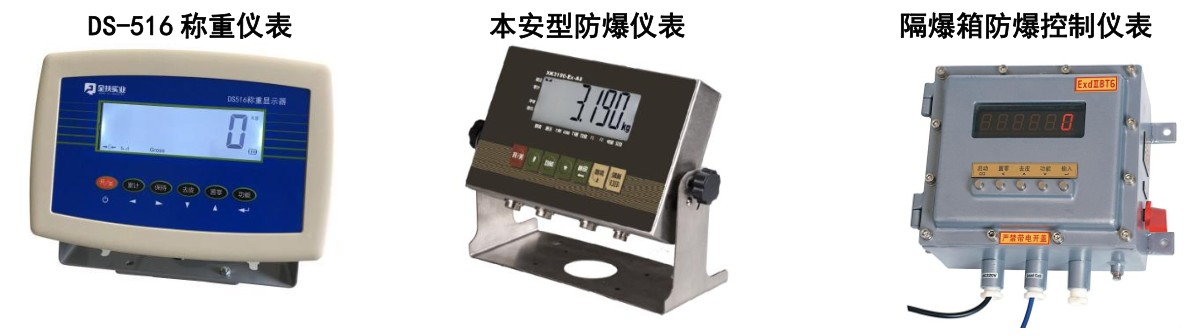

Various functional instruments are optional:
1kg ~ 2T electronic scale weight, elevator weight and commercial concrete weight
1-2T cast iron weight, fully painted for rust prevention, without packaging
Weight material: solid iron, 304 stainless steel optional
Shape: lock, rectangle, column, row, square, etc. (customized according to the drawing)
Weight level: national standard M1 level (can be tested by measurement)
Production process: Casting ， Lettering (customizable)
Color: generally black (optional)
Powered roller scale no powered roller scale
Conveyor line drum scale, food packaging scale, drug sorting scale
Weight control alarm scale, sorting scale, suitable for automatic detection of product weight
The appearance and size of the weighing scale are customized according to the actual measured object size
LPG filling electronic scale, LPG filling scale
There are simple filling scales, automatic filling scales and cabinet explosion-proof filling scales
The normal measuring range is 120kg, and the maximum weighing capacity is 600kg
Different filling modes can be selected according to the filling mode of the user
Track scale
Suspended monorail scale, a measuring device suspended on the track for weighing, commonly known as monorail scale
The track electronic scale is suitable for weighing various items in the process of transmission on the suspended track
100kg~3t suspended rail scale, slaughterhouse Electronic track scale , rail weighing scale for pig farm and meat factory
Mechanical lever scale , weight lever scale, export-oriented mechanical scale
Single scale / double scale ground scale, copper scale mechanical scale, Mechanical lever scale
Tgt-300kg mechanical pound; Sgt-2000kg mechanical scale
Can be customized by OEM, a large number of exports, and mechanical pounds can be customized
Weigh and store liquid chlorine, ammonia and other chemical products Cylinder electronic scale
It is suitable for chemical, chlor alkali, tap water, textile, printing and dyeing, pesticide manufacturing and other industries
304 no Rusty steel cylinder scale Steel cylinder scale with water storage tray (optional)
