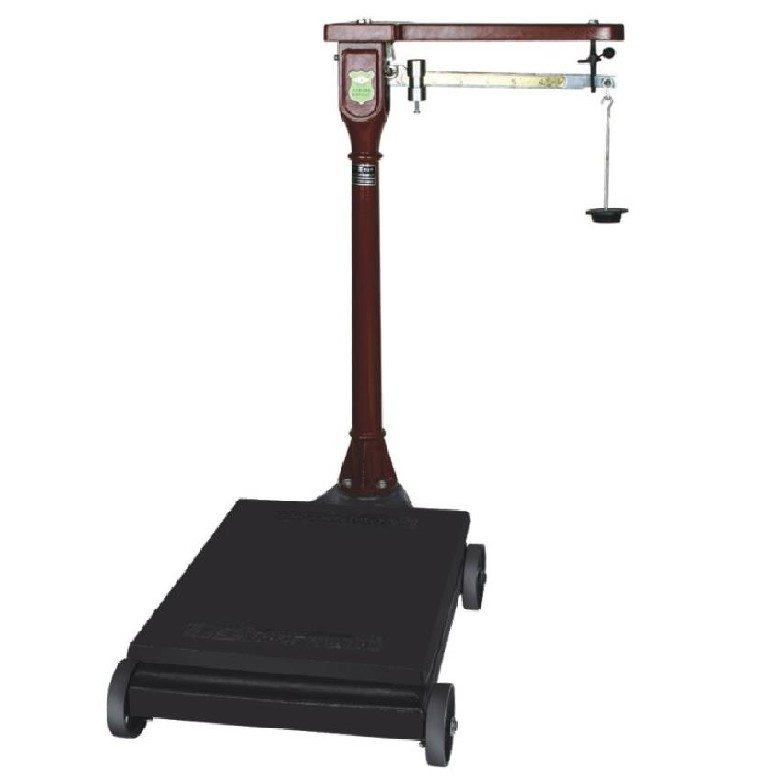

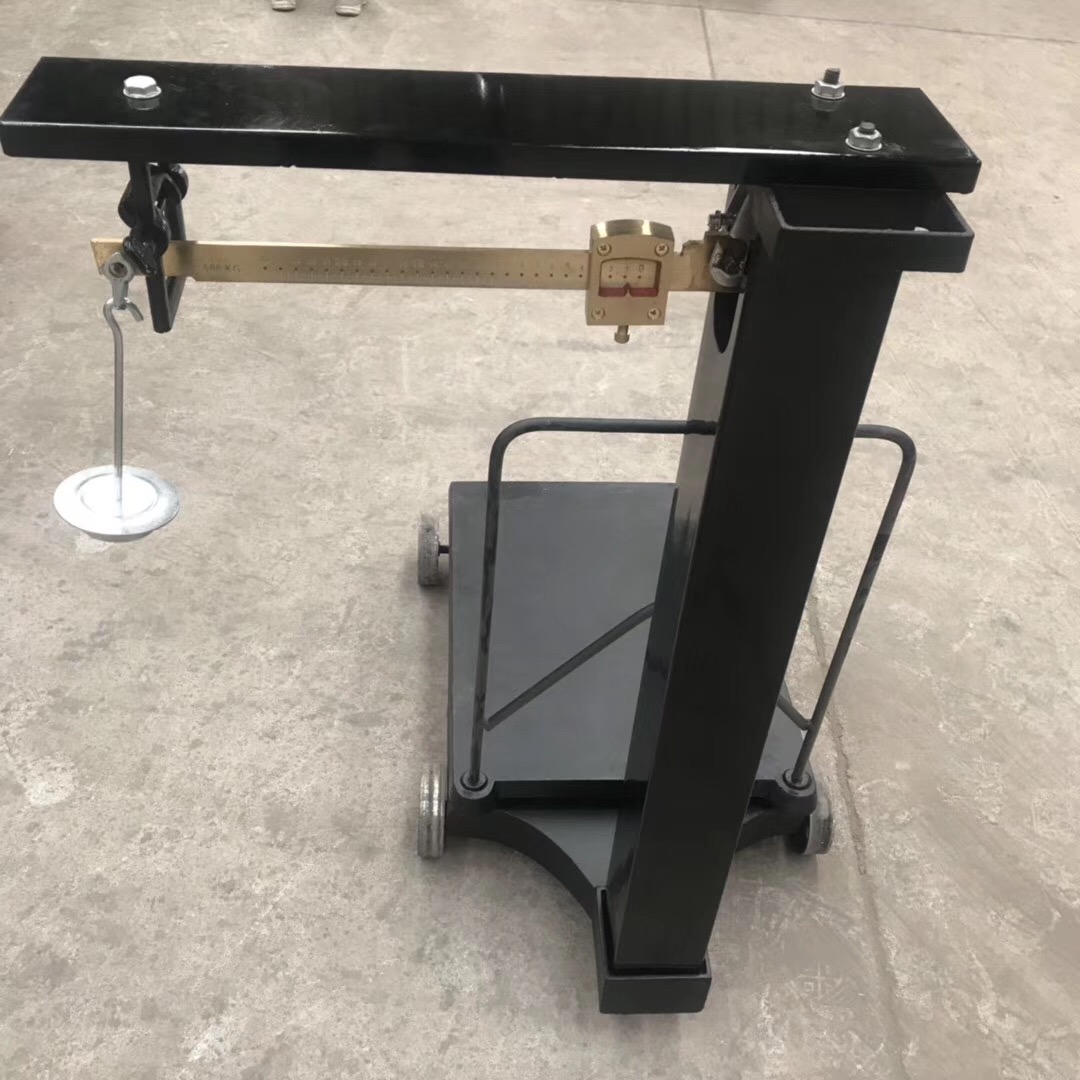

TGT mechanical scale It is composed of lever, supporting parts and connecting (such as knife, knife support, lifting lug, hanging ring and connecting rod) scale head

Weighing principle of mechanical scale:

1. Work with the principle of unequal arm lever

2. It is composed of load-bearing device, reading device, base lever and scale body.

3. The reading device includes: mechanical platform scale, weight adding, weight hanging, measuring lever, etc.

4. The base lever is connected by long lever and short lever in parallel. Force transmission system during weighing

5. The force transmission system during weighing: when placing the object to be weighed on the bearing plate, the four components of force act on the key knives of the long and short levers, and the force is transmitted to the key knives of the measuring lever by the force point knives of the long lever and the connecting hooks.

6. By manually adding and subtracting the weight and moving the balance weight, the measuring lever is balanced, and the weight indication of the weighed object can be obtained.

Mechanical scale product features:

   1. The mechanical scale is simple in structure and accurate in measurement. It can be placed and used as long as there is a flat and solid scale frame or ground.

   2. The scale body is strong and durable. It is equipped with 4 wheels and easy to move.

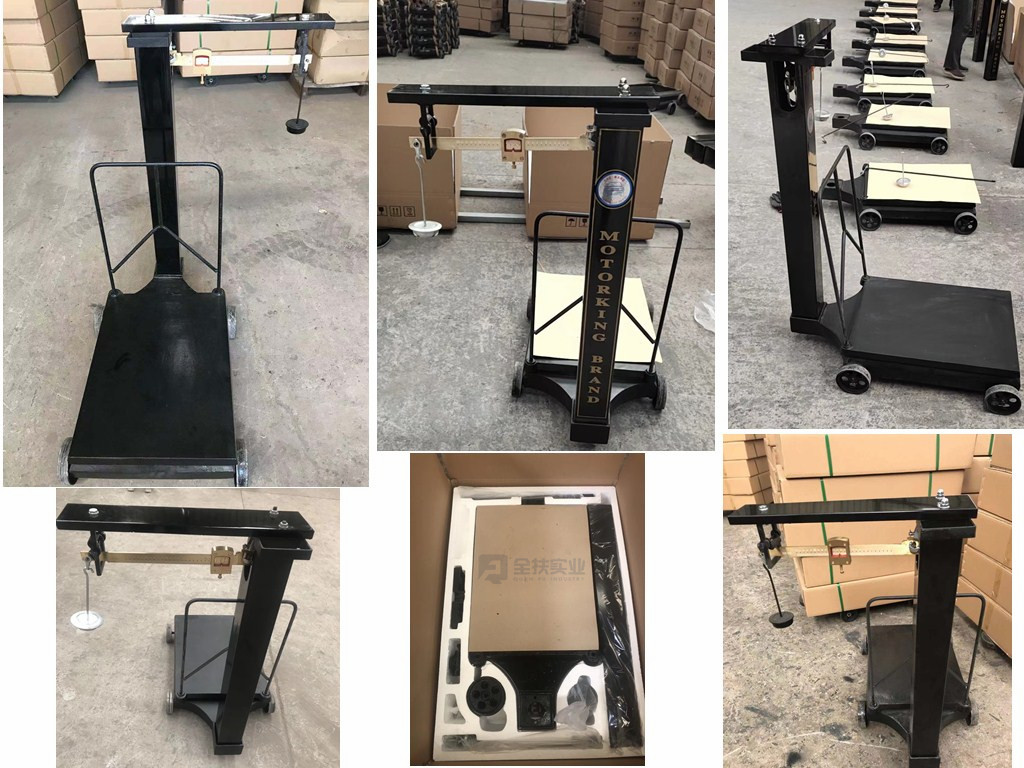

Weight and overall dimensions: Tgt-300kg export type mechanical pound, single piece dead weight 66kg, package size 20 × 71x106cm, as shown in the following figure.

Mechanical scale specification model:

model	weighing	accuracy	Platform size
TGT-300	300kg	0.1kg	0.45*0.6m
TGT-500	500kg	0.2kg	0.6*0.8m
SGT-1000	1000kg	0.5kg	1*1m、 1.2*1.2m
SGT-2000	2000kg	1kg	1.2*1.2m、 1.2*1.5m
SGT-3000	3000kg	2kg	1.2*1.5m

Name of mechanical scale: 2-3T mechanical scale 300-500kg mechanical scale, weight type scale, 1000kg mechanical scale, double scale mechanical scale, single scale mechanical scale, TGT mechanical lever scale, 200kg mechanical scale 300kg mechanical scale Yes, all kinds of specifications can be customized. The mechanical pound is strong and durable.

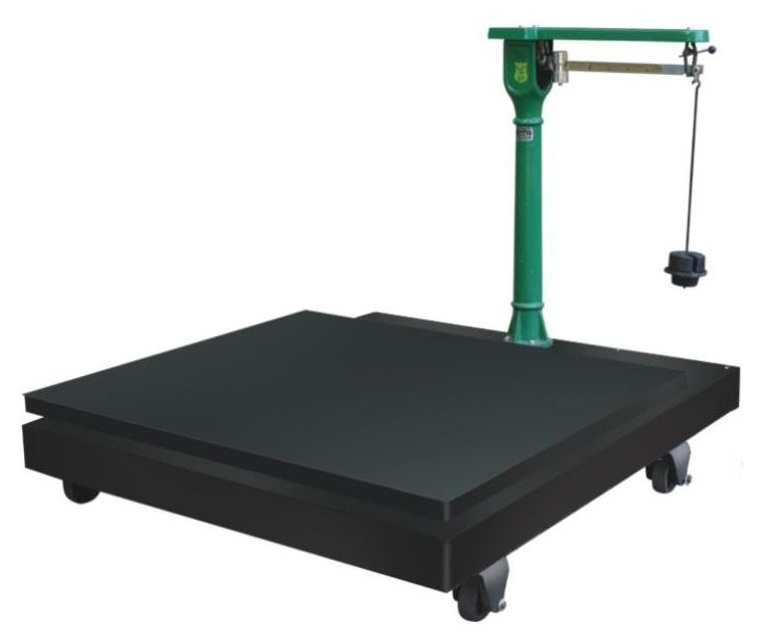

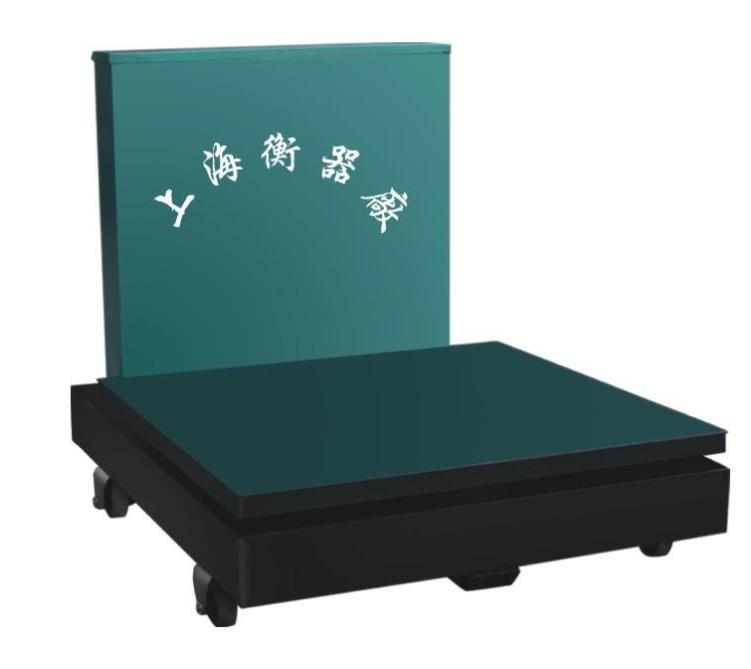

SGT ground scale , single scale mechanical pound:
Weighing Division: 1t / 500kg; 2t/1kg
Platform size ：1.1*1.3m(1t)、1.2*1.2m(2t)、1.2*1.5m(2t)
SGT mechanical ground scale is composed of scale frame, bearing platform, lever system, indicating device, etc.
The manual lever type measurement uses the position of the large and small swim weights on the measuring lever to display the weight of the weighed object.
The measuring lever is installed in a closed box, which can prolong its service life.
There are four iron wheels at the lower part of the scale body, which can move for a short distance.
SGT ground scale can meet the rapid and accurate weighing needs of trade transportation, storage and various large factories and mines.
SGT ground scale is a kind of harsh weighing occasion with strong impact and large dust, especially used in warehouses, dust workshops, wharf sites, etc

Mechanical scale Maintenance matters:

1  During the long-term use of the platform scale, the blades and bearing rings of the platform scale will suffer from certain wear and fatigue, and the accuracy and sensitivity will be reduced. Therefore, the mechanical scale must be checked and calibrated regularly. In general, it is overhauled every six months or one year

2  The collimator shall be kept dry and clean frequently, so as not to leave the liquid substance and dust in the collimator frame and each knife bearing. The lifting ring of the scale shall be kept clean frequently to avoid affecting the sensitivity (the same attention shall be paid to thallium addition to avoid losing the original accuracy)

3  The traveling thallium shall be kept intact and shall not be removed arbitrarily

4  In the process of handling, collision shall be strictly prevented, and it is not allowed to lift the measuring lever. Otherwise, the scale body and components will be damaged, and the measuring lever will be deformed, which will affect the mechanical scalability

5  Do not put the mechanical scale in the open air, and do not put the scale together with corrosive articles, so as to prevent the service life of components from being affected by corrosion.
