Pt series Electronic track scale , suspended track scale, static monorail electronic hanging scale Suspended monorail scale

Track specific weighing equipment specially designed for food enterprises such as slaughterhouses and meat joint factories

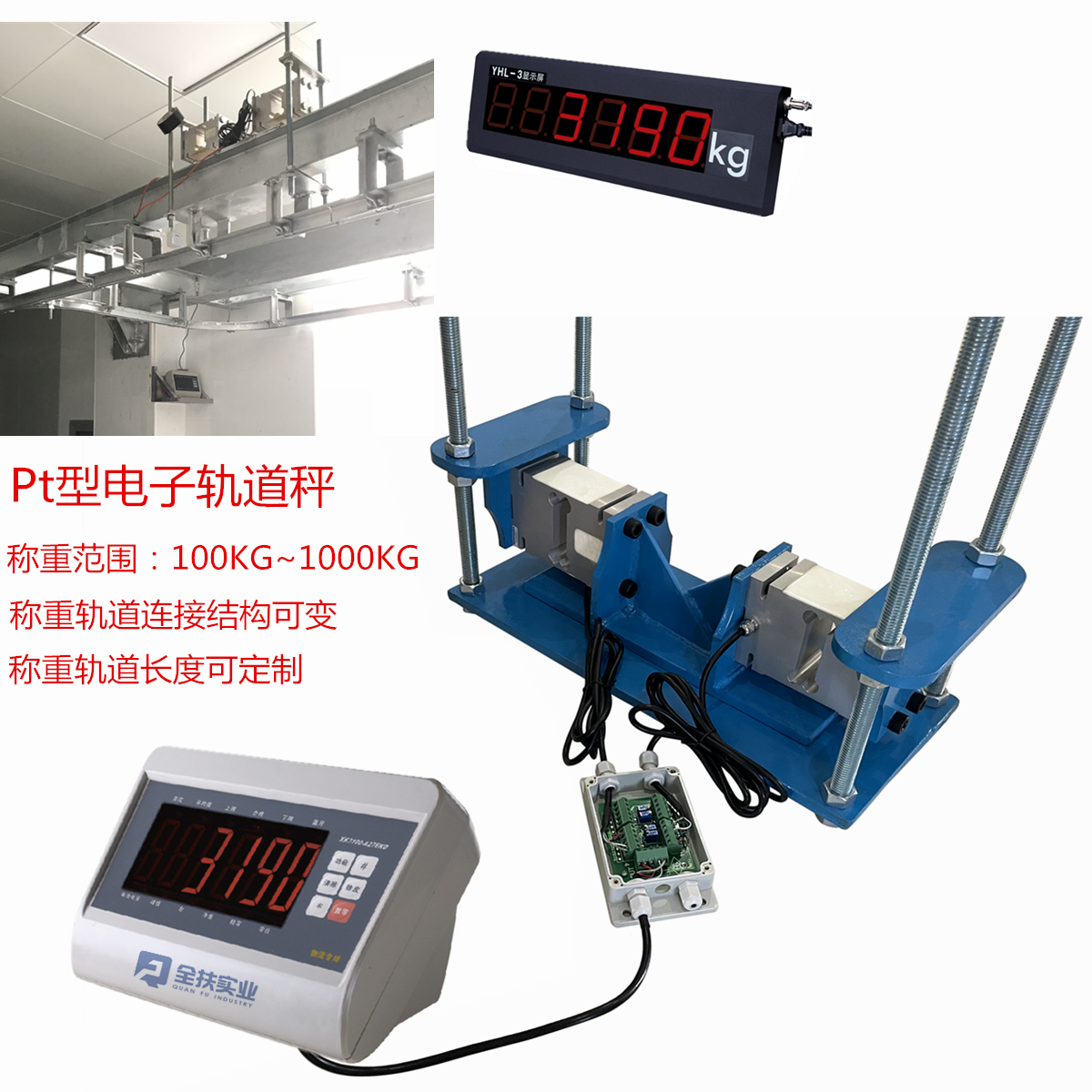

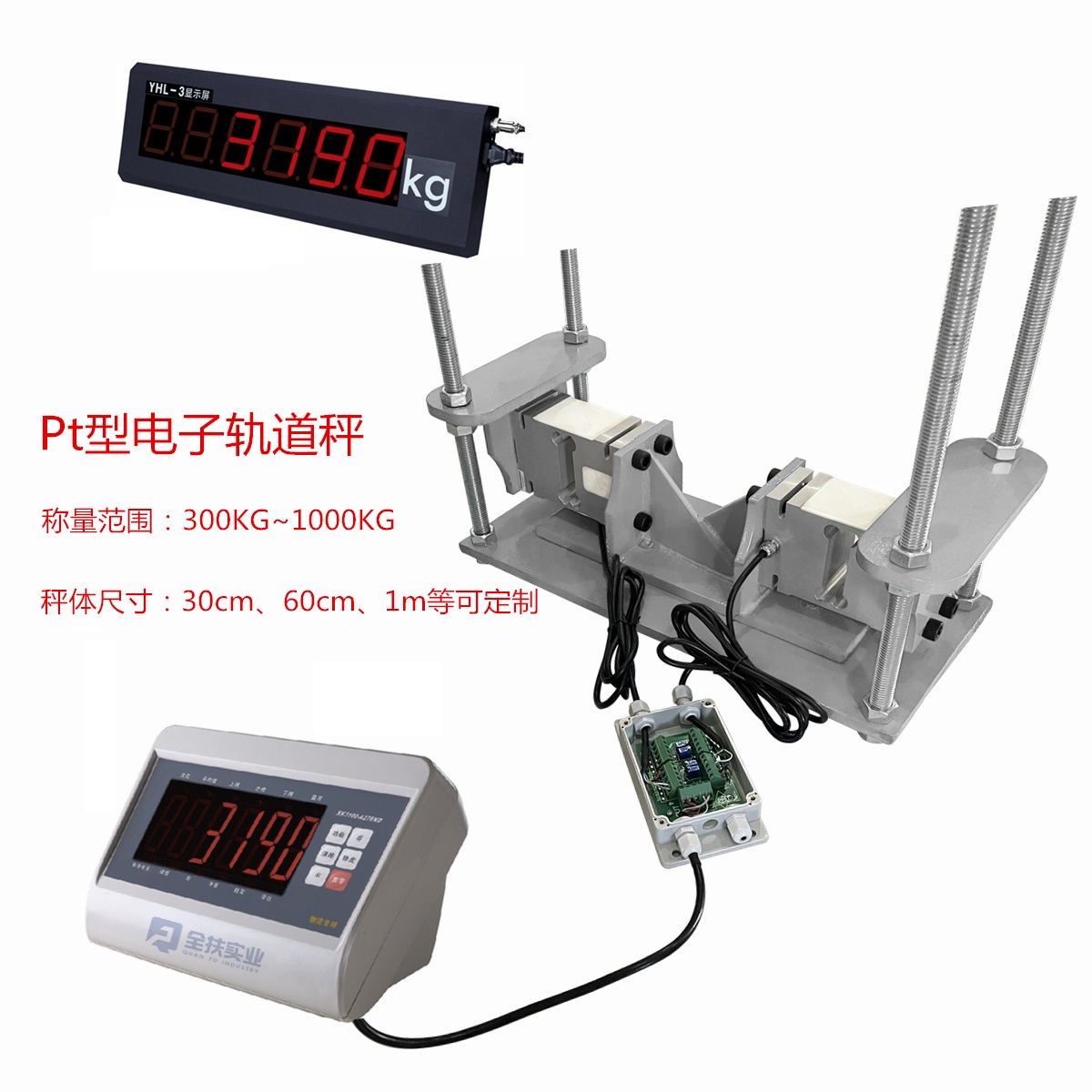

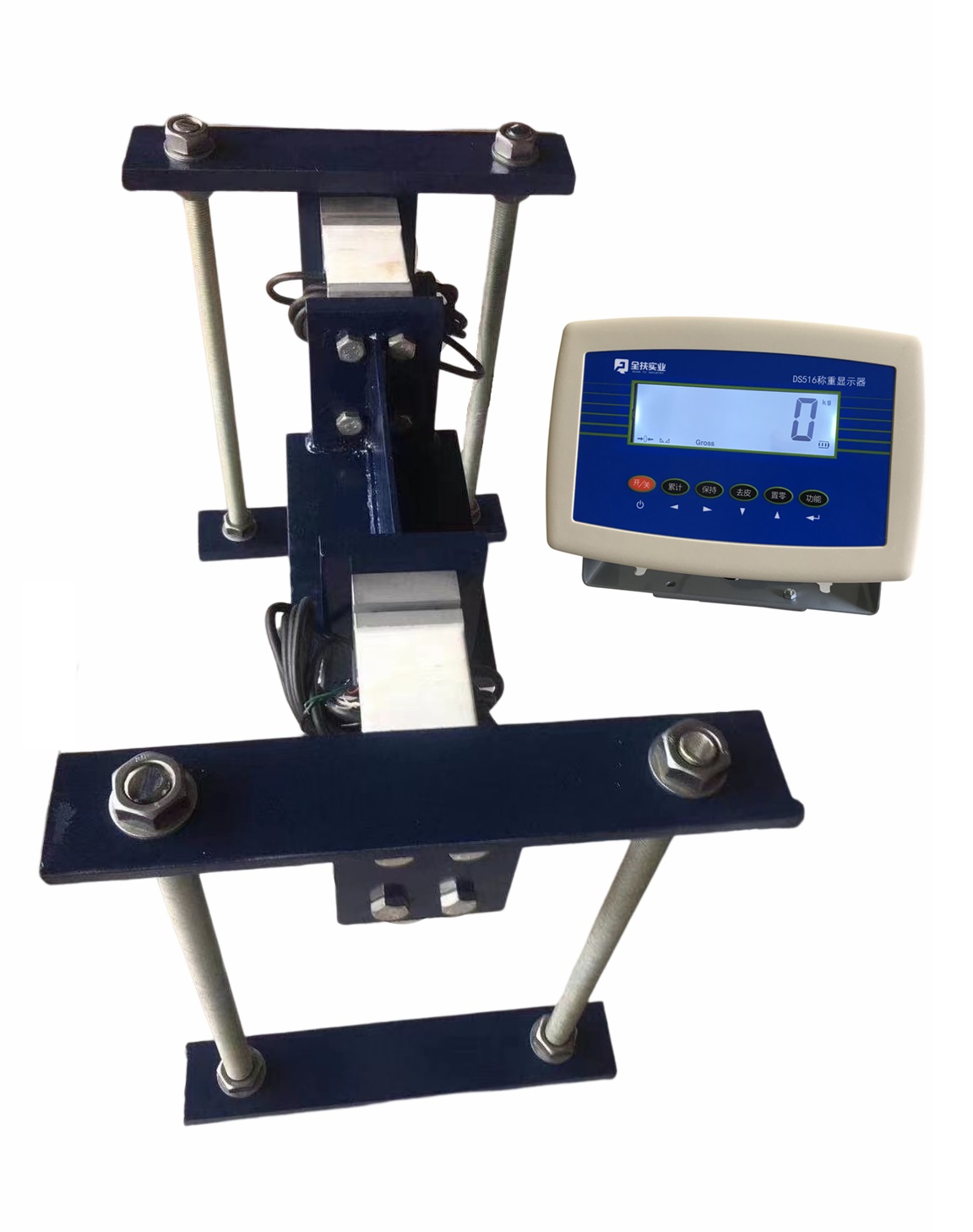

The track scale is composed of high-precision sensor, junction box, signal wire, weighing instrument and scale structure components

The rail weigher has good waterproof and low temperature resistance, and is specially designed for rail weighing in slaughterhouses and meat processing plants

This series of electronic scales are customized weighing products. According to the different tracks used by users, the track and its supporting or hanging structure are different, and the mechanical structure of monorail electronic hanging scales are slightly different. Mobile weighing, the pork of the meat factory is weighed through the rail weighing section, and the measurement is fast and accurate, which can be used for weighing printing or weighing data transmission.

Shanghai Quanfu track scale can be connected to computers, printers and other external equipment to meet different use requirements

Suspended rail weighing, high-strength scale body, carbon steel or stainless steel materials are optional, and the whole scale has strong structure and reliable performance,

It is suitable for rail weighing of slaughter and meat joint factory, food processing, paper making, rubber and other industries.

It is also suitable for suspended rail weighing of pigs, cattle, horses, sheep, chickens, geese, ducks and other livestock and poultry.

Technical parameters:

Accuracy class: III

Maximum weighing: 100kg, 300kg, 500kg, 1t, 2t, 3t (range optional)

Accuracy: 0.1kg~1kg

Operating temperature: - 10 ℃~+40 ℃

Power supply: AC 110-220V 50-60Hz or DC4~6V 4Ah

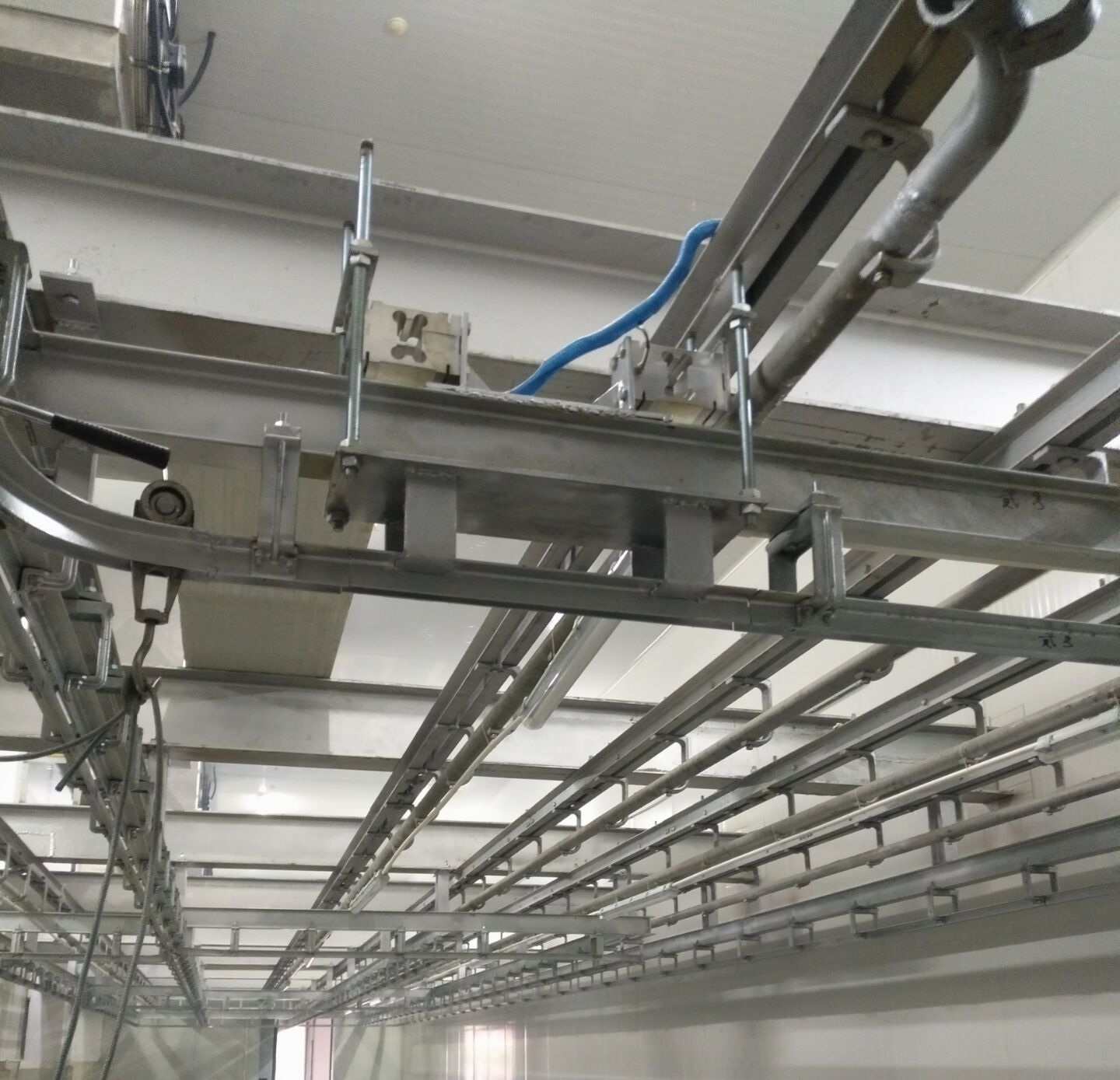

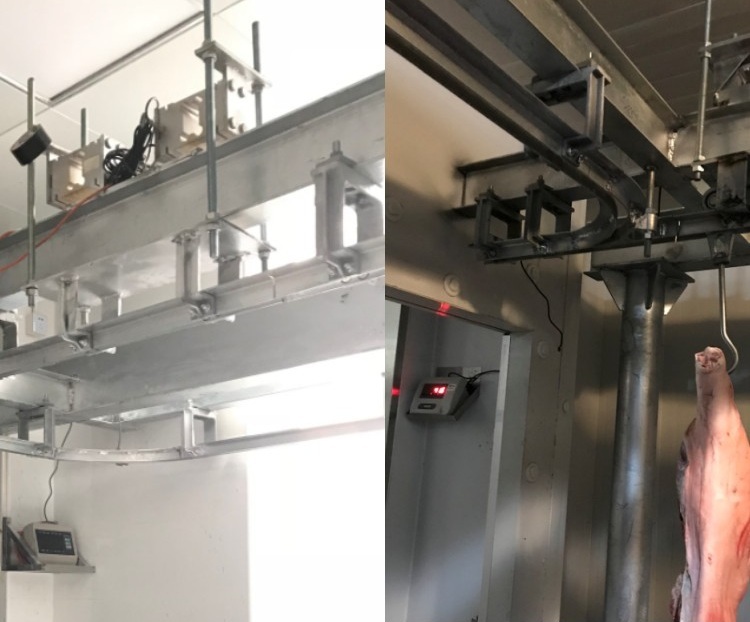

Structural features: Slaughter track scale, this electronic scale is directly installed on the sliding track of the slaughterhouse, so when weighing, it can automatically weigh by gently sliding over the weighing area, without having to unload the meat for weighing, thus greatly reducing the labor intensity of the staff, improving the work efficiency, and it is an indispensable electronic measuring equipment for the majority of slaughterhouses.

1. Moisture proof and waterproof, affordable, more cost-effective and durable than traditional electronic waterproof platform scales.

2. It is convenient to measure, reduce work procedures and improve labor efficiency.

3. The measurement is accurate and can really reach the standard of three-stage scale (industrial and commercial trade settlement)

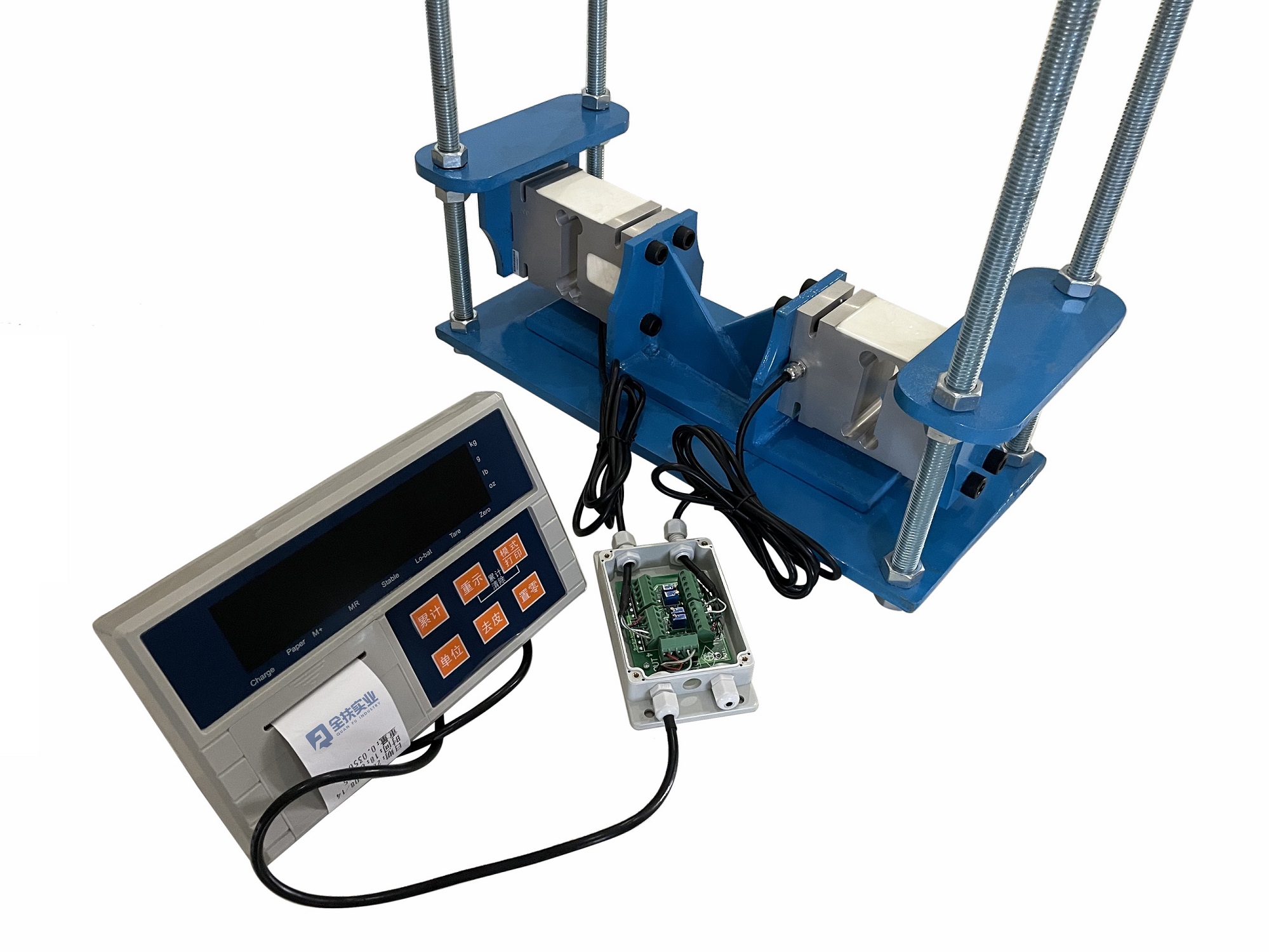

4. You can optionally print receipts, so that customers can take receipts symmetrically;

5. The USB flash disk can be inserted into the scale, and a report can be generated and imported into the computer. You can check the weighing record of the day at any time

6. Can weigh and calculate the price

7. The failure rate is low. Because it is installed on the track, the weighing can be automatically measured during normal work, avoiding the operation of the staff. Moreover, the sensor of the slaughter scale is better than the sensor of the ordinary platform scale, so the failure rate is greatly reduced.

8. It can greatly improve the working efficiency. Since the electronic scale is installed on the sliding track of the slaughter scale, the ordinary slaughter scale can weigh three pigs at the same time. If it is not enough, it can also be customized to weigh more than ten pigs at the same time, which greatly improves the shipping rate

Basic functions: Zero setting, peeling, accumulation, weight counting, counting, weight inspection, sorting and batching

Function selection: Print, communication interface RS232/485 4-20mA analog output, preset point relay output, etc

Remarks: 1. The connecting structure of weighing rail is variable. The length of weighing rail can also be 300mm, 900mm, 1200mm and other specifications;

          2. The scale body of the standard product is carbon steel galvanized, and the stainless steel scale body can be selected. The stainless steel rail scale is slightly expensive.

          3. If dynamic weighing is required, the dynamic track scale can be customized, and the specific specifications and accuracy requirements can be confirmed with the salesperson.

Note: The installation is simple, it can be seen at a glance, one year warranty, lifelong free maintenance guidance and warranty.
