Current Position: Home > Company Products >Nonstandard weighing apparatus > M1 grade cast iron weight measuring weight
1kg ~ 2T electronic scale weight, elevator weight and commercial concrete weight
1-2T cast iron weight, fully painted for rust prevention, without packaging
Weight material: solid iron, 304 stainless steel optional
Shape: lock, rectangle, column, row, square, etc. (customized according to the drawing)
Weight level: national standard M1 level (can be tested by measurement)
Production process: Casting ， Lettering (customizable)
Color: generally black (optional)

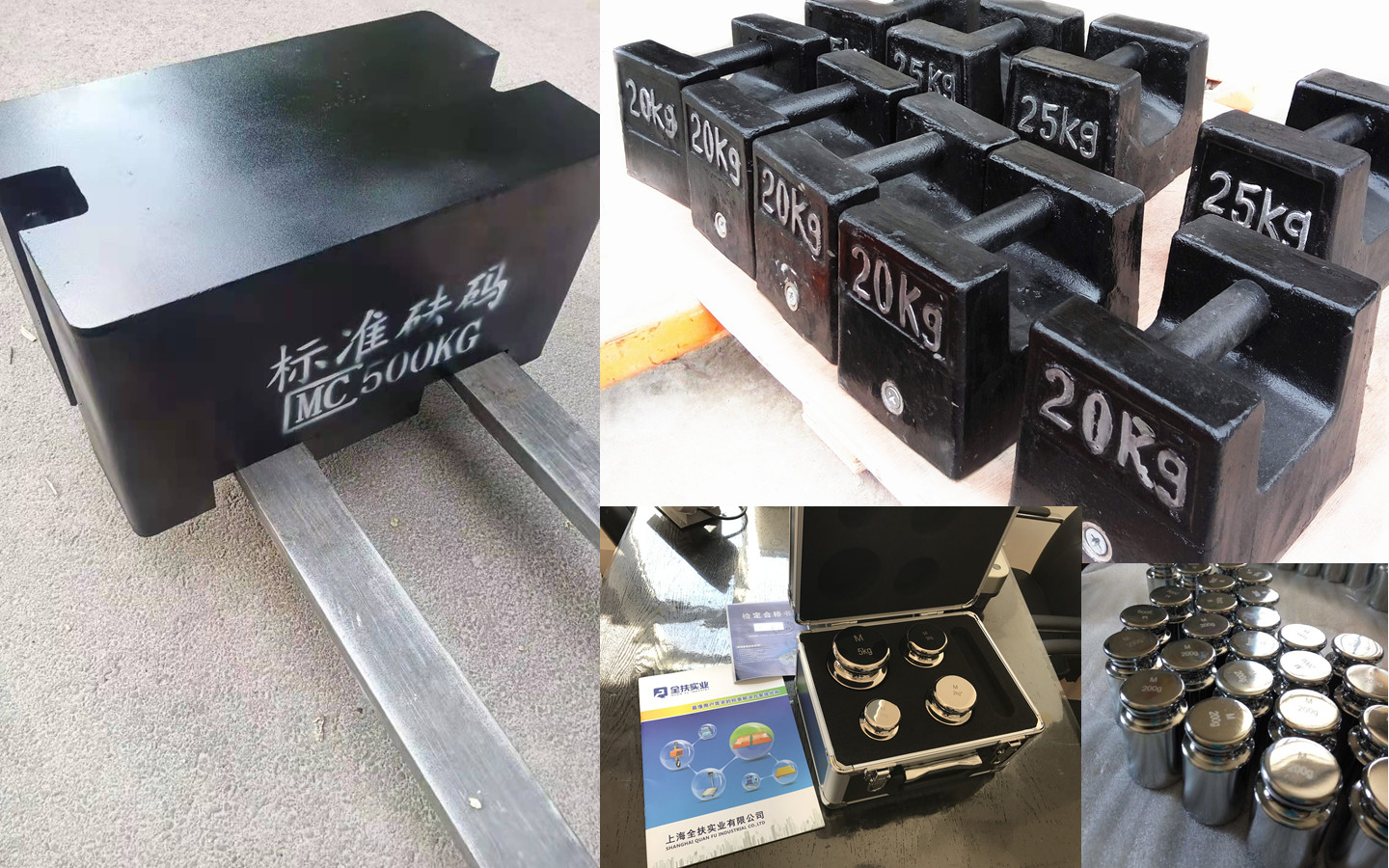

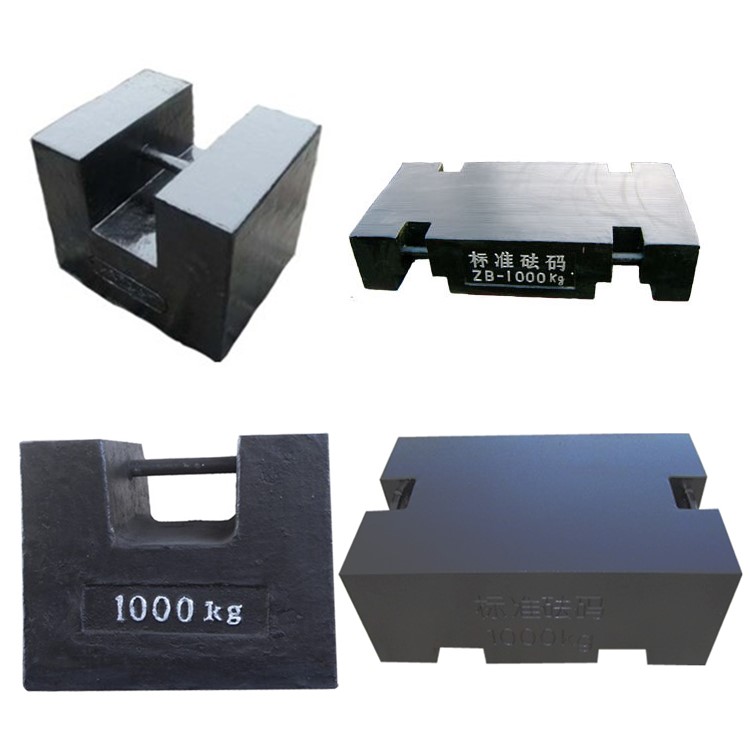

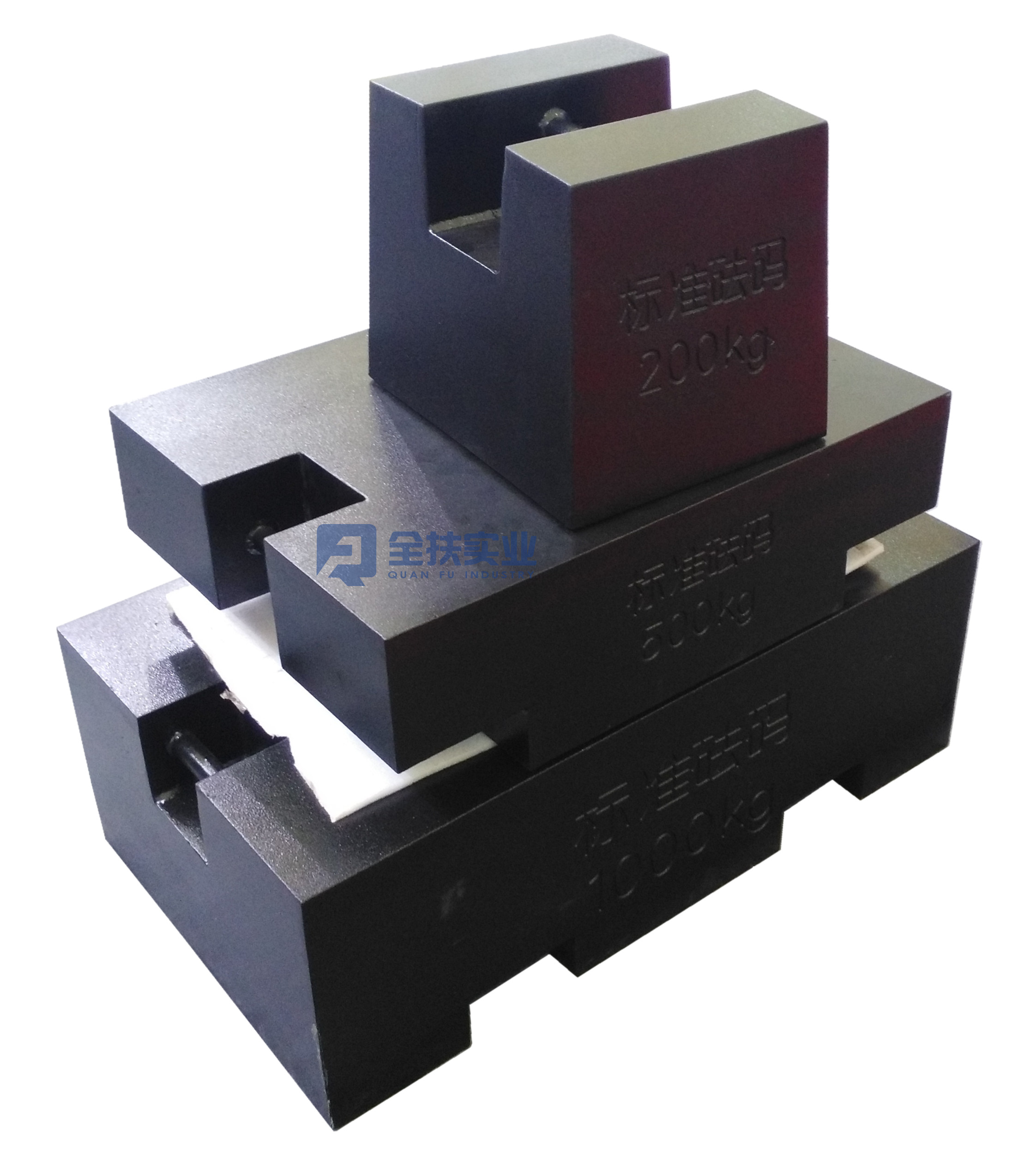

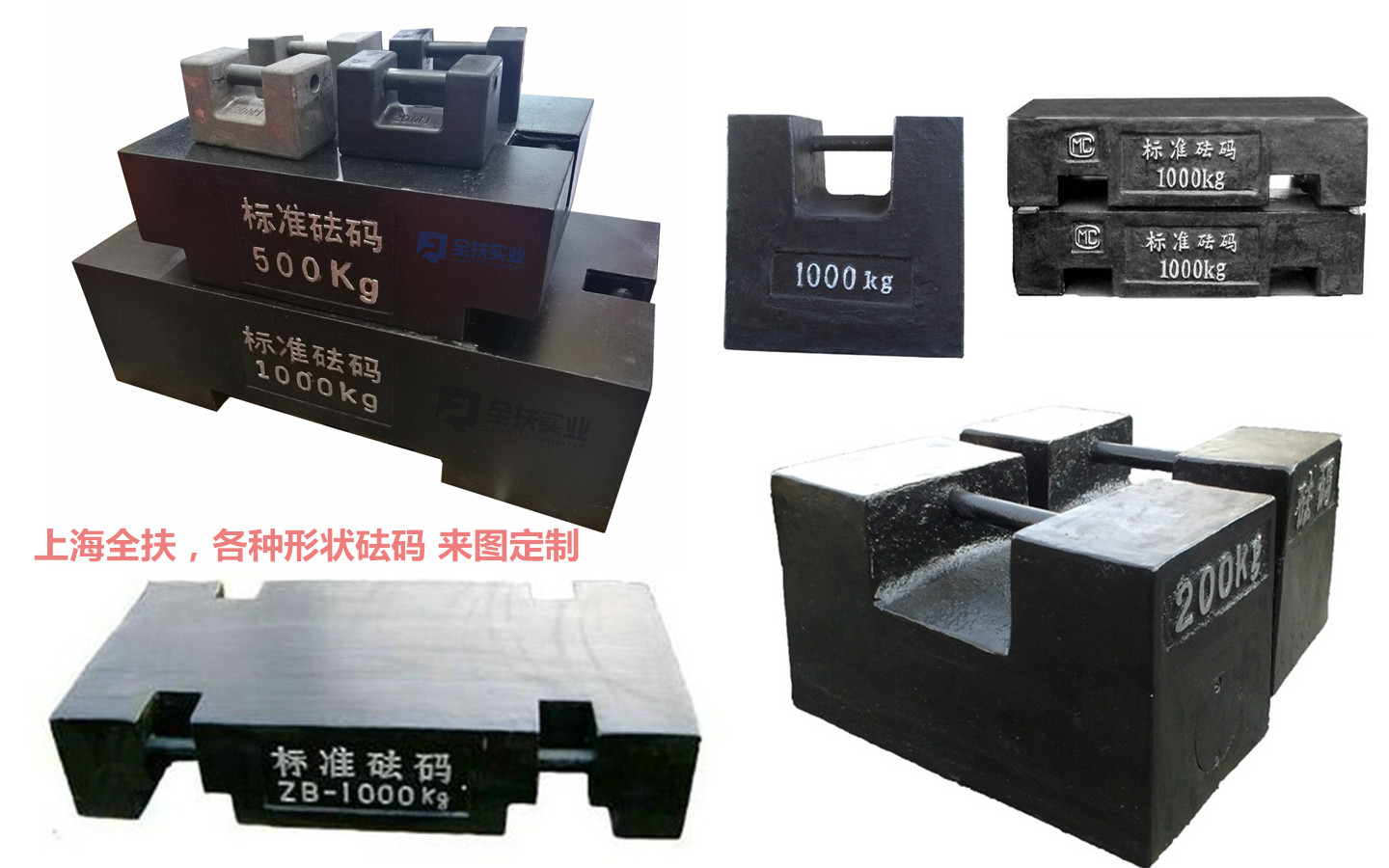

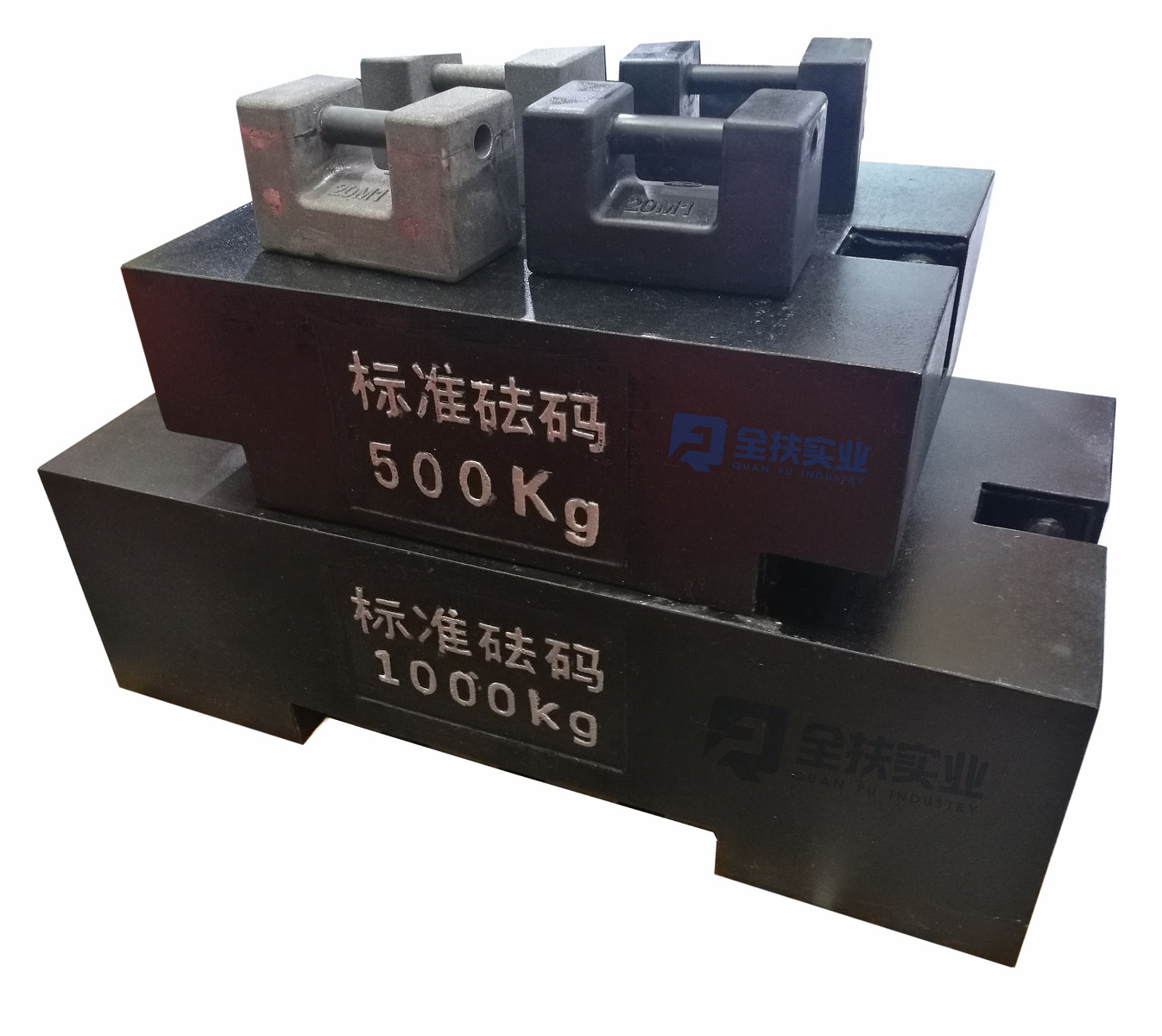

Shape of cast iron weight: the conventional locking weight below 500kg is standard. 500kg-5t conventional has square shape, which can be used for fork off. There are also cylinders, waiting for round rolling, which can also be customized according to the drawing.
Cast iron weights are used for the calibration of electronic scales, iron scales, electronic flat scales, elevators, and other industrial scales. To ensure the accuracy of the scale.
The standard weight is used for the detection and experiment of the Bureau of metrology, elevator calibration, and 1kg-1t weight of various sizes.
Optional specifications: 5kg / 10kg / 20kg / 25kg / 50kg100kg / 200kg / 500kg1000kg / 2000kg, etc
Standard weights are widely used in measurement standard testing of enterprises and institutions, weighing instrument manufacturing, quality and technical supervision and verification, weighing vehicles, electric power ports, metallurgical coal, mechanical supporting facilities, etc
Cast iron weight parameters:
M1 cast iron weight | Length (mm) | Width (mm) | Height (mm) | error |
Standard square 2000kg | 1200 | 600 | 440 | 100g |
Standard square 1000kg | 1000 | 500 | 350 | 50g |
Standard lock 1000kg | 600 | 600 | 495 | 50g |
Standard lock type 500kg | 530 | 425 | 410 | 25g |
Standard lock type 200kg | 485 | 275 | 280 | 10g |
Standard lock type 100kg | 380 | 210 | 235 | 5g |
Standard lock type 50kg | 270 | 205 | 210 | 2.5g |
Standard lock 25kg | 240 | 140 | 150 | 1.5g |
Standard lock 20kg | 230 | 130 | 140 | 1g |
Standard lock 10kg | 180 | 110 | 120 | 0.5g |
Standard lock 5kg | 150 | 80 | 100 | 0.25g |
Standard lock 2kg | 100 | 50 | 60 | 0.1g |
Standard lock 1kg | 80 | 40 | 50 | 0.05g |
Precautions for use of cast iron weights:
Remove the rust on the surface of the weight , Repeatedly wipe with cotton yarn stained with oil , Until the surface is bright . Use a more accurate balance ,
Weigh the treated weight , Calculate the reduced mass , Unscrew the screw on the weight , Make up with tin wire , Then screw in the screws .
Shanghai Quanfu Industrial Co., Ltd. has been manufacturing and serving precision electronic scales for more than ten years. Its products are used in laboratory 、 manufacturing and Retail services 。
Shanghai Quanfu provides weigh, Analytical balance and Industrial Weighing Detection solution .
Provided by Shanghai Quanfu Industrial weighing apparatus ， Electronic balance ， Commercial weighing apparatus and weighing system And other high-end products.
Shanghai Quanfu helps customers simplify processes, improve productivity, ensure that products meet legal and regulatory requirements and optimize costs.
1kg ~ 2T electronic scale weight, elevator weight and commercial concrete weight
1-2T cast iron weight, fully painted for rust prevention, without packaging
Weight material: solid iron, 304 stainless steel optional
Shape: lock, rectangle, column, row, square, etc. (customized according to the drawing)
Weight level: national standard M1 level (can be tested by measurement)
Production process: Casting ， Lettering (customizable)
Color: generally black (optional)
Powered roller scale no powered roller scale
Conveyor line drum scale, food packaging scale, drug sorting scale
Weight control alarm scale, sorting scale, suitable for automatic detection of product weight
The appearance and size of the weighing scale are customized according to the actual measured object size
LPG filling electronic scale, LPG filling scale
There are simple filling scales, automatic filling scales and cabinet explosion-proof filling scales
The normal measuring range is 120kg, and the maximum weighing capacity is 600kg
Different filling modes can be selected according to the filling mode of the user
Track scale
Suspended monorail scale, a measuring device suspended on the track for weighing, commonly known as monorail scale
The track electronic scale is suitable for weighing various items in the process of transmission on the suspended track
100kg~3t suspended rail scale, slaughterhouse Electronic track scale , rail weighing scale for pig farm and meat factory
Mechanical lever scale , weight lever scale, export-oriented mechanical scale
Single scale / double scale ground scale, copper scale mechanical scale, Mechanical lever scale
Tgt-300kg mechanical pound; Sgt-2000kg mechanical scale
Can be customized by OEM, a large number of exports, and mechanical pounds can be customized
Weigh and store liquid chlorine, ammonia and other chemical products Cylinder electronic scale
It is suitable for chemical, chlor alkali, tap water, textile, printing and dyeing, pesticide manufacturing and other industries
304 no Rusty steel cylinder scale Steel cylinder scale with water storage tray (optional)
Shanghai Quanfu Industrial Co., Ltd. specializes in high-end and high-quality weighing instruments. For more than 10 years, it has devoted itself to the development, production and sales of electronic weighing instruments. Its products are used in laboratories, industrial production and manufacturing and food retailing.
