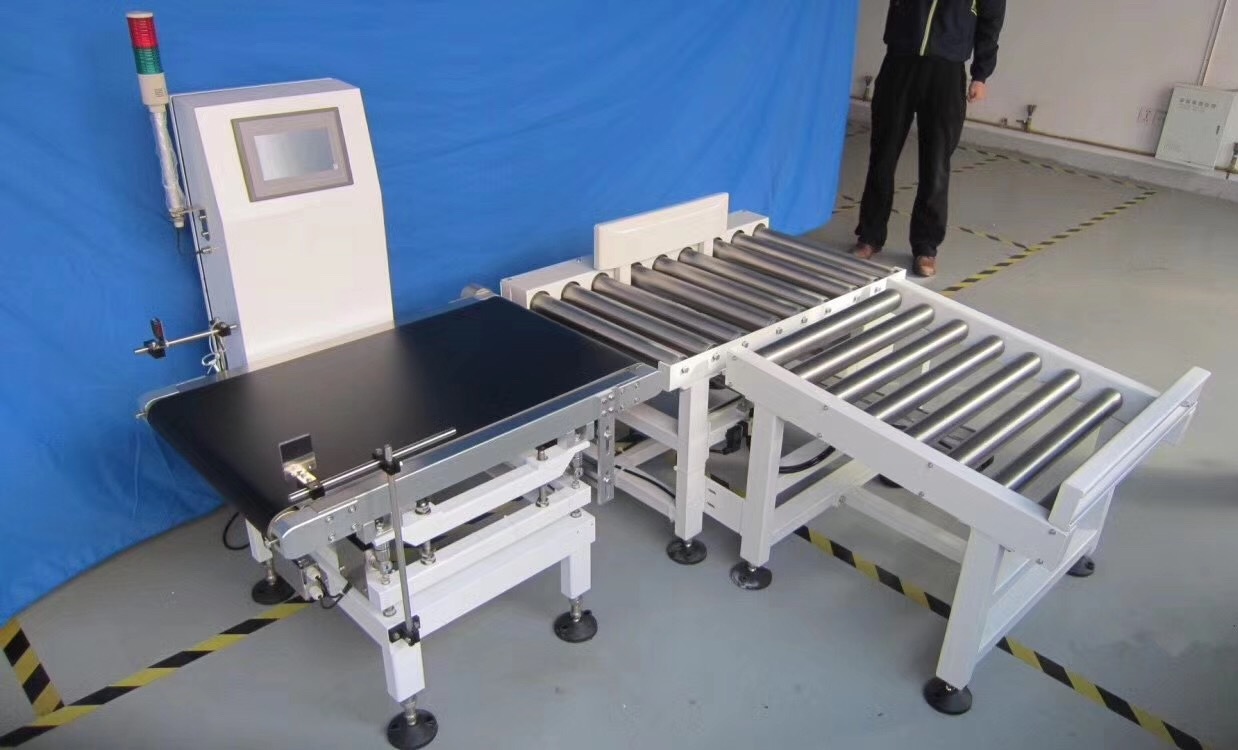

The check weight of the conveying line is mainly used for the secondary weighing of the packaged finished products by the weight sorting system, which is specially used for the on-line weight detection of the production line

It can be used with peripheral equipment such as conveyor belt assembly line. It has the characteristics of stable conveying, fast conveying speed, large conveying capacity and low noise

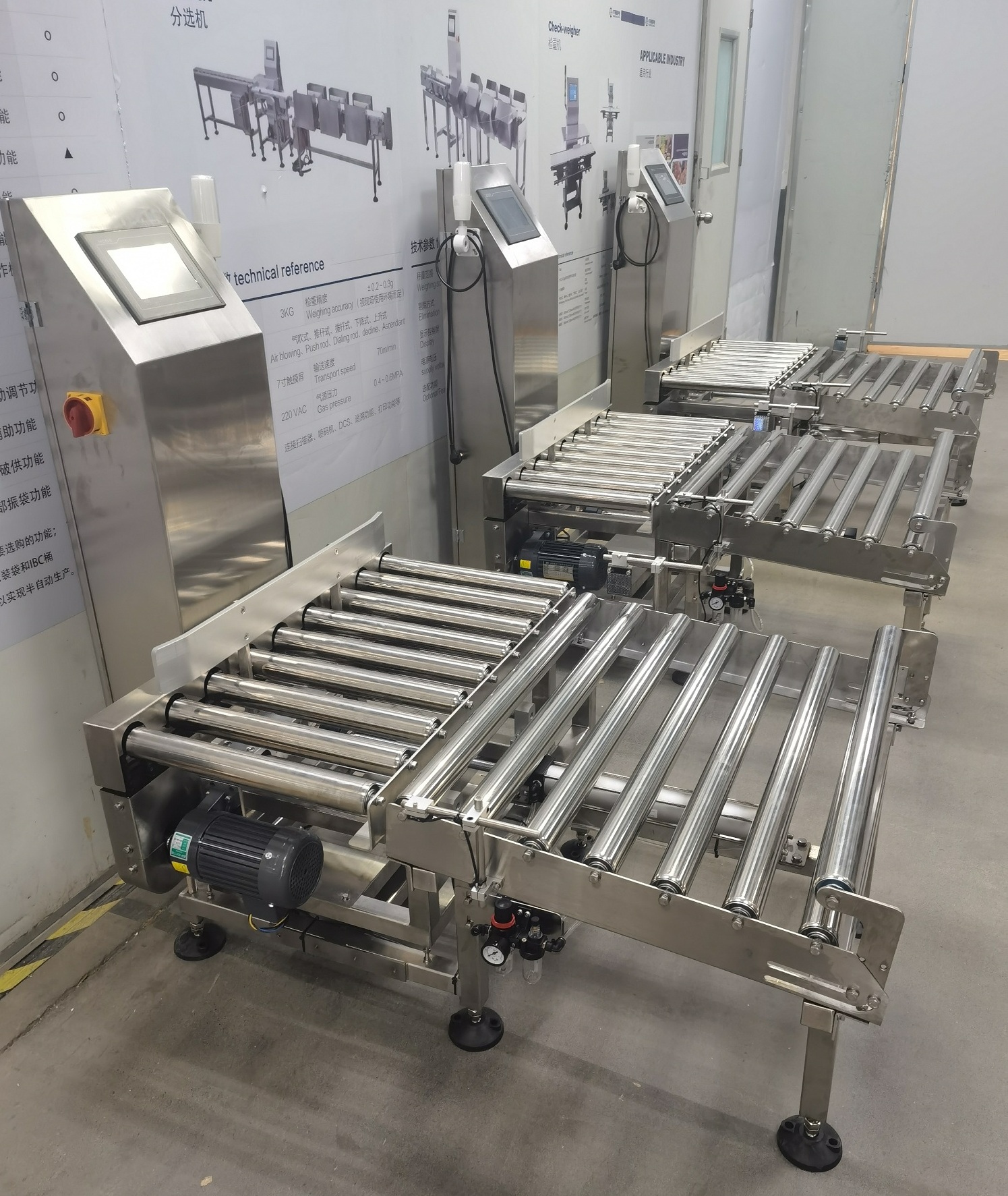

The roller electronic scale of the conveying line adopts an innovative structure. The roller shaft is perfectly combined with the electronic scale. It is designed and manufactured according to customer requirements, and can be connected with the production line in an orderly manner

The roller electronic scale adopts imported sensors and has a unique stabilizing device, which makes the weighing process fast, accurate and stable.

track Electronic roller scale There are carbon steel, stainless iron, stainless steel and other table materials. Weighing and table size are customized according to customer requirements.

Technical parameters:

Check weight range: 1kg~50kg, 60kg/100kg/300kg more ranges are available

Maximum accuracy: 1/3000~1/60000

Display division value: 0.1g/1g/2g/5g/10g/20g/50g/100g more calibration divisions can be customized

Speed: 30-70 M / min continuous (adjustable)

Operation direction: conveying from left to right facing the operation surface (adjustable)

Product conveying speed of production line: 5-30 M / min continuous (adjustable)

Weighing section width: 400mm~1000mm (customized according to requirements)

Length of weighing section: 900mm~2000mm (customized according to requirements)

Height of weighing platform: 600 ± 50mm (height from conveyor belt to ground, customizable);

Power supply voltage: 220V ± 10%, 50Hz, unidirectional, output power: about 1000VA.

Rejection method: Reserve unqualified rejection signal (24V, 0V)

Conveying mode: input belt, weighing belt, output roller, etc

Number of inspection areas: qualified and unqualified; Out of tolerance, qualified and under tolerance zones; 5 partitions and other partitions can be set

Elimination mode: push rod mode, swing arm mode, air blowing mode, falling mode, shunting mode, etc

Check weight optional accessories: audible and visual tricolor alarm lamp , USB, RS485 communication interface, elimination of signal relay output, external printer and other control equipment

Check weight material: the scale body is made of carbon steel or stainless steel, and the roller or belt is optional

Check weight introduction:

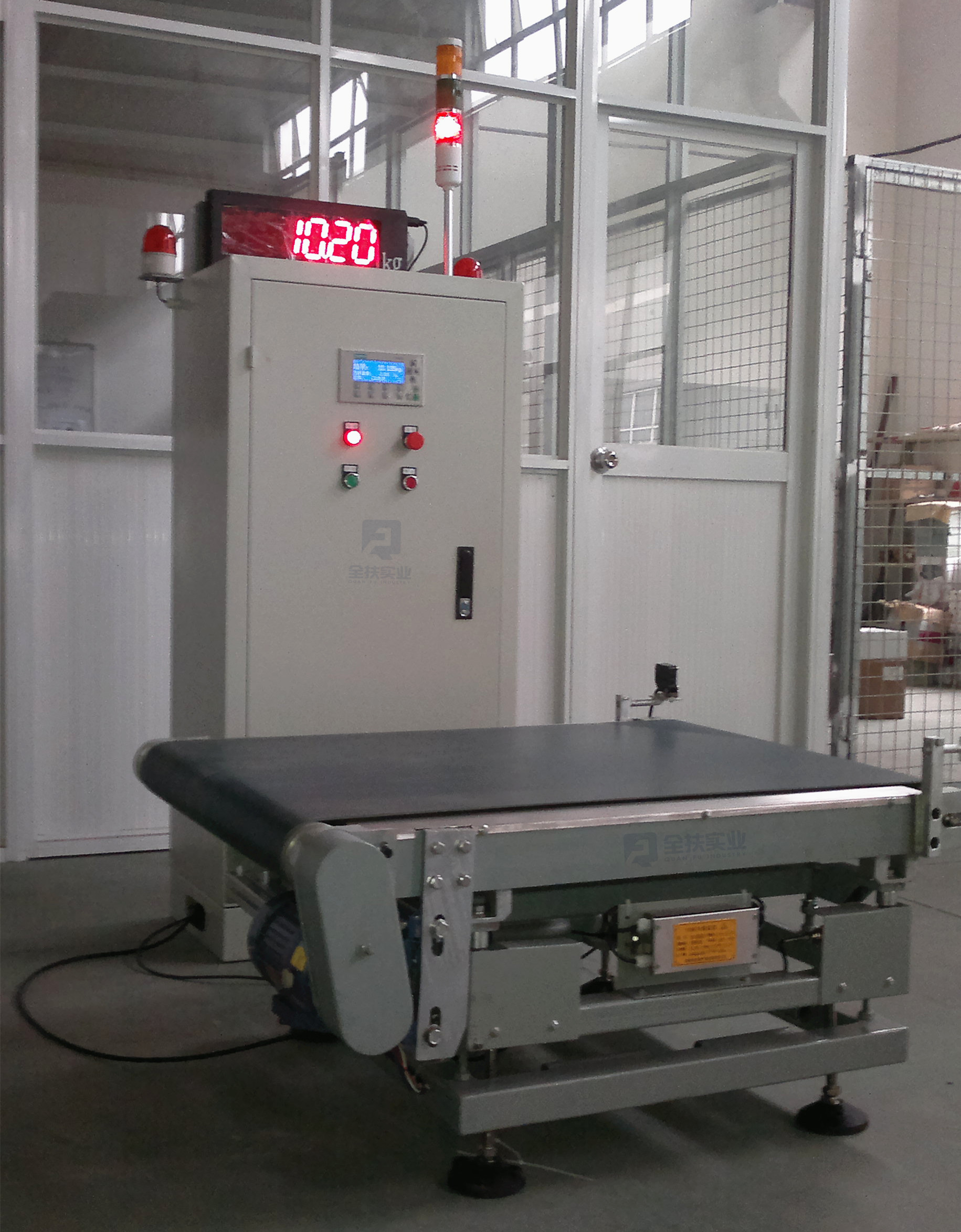

check-weigher The system adopts the weighing method of dynamic weighing. The produced and packaged products arrive at the inspection scale through the transmission medium. The weight of each package is weighed and inspected when it passes through the scale platform. If the weight is not within this range, the check weight conveyor belt will automatically shut down, and the check weight display screen will display the current weight. The workshop staff will return more materials in the packaging bag and make up less materials. During the process of returning more materials and making up less materials, the weight will be checked and weighed on the display screen to feed back the weight in real time. When the weight reaches the standard, the check weight can automatically start to transport the products. The check weight does not need to interrupt the product flow when completing these functions, And the operator does not need to intervene in the production process.

Check weight has complete functions for production data statistics, which is convenient for production management. It can meet various application requirements. It has static and dynamic calibration to eliminate the influence of dynamic weighing. Automatic zero tracking and other functions. The conveyor speed can be adjusted independently according to the speed of the production line, effectively meeting the speed docking requirements of the on-site conveyor line.
