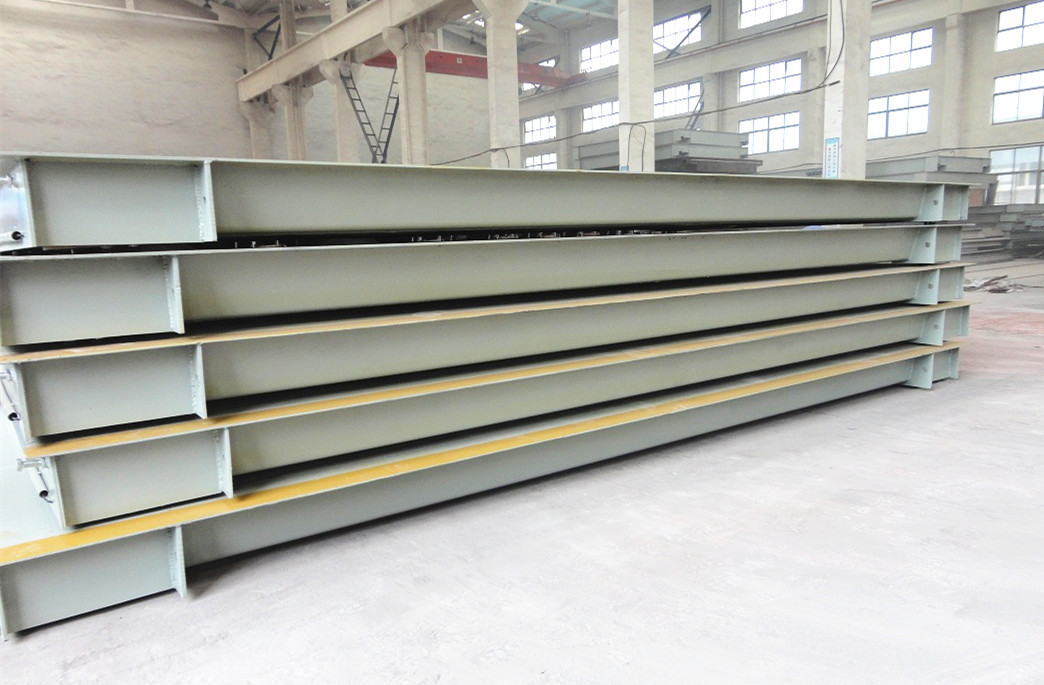

Scs-b series electronic truck scale Large weighbridge

1、 Product description

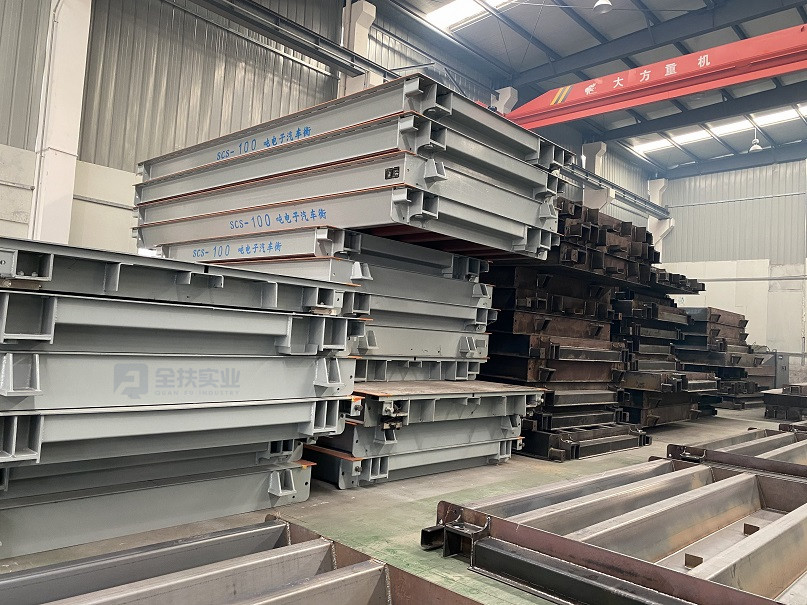

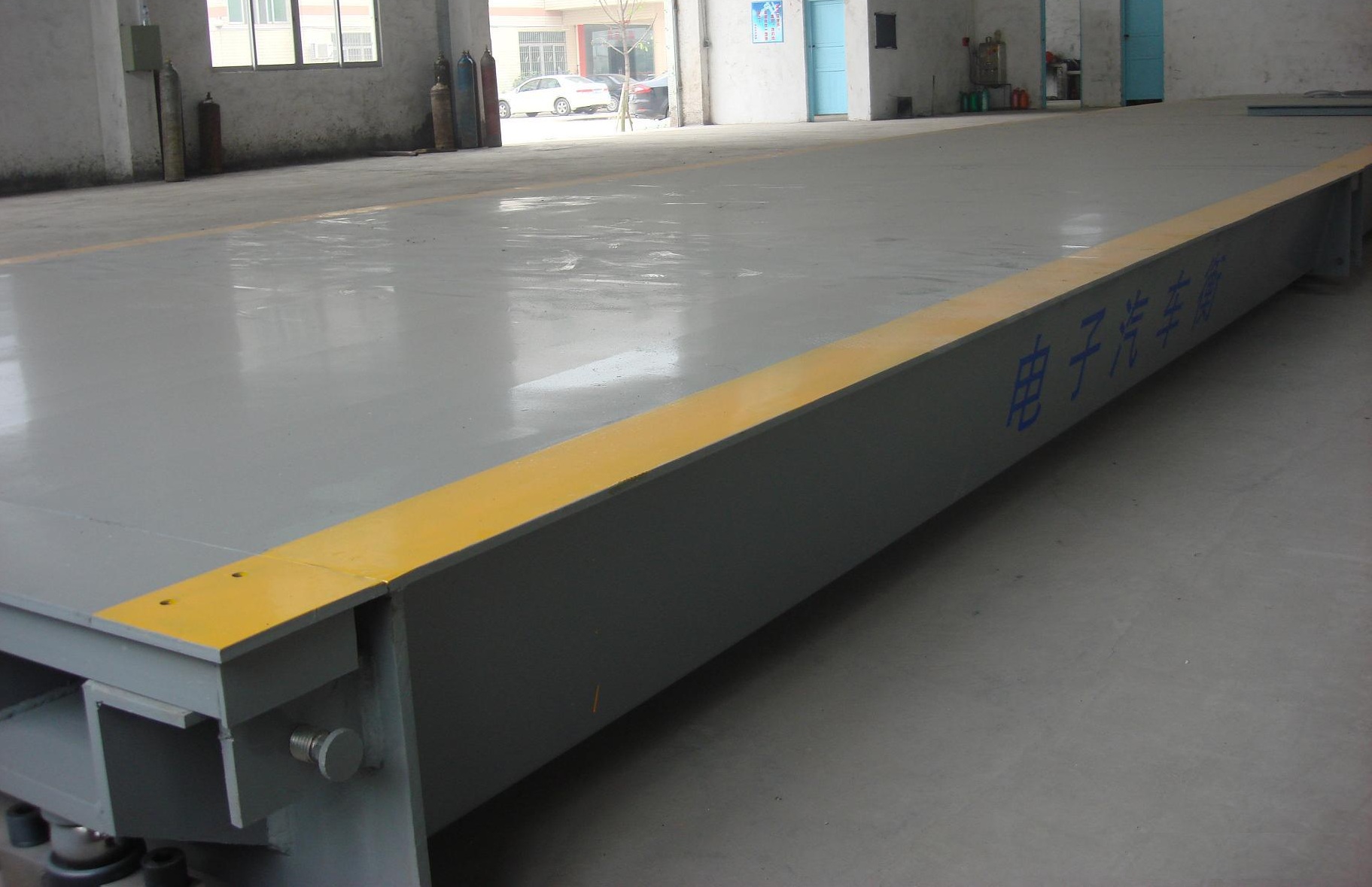

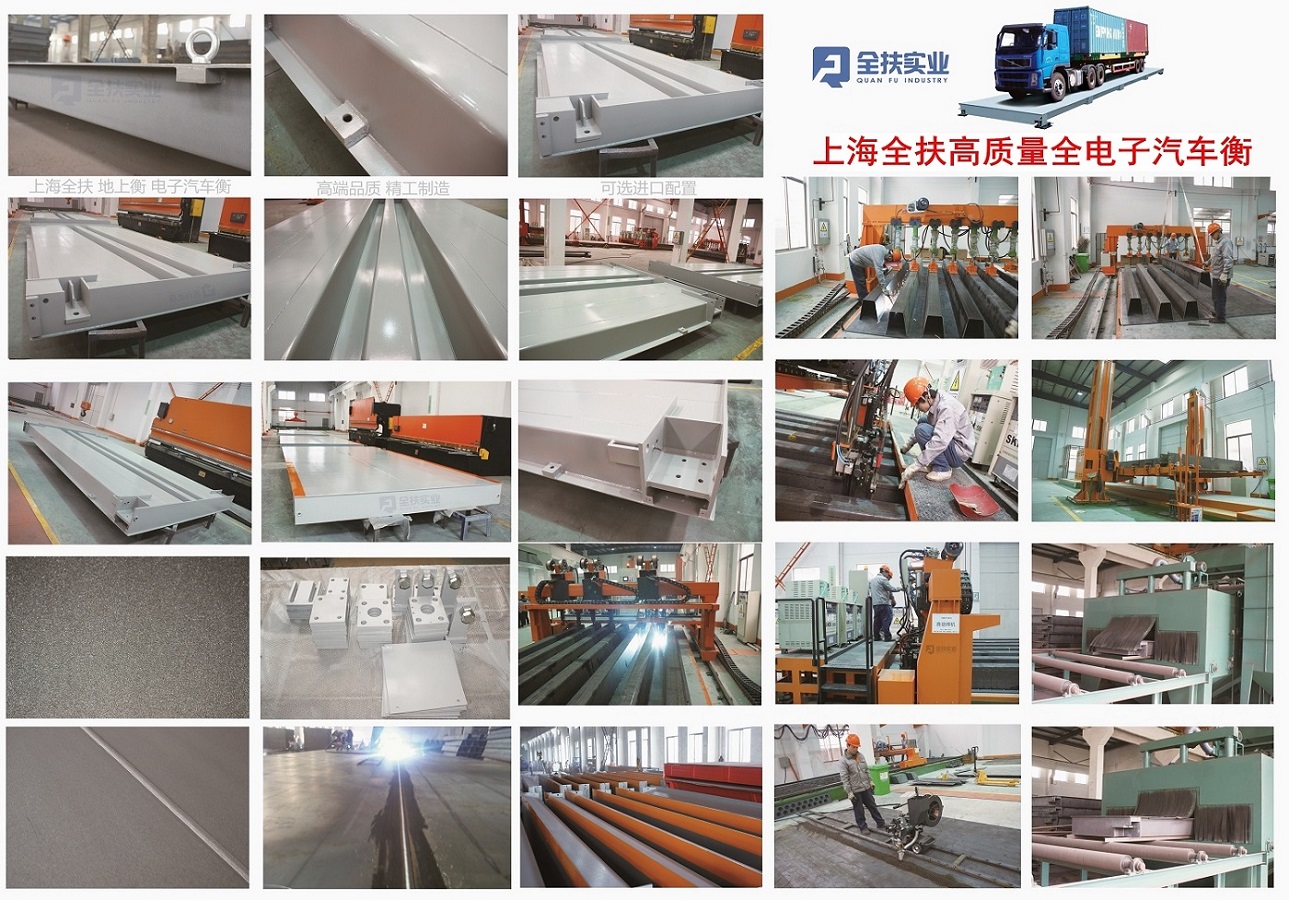

Shanghai Quanfu high quality Electronic truck scale , with high-end quality and high configuration technology level, rapid and accurate weighing, digital display, intuitive and easy to read, stable, reliable and easy to maintain. It adopts computer-aided design, no cover plate, convenient lapping, and integrates the remarkable characteristics of modularization, standardization, batch and specialization. It has solid structure, fine workmanship, beautiful appearance and durability. The main beam of the weighing platform adopts modern bridge core technology, and is made of U-section closed rib cold-formed steel. Large components are assembled and welded by automatic continuous welding. The middle seam of the panel adopts submerged arc welding, the whole weighing body is shot blasted and electrostatic plastic sprayed, Ensure super anti-corrosion performance. The installation form without foundation pit is adopted, which is simple in installation, commissioning and maintenance and low in infrastructure investment. The weighing system is equipped with stable and reliable high-precision weighing sensor and intelligent weighing display controller, which has high sensitivity, high resolution and rich software functions. Through the standard output interface of the instrument, the weighing data can be recorded by the printer or connected with the computer to form a weighing management system. It can be reliably used in various industrial and trade occasions for a long time, such as metallurgy, mining, construction, chemical industry, port, warehouse and factory enterprises. It is an ideal weighing and measuring equipment for all kinds of heavy cargo vehicles.

2、 Working conditions

System power supply: 220VAC (- 15% ~ + 10%), 100VA, 50Hz ± 2%

Temperature range: Sensor - 35 ~ + 65C, display - 10 ~ + 45C

Relative humidity: & lt; 95%

Hazardous area: II B / C T6, intrinsically safe explosion-proof or composite explosion-proof

3、 Model rule

Name: electronic truck scale

General model: scs-xxt

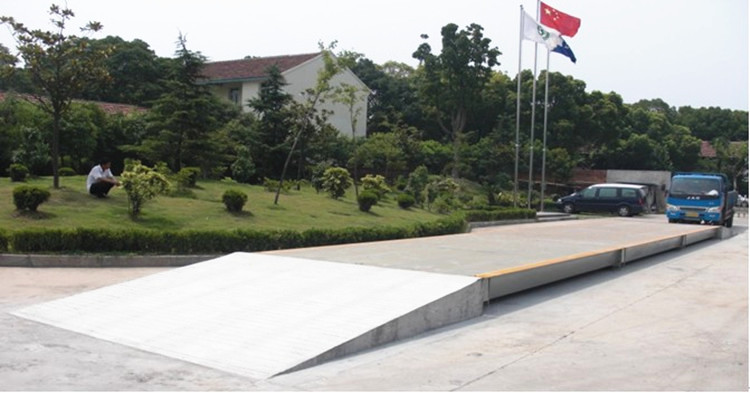

Installation method: with or without foundation pit

Product No.: M: analog, D: digital, XXXX: scale size, xxt: measuring range

For example: d-3018 - 100t: 3x18m 100t digital truck scale

4、 Product specification:

Product model	SCS-30T	SCS-60T	SCS-80T	SCS-100T	SCS-120T	SCS-150T	SCS-200T
Maximum weighing	30t	60t	80t	100t	120t	150t	200t
Maximum axle load	15t	20t	30t	40t	45t	60t	80t
Division value	10kg	10kg	20kg	20kg	20kg	20kg	50kg
accuracy	OIML III    International legal accuracy level 3
Standard width	3M, 3.2m, 3.4m (generally 3m or 3.4m)
Regular length	7m、9m、10m、12m、14m、16m、18m、20m、21m、24m
Number of combined sections	Sections 1, 2 and 3
remarks	The length and width of the scale platform can be combined freely. Shanghai Quanfu can customize the truck scale with non-standard scale body size for customers

5、 Product standard:

The design, manufacture, packaging, transportation, storage and acceptance of truck scale shall comply with the following standards and other relevant Chinese national standards and specifications:

GB / T 7723-2017 fixed electronic scale

GB/T14249. 1. Safety requirements for electronic weighing apparatus

GB/T14249. 2 general technical conditions of electronic weighing instrument

GB / T 7551-2008 load cell

J16669-2003 verification regulation of load cell

GB / T 7724-2008 weighing display controller

J] Verification regulation of g907-2003 dynamic truck scale

GB / T 14250-2008 weighing apparatus terminology

QB / T 1563-2003 preparation method of weighing instrument product model

QB / t1588 general specification for weighing apparatus of light industrial machinery

GB / T 1764 determination of film thickness

Gb986 basic forms and dimensions of weld grooves for submerged arc welding

Gb3323 radiographic and quality classification of fusion welded butt joints of steel

Gb11345 manual ultrasonic flaw detection method and flaw detection classification of steel welds

GB / T 8923 rust grades and derusting grades of steel surfaces before coating

GB7251 low voltage switchgear

GB / T 13384 general technical conditions for packaging of mechanical and electrical products

6、 Working principle:

When the car drives onto the weighing platform, under the action of gravity, the elastomer of the weighing sensor deforms, the impedance of the strain gauge bridge (Wheatstone bridge) pasted on the elastomer loses balance, and the electrical signal proportional to the weight value is output, which is transmitted to the amplifier, a / D converter, microprocessor and other electronic components for corresponding data processing, and the digital signal is output for the display of the weighing instrument. If the display instrument is connected with the computer and printer, the instrument can simultaneously transmit the weight signal to the computer and other equipment through a special interface according to a specific protocol to form a weighing management system.

7、 System configuration:

The standard configuration of electronic truck scale consists of mechanical part (scale body), electrical part (sensor, instrument, junction box and cable), optional part (large screen, computer and management software, printer, power protector, barrier system and camera monitoring system).

Optional matching screen:

Remote observation of weighing results can be used as an auxiliary display of weighing device

Dynamic scanning latch technology, 6-bit led word height 75mm nixie tube

Ultra high brightness digital block, special optical filter film, wide viewing angle range

Display the gross weight and net weight of the system or instrument output

Power supply: 187 ~ 242v AC; 49~51Hz

Communication interface: RS232 or RS485 or 20mA current loop

Ambient temperature: - 10 ~ 45 ° C; Ambient humidity: ≤ 85% RH

Practical cases: Ground truck scale is recommended
