Current Position: Home > Company Products >Truck scale > Scs-g fixed axle load scale
Fixed axle load scale Dynamic non-stop use
Fixed truck scale
Single axle scale or double axle scale, dynamic weighing scale
Dynamic accuracy 1%~3%

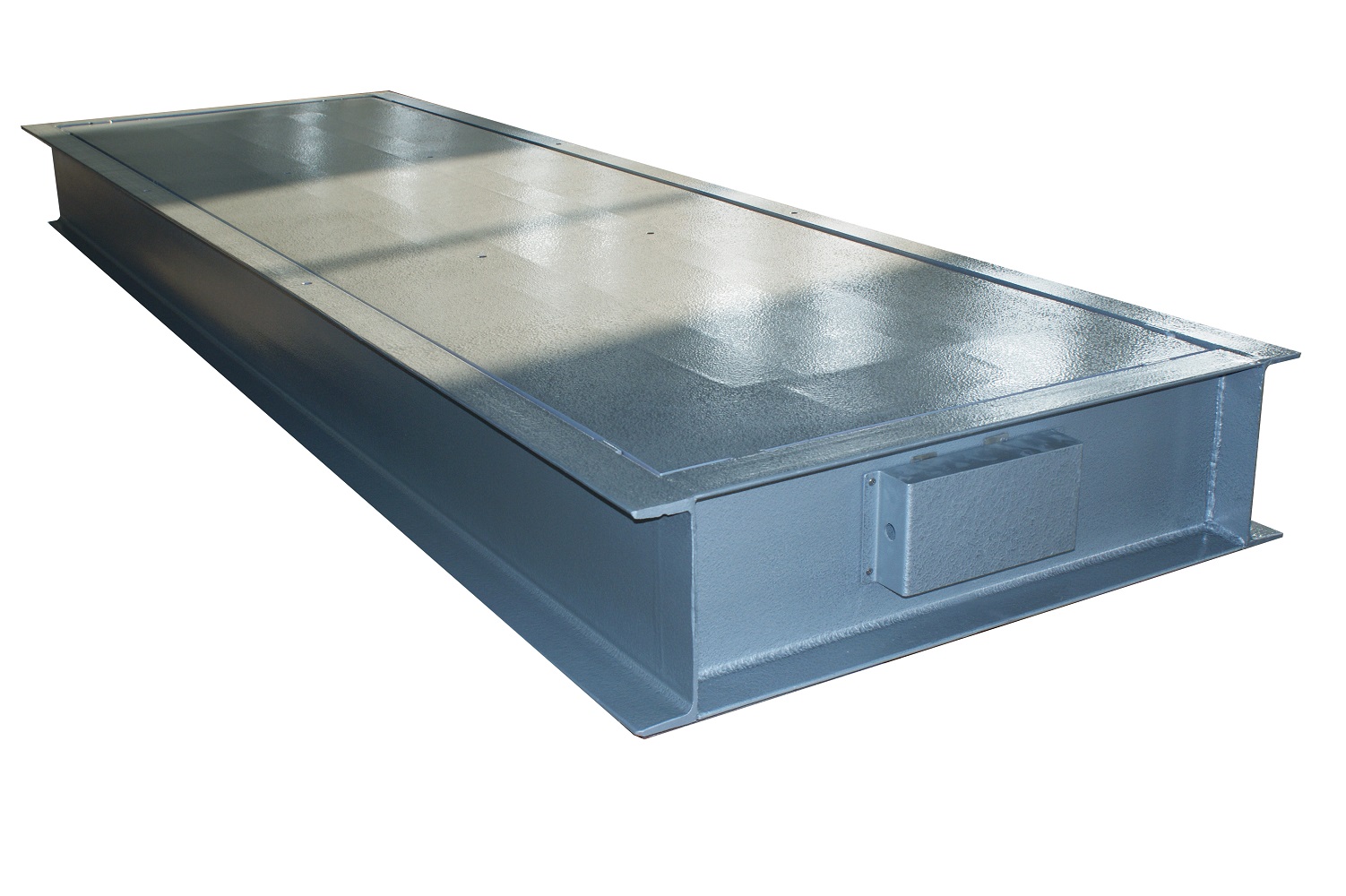

Scs-g fixed axle load scale
The short table dynamic axle load scale is a set of simple automobile dynamic axle weighing system, which can automatically count the total weight of each single axle, double axle and triple axle. It is mainly designed for use occasions with low weighing accuracy requirements, such as logistics, highway toll station (over limit detection), earthwork weighing, etc. it covers a small area and is used dynamically.
Features of split truck scale:
It is made of thickened 235 steel plate and densified U-section closed rib cold-formed section steel. Large components are assembled and welded by automatic continuous welding. The middle seam of the panel is submerged arc welded, the scale body is shot blasted as a whole, and the static plastic spraying treatment is adopted to ensure super anti-corrosion performance. The installation form with foundation pit is adopted, which has the advantages of simple installation and commissioning, convenient transportation, stable weighing, simple maintenance and low infrastructure investment.
Technical parameters:
Table size (w * l) | Single shaft: 3.2 × 0.9m | Biaxial: 3.2 × 2.2m |
Maximum weighing | Single shaft: 30T | Double shaft: 50t |
Weighing speed | ≤5km/h | |
Weighing instrument | DS10 | |
Dynamic accuracy | 1%-3% | |
Other instructions | The fixed axle load scale, equipped with light curtain, ground coil, tire identifier, camera monitoring system and central control system, can form a vehicle overrun detection system | |
Concrete countertop truck scale concrete weighbridge anti-corrosion and explosion-proof weighbridge
Full steel frame cement concrete structure with strong corrosion resistance
Resist lightning stroke and prevent sensor from being damaged by lightning stroke
C30 reinforced concrete with strength above 280kg/cm2
Double-layer deformed steel reinforcement, maximum bearing load 35 tons
The service life is more than 50 years
Truck scale weighing system, voice automatic command weighing
Unidirectional and bidirectional weighing directions are optional, and the weighing image is automatically captured and collected
Long distance and short-distance card swiping is optional, and the car number is automatically identified by microwave and RF
Traffic light control system, infrared and software integrated anti cheating system
Remote monitoring system, various data statistics and report generation functions
The gross weight, tare weight, weighing, determination, storage and printing are clear in structure and can be seen at a glance
Fixed axle load scale Dynamic non-stop use
Fixed truck scale
Single axle scale or double axle scale, dynamic weighing scale
Dynamic accuracy 1%~3%
Axle load scale with display, and the platen is integrated with the display
It adopts integral patch structure and high-strength aviation aluminum material
The appearance is subject to high-quality military oxidation treatment, which is wear-resistant and corrosion-resistant
The weighing board is directly equipped with weight display, which is convenient to use
Portable axle scale, high-precision axle load scale, multi-channel weighing
Wired and wireless signal transmission, barrier free transmission distance can reach more than 30 meters
The instrument can be connected with multiple weighing platforms, and can realize different combined weighing of single block and multiple blocks at the same time
It can easily meet the weighing needs of customers in different scenarios
The scale has the advantages of thin body, light weight, high weighing accuracy and fast response speed
Good repeatability, small horizontal consistency error, with high-strength cable spring, not afraid of wheel rolling
Small body, great strength, high protection, exquisite and beautiful
Weighbridge to carry, dynamic / static weighing plate optional
High end components, wired or wireless, flexible use
The scale has the advantages of thin body, light weight, high weighing accuracy and fast response speed
Good repeatability, small horizontal consistency error, with high-strength cable spring, not afraid of wheel rolling
50t mobile weighbridge large table hydraulic lifting mobile weighbridge
High quality scale body, good stability of scale platform for long-term use, vehicle weighing and combined multi axle weighing
Export truck scale, English version, electronic truck scale, electronic weighbridge
Segmented high-strength weighing platform, modular, on-site assembly
Fully suitable for 20 foot, 40 foot, high container or open top container transportation
Measuring range: 30t ~ 200t truck scale, 120t ground scale
Table size: 3M × 7m~3.4 × 24m
Scale body material: high quality steel plate, U-shaped steel structure, precision welding, complete set of shot blasting and plastic spraying treatment on the surface
Sensors and instruments: digital or analog, optional
Measuring range: 10t ~ 50t weighbridge, 60t truck scale
Table size: 2.5m × 4m~3m × 7m, customizable
Scale body material: high quality steel plate, U-shaped steel structure, precision welding, complete set of shot blasting and plastic spraying treatment on the surface
Sensor: shear beam or bridge load cell
