Current Position: Home > Company Products >Truck scale > C Series Portable axle load scale high precision weighing plate

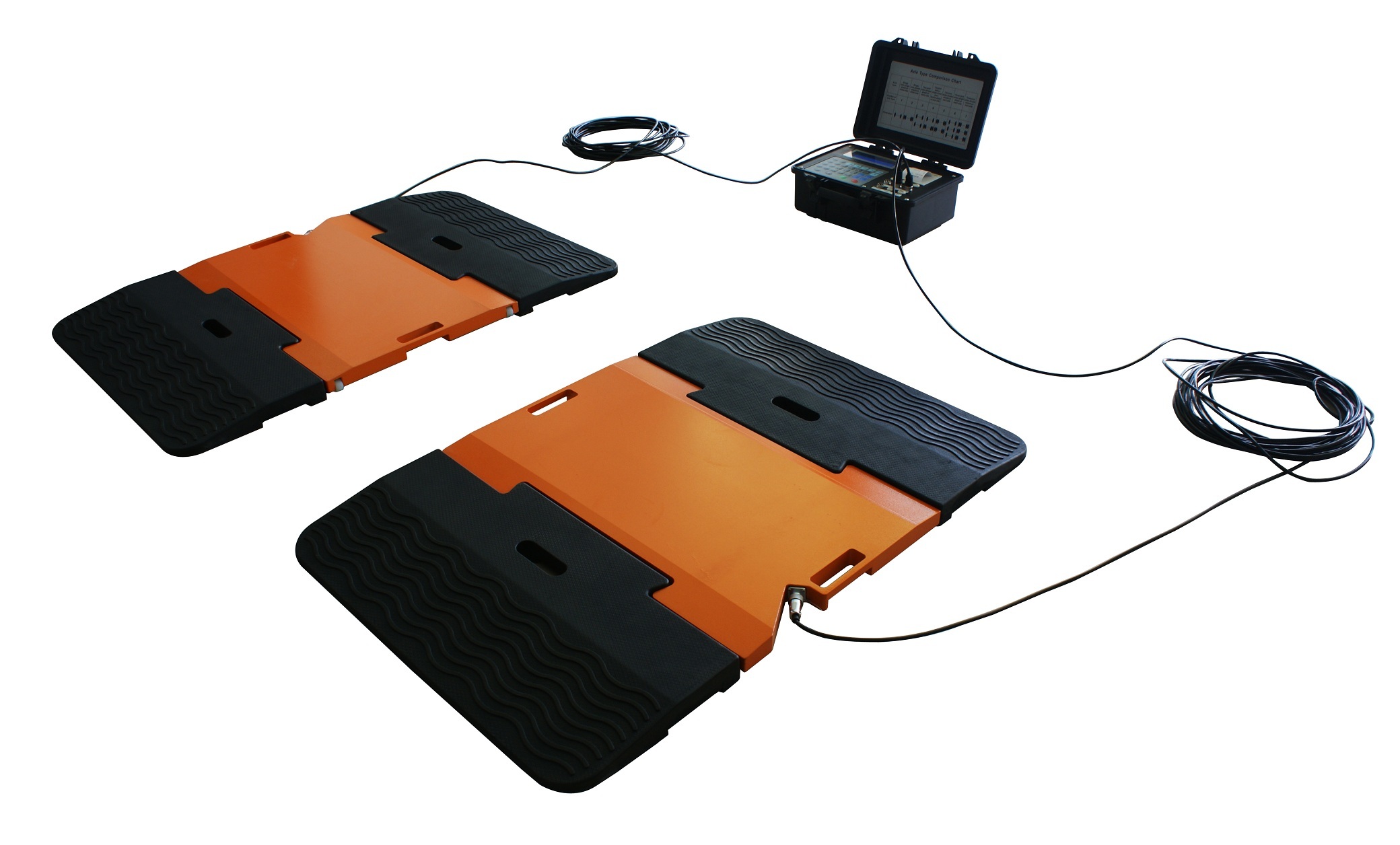

Portable axle scale, high-precision axle load scale, multi-channel weighing
Wired and wireless signal transmission, barrier free transmission distance can reach more than 30 meters

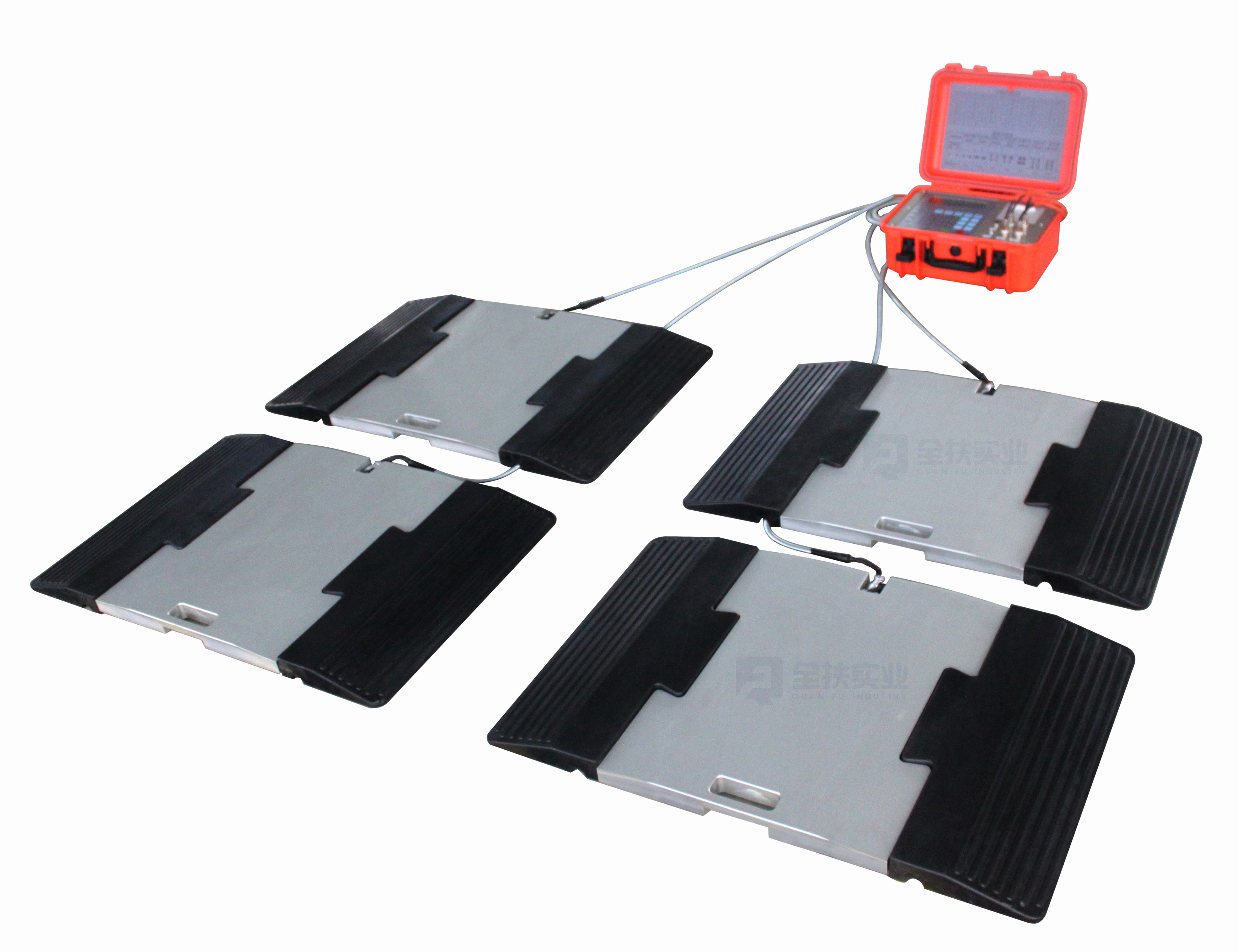

The instrument can be connected with multiple weighing platforms, and can realize different combined weighing of single block and multiple blocks at the same time
It can easily meet the weighing needs of customers in different scenarios
C Series Portable axle load scale high-precision axle load scale body is refined from aviation hard alloy aluminum material. The scale body has the characteristics of strong performance, high sensitivity, good linearity, strong repeatability, high waterproof and low power consumption. It can be used in many occasions and different climatic environments; The platen is equipped with natural rubber slope guide, which is anti-oxidation and impact resistant; The dynamic weighing effect is better if the transitional approach slope with the length equal to the equal distance of the coupling wheel is used for dynamic weighing. The scale body can be equipped with a small wheel and a small handle for mobile defecation; The foundation requirements are not harsh. It can be placed and used arbitrarily only by leveling and hardening the road surface. The sensor is easy to disassemble and repair.
Technical parameters:
Weighing range: single chip weighing: 2T ~ 40t, axle weight: ≤ 80t;
Accuracy grade: static weighing: 0.1%; Dynamic weighing: ± 1% - 3%

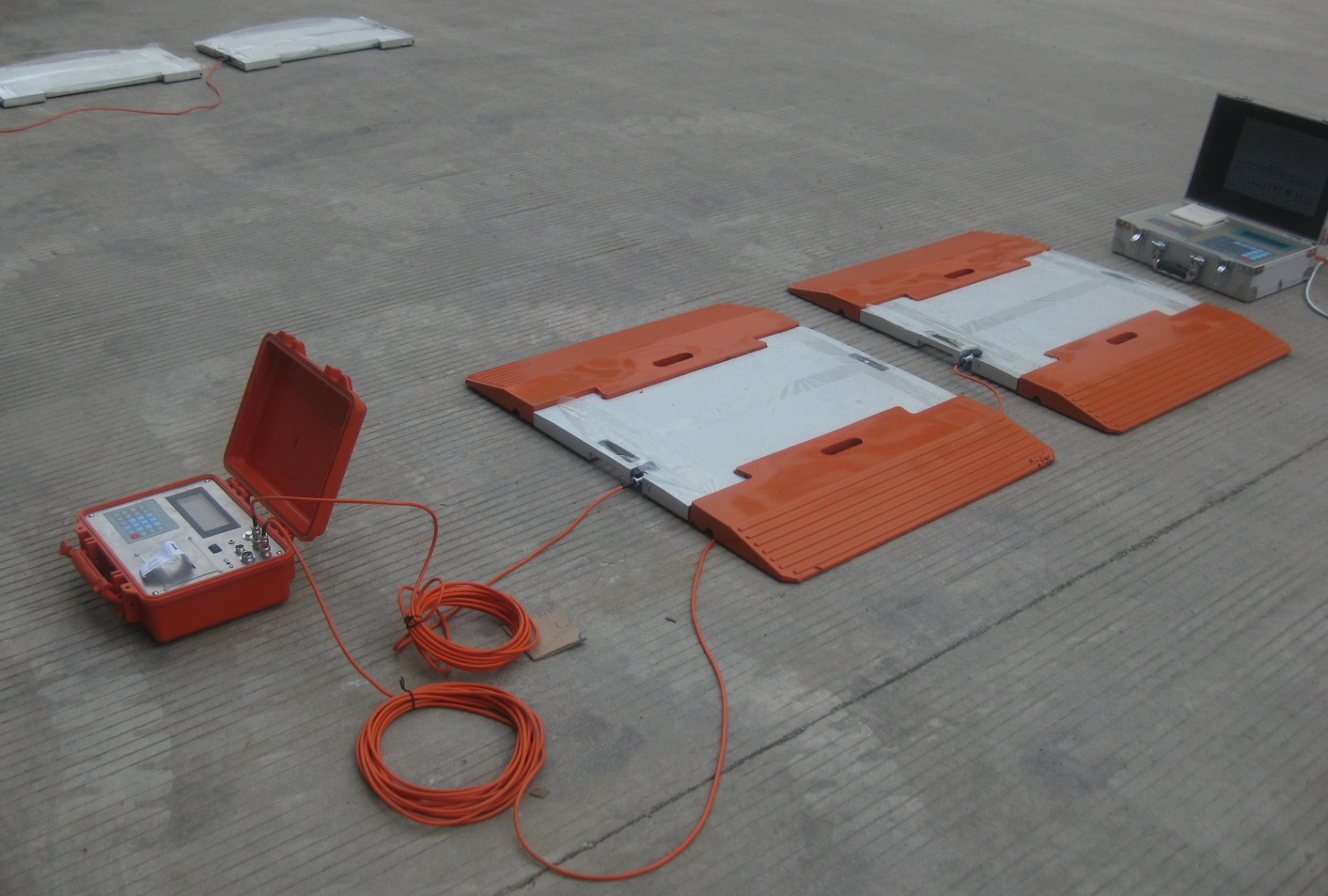

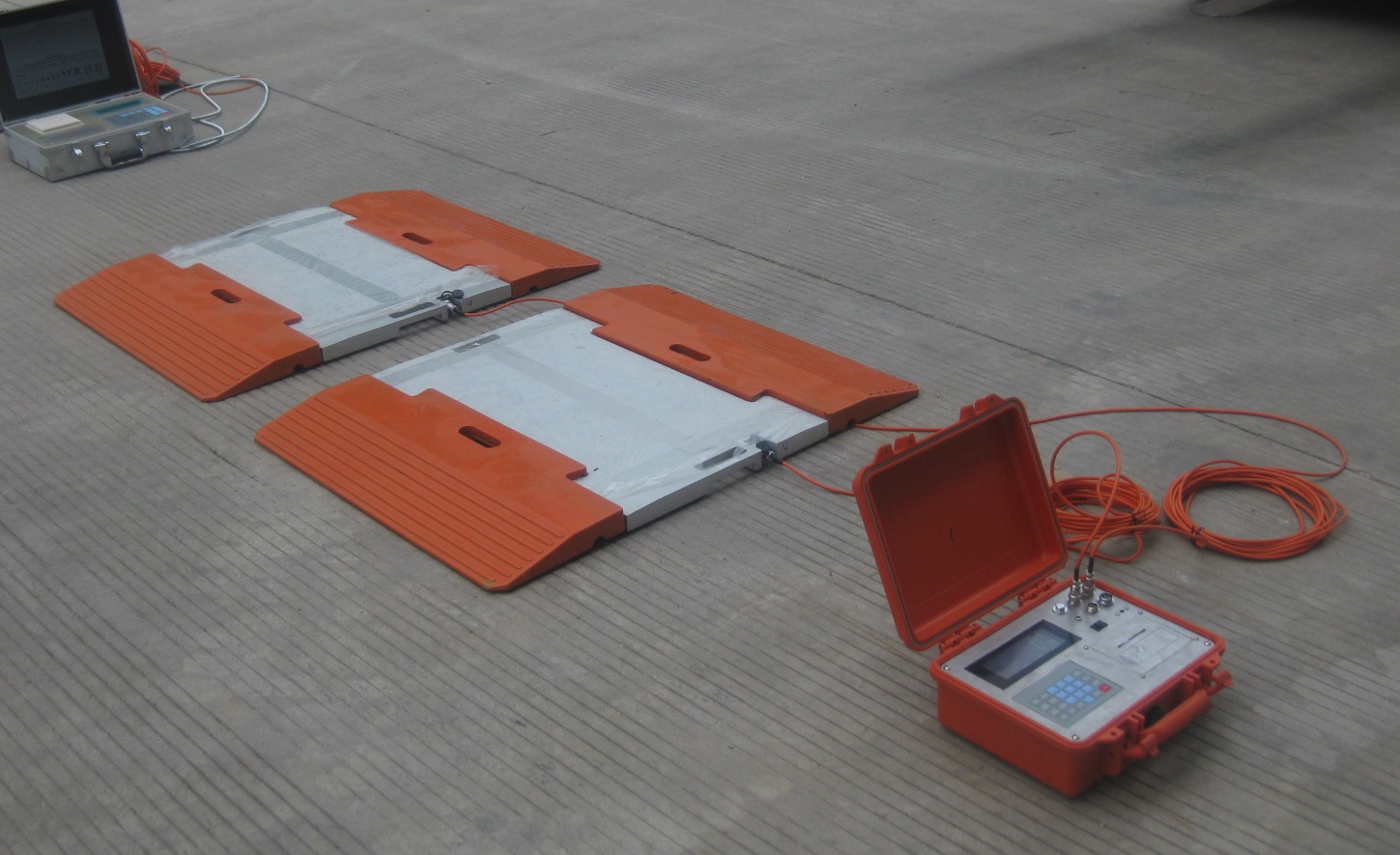

Dynamic use: generally, two weighing plates are required. When the vehicle passes the weighing plate slowly, the instrument will automatically display and print the weight.

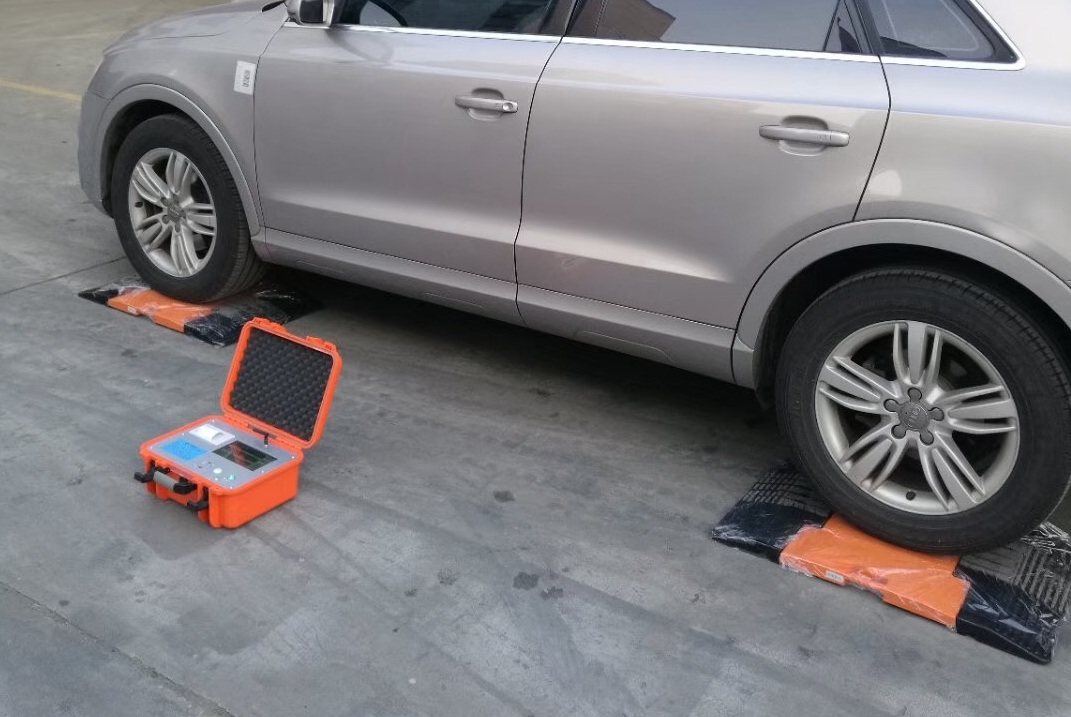

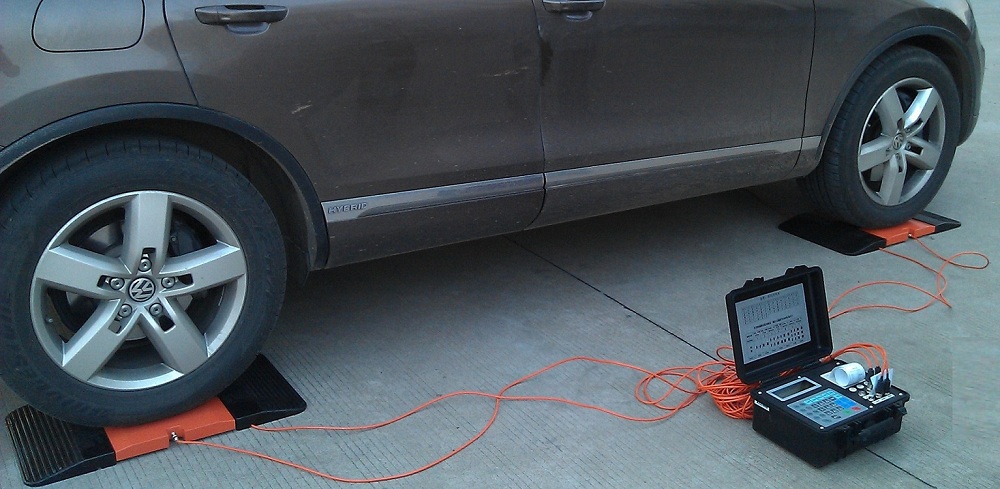

Static use: generally, the number of weighing plates is the same as the number of wheels. When the vehicle stops on the weighing plate for a while, the instrument will automatically display and print the weight.
Overload capacity: safety overload: 130%; Limit overload: 160%
Temperature range: - 30 ~ 80 ︒ C
Waterproof grade: IP67
Signal processing: wireless transmission / wired transmission; Support multi-channel signal processing; Support online upgrade.
Weighing system: it can be equipped with automatic license plate recognition system, or customize software according to customer needs to connect with customer's existing system.
Accessories selection:
The ride comfort of the dynamic weighing vehicle can be improved, especially the ride comfort of the vehicle can be improved within 1-2%
2. Sensor (easy to maintain), large screen, scanner, camera, printer, battery, on-board charger, signal line, weighing software, etc.
3. Customize software, logo, packaging, etc. for customers, which can display multiple language versions.
4. It can be customized for use in explosion-proof occasions
Specification parameters:
Bedplate size | 500*400*40mm | 720*450*40mm | 900*500*40mm |
Approach slope size | 500*300mm | 720*330mm | 900*350mm |
Single axle load | 10t | 15t | 25t |
Coupling car transition connecting plate | 720*500*40mm | ||
accuracy | Dynamic 1% ~ 5%, static ± 0.1% ~ 0.3% | ||
Safety overload | 150% | ||
Platen description | Spoke sensor assembly, accuracy is slightly higher, multiple sealing protection, moisture prevention, light weight, easy to carry, and oxidation treatment of platen surface; The use of advanced imported aviation aluminum, corrosion resistance; Rubber guiding slope, beautiful and durable | ||
Application fields:
1. Traffic police, road administration and other law enforcement supervision on vehicle overload, and overload control inspection at high-speed entrance
2. It can be used by enterprises and institutions, construction industry, wharf, warehousing, logistics and other industries
Concrete countertop truck scale concrete weighbridge anti-corrosion and explosion-proof weighbridge
Full steel frame cement concrete structure with strong corrosion resistance
Resist lightning stroke and prevent sensor from being damaged by lightning stroke
C30 reinforced concrete with strength above 280kg/cm2
Double-layer deformed steel reinforcement, maximum bearing load 35 tons
The service life is more than 50 years
Truck scale weighing system, voice automatic command weighing
Unidirectional and bidirectional weighing directions are optional, and the weighing image is automatically captured and collected
Long distance and short-distance card swiping is optional, and the car number is automatically identified by microwave and RF
Traffic light control system, infrared and software integrated anti cheating system
Remote monitoring system, various data statistics and report generation functions
The gross weight, tare weight, weighing, determination, storage and printing are clear in structure and can be seen at a glance
Fixed axle load scale Dynamic non-stop use
Fixed truck scale
Single axle scale or double axle scale, dynamic weighing scale
Dynamic accuracy 1%~3%
Axle load scale with display, and the platen is integrated with the display
It adopts integral patch structure and high-strength aviation aluminum material
The appearance is subject to high-quality military oxidation treatment, which is wear-resistant and corrosion-resistant
The weighing board is directly equipped with weight display, which is convenient to use
Portable axle scale, high-precision axle load scale, multi-channel weighing
Wired and wireless signal transmission, barrier free transmission distance can reach more than 30 meters
The instrument can be connected with multiple weighing platforms, and can realize different combined weighing of single block and multiple blocks at the same time
It can easily meet the weighing needs of customers in different scenarios
The scale has the advantages of thin body, light weight, high weighing accuracy and fast response speed
Good repeatability, small horizontal consistency error, with high-strength cable spring, not afraid of wheel rolling
Small body, great strength, high protection, exquisite and beautiful
Weighbridge to carry, dynamic / static weighing plate optional
High end components, wired or wireless, flexible use
The scale has the advantages of thin body, light weight, high weighing accuracy and fast response speed
Good repeatability, small horizontal consistency error, with high-strength cable spring, not afraid of wheel rolling
50t mobile weighbridge large table hydraulic lifting mobile weighbridge
High quality scale body, good stability of scale platform for long-term use, vehicle weighing and combined multi axle weighing
Export truck scale, English version, electronic truck scale, electronic weighbridge
Segmented high-strength weighing platform, modular, on-site assembly
Fully suitable for 20 foot, 40 foot, high container or open top container transportation
Measuring range: 30t ~ 200t truck scale, 120t ground scale
Table size: 3M × 7m~3.4 × 24m
Scale body material: high quality steel plate, U-shaped steel structure, precision welding, complete set of shot blasting and plastic spraying treatment on the surface
Sensors and instruments: digital or analog, optional
Measuring range: 10t ~ 50t weighbridge, 60t truck scale
Table size: 2.5m × 4m~3m × 7m, customizable
Scale body material: high quality steel plate, U-shaped steel structure, precision welding, complete set of shot blasting and plastic spraying treatment on the surface
Sensor: shear beam or bridge load cell
