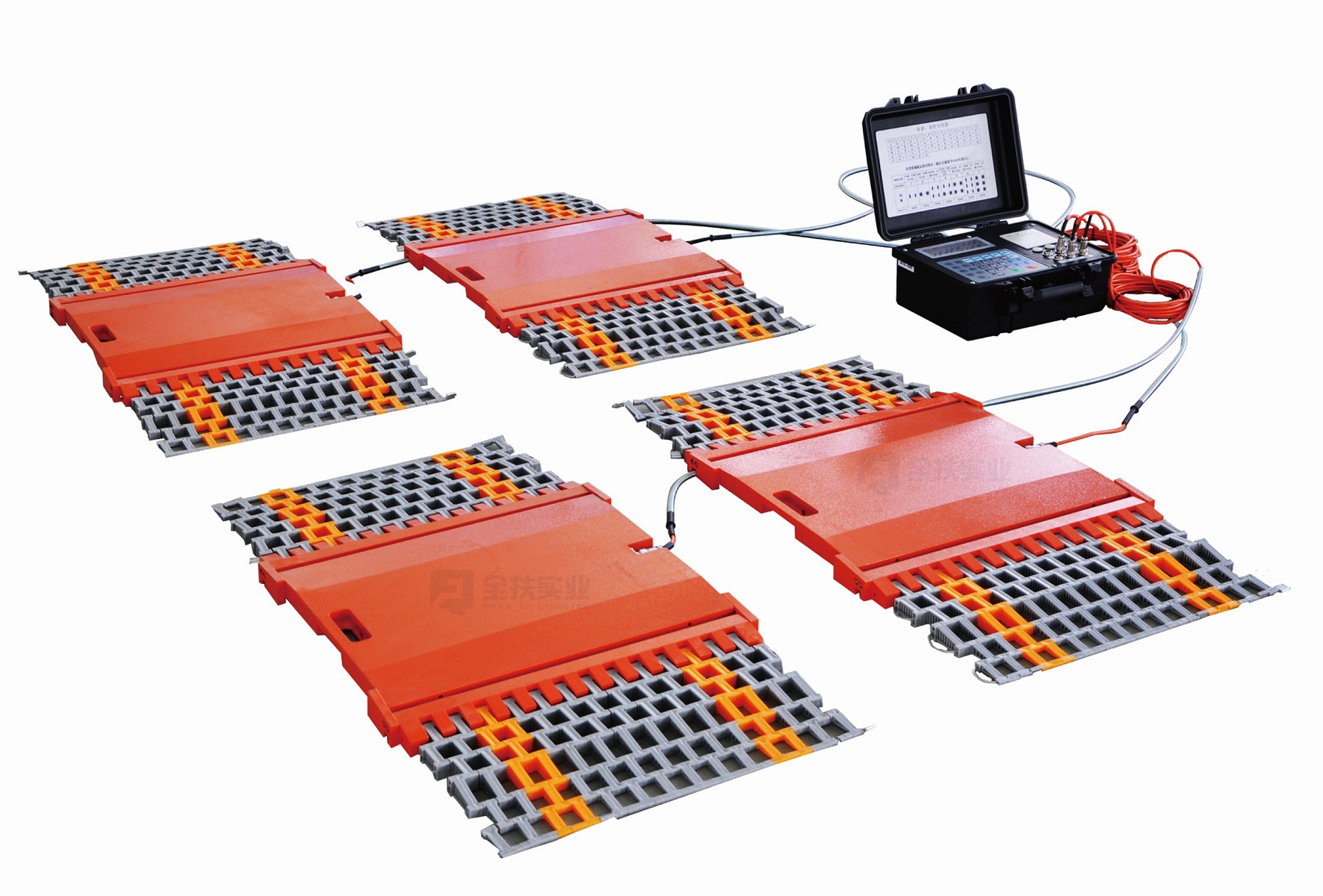

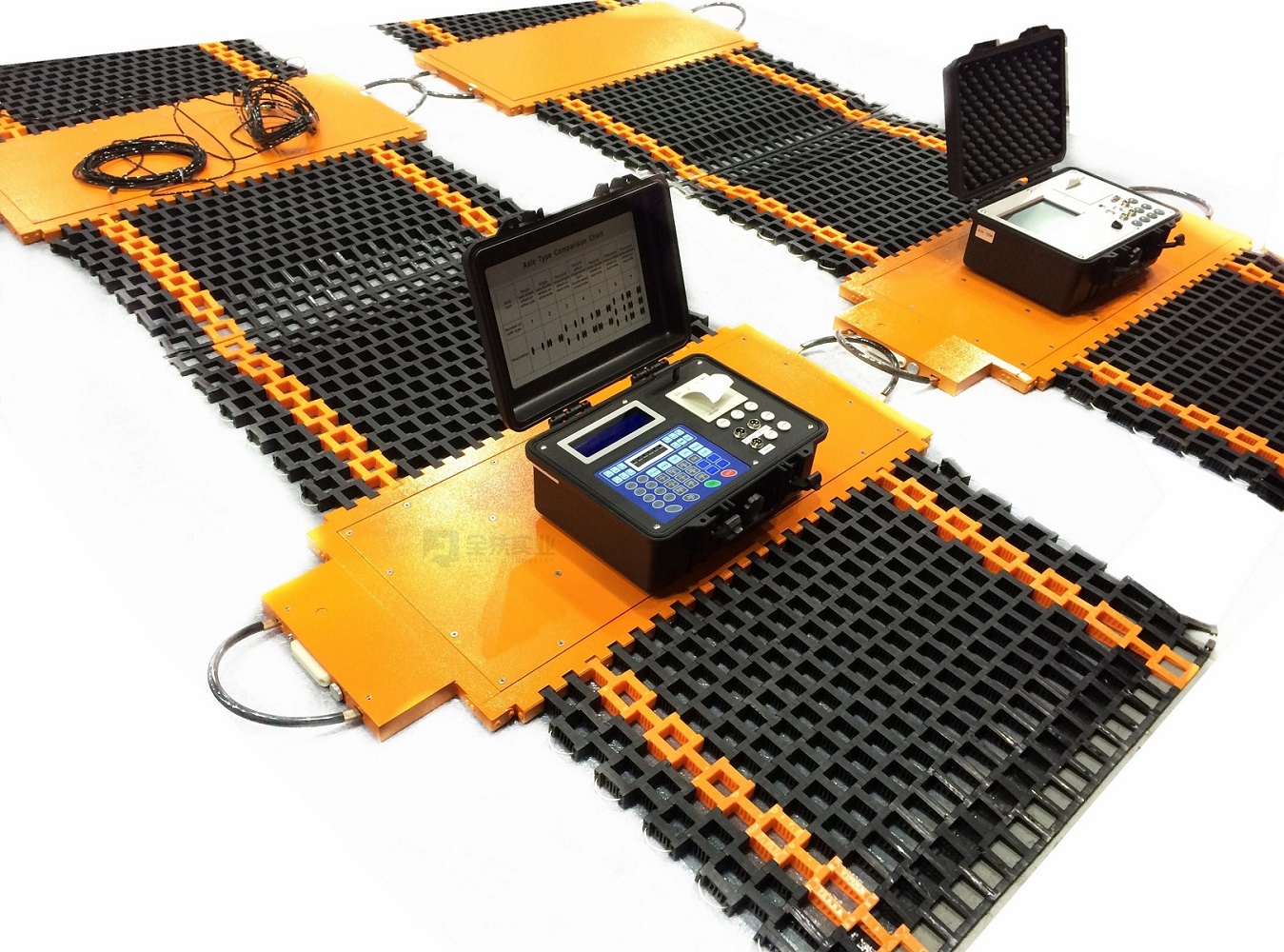

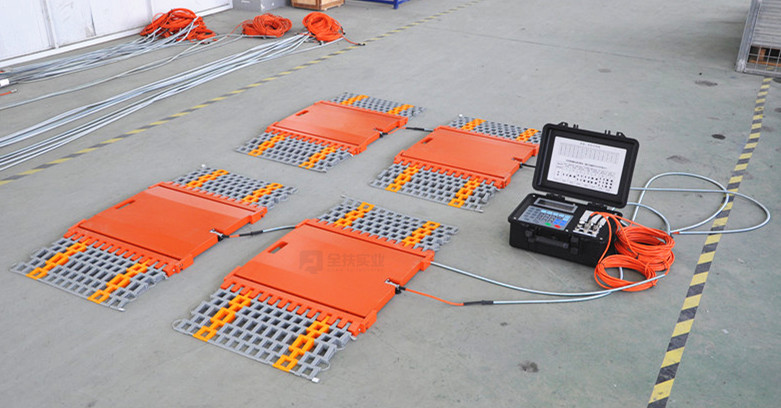

Current Position: Home > Company Products >Truck scale > H Series Portable axle load meter ultra thin
The scale has the advantages of thin body, light weight, high weighing accuracy and fast response speed
Good repeatability, small horizontal consistency error, with high-strength cable spring, not afraid of wheel rolling
Small body, great strength, high protection, exquisite and beautiful
H-series portable axle load instrument has thin weight and only needs to be placed on the hardened ground. It saves foundation construction and is convenient for installation, use and storage. It has ultra-high cost performance. It is widely used in vehicle dynamic weighing occasions. It can also be used in occasions where there are no special requirements for precision weighing.

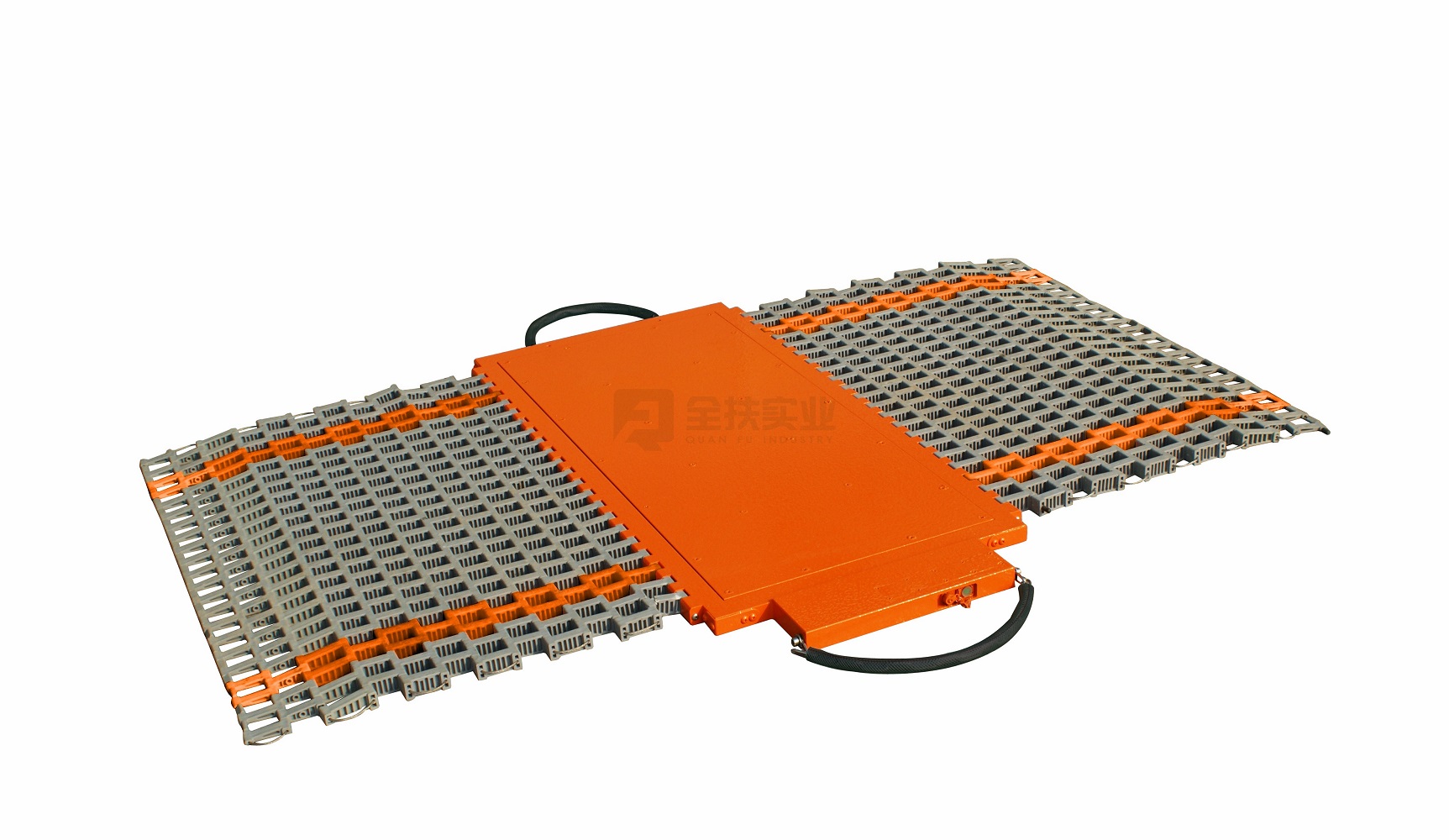

The front and back sides of the platen are protected by high-strength steel plates with anti-corrosion treatment on the surface after laser cutting, and the interior is protected by multiple anti-corrosion and waterproof sealing treatment; The approach slope of the lower body on the vehicle is made of engineering plastics with high strength, rolling resistance, oil-water resistance and low temperature resistance, which is light and durable; The weighing body and approach slope are connected in an integrated foldable way.
Technical parameters:
Weighing range: single piece weighing: 20t, axle weight: 40t
Accuracy grade: static weighing: ± 0.3%; Dynamic weighing: ± 1% - 2%
Overload capacity: safety overload: 120%; Limit overload: 150%
Temperature range: - 30 ~ 80 ︒ C; Waterproof grade: IP65

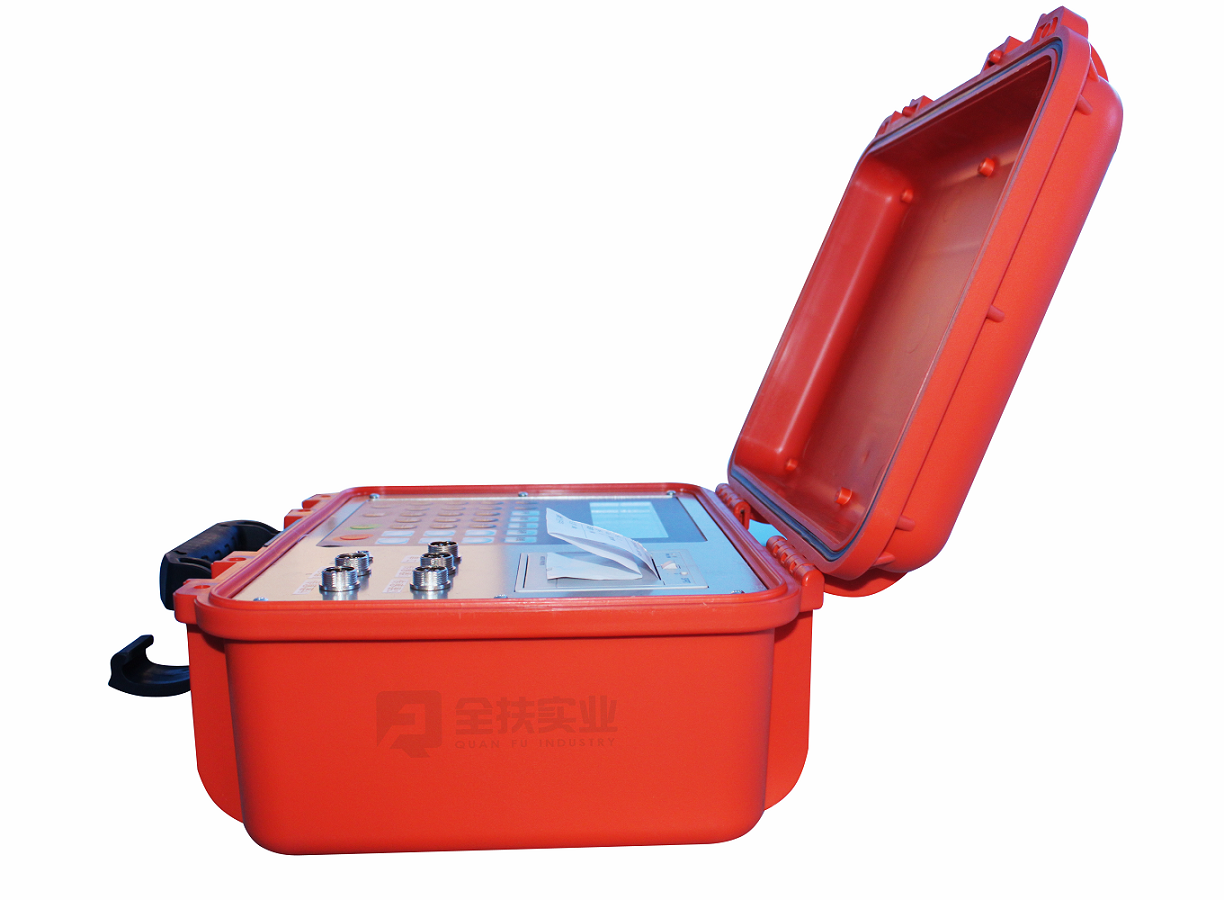

Platen battery: > 100 hours; Instrument standby time: 40 hours, supporting external power supply (optional)
Signal processing: wireless transmission; One meter has unlimited connection and requires a number of platens, which can be met both dynamically and statically
Dynamic use: generally, two weighing plates are required. When the vehicle passes the weighing plate slowly, the instrument will automatically display and print the weight.
Static use: generally, the number of weighing plates is the same as the number of wheels. When the vehicle stops on the weighing plate for a while, the instrument will automatically display and print the weight.
Weighing system: it supports the installation of automatic license plate recognition system, which has rich storage models and can be selected by yourself.
Accessories selection:
1. Large screen, camera, scanner, printer, signal line, sensor, weighing software, customized software.
2. The approach slope can be lengthened according to customer requirements
3. Multi language version display, customizable for use in a variety of environmental occasions (including explosion-proof occasions)
Specification parameters:
Bedplate size | 866*440*22mm |
Approach slope size | 860 * 360 * 22mm (the length of approach slope can be customized) |
Single axle load | 20t (customizable) |
Coupling car transition connecting plate | 720*500*40mm |
accuracy | Dynamic 1% ~ 5%, static ± 0.1% ~ 0.3% |
Safety overload | 150% |
Platen description | Multiple miniature fully sealed sensors are assembled with high precision, light weight and low installation height. It is equipped with light plastic braided slope guide, which has light weight and can be crimped |
Application fields:
(1) Law enforcement monitoring of vehicle overload by traffic police and road administration;
(2) Meet the test requirements of vehicle manufacturers for wheel weight, axle weight, total weight and so on;
(3) General requirements of industrial and mining enterprises, construction sites, docks, warehousing, logistics and other enterprises for vehicles;
(4) Places where fixed weighbridge is installed without site permit, or enterprises or individuals who need to move the site frequently.
Concrete countertop truck scale concrete weighbridge anti-corrosion and explosion-proof weighbridge
Full steel frame cement concrete structure with strong corrosion resistance
Resist lightning stroke and prevent sensor from being damaged by lightning stroke
C30 reinforced concrete with strength above 280kg/cm2
Double-layer deformed steel reinforcement, maximum bearing load 35 tons
The service life is more than 50 years
Truck scale weighing system, voice automatic command weighing
Unidirectional and bidirectional weighing directions are optional, and the weighing image is automatically captured and collected
Long distance and short-distance card swiping is optional, and the car number is automatically identified by microwave and RF
Traffic light control system, infrared and software integrated anti cheating system
Remote monitoring system, various data statistics and report generation functions
The gross weight, tare weight, weighing, determination, storage and printing are clear in structure and can be seen at a glance
Fixed axle load scale Dynamic non-stop use
Fixed truck scale
Single axle scale or double axle scale, dynamic weighing scale
Dynamic accuracy 1%~3%
Axle load scale with display, and the platen is integrated with the display
It adopts integral patch structure and high-strength aviation aluminum material
The appearance is subject to high-quality military oxidation treatment, which is wear-resistant and corrosion-resistant
The weighing board is directly equipped with weight display, which is convenient to use
Portable axle scale, high-precision axle load scale, multi-channel weighing
Wired and wireless signal transmission, barrier free transmission distance can reach more than 30 meters
The instrument can be connected with multiple weighing platforms, and can realize different combined weighing of single block and multiple blocks at the same time
It can easily meet the weighing needs of customers in different scenarios
The scale has the advantages of thin body, light weight, high weighing accuracy and fast response speed
Good repeatability, small horizontal consistency error, with high-strength cable spring, not afraid of wheel rolling
Small body, great strength, high protection, exquisite and beautiful
Weighbridge to carry, dynamic / static weighing plate optional
High end components, wired or wireless, flexible use
The scale has the advantages of thin body, light weight, high weighing accuracy and fast response speed
Good repeatability, small horizontal consistency error, with high-strength cable spring, not afraid of wheel rolling
50t mobile weighbridge large table hydraulic lifting mobile weighbridge
High quality scale body, good stability of scale platform for long-term use, vehicle weighing and combined multi axle weighing
Export truck scale, English version, electronic truck scale, electronic weighbridge
Segmented high-strength weighing platform, modular, on-site assembly
Fully suitable for 20 foot, 40 foot, high container or open top container transportation
Measuring range: 30t ~ 200t truck scale, 120t ground scale
Table size: 3M × 7m~3.4 × 24m
Scale body material: high quality steel plate, U-shaped steel structure, precision welding, complete set of shot blasting and plastic spraying treatment on the surface
Sensors and instruments: digital or analog, optional
Measuring range: 10t ~ 50t weighbridge, 60t truck scale
Table size: 2.5m × 4m~3m × 7m, customizable
Scale body material: high quality steel plate, U-shaped steel structure, precision welding, complete set of shot blasting and plastic spraying treatment on the surface
Sensor: shear beam or bridge load cell
