Current Position: Home > Company Products >Truck scale > A series portable axle load instrument axle load scale

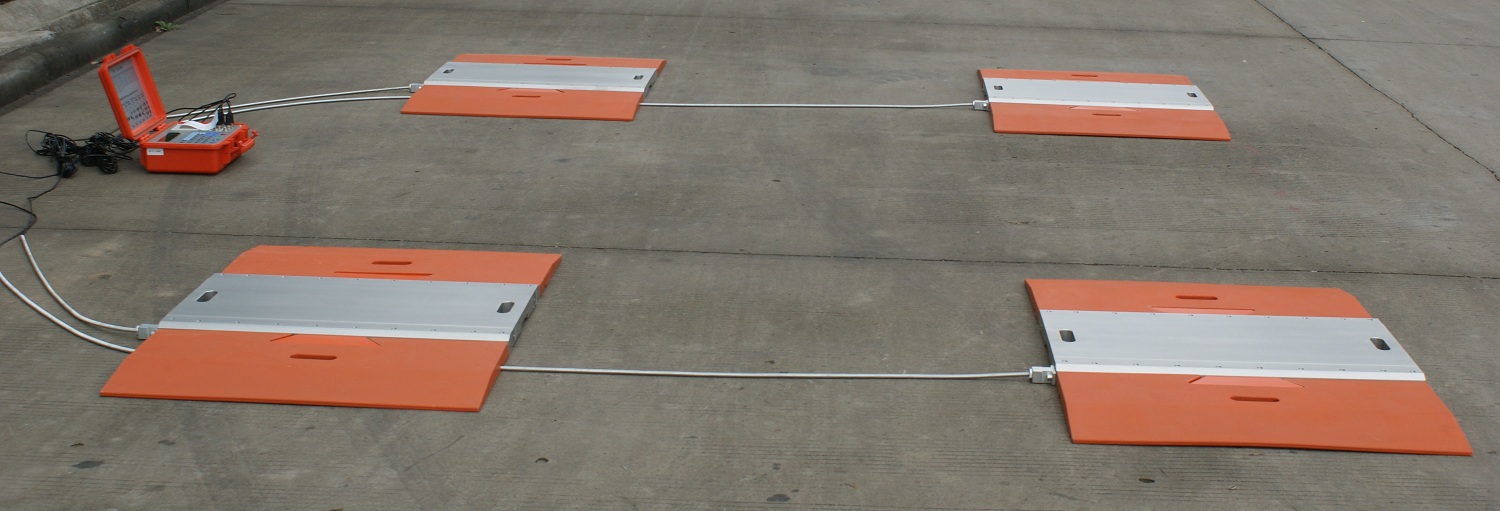

Weighbridge to carry, dynamic / static weighing plate optional
High end components, wired or wireless, flexible use
The scale has the advantages of thin body, light weight, high weighing accuracy and fast response speed
Good repeatability, small horizontal consistency error, with high-strength cable spring, not afraid of wheel rolling

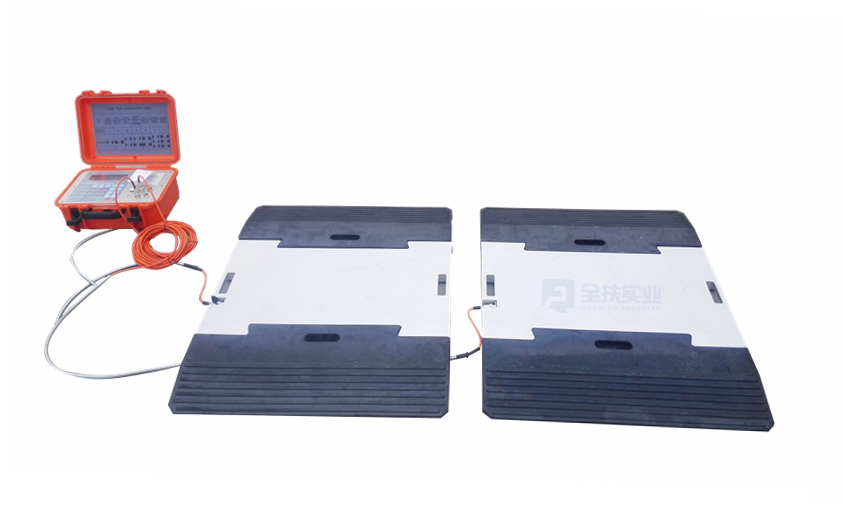

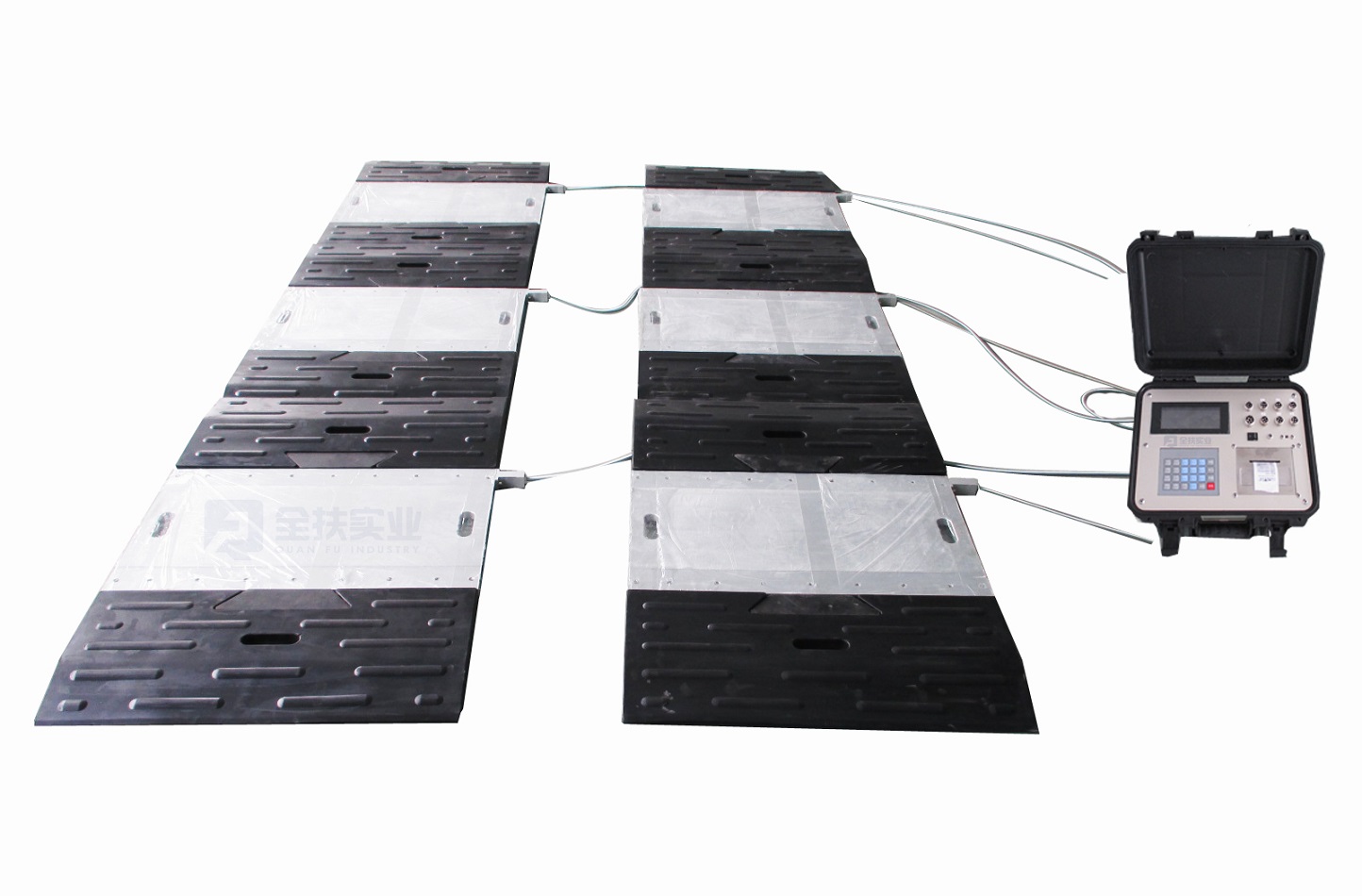

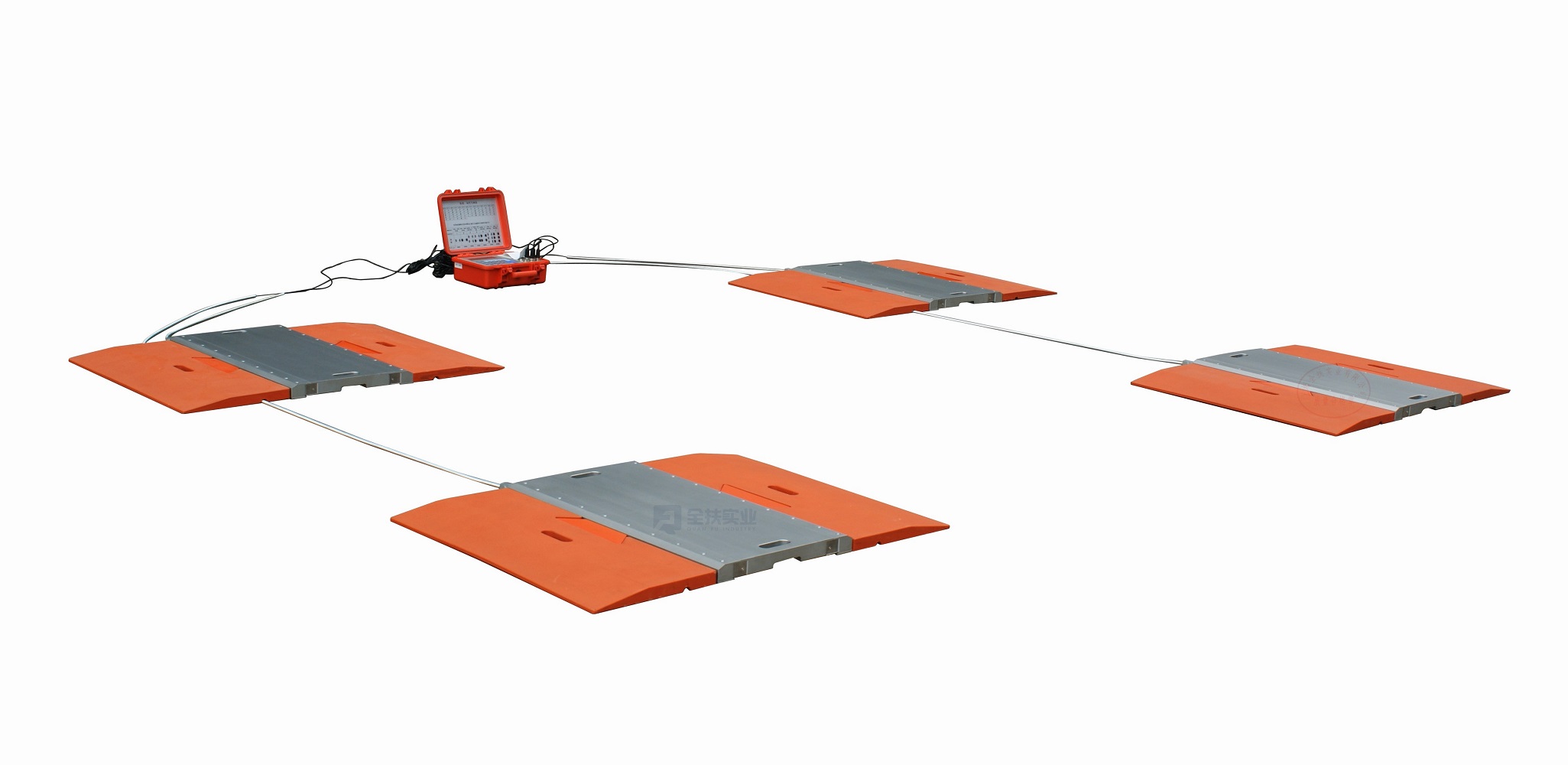

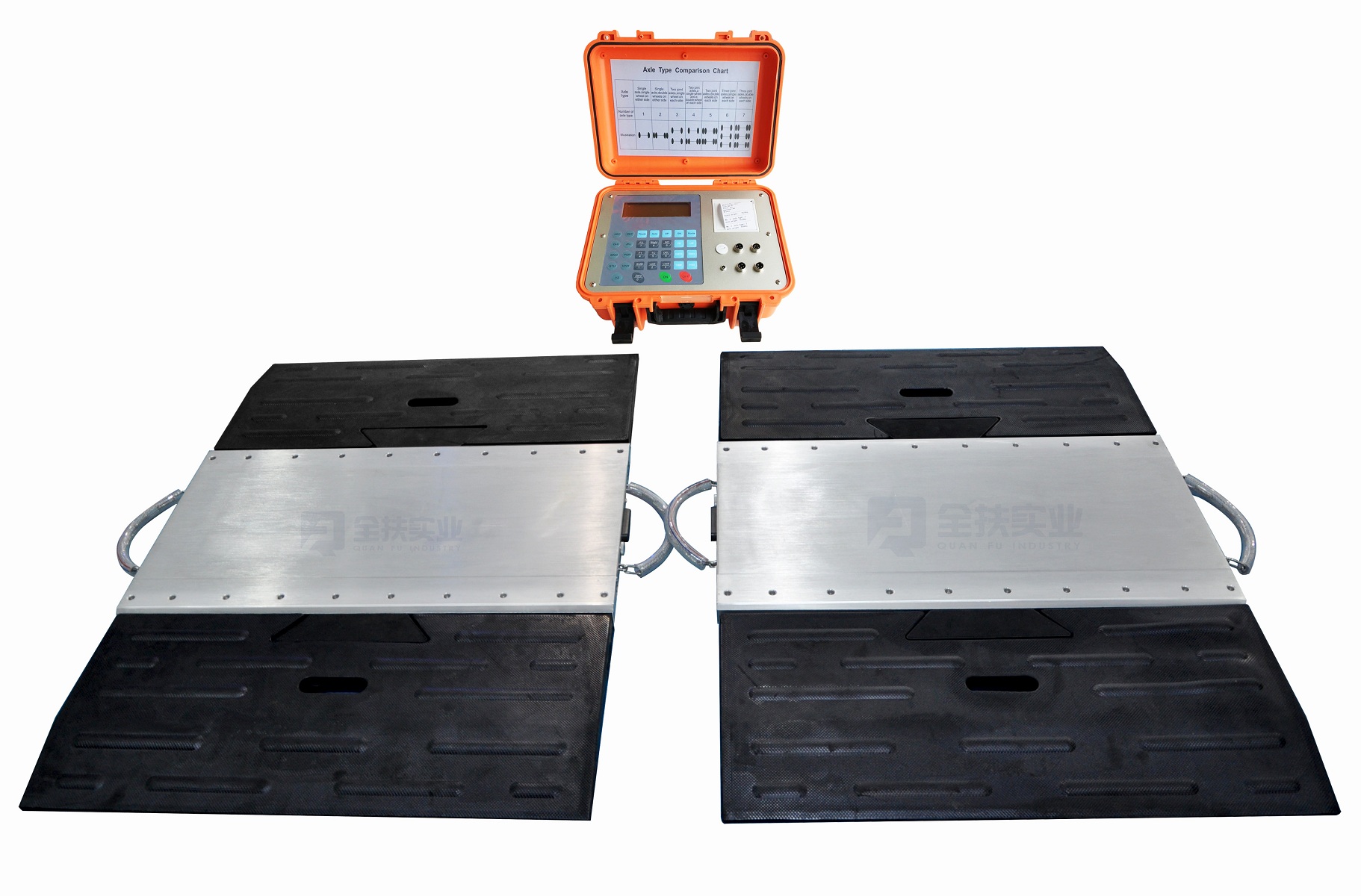

A series portable axle load scale ， Portable weighbridge
Product introduction:
The axle load table adopts high-strength aviation aluminum plate to weigh the body, which has beautiful appearance, oxidation resistance and increased surface hardness; Equipped with ultra-thin large range high accuracy sensor, the scale has the characteristics of high sensitivity, good linearity, good repeatability, strong waterproof and low power consumption, and can be used in many occasions and different climatic environments; The scale plate is equipped with natural rubber slope guide, which is anti-oxidation and impact resistant; The dynamic weighing effect is better if the transitional approach slope with the length equal to the equal distance of the coupling wheel is used for dynamic weighing. The scale body is equipped with a small handle for mobile defecation; The foundation requirements are not harsh. It can be placed and used arbitrarily only by leveling and hardening the road surface. The sensor is easy to disassemble and repair. It is widely used by traffic management and road administration departments to check the overload and over limit transportation of vehicles on the road, so as to provide a strong basis for traffic management and road administration departments. It is an important testing equipment for safe driving, preventing accidents and protecting the safety of roads and bridges.
Technical parameters:
Weighing range: single chip weighing: 2 T ~ 40 t, axle weight: ≤ 80 t
Accuracy grade: static weighing: 0.1%; Dynamic weighing: 1% - 3%
Dynamic use: generally, two weighing plates are required. When the vehicle passes the weighing plate slowly, the instrument will automatically display and print the weight.
Static use: generally, the number of weighing plates is the same as the number of wheels. When the vehicle stops on the weighing plate for a while, the instrument will automatically display and print the weight.
Overload capacity: safety overload: 130%; Limit overload: 160%
Temperature range: - 30 / 80 ︒ C
Waterproof grade: IP67
Signal processing: wireless transmission / wired transmission; Support multi-channel signal processing; Support online upgrade.
It can be equipped with automatic license plate recognition system, or customize software to connect with customers' existing systems according to customers' needs.
Accessories selection:
1. Transition connecting plate of axle coupling vehicle (after use, the vehicle traffic smoothness can be improved, especially the dynamic weighing accuracy can be improved to within 1-2%)
2. Sensor (easy to maintain), large screen, scanner, camera, printer, battery, on-board charger, signal line, weighing software, etc.
3. Customized software, logo, packaging, etc. for customers, which can realize the display of multiple language versions.
4. It can be customized for explosion-proof occasions
Specification parameters:
Bedplate size | 500*400*29mm | 700*430*29 | 800*430*39 |
Approach slope size | 500*300mm | 700*330 | 800*350 |
Single axle load | 10t | 15t | 25t |
accuracy | Dynamic 1% ~ 3%, static ± 0.1% ~ 0.3% | ||
Safety overload | 150% | ||
Platen description | The whole board is integrated and pasted, with moderate precision, multiple sealing protection, moisture resistance, light weight, easy to carry, and oxidation treatment on the surface of the platen; The use of advanced imported aviation aluminum, corrosion resistance; Rubber guiding slope, beautiful and durable | ||
Application fields:
1. Traffic police, road administration and other law enforcement supervision on vehicle overload, and overload control inspection at high-speed entrance
2. It can be used by enterprises and institutions, construction industry, wharf, warehousing, logistics and other industries

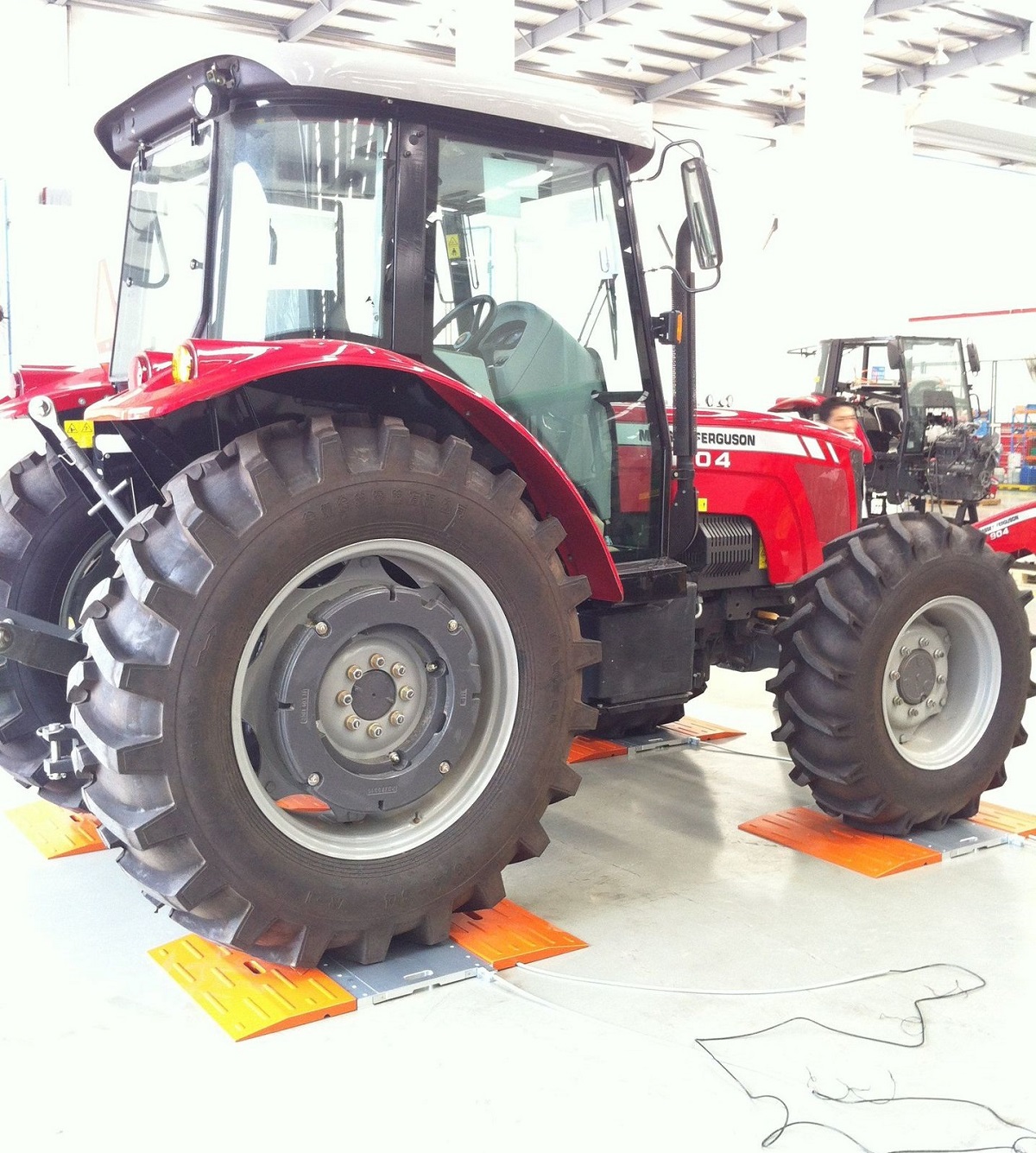

3. Meet the high-precision weighing requirements of wheel weight, axle weight and total weight of wheeled vehicles (including aircraft), and the weighing range is large
4. The combination of multiple bedplates can be used dynamically and statically, and can partially replace the occasions where fixed truck scale is used
5. Enterprises, schools and scientific research institutions can be used as high-precision weighing modules
