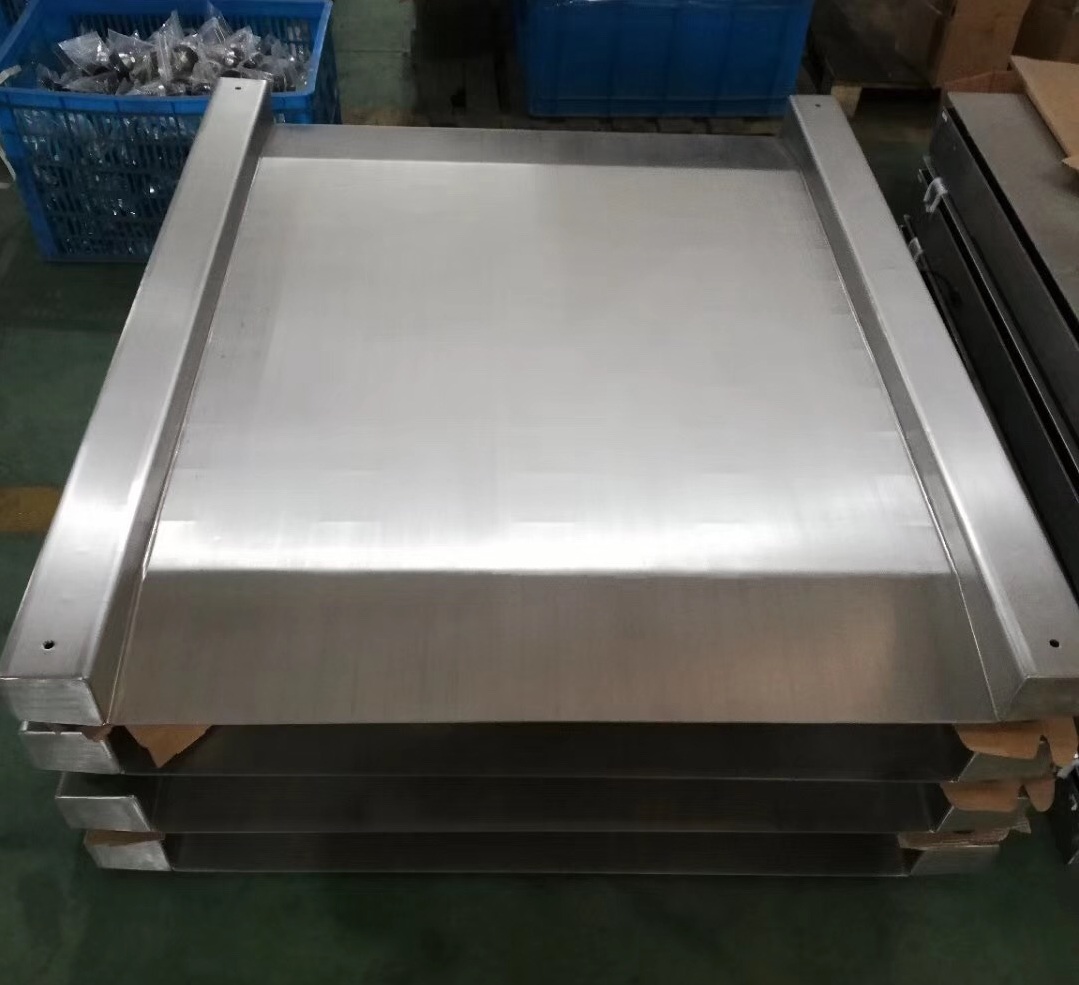

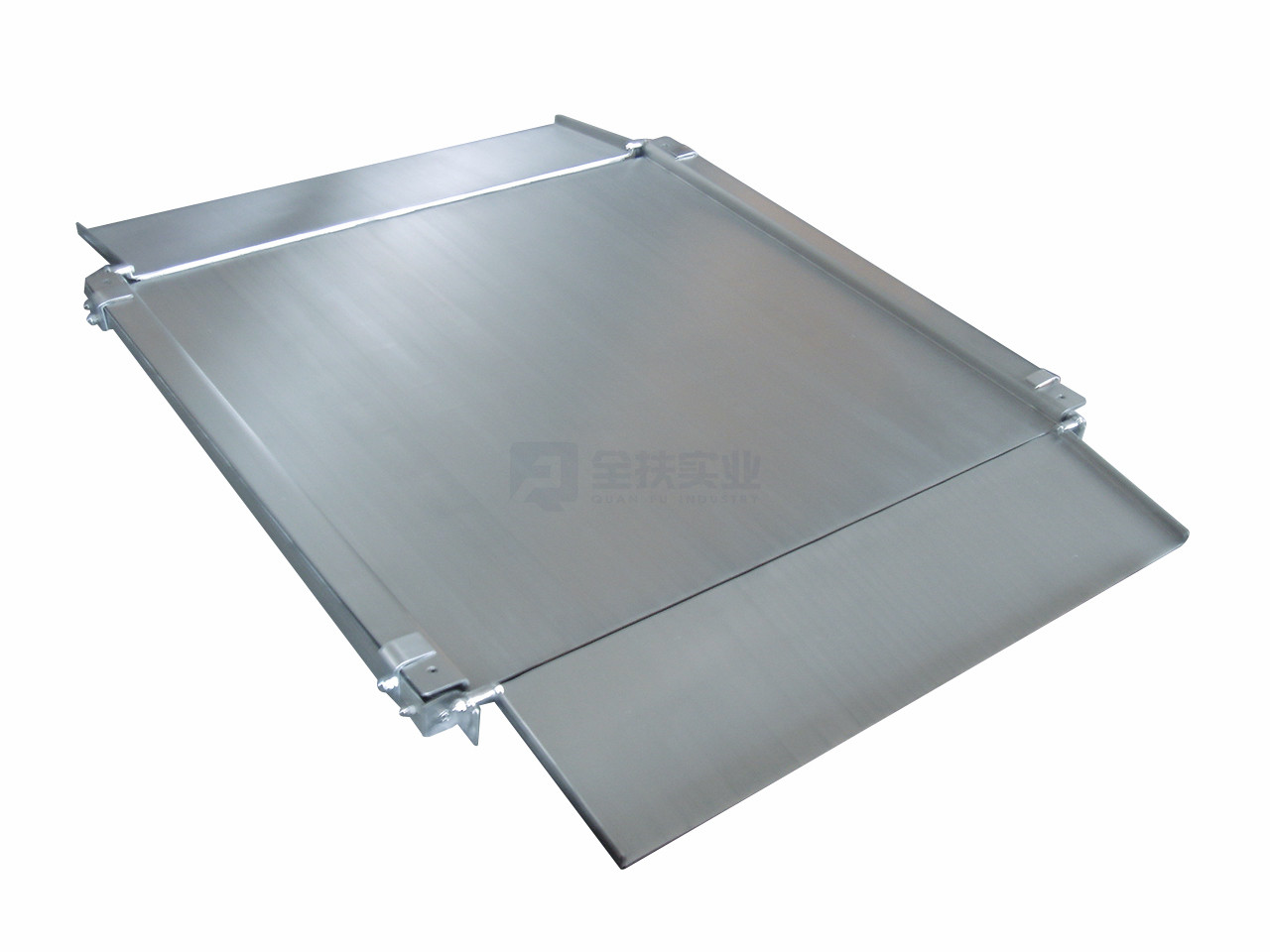

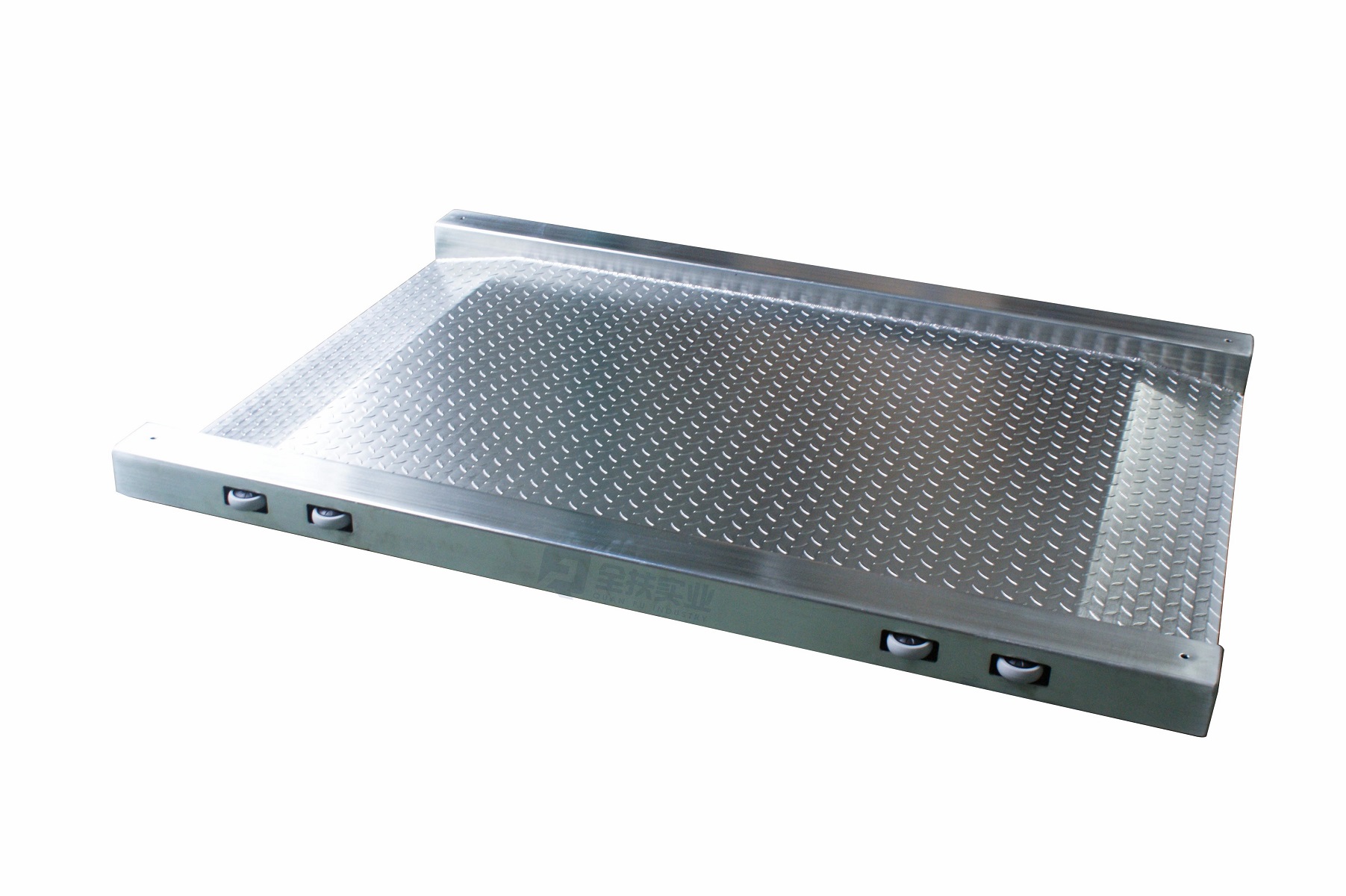

Stainless steel ultra-low platform scale

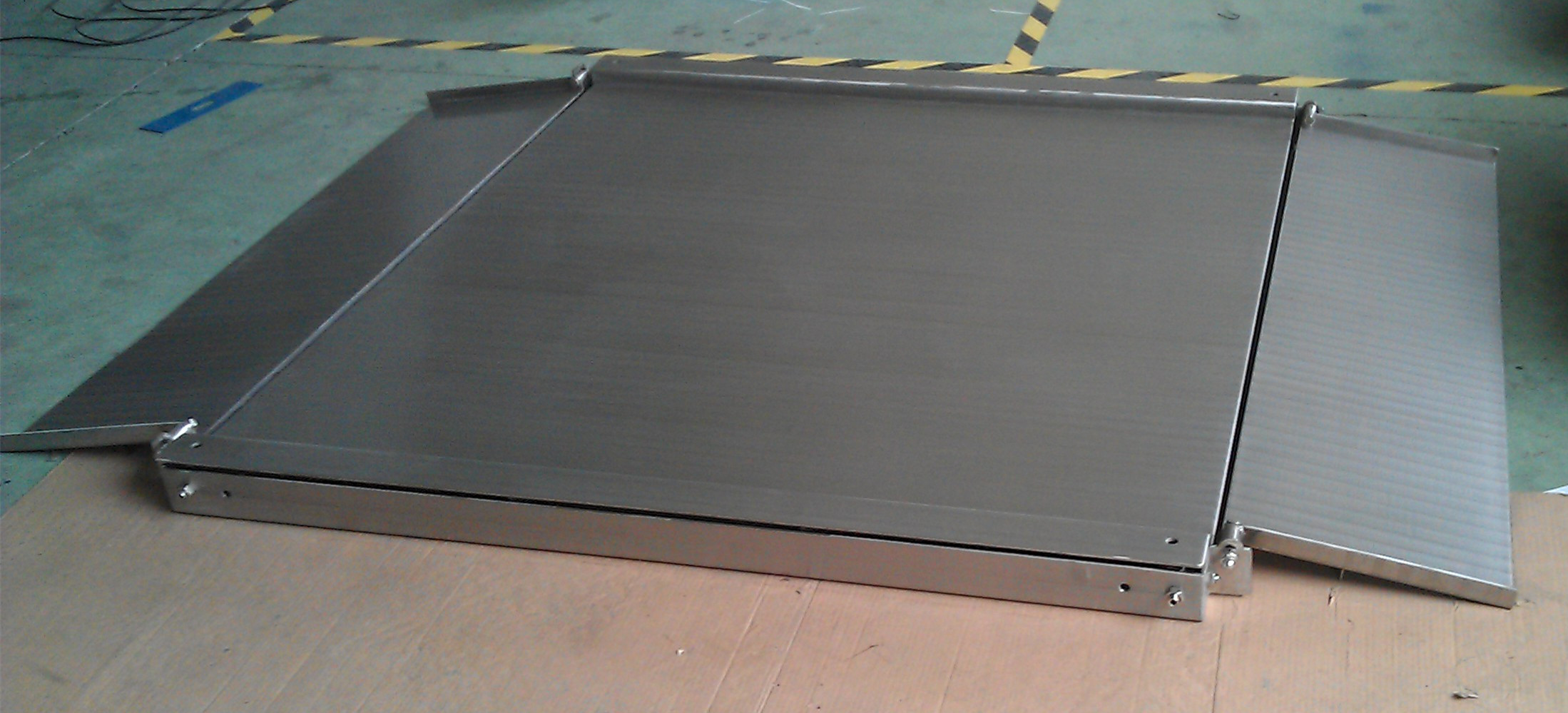

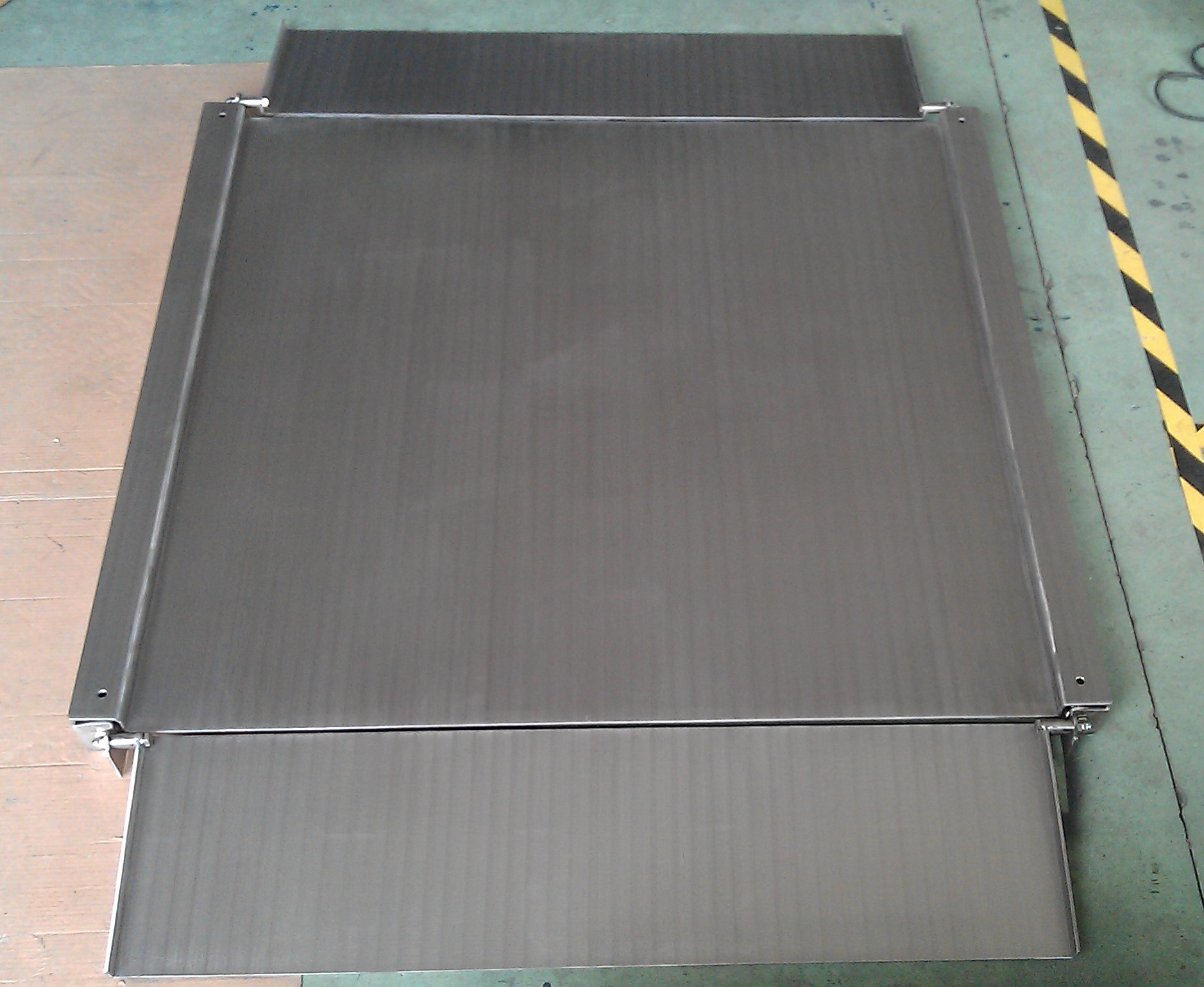

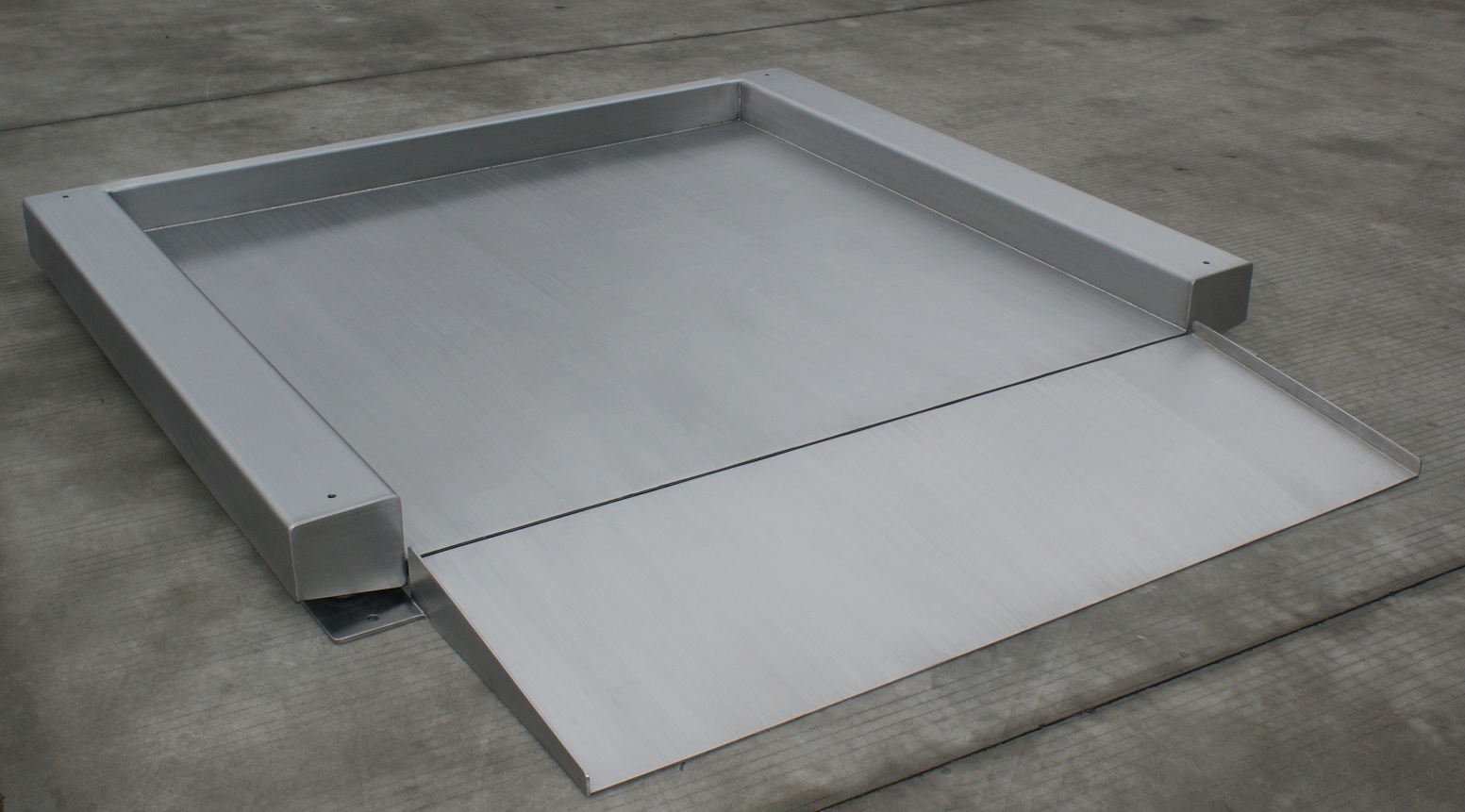

The height of the scale body is 3.5 ~ 4.5cm, with double-sided or single-sided slope

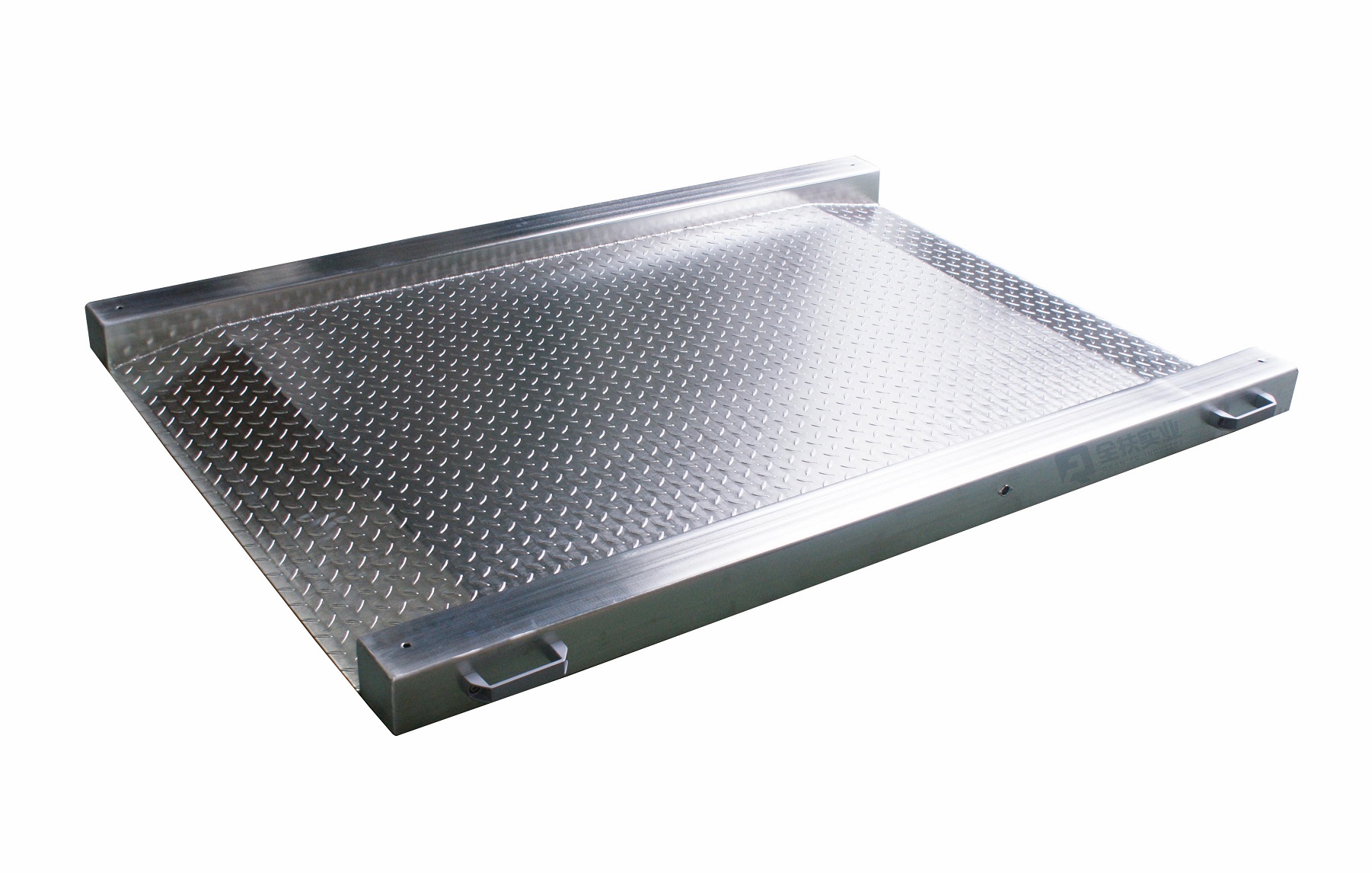

Smooth stainless steel flat plate or checkered plate can be customized
300 kg to 2000 kg optional
Chemical plant explosion-proof optional
Scs-acs series ultra-low electronic platform scale is an ultra-low platform scale with its own slope and double lead slope. Four high-precision shear beam sensors and junction boxes in the scale body are installed on both sides of the scale platform. The weighing platform is very low off the ground. Both sides are equipped with ultra-short slopes, which are integrated with the scale body platform, making installation and maintenance simple and convenient;

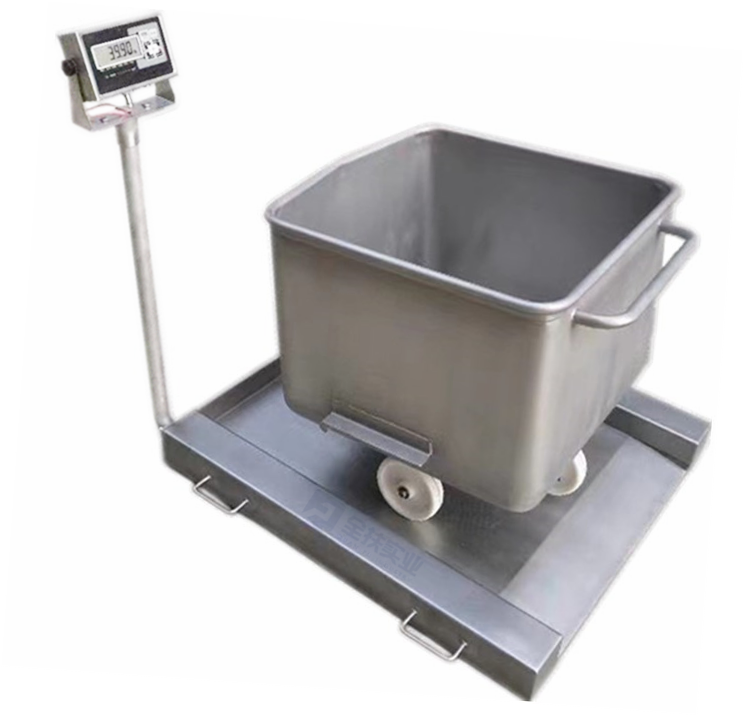

Table material can be divided into all stainless steel with stainless steel sensor or alloy steel sensor. It is mainly used in chemical industry, food processing plant and so on. It is used for truck or drum weighing.
Technical parameters:
Maximum weighing: 300kg to 2.5t (range optional)
Division value: 0.1kg ~ 1kg (high precision and customizable)
Accuracy class: III
Platform size ：0.8*0.8m~1.5m*2m
Weighing display: LED or LCD display
Power supply: AC220V, built-in lead-acid battery 6V / 4ah
Operating temperature: - 10 ℃ ~ ± 40 ℃
Basic functions: weight counting, counting, zero setting, peeling, accumulation and printing
Extended functions: Animal weighing, holding, weight checking, sorting, upper and lower limit alarm, etc;
Optional functions: external printer, external computer, RS232 / 485, MODBUS, 4 ~ 20mA analog output, wireless output, I / O card, relay output, etc.
Complete configuration: including scale body, instrument, 4 sensors, junction box and 5m signal cable

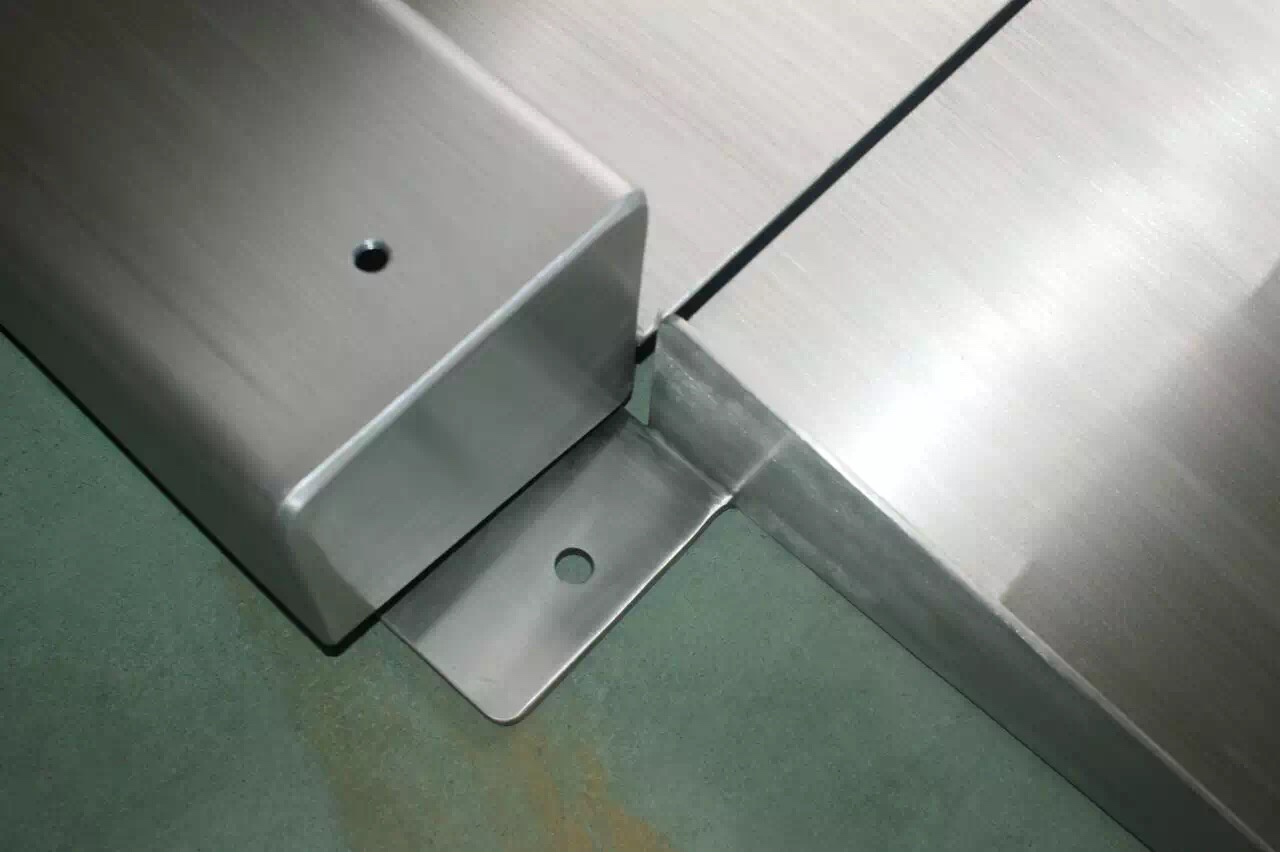

Slope integrated ultra-low table top: U-beam structure, firm and durable, with limit, automatic reset, good repeatability and zero return
Material of scale body: 304 or 316 stainless steel, the surface of checkered plate or flat plate is polished and brushed
Instrument bracket optional Explosion proof optional
Specification and model:
Product number | maximum capacity | Graduation value (customizable) | Platform size | Platform height | dead weight |
SCS-0808-0.5/1/2t | 0.3t/0.5t/1t/2t | 0.1kg/0.2kg/0.5kg | 800×800mm | 45mm | 105kg |
SCS-1010-0.5/1/2t | 0.3t/0.5t/1t/2t | 0.1kg/0.2kg/0.5kg | 1000×1000mm | 45mm | 120kg |
SCS-1012-0.5/1/2t | 0.5t/1t/2t | 0.2kg/0.5kg | 1000×1200mm | 45mm | 160kg |
SCS-1212-0.5/1/2t | 0.5t/1t/2t | 0.2kg/0.5kg | 1200×1200mm | 45mm | 170kg |
SCS-1215-2t/3t/5t | 0.5t/1t/2t | 0.2kg/0.5kg | 1200×1500mm | 45mm | 200kg |
SCS-1515-2t/3t/5t | 0.5t/1t/2t | 0.2kg/0.5kg | 1500×1500mm | 45mm | 255kg |
Remarks: special measuring range and scale size can be customized
Note: the slope type, single side approach slope and double side approach slope can be folded stainless steel Ultra low weighbridge , non-standard electronic platform scale, order receiving production.
