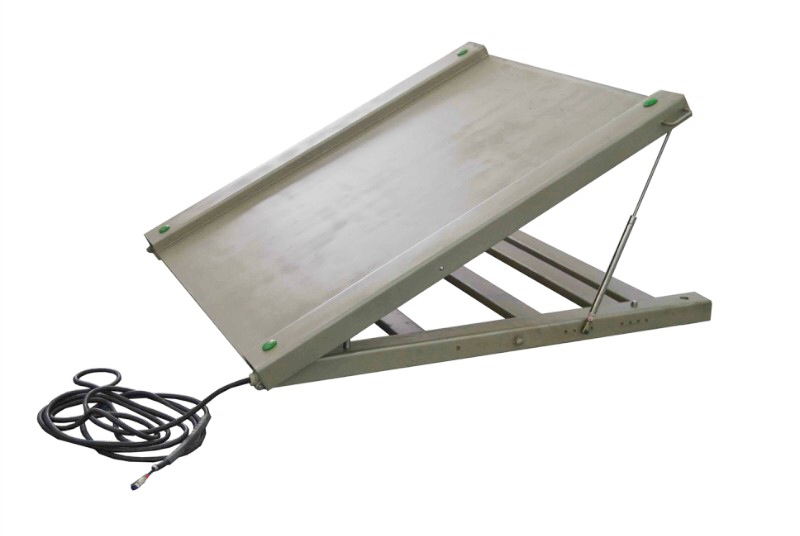

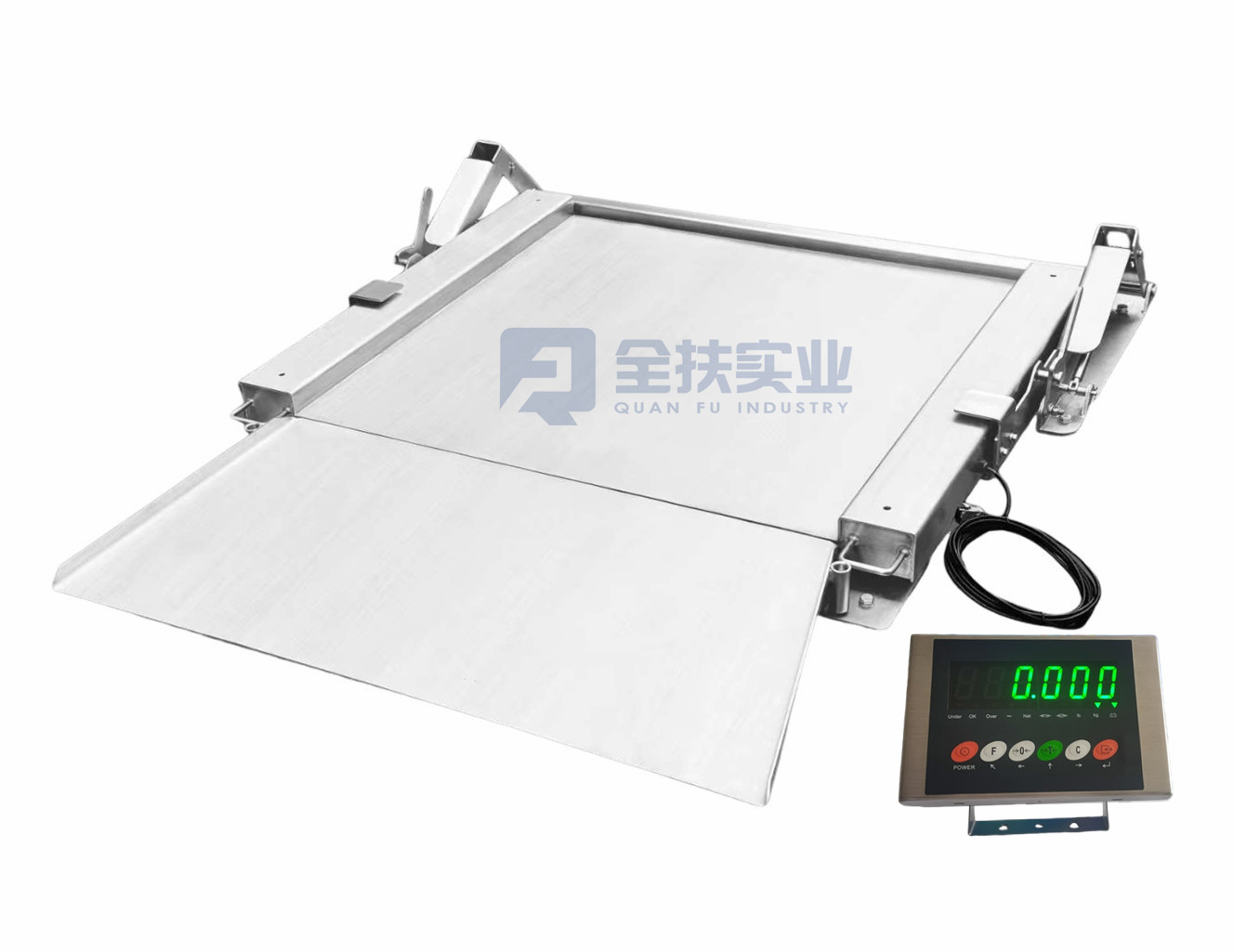

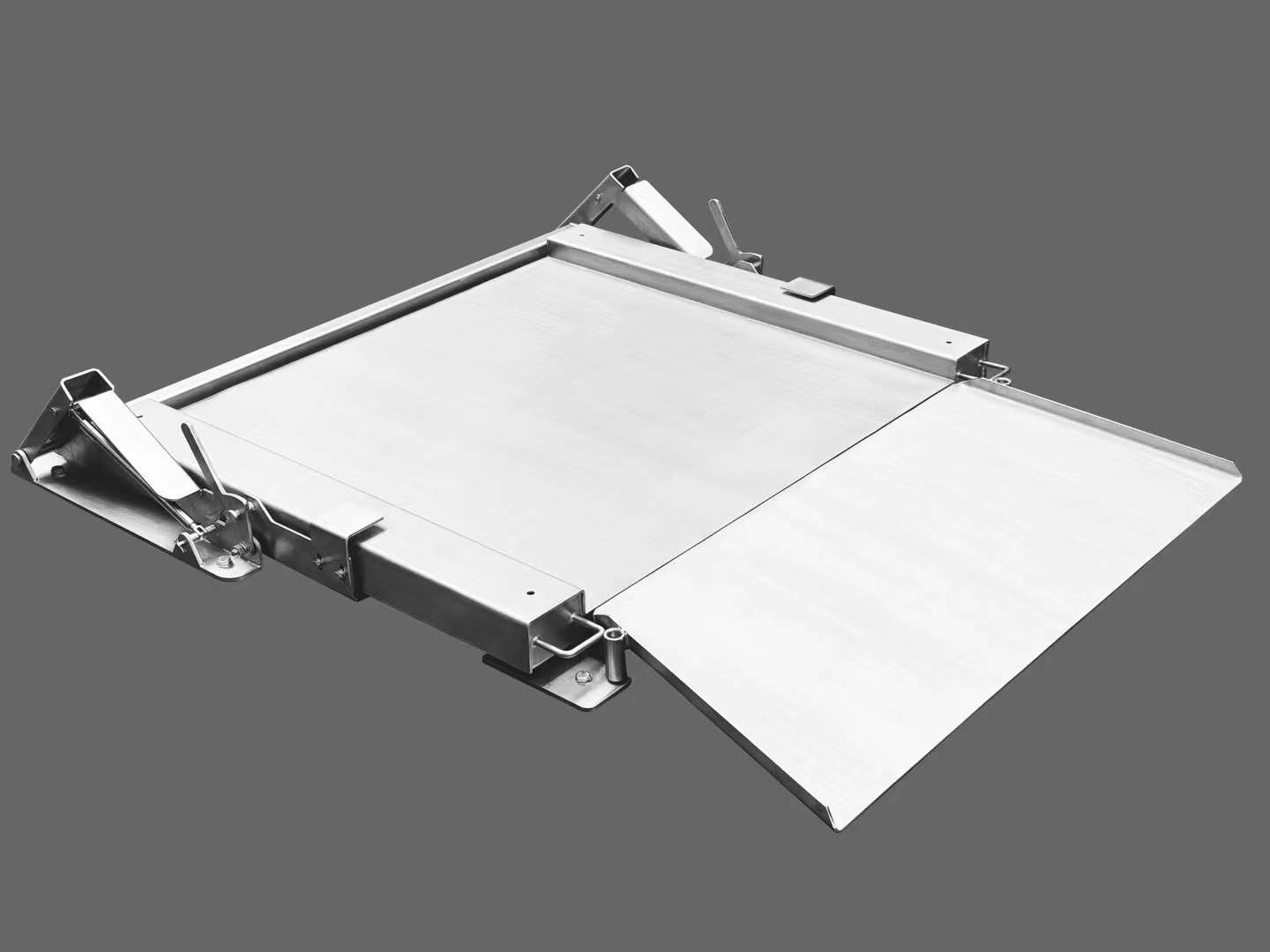

Current Position: Home > Company Products >SCS small weighbridge > SCS-CS ultra low washable weighbridge waterproof weighbridge
Washable stainless steel platform scale Ultra low stainless steel platform scale
It's really a waterproof weighbridge. It can be directly washed with water, and the scale body can be lifted
The waterproof grade can reach IP68 standard, and the sanitary grade meets the requirements of food factories and pharmaceutical factories

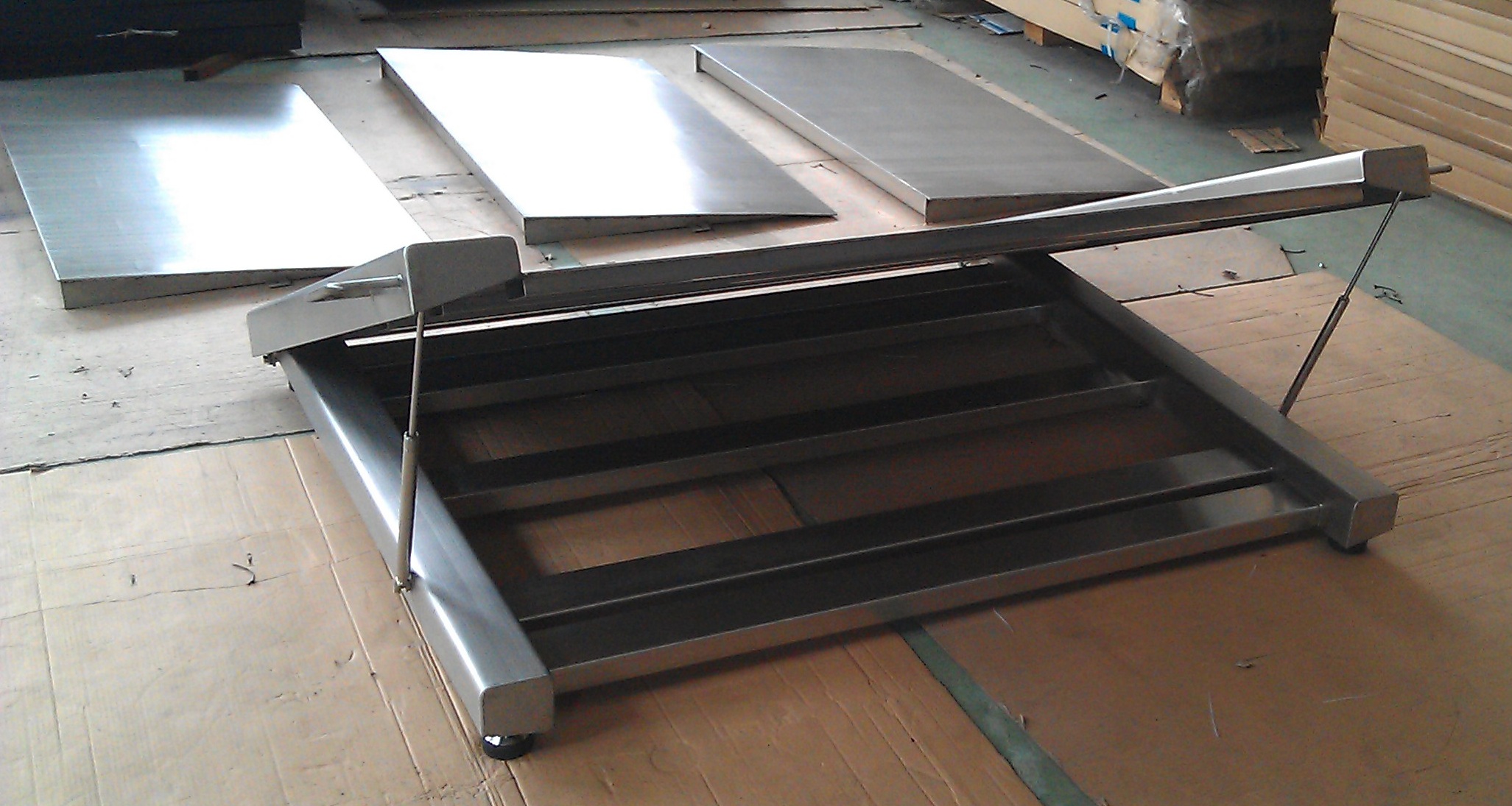

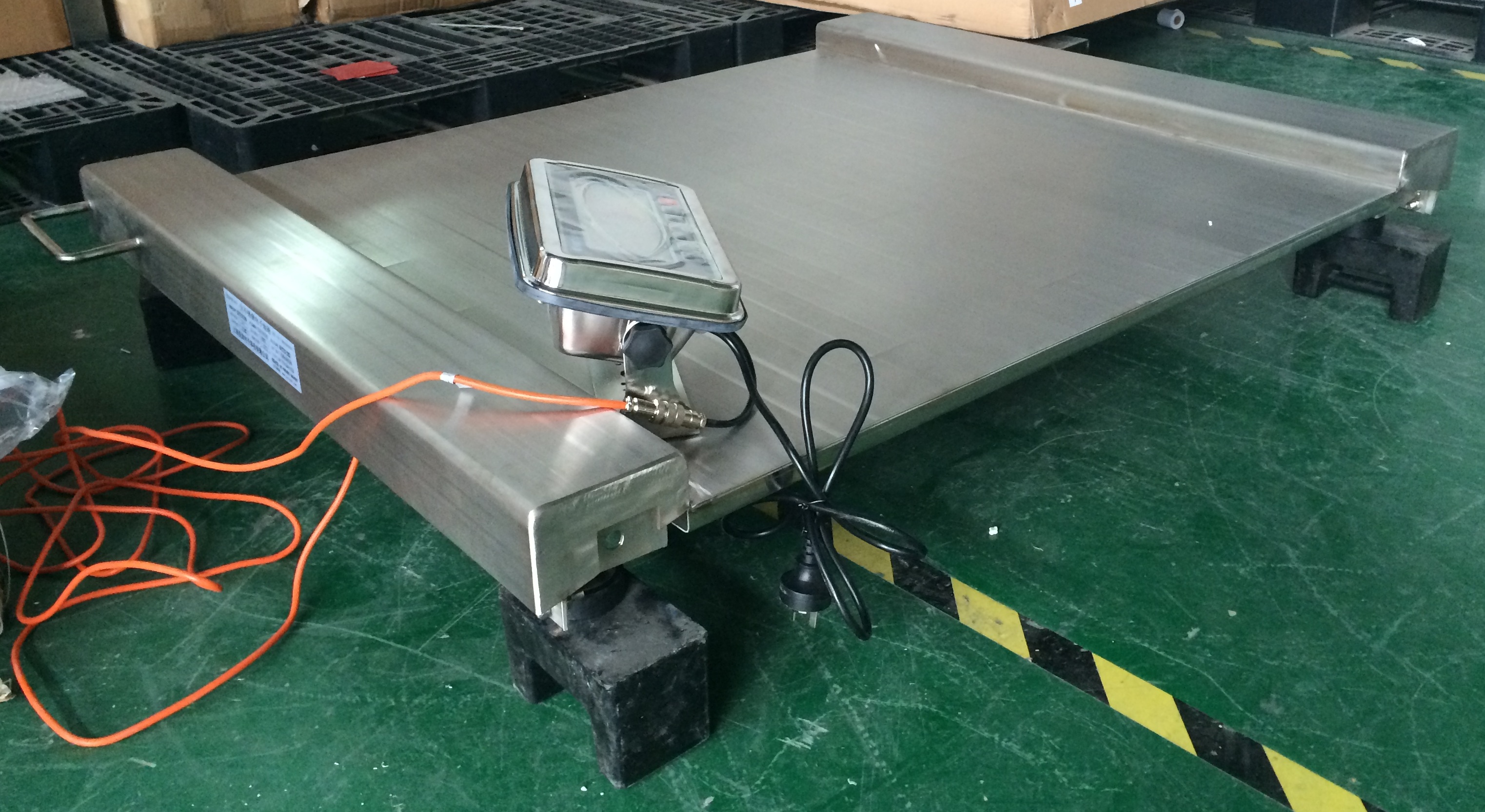

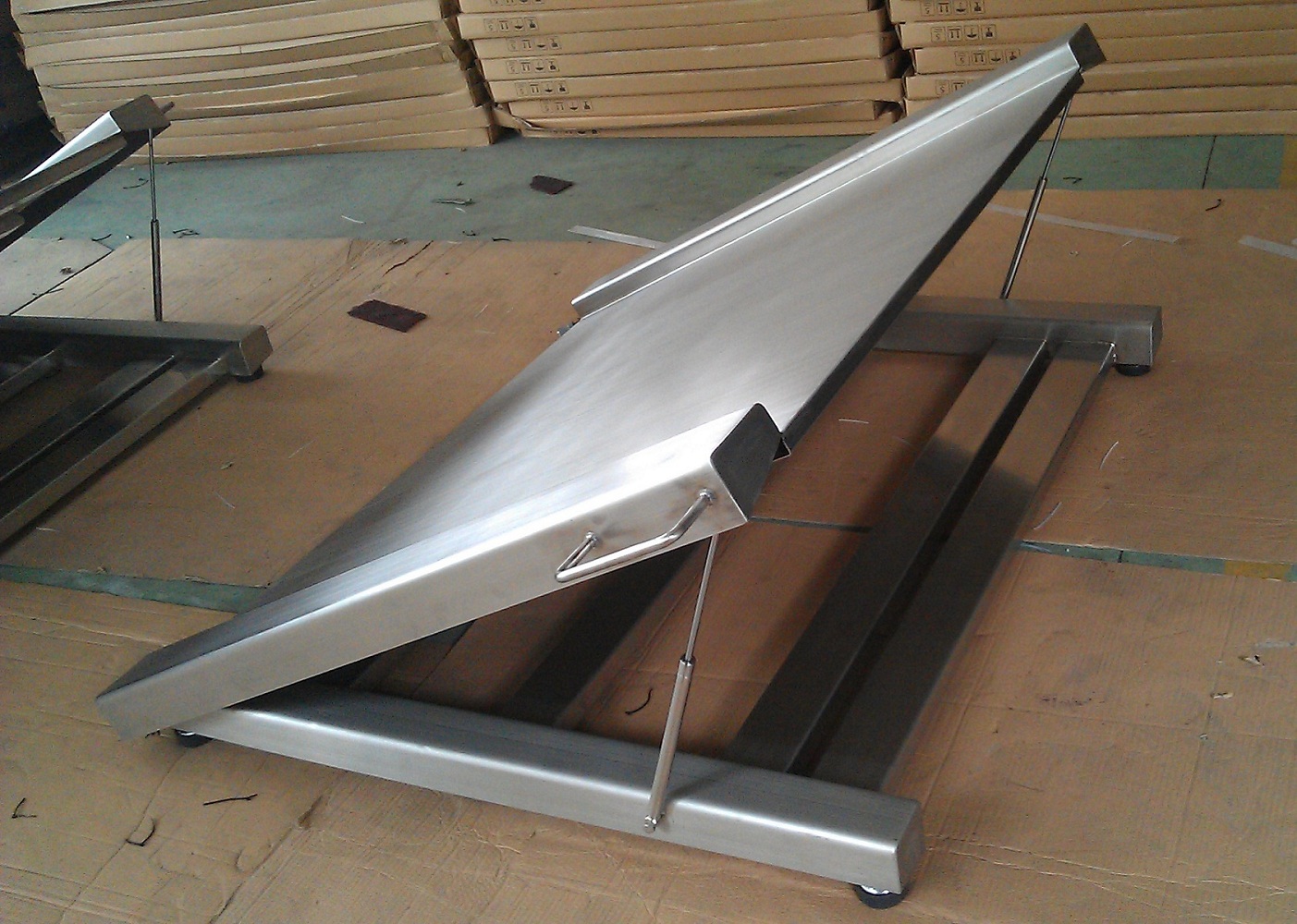

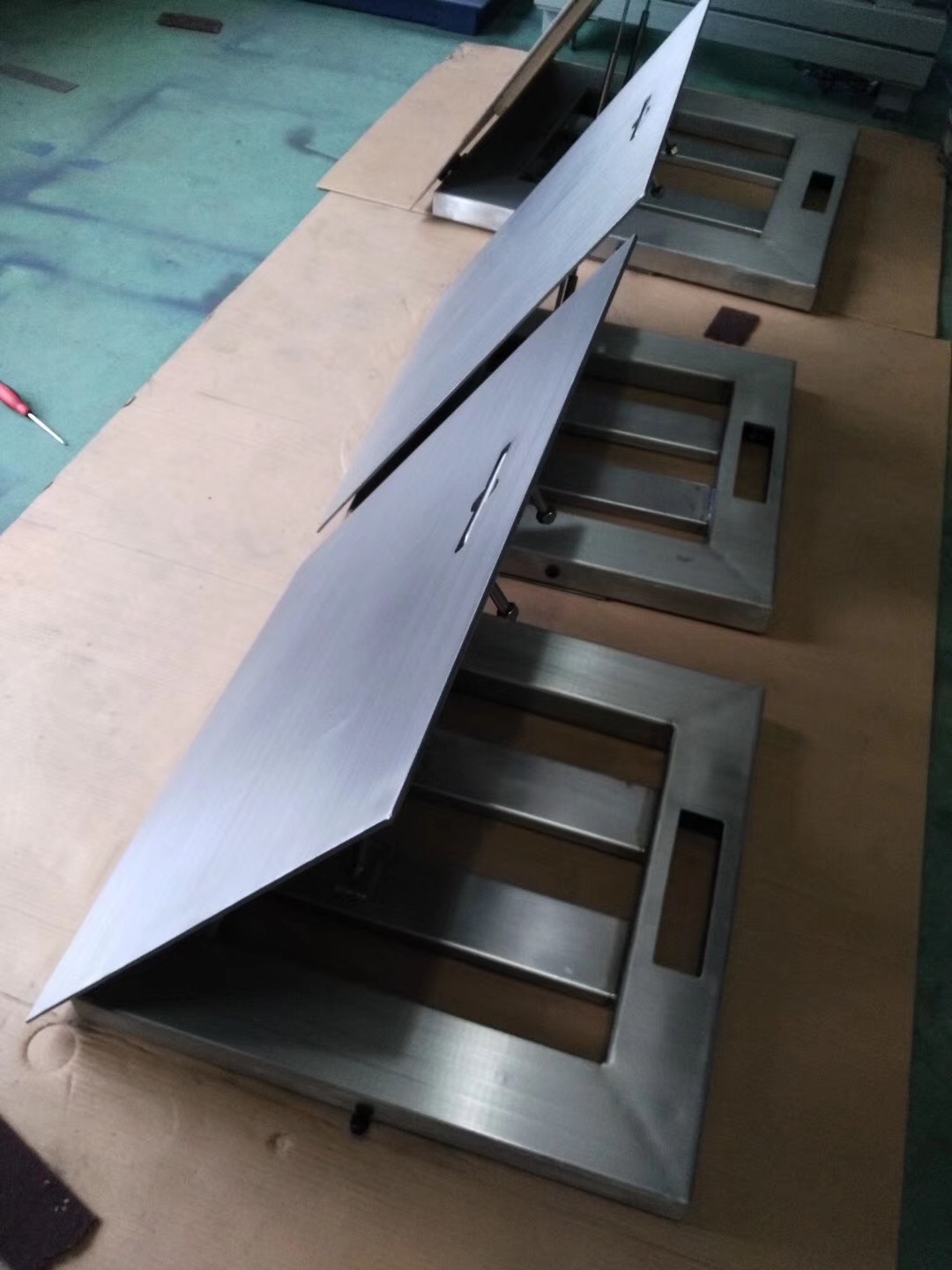

SCS-CS series ultra-low electronic platform scale is an openable ultra-low stainless steel platform scale, which can be washed directly. The whole scale body can be lifted easily through the front handle, and the bottom of the platform scale can also be fully cleaned. It is equipped with double guide slope or single guide slope, which is easy to weigh on rectangular pusher or circular barrel. It is mainly used for cargo weighing in the production line of chemical industry and food processing plant. It can be equipped with imported sensors or designated brand electrical accessories, which can completely replace imported brand electronic scales, with high quality and low price.
Technical parameters:
Maximum weighing: 300kg to 2.5t (range optional)
Division value: 0.1kg ~ 1kg (high precision and customizable)
Accuracy class: III
Platform size ：0.8*0.8m~1.5m*2m
Weighing display: LED or LCD display
Power supply: AC220V, built-in lead-acid battery 6V / 4ah
Operating temperature: - 10 ℃ ~ ± 40 ℃
Basic functions: weight counting, counting, zero setting, peeling, accumulation and printing
Extended functions: Animal weighing, holding, weight checking, sorting, upper and lower limit alarm, etc;
Optional functions: external printer, computer, RS232 / 485, MODBUS, 4 ~ 20mA analog output, wireless output, I / O card, relay output, etc.
Complete configuration: including scale body, instrument, 4 sensors, junction box and 5m signal cable

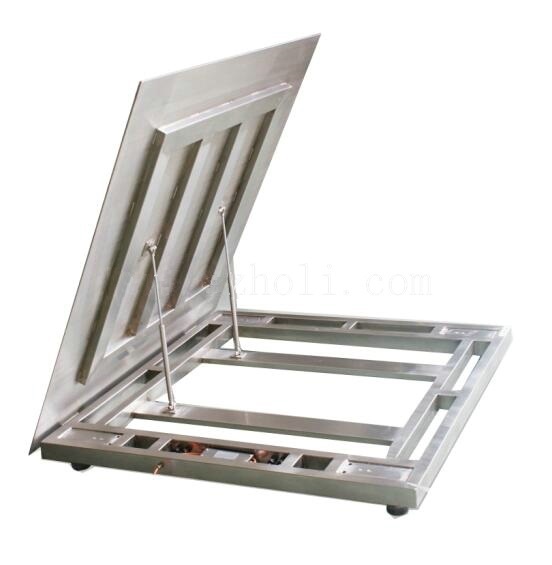

Liftable ultra-low table top: U-beam structure, firm and durable, with limit, automatic reset, good repeatability and zero return
The surface of all stainless steel scale platform is polished and brushed, which is waterproof, anti-corrosion and easy to clean.

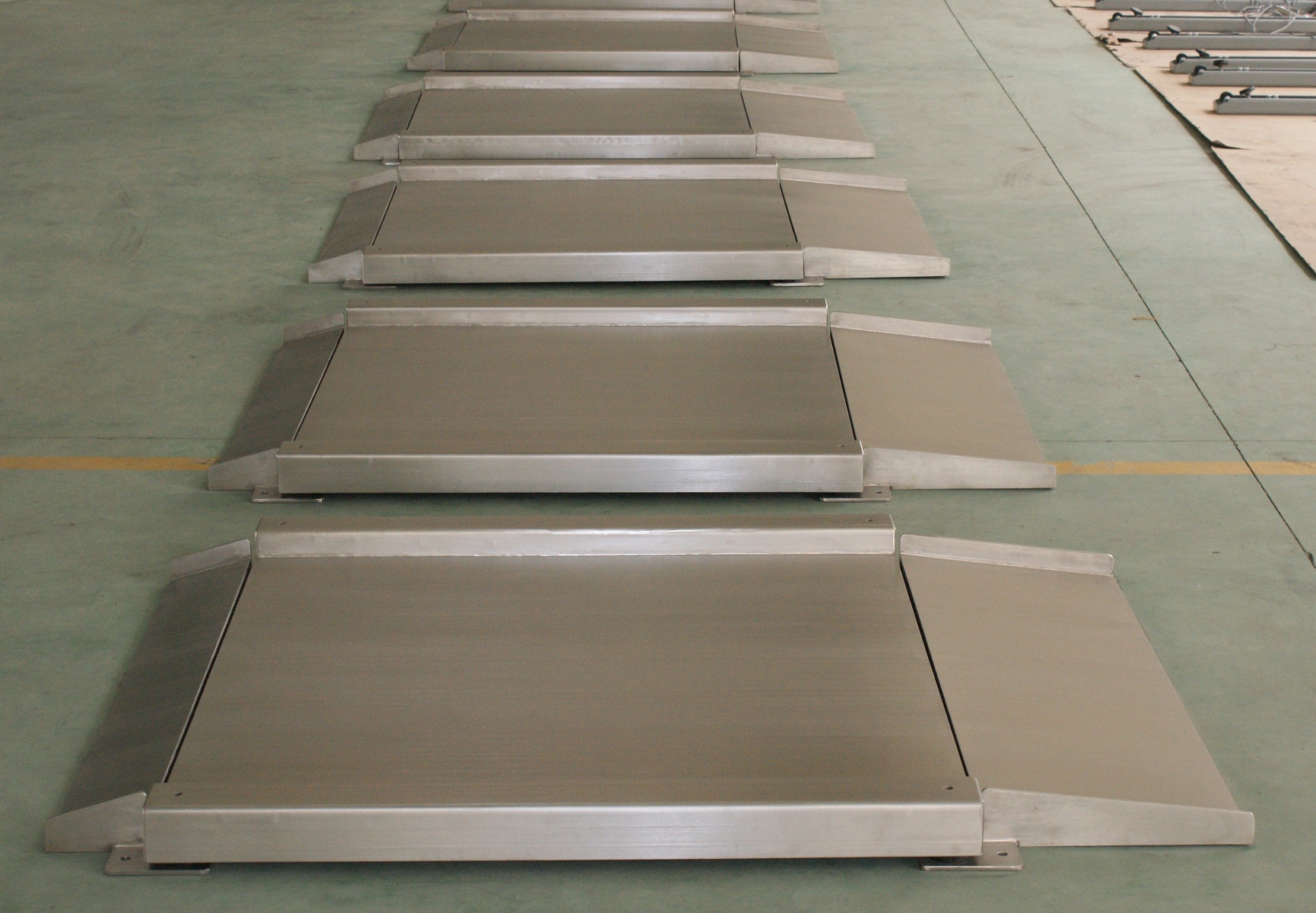

The ultra short approach slope (the length of the approach slope is 30cm) has been included, the instrument support is optional, and the explosion-proof is optional
Specification and model:
Product number | maximum capacity | Graduation value (customizable) | Platform size | Platform height | dead weight |
SCS-0808-0.5/1/2t | 0.3t/0.5t/1t/2t | 0.1kg/0.2kg/0.5kg | 800×800mm | 35mm | 120kg |
SCS-1010-0.5/1/2t | 0.3t/0.5t/1t/2t | 0.1kg/0.2kg/0.5kg | 1000×1000mm | 45mm | 140kg |
SCS-1012-0.5/1/2t | 0.5t/1t/2t | 0.2kg/0.5kg | 1000×1200mm | 45mm | 160kg |
SCS-1212-0.5/1/2t | 0.5t/1t/2t | 0.2kg/0.5kg | 1200×1200mm | 45mm | 180kg |
Remarks: special measuring range and scale size can be customized
Note: the electronic platform scale that can be directly washed with water can meet more application needs and can be produced by order.
High precision industrial electronic weighbridge high precision platform scale
Integrated with high-precision weighing sensor and high-precision weighing instrument
Carry out high-precision weighing in harsh environment, weigh copper, medicine, precious metal, etc
High end weighbridge has short stability time, and high-speed weighing can help users improve production efficiency and ensure weighing accuracy
The height of the customized ultra-thin electronic scale platform is about 6 cm
Carbon steel weighing frame, stainless steel countertop or all stainless steel ultra-thin weighbridge
Weighing below 300kg, the scale size is customized according to the user's requirements
Mobile platform scale, mobile electronic weighbridge
It adopts a double-layer weighbridge body, with a frame as a whole, and a hand push mobile integrated type
Carbon steel or stainless steel optional
Maximum weighing 2500kg
Material tank platform scale, frame scale
The filling electronic scale is a customized reinforced ground scale, and the filling legs can be directly fixed on the platform scale
Leave a round hole or square hole on the weighing platform to facilitate weighing and discharging
300kg ~ 10t weighing can be customized
U-shaped electronic scale, portable platform scale, small floor area
It is suitable for weighing all kinds of goods or forklift transportation
The length and width of the weighing platform can be specially customized according to the environmental requirements
Strip electronic scale, also known as chopstick scale, portable weighing bar
Modular weighing, portable, weighing anytime, anywhere
A single weighing plate can carry 1500kg, and two weighing plates are equipped as standard
Multiple weighing plates can also be configured, and the use range can reach 5000kg
Optional wireless Bluetooth communication function
Livestock electronic platform scale is a special electronic scale specially designed for animal husbandry and slaughtering industry. The fence gate is added on the basis of the ordinary platform scale, which is especially suitable for weighing all kinds of live livestock.
Electronic buffer scale is a kind of scale developed for weighing metallurgical, copper and precious metal materials. The weighing mechanism includes a bottom frame, a scale platform, a buffer table, a buffer mechanism, a limit mechanism, a high-precision shear sensor, a junction box assembly and an intelligent weighing instrument to form a complete weighing system. It can be configured with a printer or a wireless continuous weighing display. This buffer scale has the characteristics of strong impact resistance, high stability and high precision weighing.
Washable stainless steel platform scale Ultra low stainless steel platform scale
It's really a waterproof weighbridge. It can be directly washed with water, and the scale body can be lifted
The waterproof grade can reach IP68 standard, and the sanitary grade meets the requirements of food factories and pharmaceutical factories
Stainless steel ultra-low platform scale
The height of the scale body is 3.5 ~ 4.5cm, with double-sided or single-sided slope
Smooth stainless steel flat plate or checkered plate can be customized
300 kg to 2000 kg optional
Chemical plant explosion-proof optional
Stainless steel electronic platform scale double-layer stainless steel weighbridge
Weighing range: 300kg to 10t stainless steel platform scale with frame
Simple weighing, weighing, counting, upper and lower limit control and other multi-functional industrial platform scales
The stainless steel floor scale is easy to clean, and the sanitary level meets the requirements of food factories and pharmaceutical factories
It can replace Toledo PFA Series platform scale
Stainless steel electronic weighbridge waterproof weighbridge stainless steel weighbridge
Weighing range: 300 kg to 10 tons of stainless steel platform scale
Basic industrial platform scale with simple weighing, weighing, counting and accumulation functions
The stainless steel floor scale is characterized by easy cleaning and sanitary grade, which is in line with the use of food factories and pharmaceutical factories
