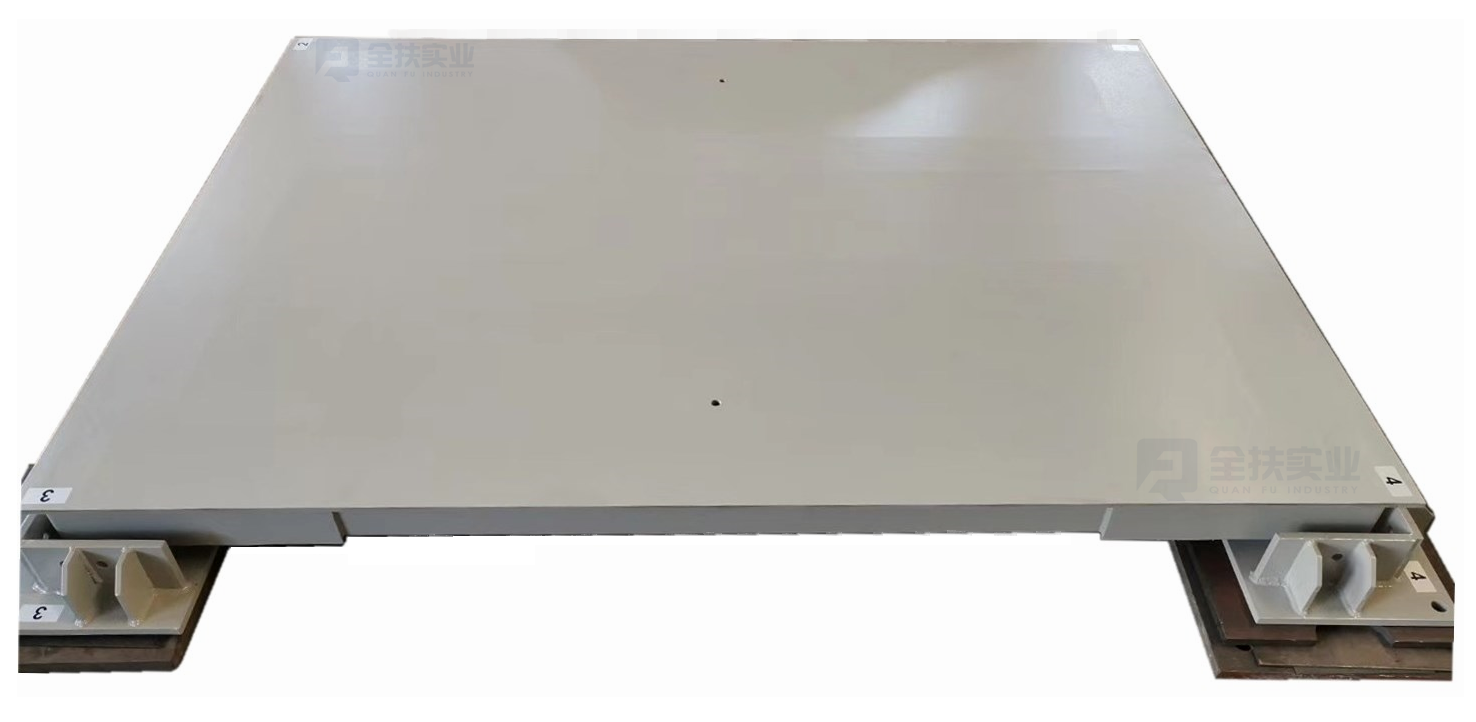

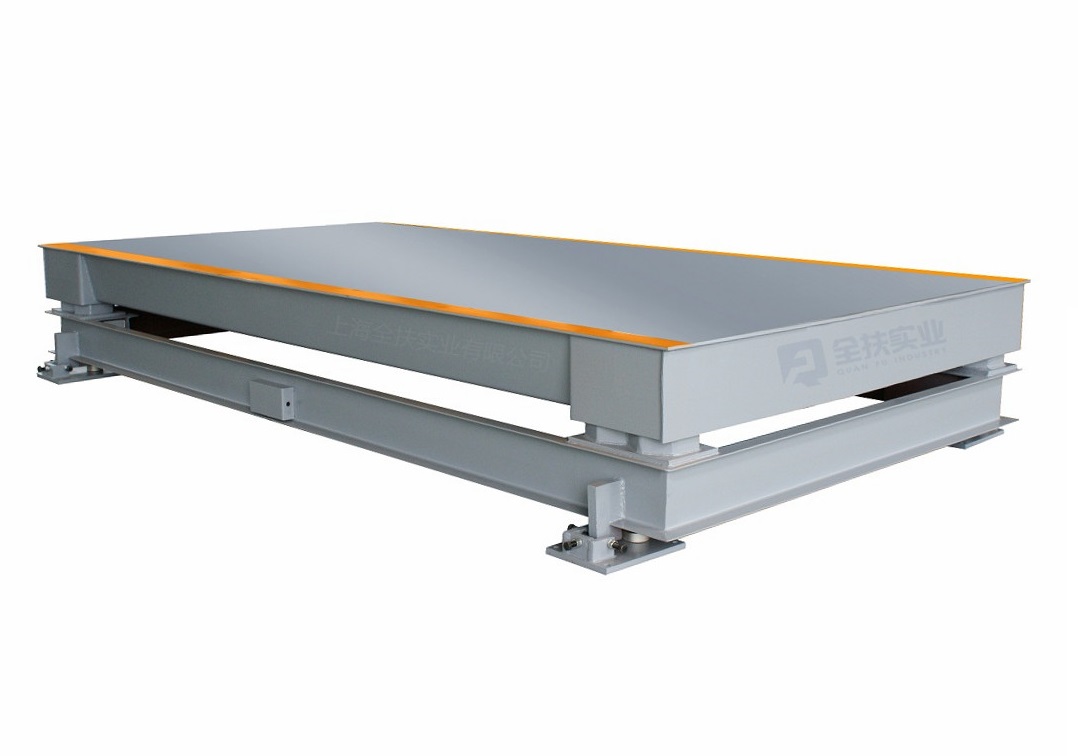

Current Position: Home > Company Products >SCS small weighbridge > Scs-h electronic buffer scale buffer weighbridge
Electronic buffer scale is a kind of scale developed for weighing metallurgical, copper and precious metal materials. The weighing mechanism includes a bottom frame, a scale platform, a buffer table, a buffer mechanism, a limit mechanism, a high-precision shear sensor, a junction box assembly and an intelligent weighing instrument to form a complete weighing system. It can be configured with a printer or a wireless continuous weighing display. This buffer scale has the characteristics of strong impact resistance, high stability and high precision weighing.

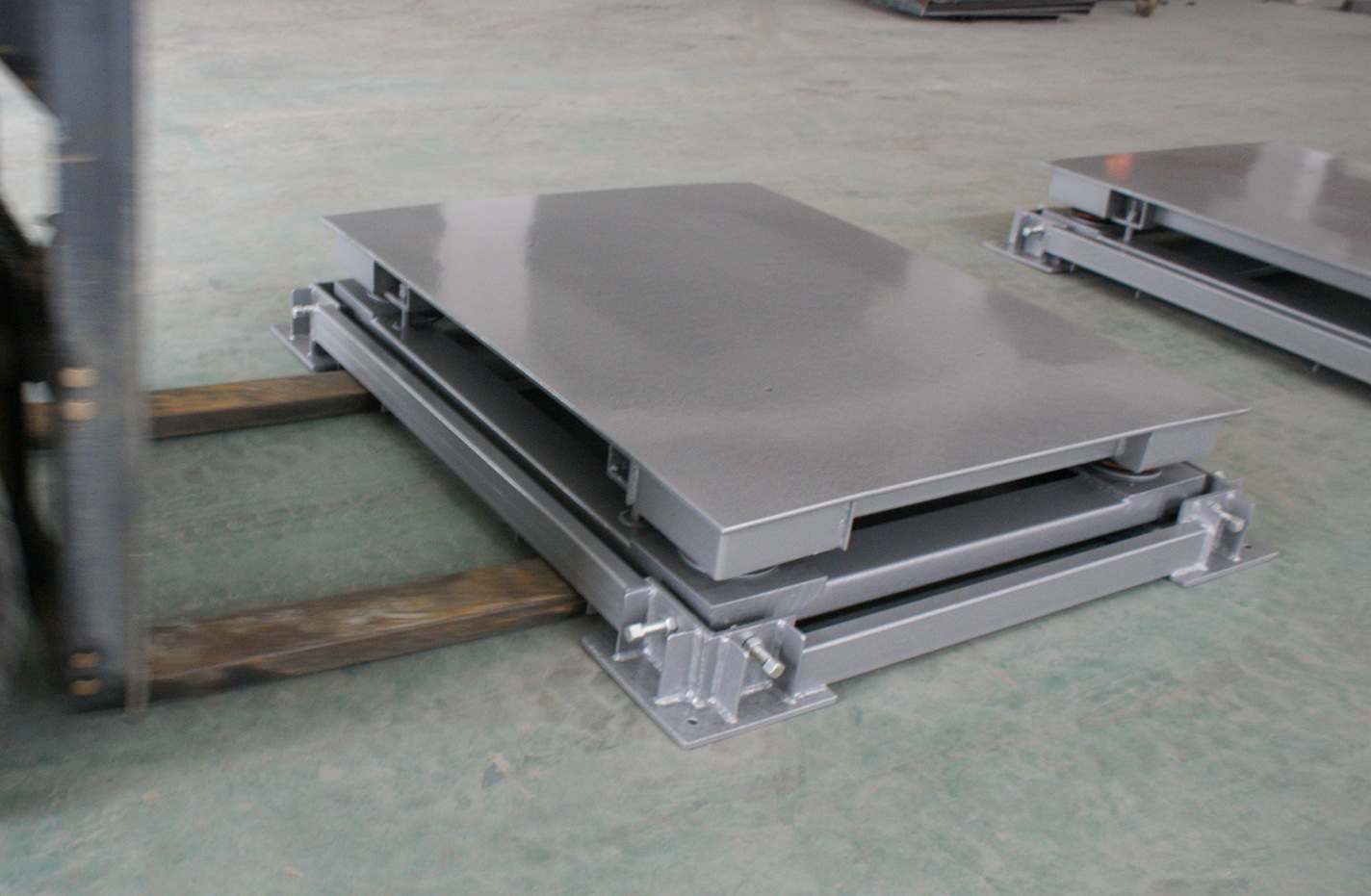

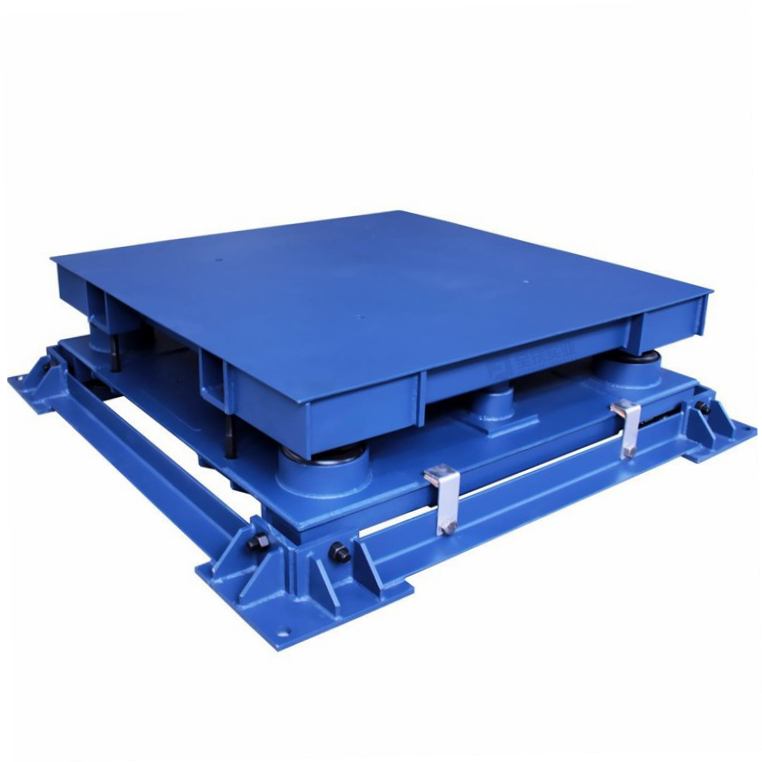

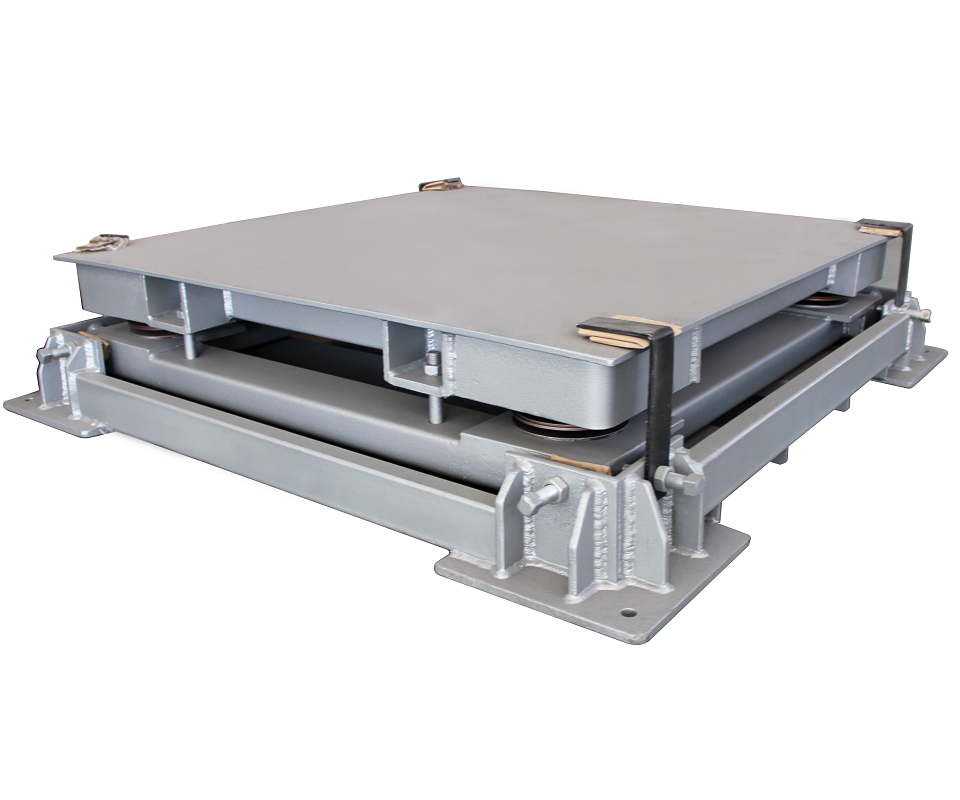

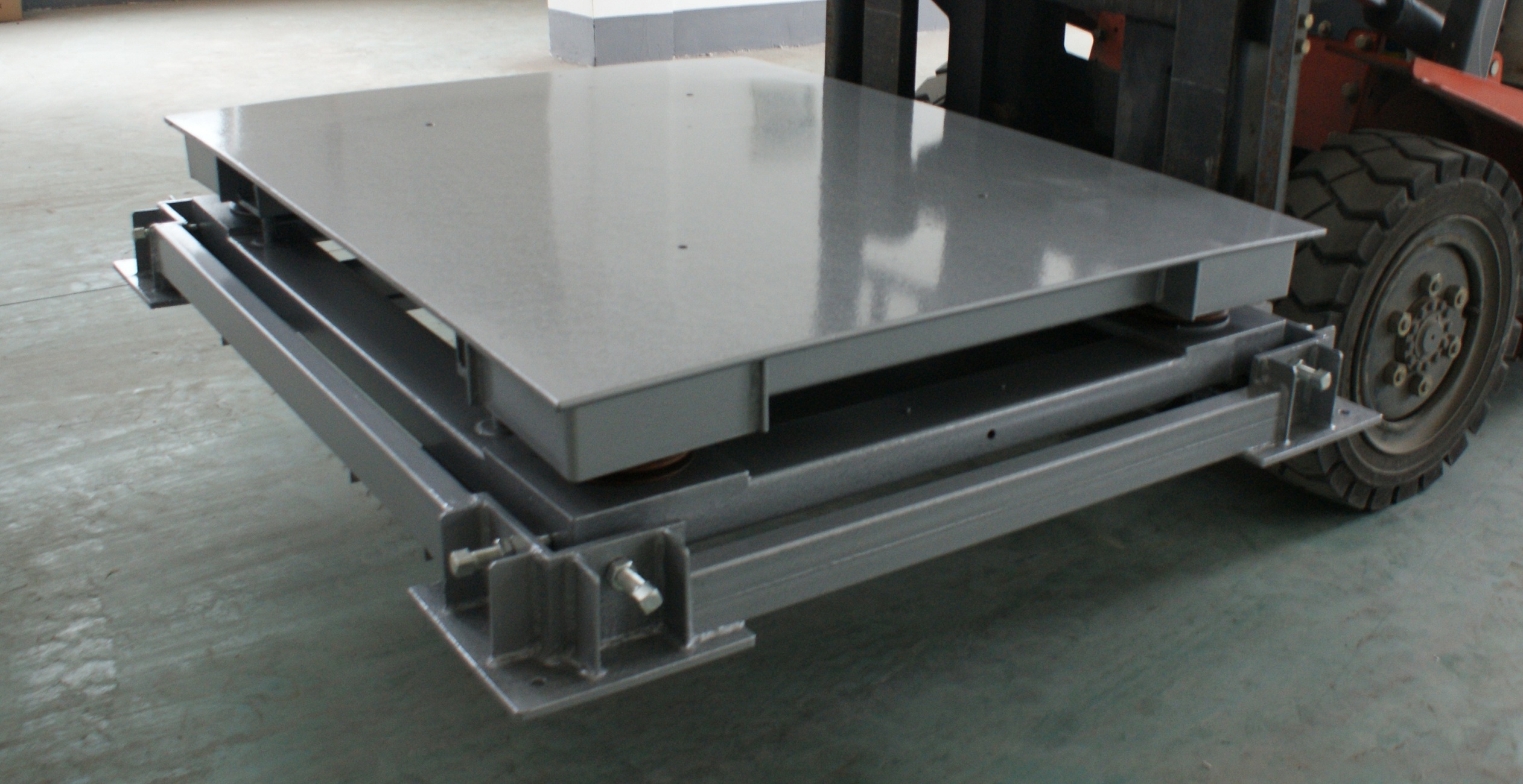

Scs-h series buffer scale, three-layer buffer scale and double-layer buffer platform scale use a double-layer platform. There is a helical compression spring between the two platforms, which can obtain the first impact energy from the load. It is equipped with precision weighing sensors and intelligent weighing terminals. It has excellent impact resistance, fatigue resistance, accuracy and reliability, fast weighing and easy operation. It also has a unique design for easy maintenance. It is especially suitable for weighing applications where the product is moved by a crane during weighing. It can not only effectively absorb the collision of goods used for weighing when they are loaded, but also protect the load cell. It is widely used in metallurgy industry, machinery industry, building materials, aluminum materials, copper pipes, copper coils and other metal materials with strong impact, warehousing, freight transportation and wharf weighing applications. It can replace METTLER TOLEDO pg / PGV Series platform scales.

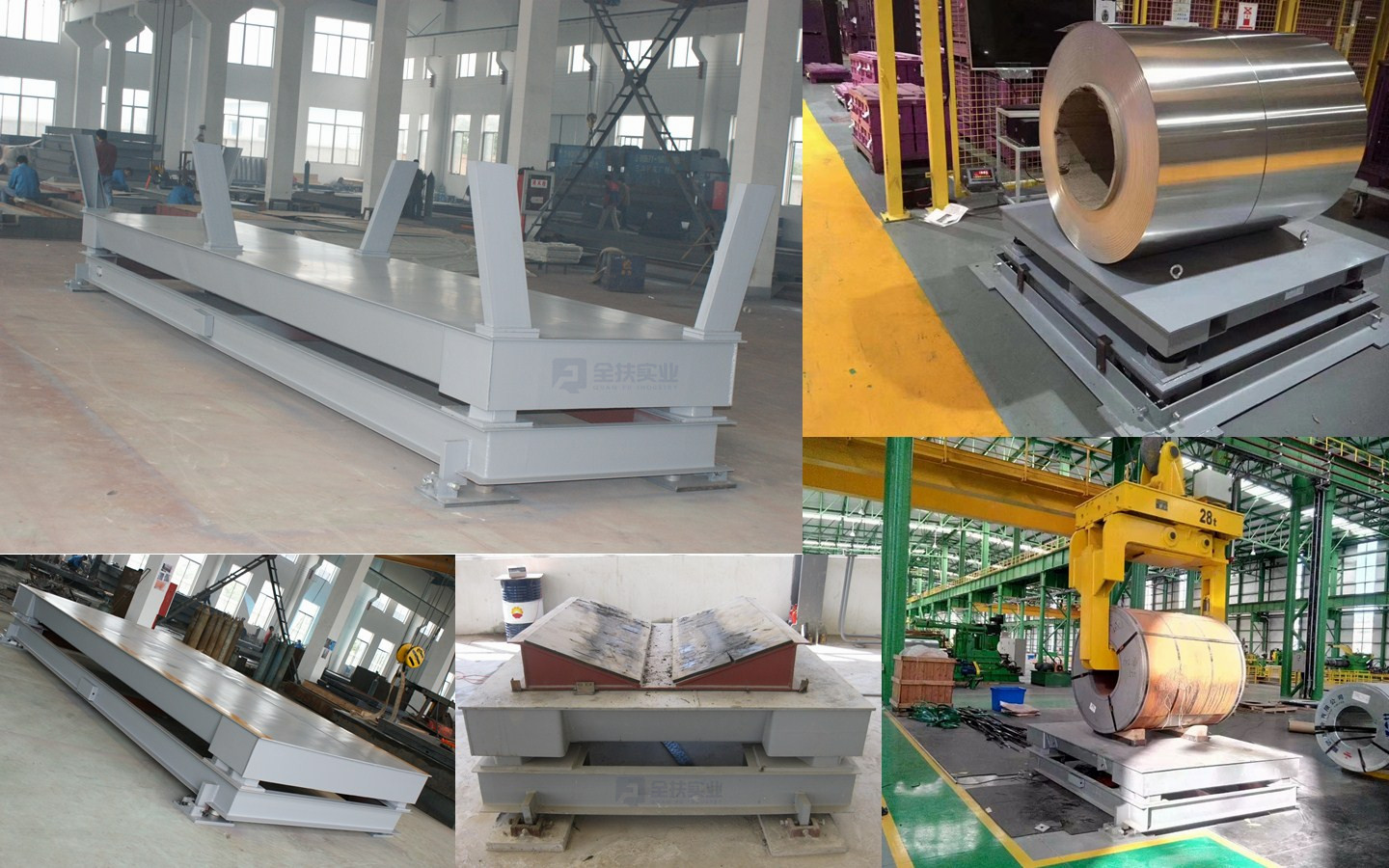

It can be configured with V-shaped support or stop bar for weighing various steel coils, copper coils, steel bars, copper bars, aluminum bars, aluminum bars and other high-added materials.
Technical parameters:
Accuracy class: III
Maximum weighing: 1t to 20t (more ranges are optional)
Graduation value: 0.2kg ~ 10kg (high precision can be customized)
Scale size: 1 × 1m~2 × 3m
Working temperature: - 10 ~ + 40 ℃
Power supply: AC 110-220V 50-60Hz or lead-acid battery DC 4-6v4ah
Structural features:
Double or three-layer scale bottom frame, impact resistant, strong and durable structure
Special high-strength coil spring and limit structure to achieve effective cushioning and protect sensors and structures
Carbon steel weighing platform, shot blasting and plastic blasting on the table, strong corrosion resistance
Including four shear type alloy steel sensors, junction boxes and 5m signal cables
Product functions:
Zero setting, peeling, accumulation, weight counting, counting, weight inspection and sorting
Printing, communication interface RS232 / 485, wireless weighing (optional)
I / O card, 4-20mA analog output (optional)
V-shaped wear-resistant support: the steel structure surface is covered with polyurethane wear-resistant plate to prevent rolling and protect the material surface (optional)
Instrument column (optional)
Model and specification:
Product No.: | Platform size | Maximum weighing | Graduation value | Platform height | dead weight |
H/HV-1/2/3-1212 | 1.0*1.0m | 1t/2t/3t | 0.2kg/0.5kg/1kg | 380mm | 450 |
H/HV-2/3/5-1212 | 1.2*1.2m | 2t/3t/5t | 0.5kg/1kg/2kg | 390mm | 550 |
H/HV-2/3/5-1515 | 1.5*1.5m | 2t/3t/5t | 0.5kg/1kg/2kg | 390mm | 780 |
H/HV-10/15-1515 | 1.5*1.5m | 10t/15t | 2kg/5kg | 420mm | 980 |
H/HV-10/15-1520 | 1.5*2.0m | 10t/15t | 2kg/5kg | 420mm | 1100 |
H/HV-10/20-2020 | 2.0*2.0m | 10t/20t | 5kg/10kg | 460mm | 1900 |
H/HV-10/20-2030 | 2.0*3.0m | 10t/20t | 5kg/10kg | 460mm | 2200 |
Remarks: Industrial buffered electronic platform scale can be customized with various specifications and scales
Note: for more application needs, take orders for production.
