Current Position: Home > Company Products >SCS small weighbridge > Scs-x livestock electronic platform scale animal weighbridge

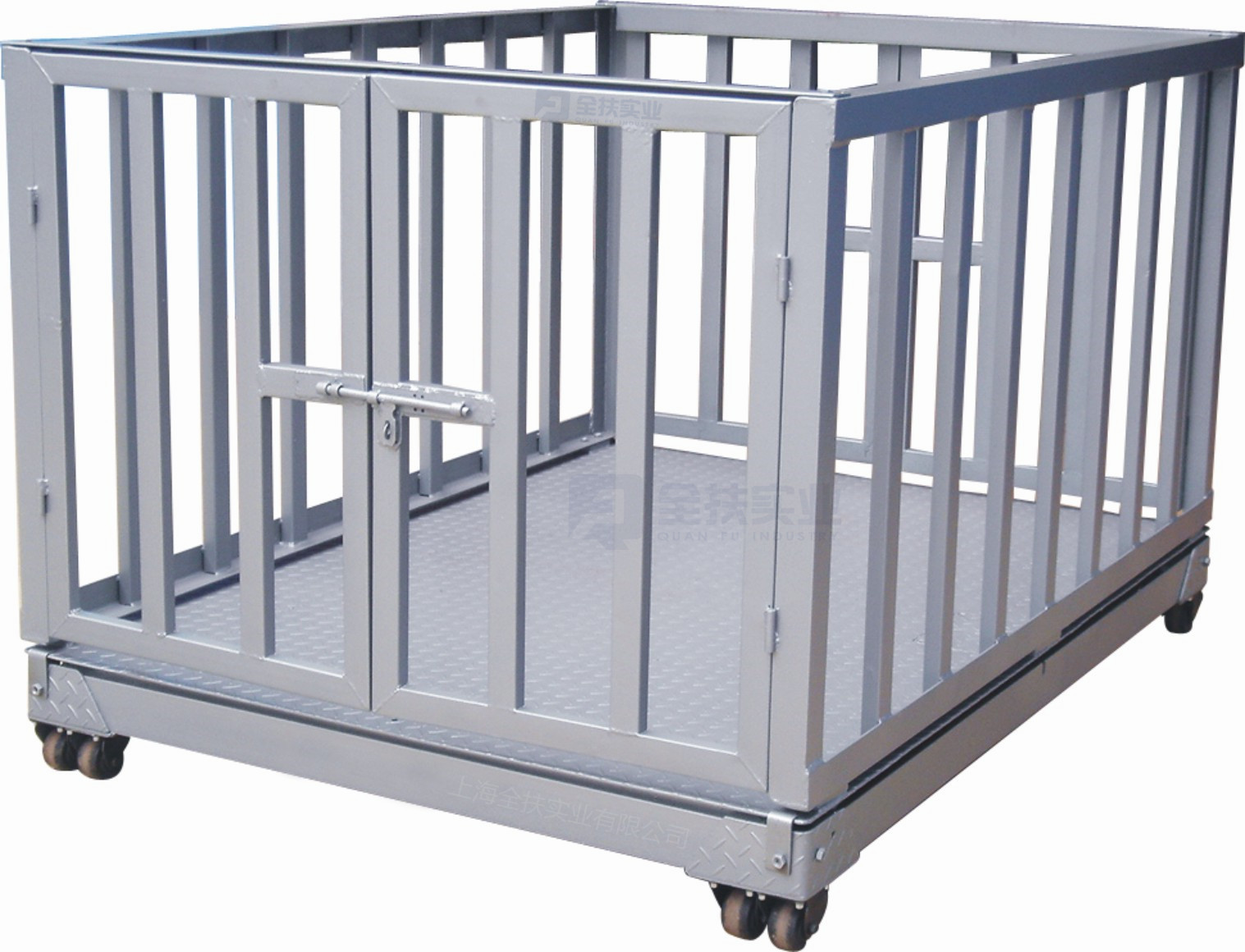

Livestock electronic platform scale is a special electronic scale specially designed for animal husbandry and slaughtering industry. The fence gate is added on the basis of the ordinary platform scale, which is especially suitable for weighing all kinds of live livestock.
Scs-x series livestock electronic platform scale, livestock scale, pig weighbridge in farms. Livestock scale is a platform scale specially designed for animal weighing. It is equipped with fence gate on the basis of ordinary platform scale, weighing instrument and dynamic weighing system with animal weighing function, especially suitable for the weighing of all kinds of livestock.
Technical parameters:
Maximum weighing: 1t / 2T / 3T / 5t
Division value：0.2kg~2kg
Scale platform size: 1.2 × 1.2m~1.5 × 3M (customizable)
Scale body material: carbon steel or stainless steel
Accuracy class: III
Display: 6-bit LED or LCD with backlight
Operating environment: working temperature - 10 ℃ ~ + 40 ℃, relative humidity ≤ 85% R.H
Working power supply: ac110 ~ 220V 50 / 60Hz, built-in lead-acid battery dc4v / 4ah
Basic functions: weight counting, accumulation, holding, animal weighing, upper and lower limit weight checking, peeling, zero setting, etc
Optional functions: RS232 / 485 connection to computer, printer, large screen, etc
Intelligent tracing instrument is optional to realize weighing upload / download, saving, tracing, query, data transmission and other functions
Structural features:
Use precision adjustable function
With fence and gate, the height of the fence is 1.2m, and the two-way door opening design is convenient for animals to enter and exit
Carbon steel scale body: the overall shot blasting, plastic spraying and paint baking treatment process has strong corrosion resistance. It is made of U-beam carbon steel, with anti-corrosion and anti-skid countertop
Stainless steel scale body: 304 stainless steel scale body is subject to all-round shot blasting
It is equipped with four alloy steel or stainless steel load cells, with adjustable shockproof filtering function, which can accurately complete the weighing under dynamic conditions
The overall frame or no frame is optional. The height of the scale body is 15cm. In addition, the fence is 1.2m. It is equipped with limit and automatic reset functions
The livestock scale is a special weighing instrument designed and developed for livestock breeding and slaughtering, with compact, reasonable and durable structure
Applicable industries and places: breeding / farms / slaughterhouses / processing plants are placed on the ground / outdoors / factory workshops for use
Specification parameters:
model | Maximum range | Division value | Platform size | Self weight about |
SCS-1T | 1t/2t/3t | 0.2kg/1kg | 1*1.2m | 180kg |
SCS-2T | 1t/2t/3t | 0.5kg/1kg | 1.2*1.2m | 200kg |
SCS-3T | 1t/2t/3t | 0.5kg/1kg | 1.2*1.5m | 220kg |
SCS-3T | 1t/2t/3t | 0.5kg/1kg | 1.5*1.5m | 255kg |
SCS-5T | 1t/2t/3t | 0.5kg/1kg | 1.5*2m | 310kg |
SCS-5T | 2t/3t/5t | 1kg/2kg | 1.5*2.5m | 370kg |
SCS-5T | 2t/3t/5t | 1kg/2kg | 1.5*3m | 410kg |
SCS-5T | 2t/3t/5t | 1kg/2kg | 2*3m | 550kg |
SCS-5T | 2t/3t/5t | 1kg/2kg | 2*4m | 650kg |
Note: movable slope guiding bank can be selected to enable livestock to go up and down the scale freely. The system is processed by special software to eliminate the data error caused by livestock walking, with high accuracy, accurate measurement and rapid weighing; The scale body can be made of carbon steel, stainless steel veneer or all stainless steel; Fences and access gates can be installed by yourself; Mobile rollers can also be added; Printing instrument, weighing software and external large screen can be selected.
Shanghai Quanfu only makes high-end weighing equipment, Livestock scale The weighing parts are hung on the upper part of the scale platform, animal feces and other dirt can be fully washed, and the electrical part will not be affected. All cables pass through the scale body to prevent livestock from biting the cable during weighing. The two-way door through design can quickly and accurately measure the weight of a single animal. The length and width of the scale body and the height of the guardrail can be customized according to different weighing objects.
Note: Animal weighing scale , multiple demands, more styles, order production.
High precision industrial electronic weighbridge high precision platform scale
Integrated with high-precision weighing sensor and high-precision weighing instrument
Carry out high-precision weighing in harsh environment, weigh copper, medicine, precious metal, etc
High end weighbridge has short stability time, and high-speed weighing can help users improve production efficiency and ensure weighing accuracy
The height of the customized ultra-thin electronic scale platform is about 6 cm
Carbon steel weighing frame, stainless steel countertop or all stainless steel ultra-thin weighbridge
Weighing below 300kg, the scale size is customized according to the user's requirements
Mobile platform scale, mobile electronic weighbridge
It adopts a double-layer weighbridge body, with a frame as a whole, and a hand push mobile integrated type
Carbon steel or stainless steel optional
Maximum weighing 2500kg
Material tank platform scale, frame scale
The filling electronic scale is a customized reinforced ground scale, and the filling legs can be directly fixed on the platform scale
Leave a round hole or square hole on the weighing platform to facilitate weighing and discharging
300kg ~ 10t weighing can be customized
U-shaped electronic scale, portable platform scale, small floor area
It is suitable for weighing all kinds of goods or forklift transportation
The length and width of the weighing platform can be specially customized according to the environmental requirements
Strip electronic scale, also known as chopstick scale, portable weighing bar
Modular weighing, portable, weighing anytime, anywhere
A single weighing plate can carry 1500kg, and two weighing plates are equipped as standard
Multiple weighing plates can also be configured, and the use range can reach 5000kg
Optional wireless Bluetooth communication function
Livestock electronic platform scale is a special electronic scale specially designed for animal husbandry and slaughtering industry. The fence gate is added on the basis of the ordinary platform scale, which is especially suitable for weighing all kinds of live livestock.
Electronic buffer scale is a kind of scale developed for weighing metallurgical, copper and precious metal materials. The weighing mechanism includes a bottom frame, a scale platform, a buffer table, a buffer mechanism, a limit mechanism, a high-precision shear sensor, a junction box assembly and an intelligent weighing instrument to form a complete weighing system. It can be configured with a printer or a wireless continuous weighing display. This buffer scale has the characteristics of strong impact resistance, high stability and high precision weighing.
Washable stainless steel platform scale Ultra low stainless steel platform scale
It's really a waterproof weighbridge. It can be directly washed with water, and the scale body can be lifted
The waterproof grade can reach IP68 standard, and the sanitary grade meets the requirements of food factories and pharmaceutical factories
Stainless steel ultra-low platform scale
The height of the scale body is 3.5 ~ 4.5cm, with double-sided or single-sided slope
Smooth stainless steel flat plate or checkered plate can be customized
300 kg to 2000 kg optional
Chemical plant explosion-proof optional
Stainless steel electronic platform scale double-layer stainless steel weighbridge
Weighing range: 300kg to 10t stainless steel platform scale with frame
Simple weighing, weighing, counting, upper and lower limit control and other multi-functional industrial platform scales
The stainless steel floor scale is easy to clean, and the sanitary level meets the requirements of food factories and pharmaceutical factories
It can replace Toledo PFA Series platform scale
Stainless steel electronic weighbridge waterproof weighbridge stainless steel weighbridge
Weighing range: 300 kg to 10 tons of stainless steel platform scale
Basic industrial platform scale with simple weighing, weighing, counting and accumulation functions
The stainless steel floor scale is characterized by easy cleaning and sanitary grade, which is in line with the use of food factories and pharmaceutical factories
Shanghai Quanfu Industrial Co., Ltd. specializes in high-end and high-quality weighing instruments. For more than 10 years, it has devoted itself to the development, production and sales of electronic weighing instruments. Its products are used in laboratories, industrial production and manufacturing and food retailing.
