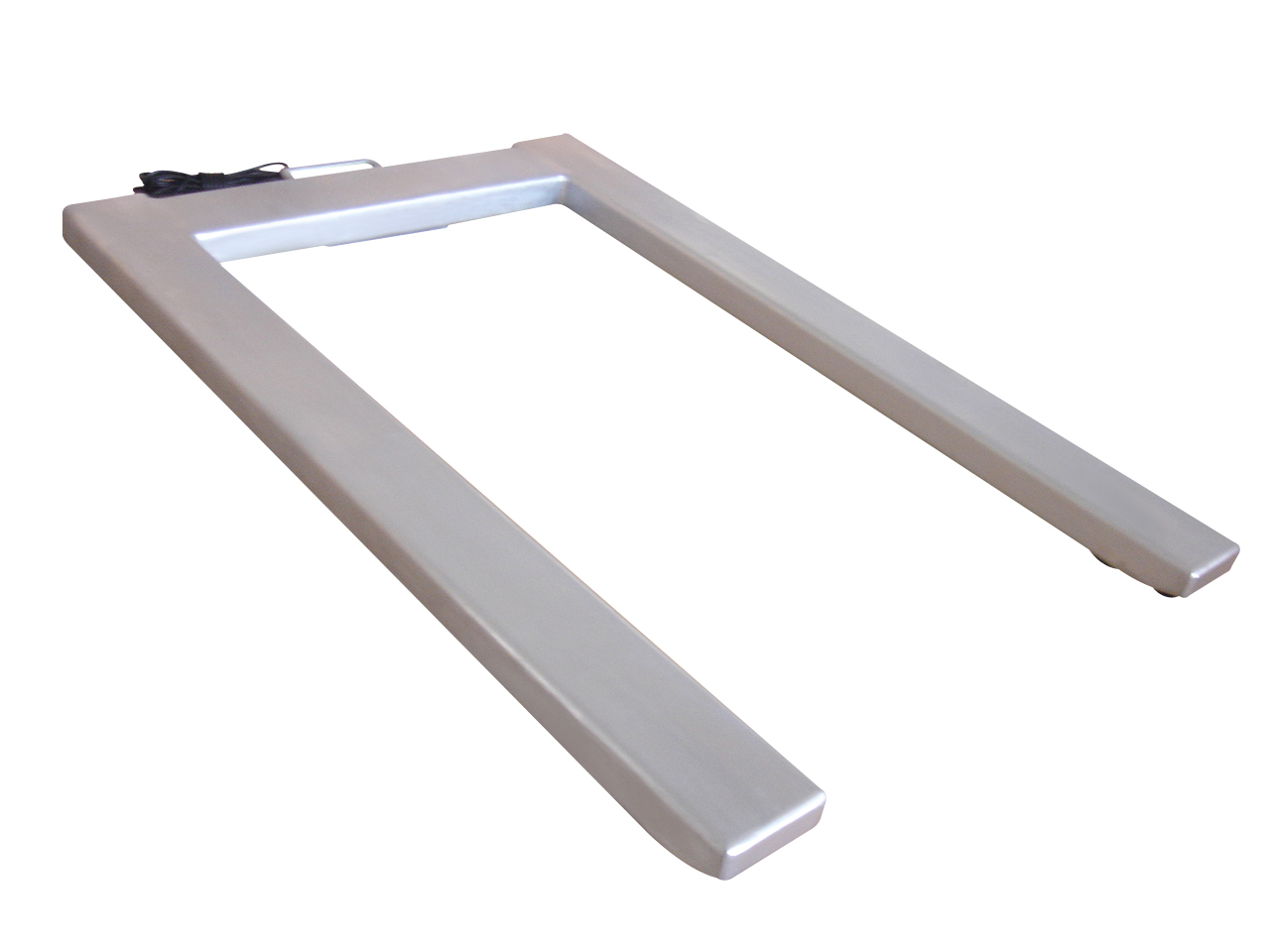

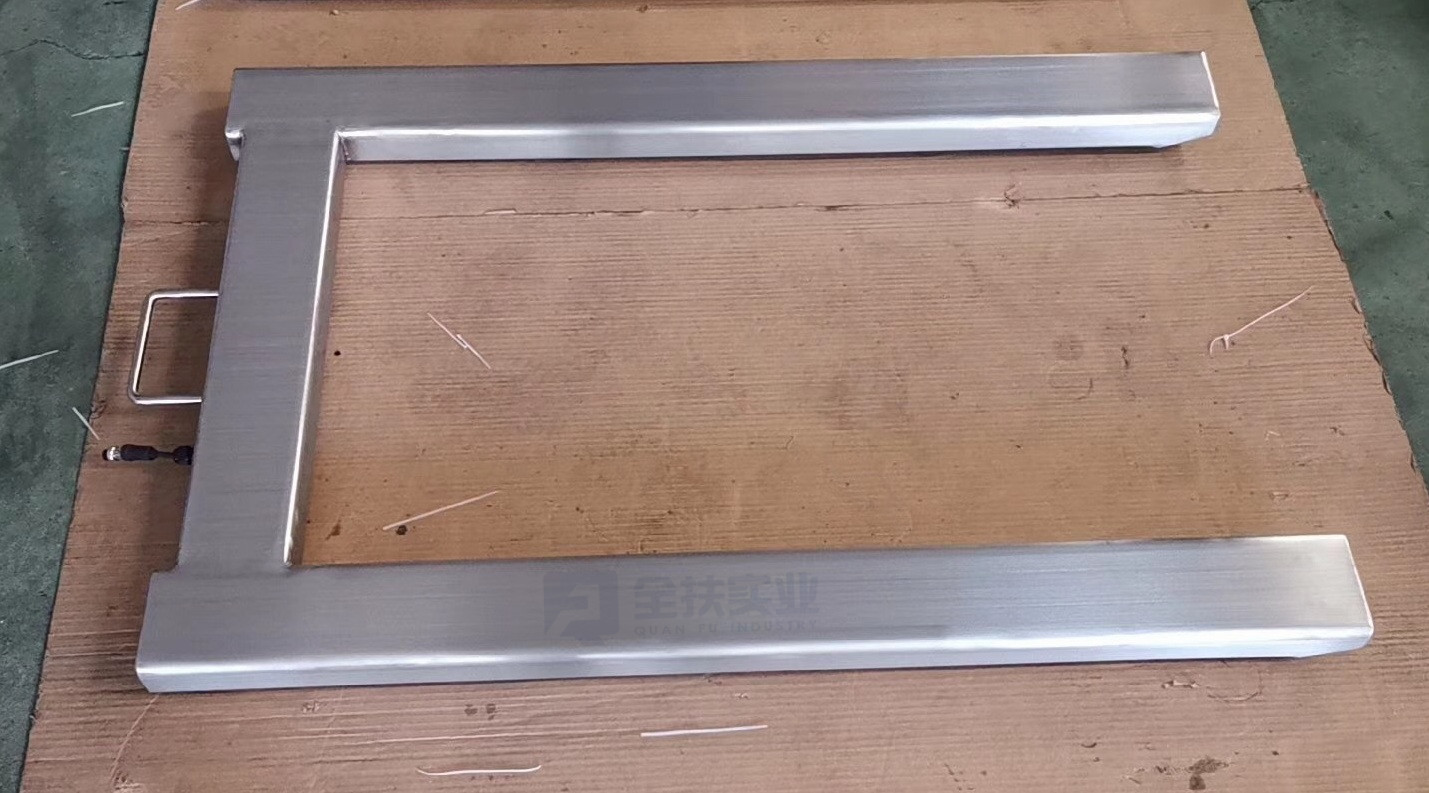

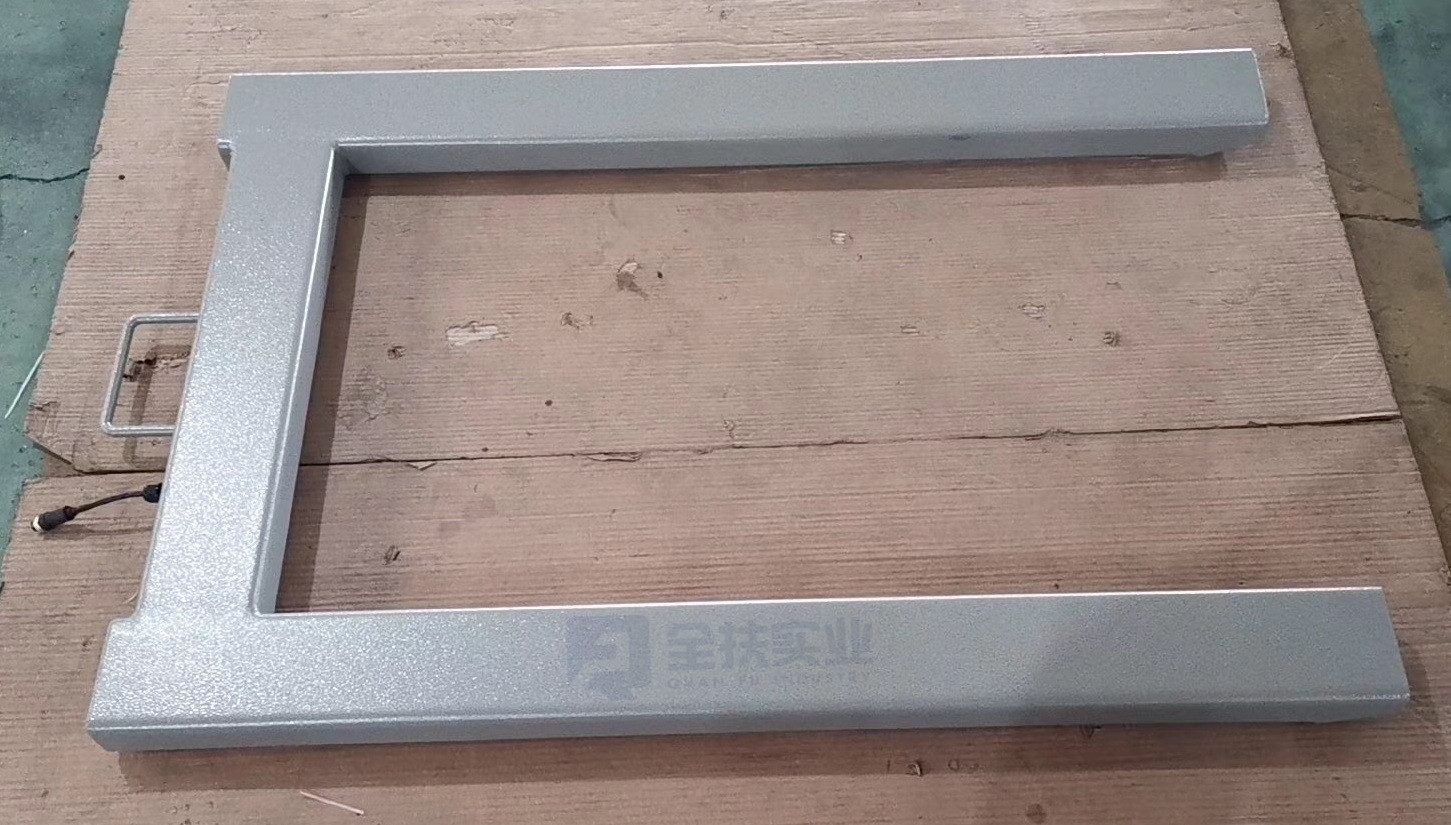

U-shaped electronic scale, portable platform scale, small floor area
It is suitable for weighing all kinds of goods or forklift transportation
The length and width of the weighing platform can be specially customized according to the environmental requirements
Scs-u series U-shaped electronic platform scale is an electronic platform scale specially designed and manufactured for users handling goods and weighing by trolley, forklift or forklift. It is made of high-quality steel pipe sawing machine, welded and formed. The structure is firm and durable. High quality nylon wheels are installed at the gear end, which is easy to move. The internal width of the gear is suitable for the width of American Standard and European standard forklift.
Technical parameters:
Accuracy grade: III
Maximum weighing: 1t ~ 3T
Division value：0.5kg~1kg
Basic functions: zero setting, peeling, weight counting, accumulation, upper and lower limit control of weight
Optional: RS232 / 485 communication interface, 4-20mA analog output, PLC communication, etc
Operating environment: working temperature - 10 ℃ ~ + 40 ℃, relative humidity ≤ 85% R.H
Working power supply: ac110 ~ 220V 50 / 60Hz, built-in lead-acid battery dc4v / 4ah
Optional: instrument column, wireless weighing, explosion-proof type
Main features: tray weighing, U-shaped scale body is equipped with handle and roller, which is convenient to move
Carbon steel weighing platform: the surface of carbon steel is treated by shot blasting and plastic spraying, with strong corrosion resistance
Stainless steel scale platform: stainless steel surface polishing and wire drawing treatment

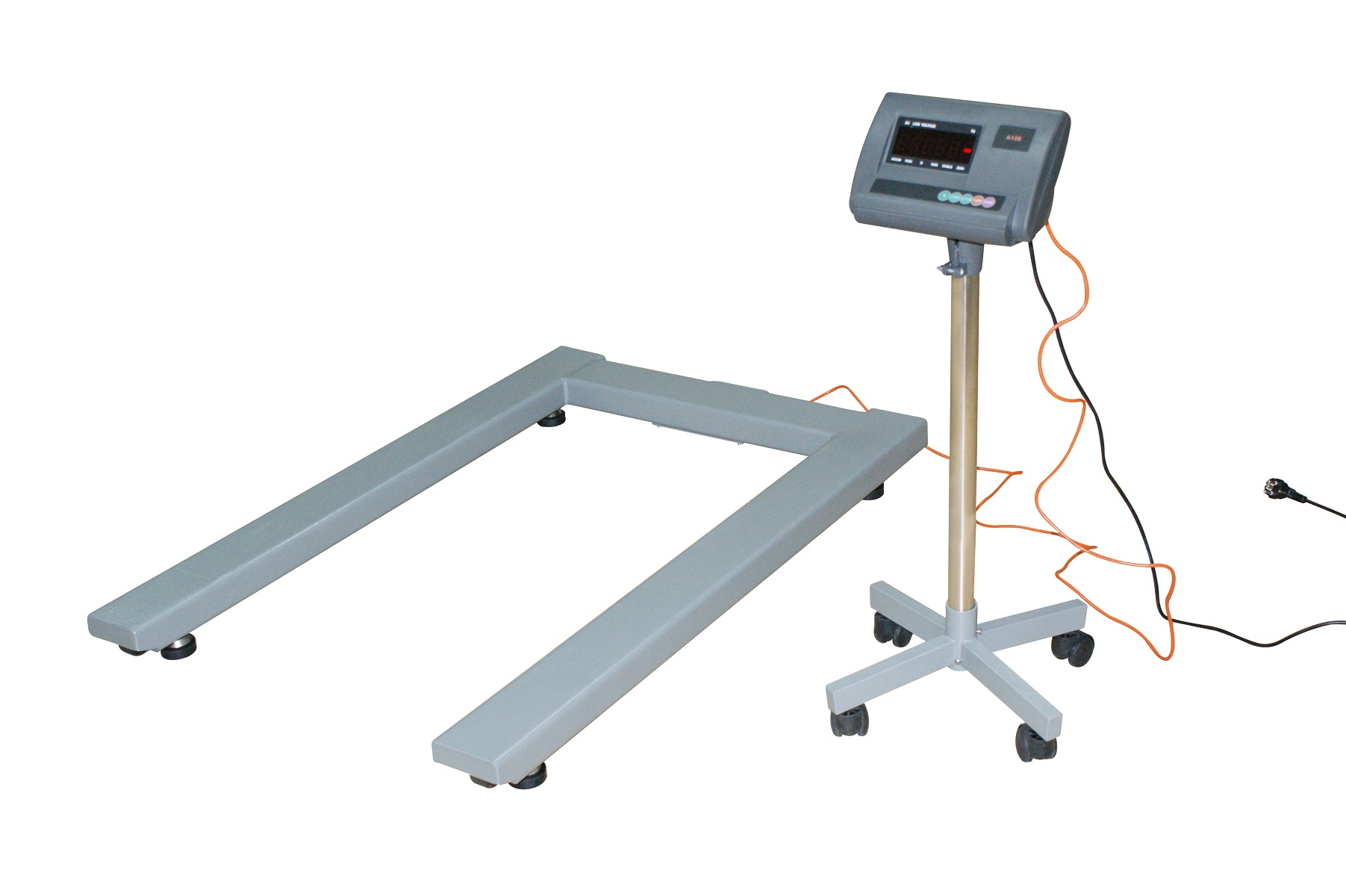

Complete set of equipment: including four load cells, instruments, junction boxes and weighing cables
Application Industry: steel, logistics, warehousing, etc
Specification and model:
Product model | weighing | Division value | Platform size | Inner width of weighing platform | dead weight |
SCS-U | 1t/2t/3t | 0.2/0.5/1kg | 940*1000mm | 700mm | 70kg |
SCS-U | 1t/2t/3t | 0.2/0.5/1kg | 940*1200mm | 700mm | 90kg |
Remarks: special measuring range and scale size can be customized
Note: carbon steel or stainless steel is optional, non-standard electronic u-scale, which is produced by order.
