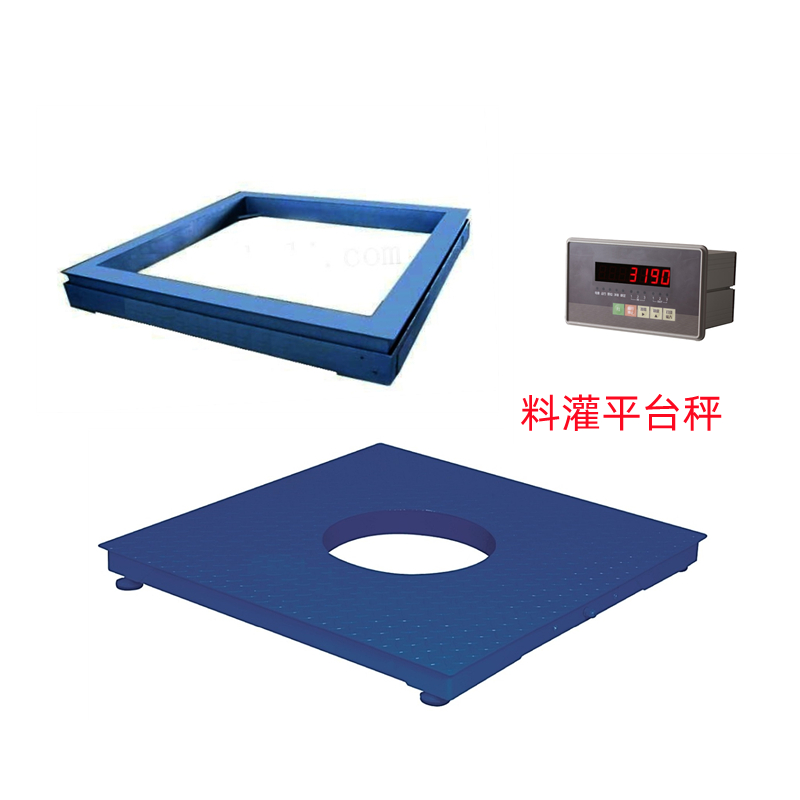

Material tank platform scale, frame scale
The filling electronic scale is a customized reinforced ground scale, and the filling legs can be directly fixed on the platform scale

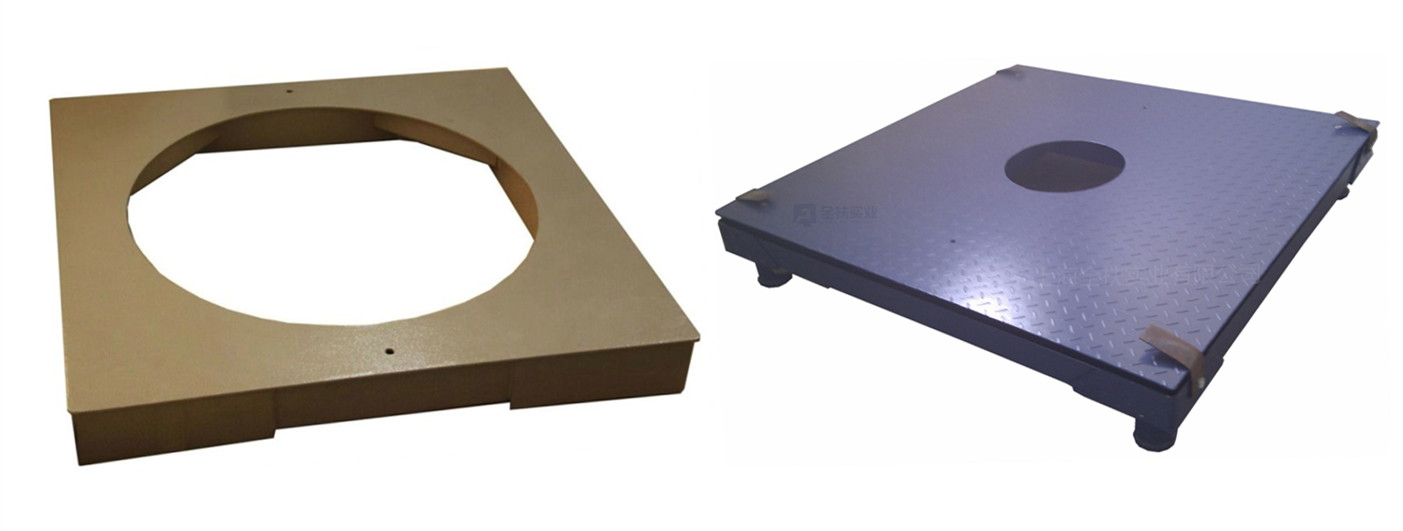

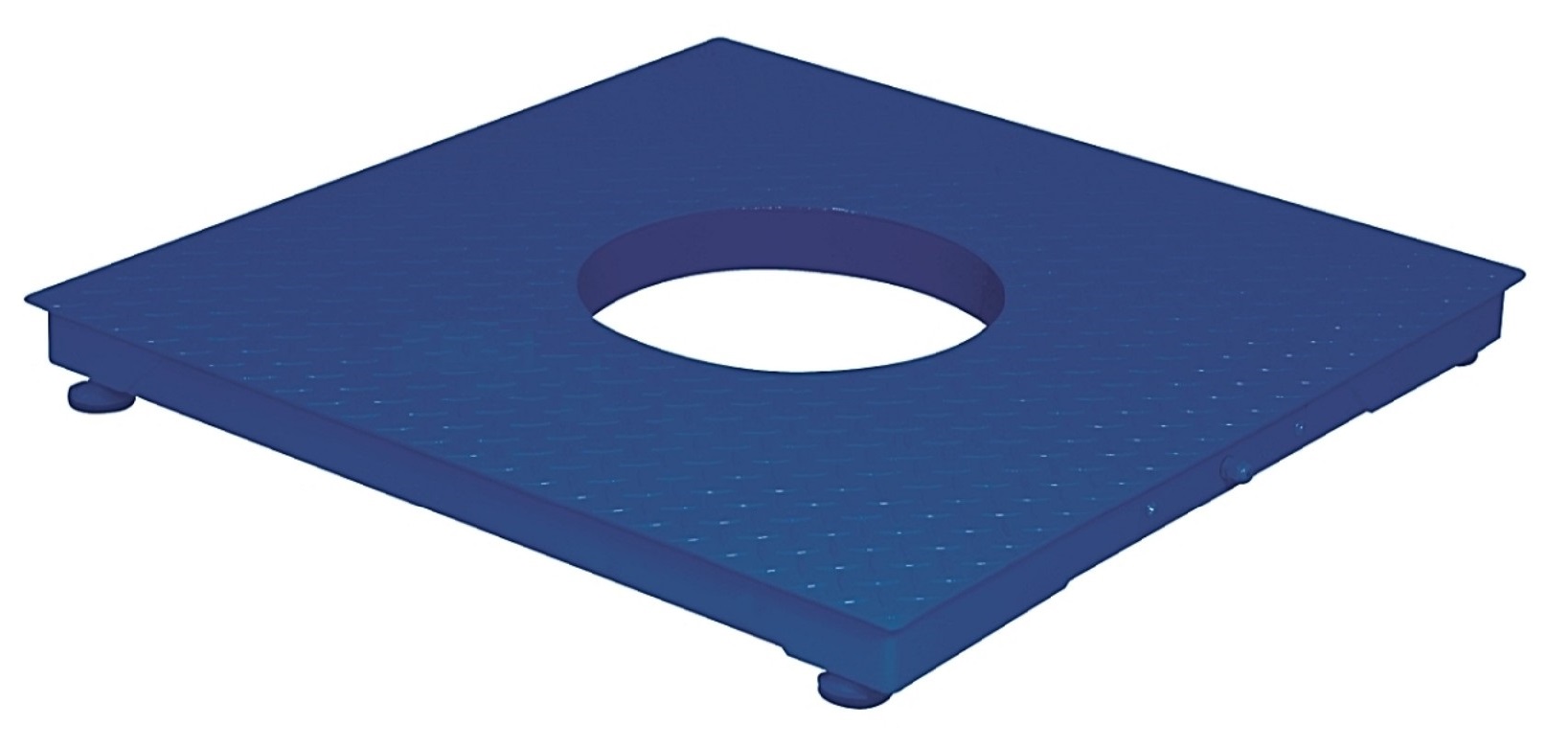

Leave a round hole or square hole on the weighing platform to facilitate weighing and discharging
300kg ~ 10t weighing can be customized
According to the requirements of the user, the material can be fed to the platform or scs-s Series platform, and the data can be placed on the platform of the upper platform or the reserved platform of the reaction tank. The data can also be transferred to the platform of the PLC-S series according to the requirements of the user, Realize factory automatic weighing.
Technical parameters:
Accuracy grade: III
Maximum weighing: 1t ~ 5T (more ranges are optional)
Division value: 0.5kg ~ 1kg
Basic functions: zero setting, peeling, weight counting, accumulation, upper and lower limit control of weight
Optional: RS232 / 485 communication interface, 4-20mA analog output, Modbus / DP interface / PLC communication, etc
Operating environment: working temperature - 10 ℃ ~ + 40 ℃, relative humidity ≤ 85% R.H
Working power supply: ac110 ~ 220V 50 / 60Hz, built-in lead-acid battery dc4v / 4ah
Structural features: the table is provided with round or square holes to facilitate the installation of material pipes or weighing tanks, and the frameless type is convenient for installation, commissioning and maintenance
Carbon steel weighing platform: the surface of carbon steel is treated by shot blasting and plastic spraying, with strong corrosion resistance (stainless steel veneer is optional)
Stainless steel scale platform: stainless steel surface polishing and wire drawing treatment
Complete set of equipment: including four load cells, instruments, junction boxes, signal cables and weighing accessories
Application Industry: it is suitable for pharmaceutical, petrochemical, building materials and other production enterprises to measure and monitor the materials in the reactor during the filling and production of various raw materials.
Specification and model:
Product model | weighing | Graduation value (customizable) | Platform size | Platform height | dead weight |
SCS-1T | 1t/2t/3t | 0.2kg/0.5kg/1kg | 1*1m | 110mm | 100kg |
SCS-2T | 1t/2t/3t | 0.2kg/0.5kg/1kg | 1.2*1.2m | 110mm | 110kg |
SCS-3T | 2t/3t/5t | 0.5kg/1kg/2kg | 1.5*1.5m | 110mm | 140kg |
SCS-5T | 3t/5t/10t | 0.5kg/1kg/2kg | 1.5*1.5m | 120mm | 150kg |
Remarks: special measuring range and scale size can be customized according to customer requirements, and 10t measuring range can be customized
Note: non standard customized platform scale is produced on order.
