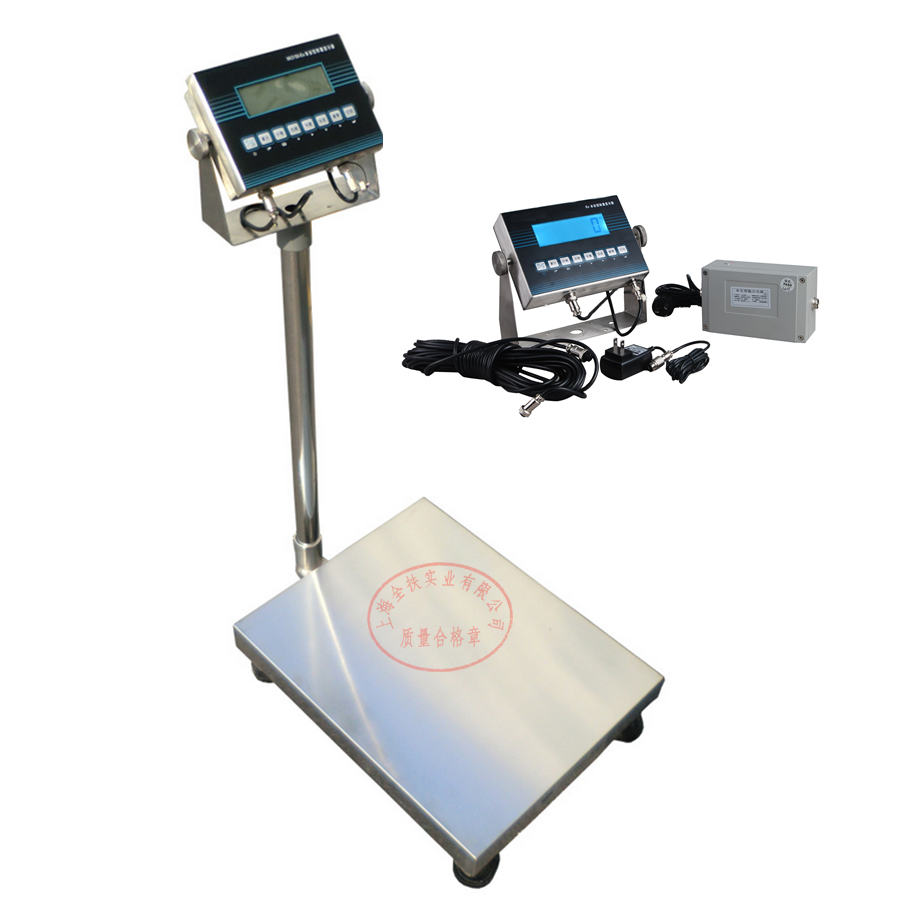

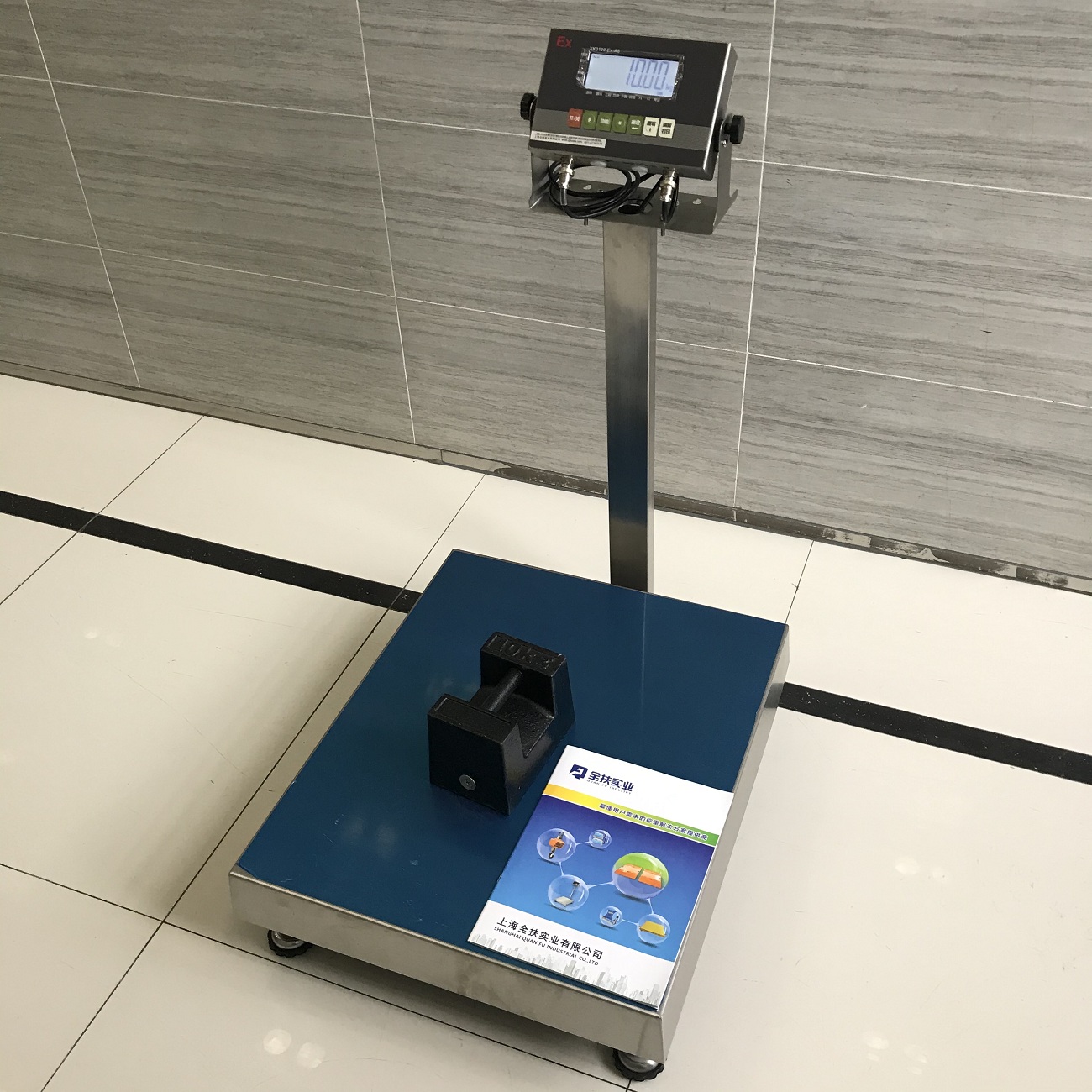

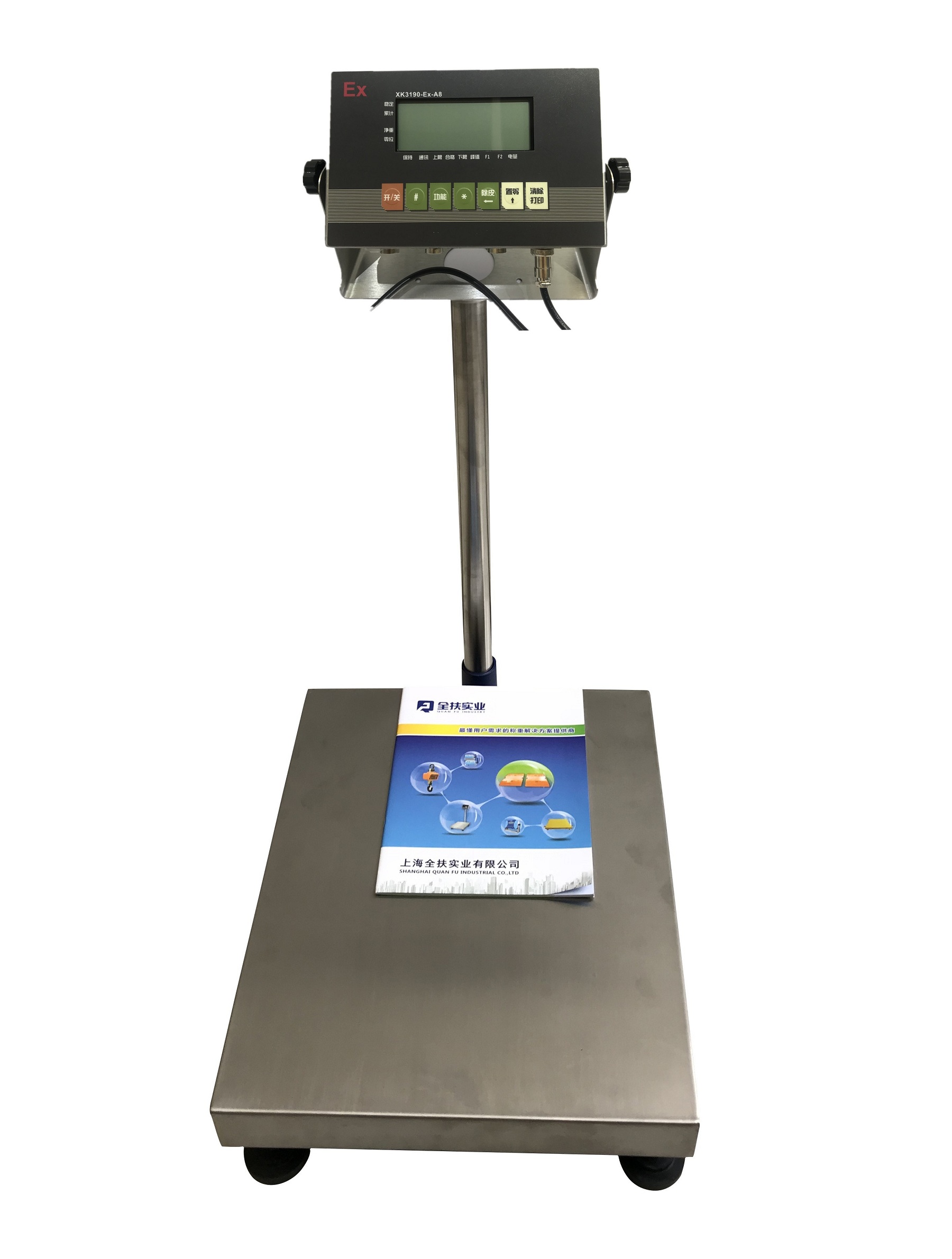

Tcs-ex-a8 series explosion-proof electronic platform scale is a high-precision explosion-proof platform scale with a range of 3kg ~ 1000kg. The intrinsically safe explosion-proof platform scale is composed of an explosion-proof weighing system with intrinsically safe explosion-proof instruments and explosion-proof sensors. The display accuracy can reach 1 / 100000. It has high precision and strong anti-interference ability. The scale structure can be selected from carbon steel and stainless steel, and the waterproof grade of stainless steel can reach IP67. It is specially used in zone II explosion-proof environment, Explosion proof grade: it is widely used in weighing fields with explosion-proof requirements such as petrochemical industry and medicine.

Technical parameters:

Accuracy class: III

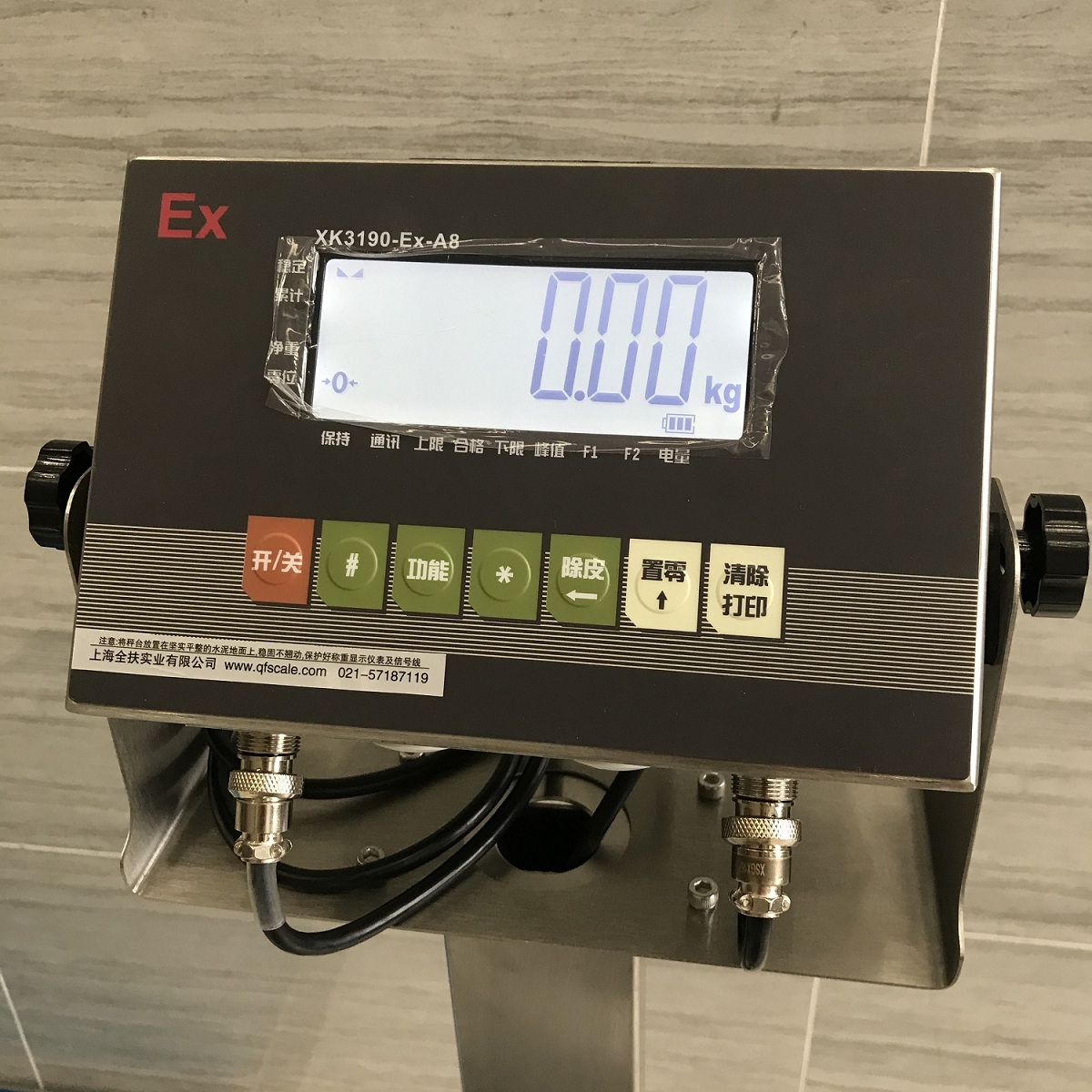

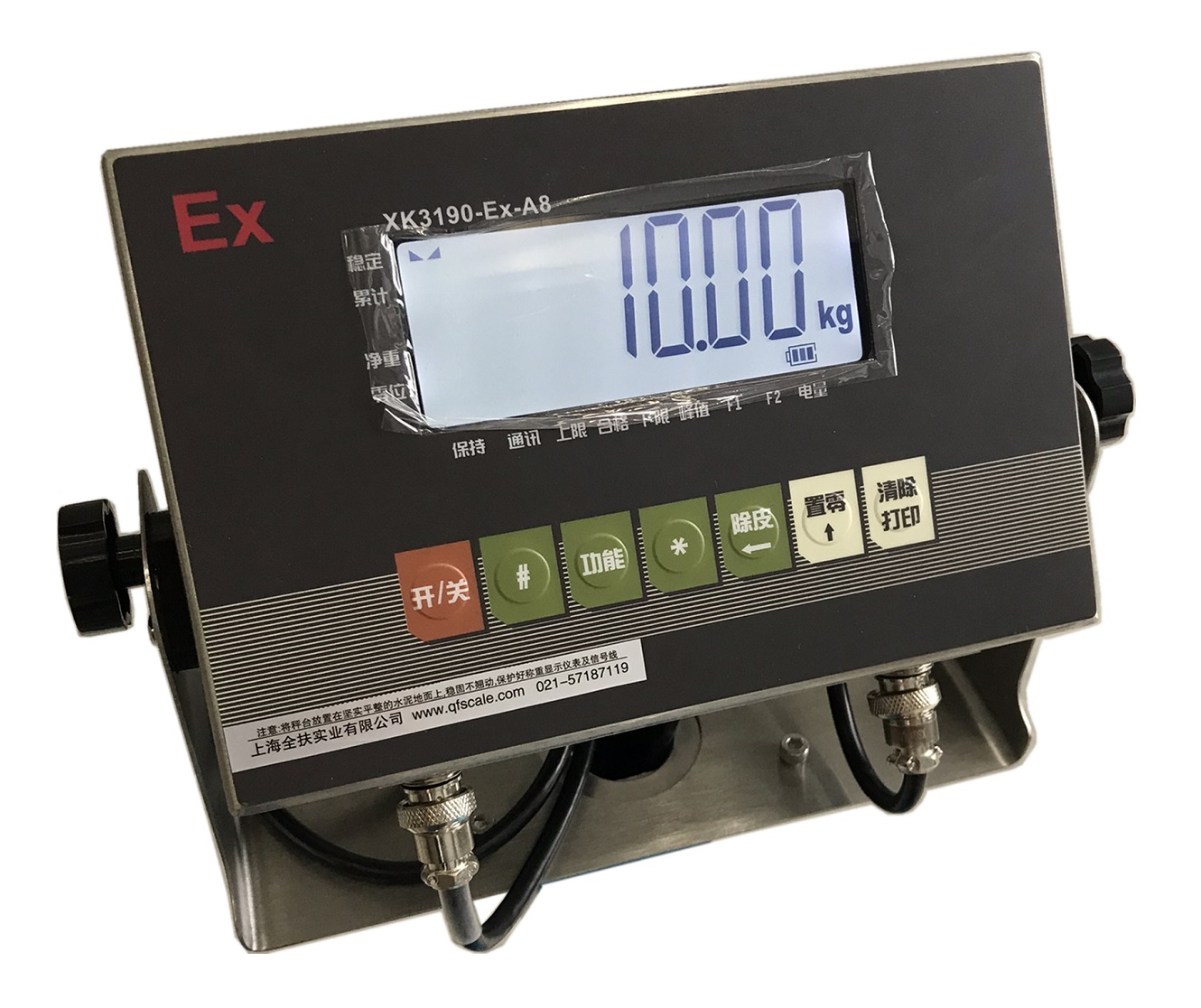

Display: 6-bit LED or LCD with backlight display

Resolution: display 30000, internal 2000000

Explosion proof grade: ex IB IIC T3 / T4 GB adopts intrinsically safe battery pack,

Explosion proof power supply: exibllct3gb adopts intrinsically safe output power supply,

System explosion proof sign: exibllct4gb

Power supply: intrinsically safe output power supply AC100-250V, DC12V

DC: intrinsically safe battery pack dc7 2V/4.0Ah

Working temperature: - 10 ° C ~ + 40 ° C, non condensing humidity: ＜ 85% R.H

Structural features:

5mm steel plate one-time stamping structure or national standard square tube special fixture assembly and welding

Shot blasting and plastic spraying of carbon steel scale frame, polishing and wire drawing of 304 stainless steel table,

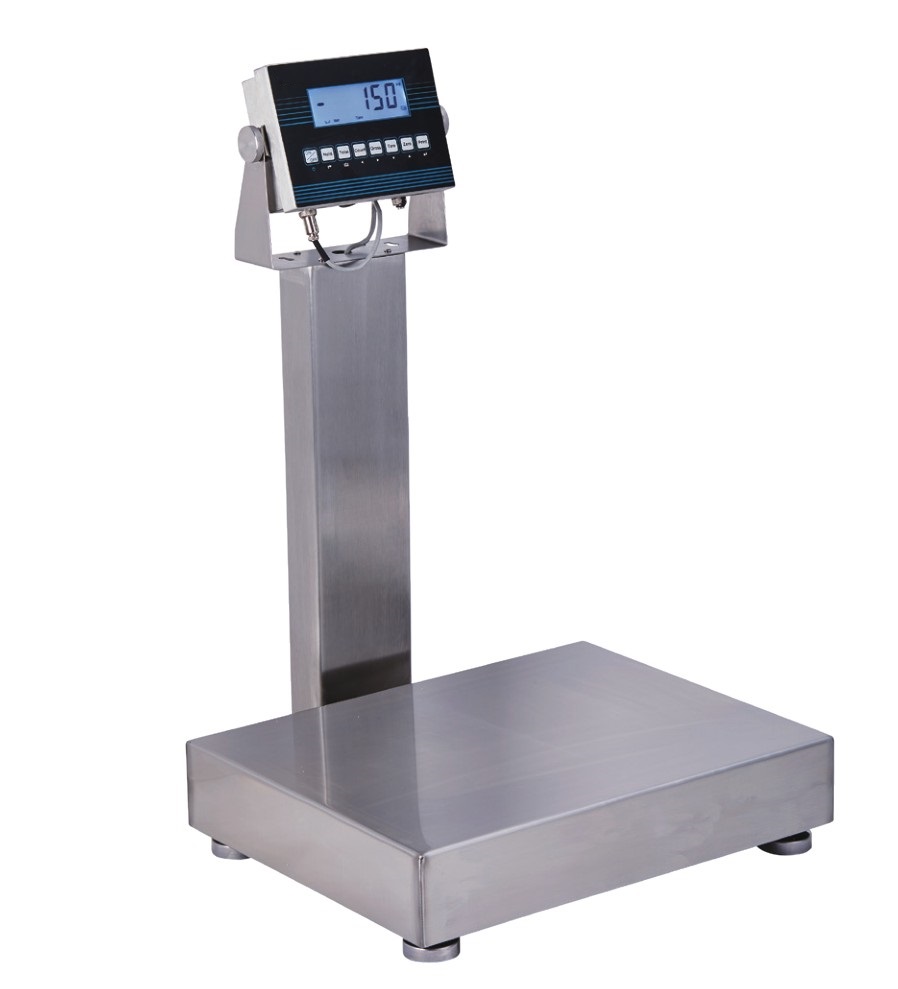

Stainless steel round pipe column or wide column, and the instrument angle is adjustable.

Product functions:

Zero setting, peeling, accumulation and printing

Weight counting, counting, weight checking, holding and sorting

Large screen display interface: serial RS232 output (optional)

Communication interface: RS232 / RS485 (Modbus RTU) (optional)

Analog output: 0-20mA / 4-20mA (optional)

Specification selection:

Product model	weighing	Division value	Platform size
TCS-Ex-A8	30kg/50kg	2g/5g/10g	300*400mm
TCS-Ex-A8	60kg/75kg	2g/5g/10g	400*500mm
TCS-Ex-A8	100kg/200kg	5g/10g/20g	400*500mm
TCS-Ex-A8	150kg/300kg	5g/10g/20g	400*500mm
TCS-Ex-A8	300kg/600kg	10g/20g/50g	600*800mm

remarks: High precision can be customized, and the range, precision and platform size can be matched arbitrarily for order production

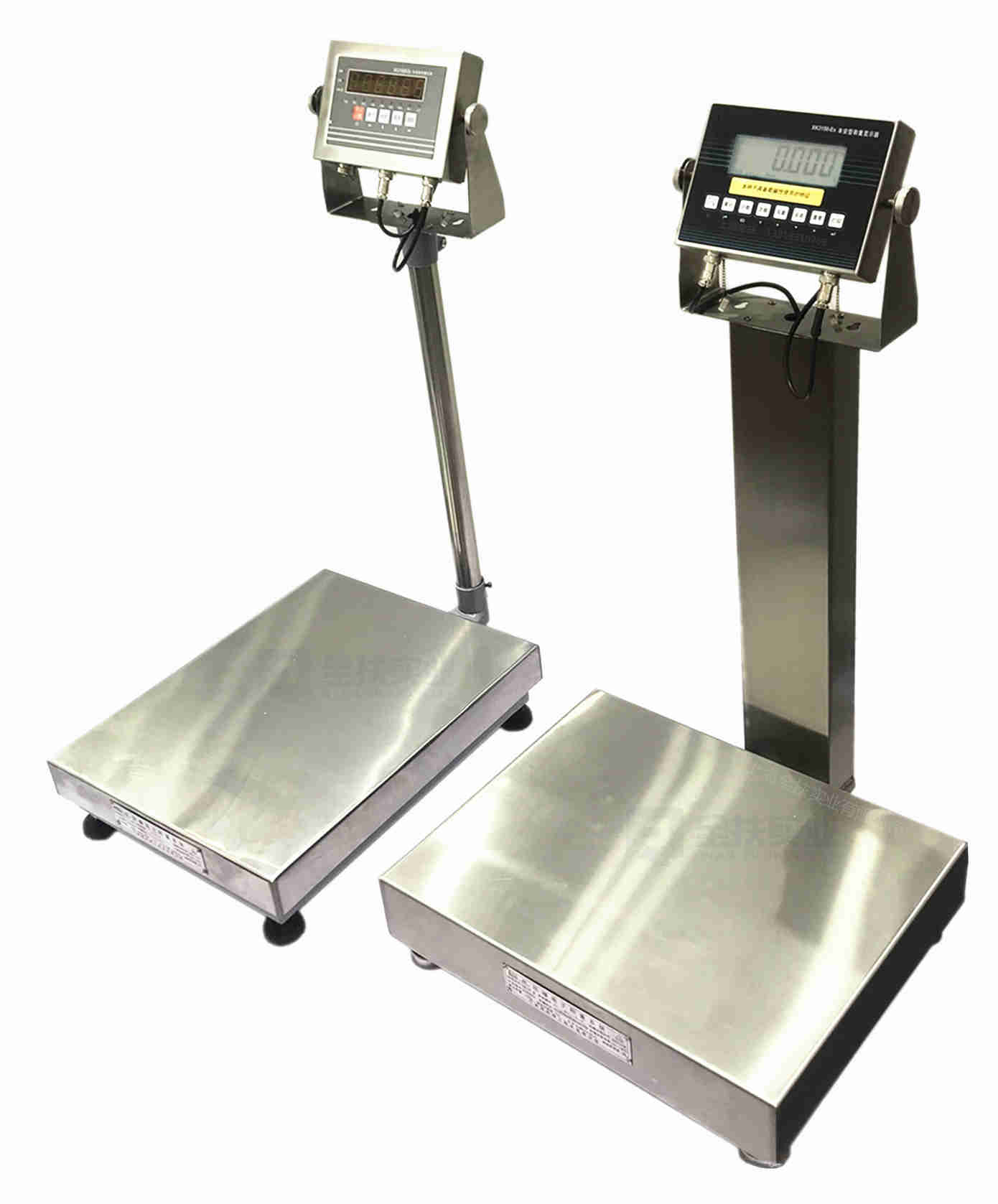

        Carbon steel scale body, stainless steel countertop or all stainless steel material can be selected, and square upright or round upright can be selected

Application: widely used in petrochemical, coating, paint, pharmaceutical, food and other flammable and explosive dangerous places.
