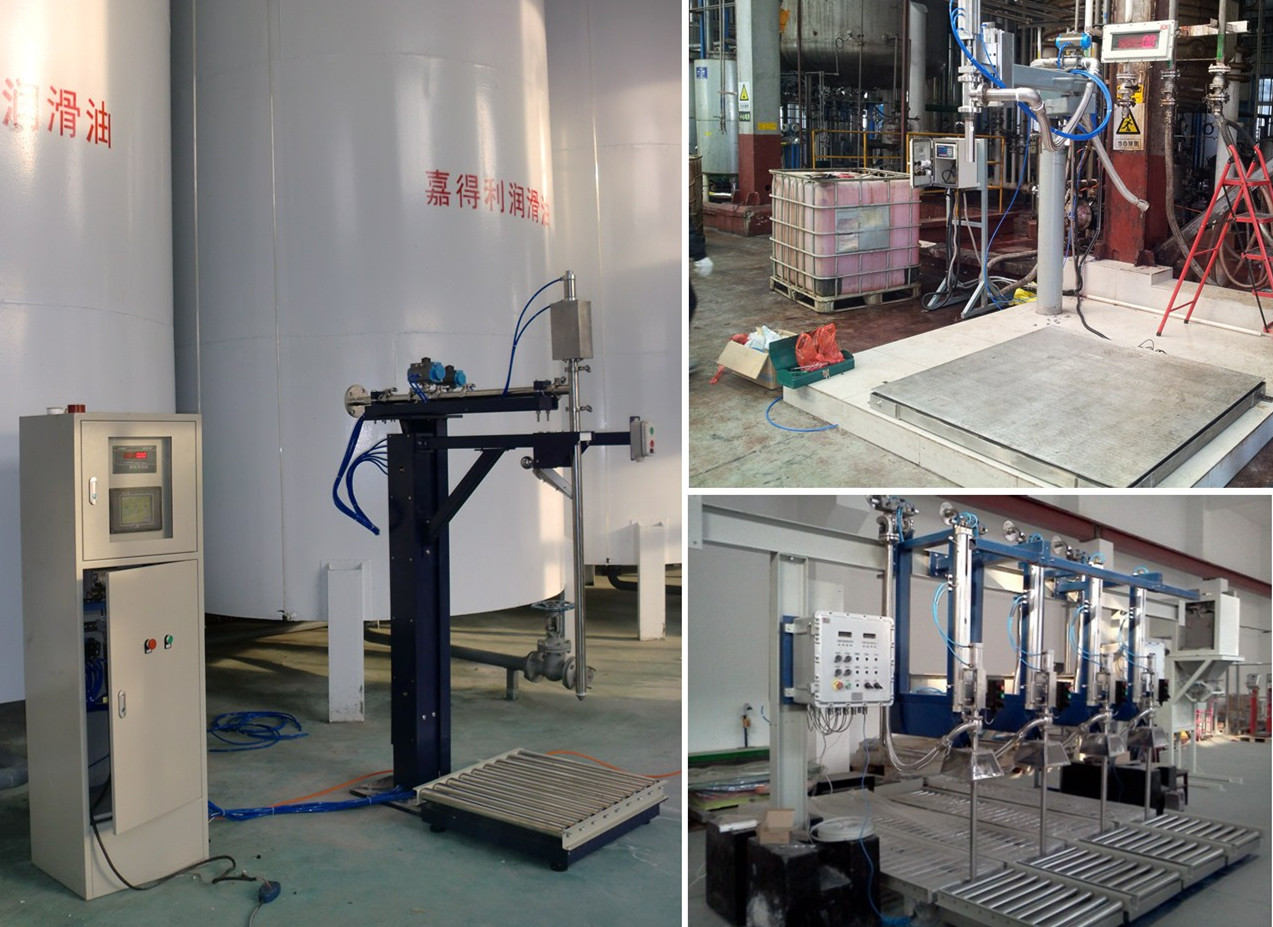

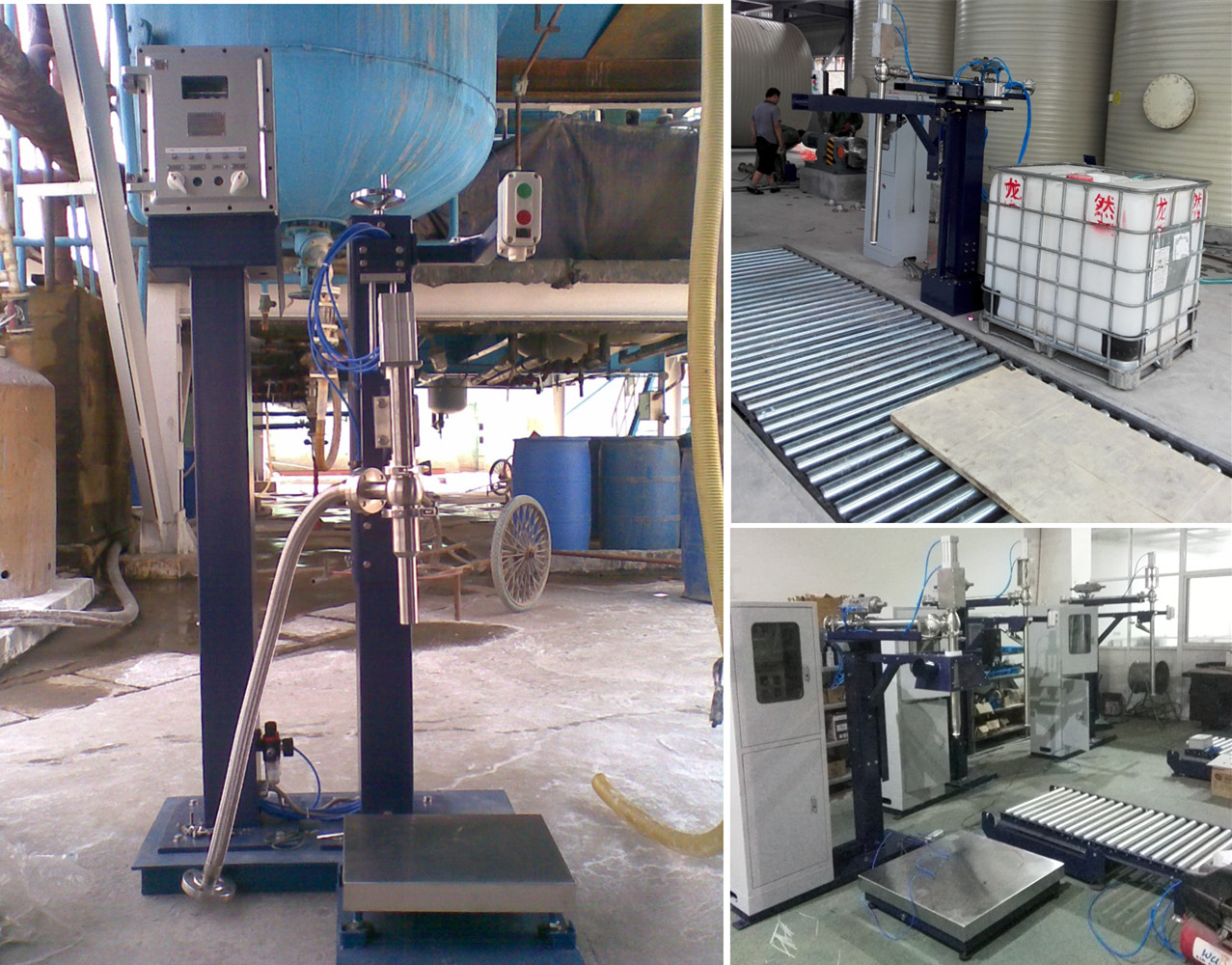

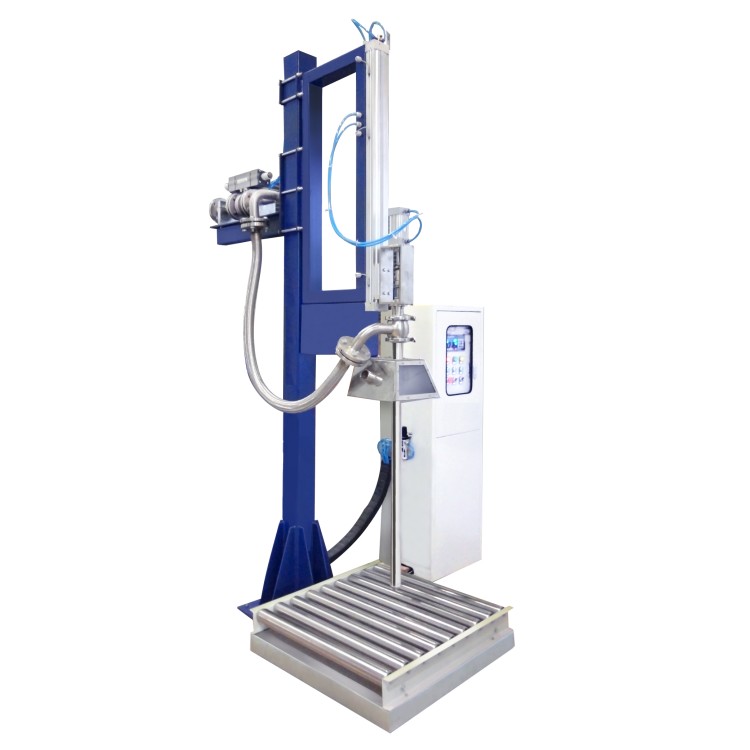

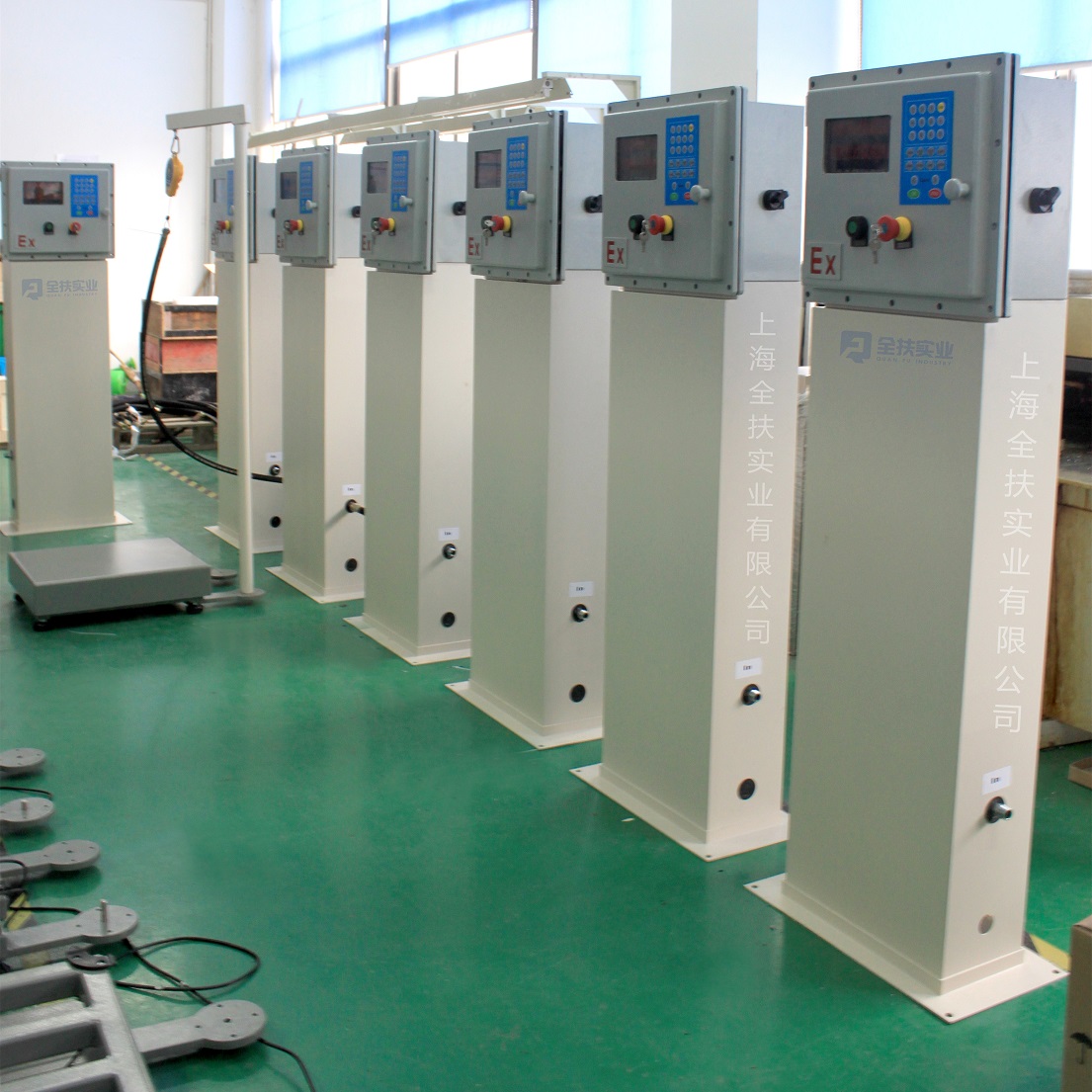

Tcs-lg-300 liquid filling scale, gas filling scale, tcs-lg-300ex explosion-proof filling scale

Shanghai Quanfu various gas filling scales, liquid filling scales and carbon dioxide gas filling scales can be customized without standards

Introduction to filling electronic scale:

Lithium battery, AC power supply

The tare weight of the gas cylinder is automatically removed, and the set amount of the gas cylinder is automatically identified

It can be filled according to the total weight and the net weight of carbon dioxide gas, and the filling speed is faster

Track the filling speed and pressure of carbon dioxide to ensure the filling accuracy

Automatically eliminate the influence of the weight of the inflation gun and the torsion of the metal hose on the filling accuracy

Full range automatic calibration, only need standard weight and key to calibrate the electronic scale, which is very convenient

The upper and lower limits of empty bottle weight can be set. When filling to the set weight, the valve will be closed automatically, and there will be audible and visual alarm

Features of liquid filling scale:

Manual spray gun or automatic spray gun can be selected. The filling scale is a weighing instrument that fills the liquid into the container according to the set weight

Filling electronic scale is generally composed of liquid filling platform, weighing platform and control system

The filling electronic scale generally needs to provide compressed air supply components, and the general pressure is 0.6 ~ 0.1MPa

The specification of the filling scale is within 200kg ~ 600kg, and the filling speed is related to the diameter of the filling scale and the pressure of the liquid

This series of explosion-proof filling scales have gas explosion-proof certification and dust explosion-proof certification

In addition to meeting customers' requirements for weighing accuracy and speed, various instruments and electrical accessories can be configured according to customers' needs

The product itself has reasonable and concise structural design and stable performance. The filling liquid pipeline is made of stainless steel, which can be widely used in liquid filling with various characteristics

This series of explosion-proof filling scales are suitable for most explosive gas and explosive dust environments

Application: liquid filling in explosion-proof environment in petroleum, chemical, pharmaceutical, coating, smelting, food processing and other industries
