Current Position: Home > Company Products >Explosion proof scale > SCS ex explosion proof platform scale

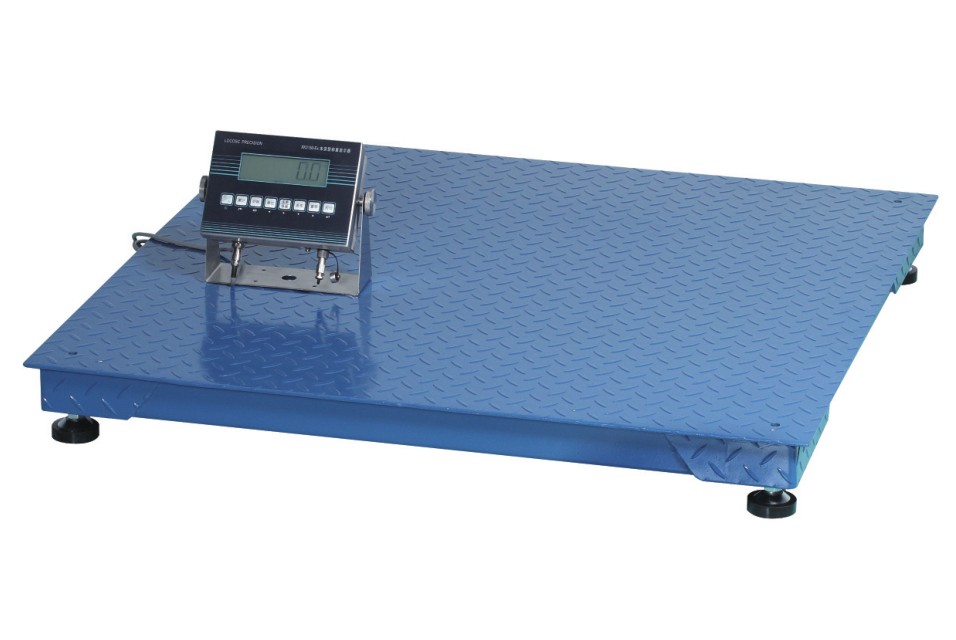

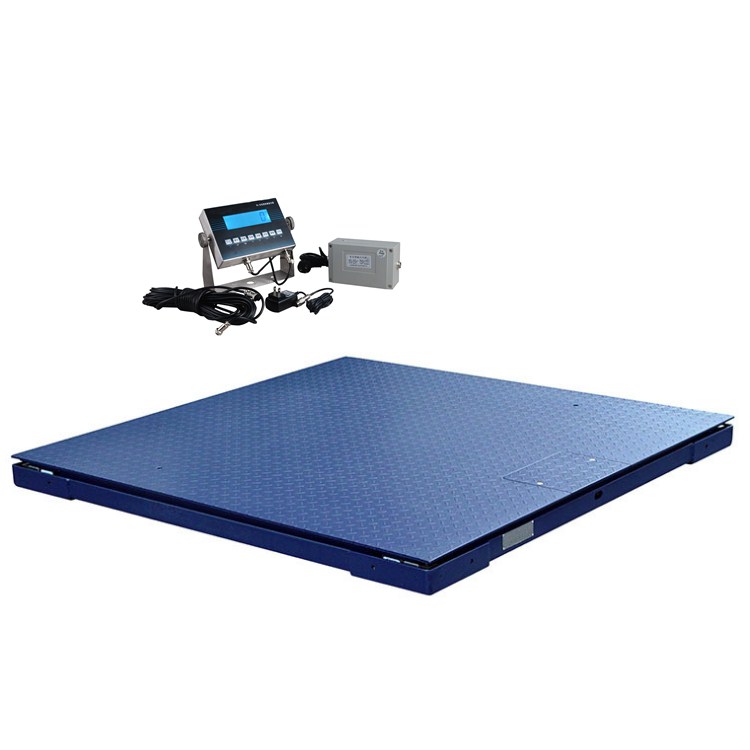

Explosion proof electronic platform scale
Measuring range: 500kg ~ 10t
Intrinsically safe explosion-proof or flameproof explosion-proof optional
More weighing, table size and scale style are available
Explosion proof weighing scales for different applications can be selected according to the actual use needs of users
SCS ex series explosion-proof weighbridge, intrinsically safe explosion-proof electronic platform scale
Technical parameters:
Accuracy class: III
Display: 6-digit led nixie tube or 25mm LCD with backlight display
Resolution: display 30000, internal 2000000
1t, 2T, 5T, 5T and 5T can be customized
Accuracy display: 0.1kg/0.2kg/1kg/2kg (high accuracy can be customized)
Weighing table size: 0.8 × 0.8m~2 × 2m (various table sizes are optional) ）
System explosion proof sign: ex IB IIC T3 / T4 GB
The intrinsically safe battery pack is selected, and the explosion-proof sign of the system is ex IB IIC T3 GB
The intrinsically safe output power supply is selected, and the explosion-proof mark of the system is ex IB IIC T4 GB
Power supply: intrinsically safe output power supply AC100 ~ 250V, DC12V
DC: de002 intrinsically safe battery pack dc7 4V/4.0Ah
Working temperature: - 10 ℃ ~ + 40 ℃, non condensing humidity: ≤ 85% R.H
Product functions:
Zero setting, peeling, accumulation and printing
Weight counting, counting, weight checking, holding and sorting
Large screen display interface: serial RS232 output (optional)
Communication interface: RS232 / RS485 (Modbus RTU) (optional)
Analog output: 0-20mA / 4-20mA / 0-5V (optional)

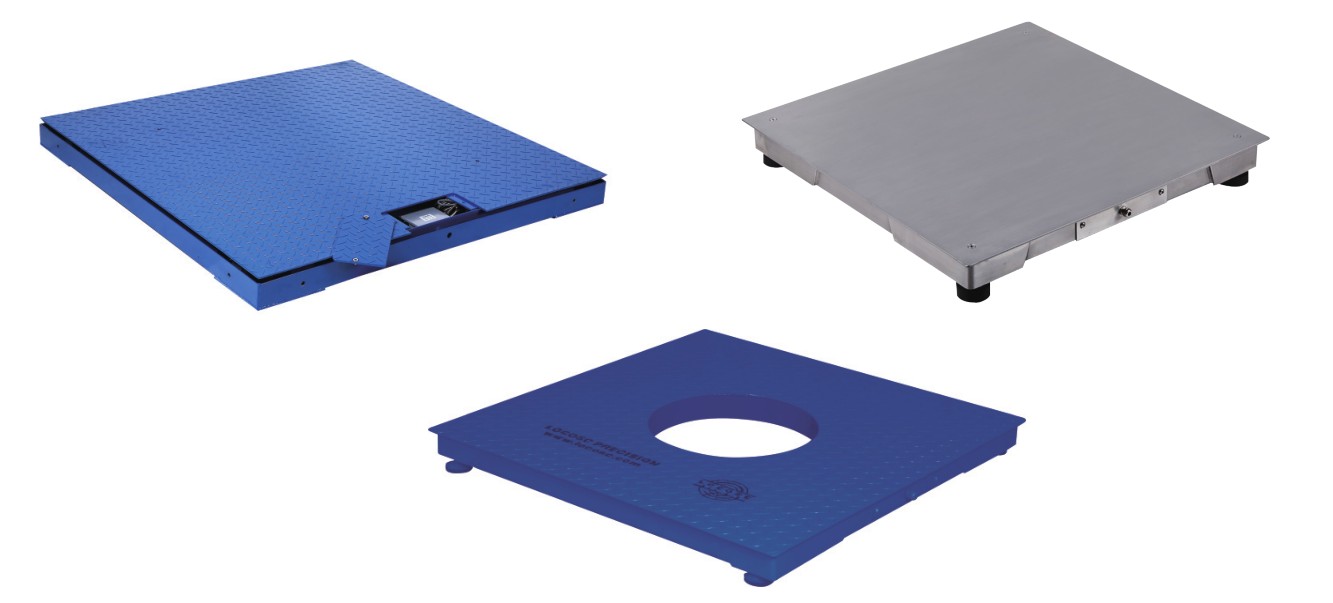

Platform structure:
U-shaped steel assembly and welding structure, high strength design
Material: carbon steel or stainless steel, checkered steel or flat panel
Carbon steel weighing platform: overall shot blasting, plastic spraying, paint baking or galvanizing treatment
Surface polishing and wire drawing process of stainless steel scale
Four high-precision shear beam load cells
Instrument 304 stainless steel casing, angle adjustable

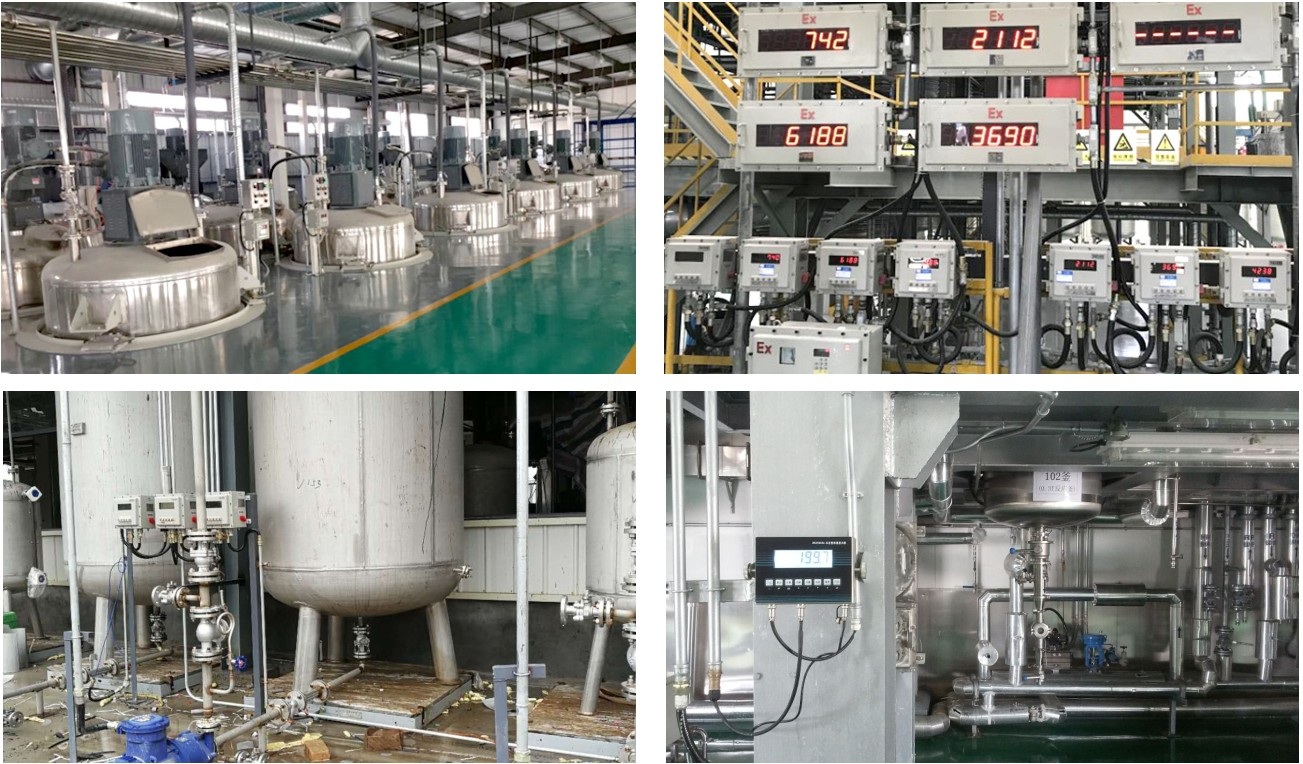

Application case of explosion-proof electronic weighing system:
Application site: It is widely used in flammable and explosive dangerous places such as petrochemical industry, coating, paint, pharmacy and food.
Ex-a8 explosion-proof instrument, ex-xk3150 explosion-proof instrument
Stainless steel intrinsically safe explosion-proof instrument is suitable for all kinds of explosion-proof electronic weighing systems
It is used in most explosive gas occasions such as explosion-proof platform scale, platform scale and weighing module
Exd flameproof electronic scale weighing instrument
Steel plate welding type, surface shot blasting and plastic spraying treatment
Fully sealed, waterproof, oil proof and anti-corrosion
Working temperature: - 10 ° C ~ + 40 ° C, humidity: ＜ 85% R.H
Explosion proof sign: Exd [IA iicga] IIBT6Gb
National instrument certification explosion-proof safety supervision and inspection station
Flameproof weighing instrument Flameproof electronic scale control instrument
Explosion proof sign: Exd [iaiic GA] IIB T6 GB
Filling scale Quantitative filling, automatic cut-off
Intrinsically safe, explosion-proof or flameproof, safe and reliable, one piece setting, simple weighing
Explosion proof electronic platform scale
Measuring range: 500kg ~ 10t
Intrinsically safe explosion-proof or flameproof explosion-proof optional
More weighing, table size and scale style are available
Explosion proof weighing scales for different applications can be selected according to the actual use needs of users
Explosion proof electronic balance 100g ~ 3kg weighing is explosion-proof balance
3 ~ 30kg weighing is explosion-proof electronic scale
High precision explosion-proof electronic balance
Intrinsically safe explosion-proof electronic scale, explosion-proof hanging scale
1t ~ 10t range optional, all stainless steel explosion-proof scale body
Explosion proof grade: exib iictsgb
Professional explosion-proof hanging scale good quality hanging scale
Intrinsically safe explosion-proof electronic scale, explosion-proof platform scale
30kg ~ 1000kg range optional, stainless steel explosion-proof instrument
High quality stainless steel scale body, high-precision weighing element, large screen LCD display
It can be used for direct weighing and data transmission in complex and harsh environment
RS232 / 485 interface or 4-20mA communication can be configured
