Current Position: Home > Company Products >Explosion proof scale > Ex-300 explosion proof electronic scale
Explosion proof electronic balance 100g ~ 3kg weighing is explosion-proof balance
3 ~ 30kg weighing is explosion-proof electronic scale
High precision explosion-proof electronic balance

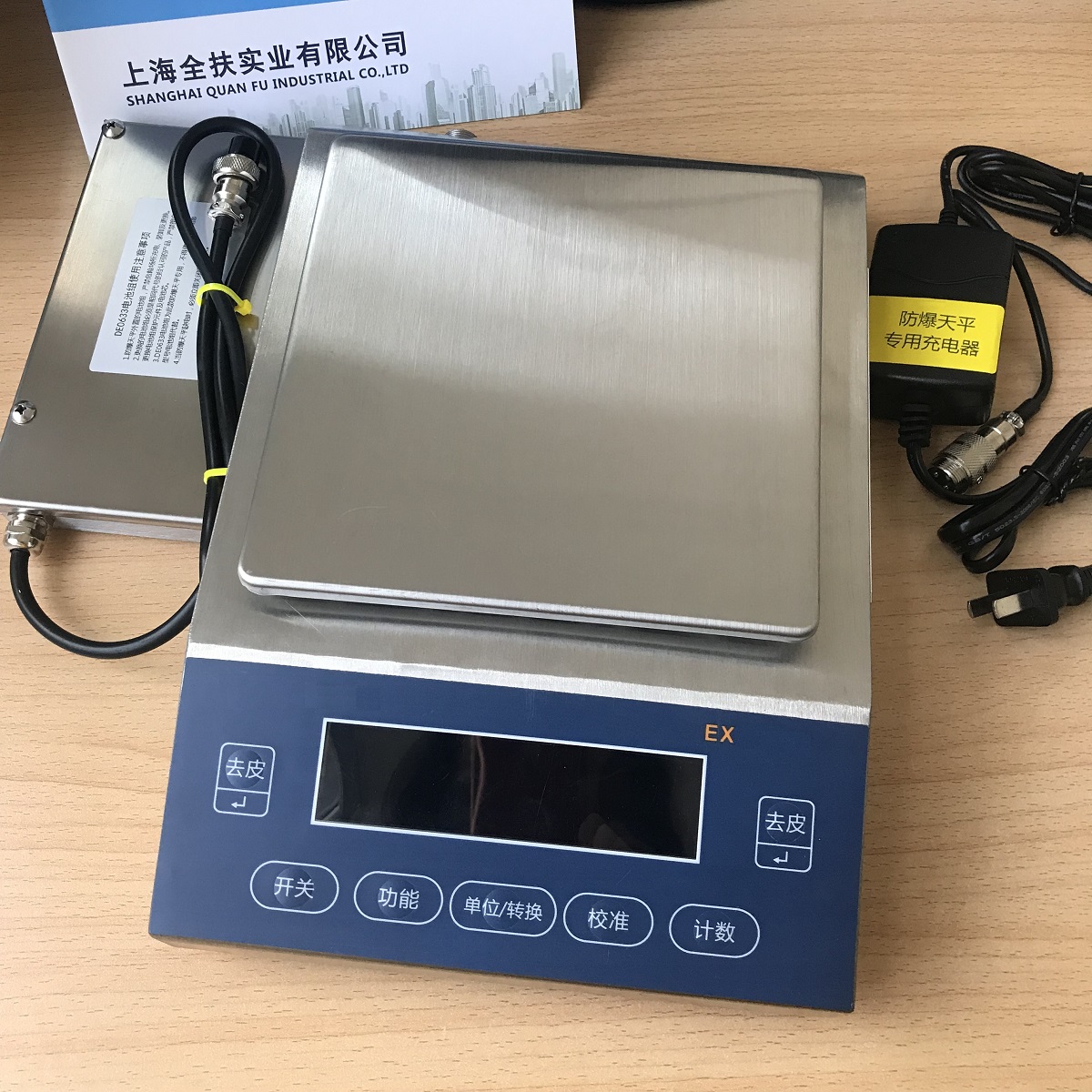

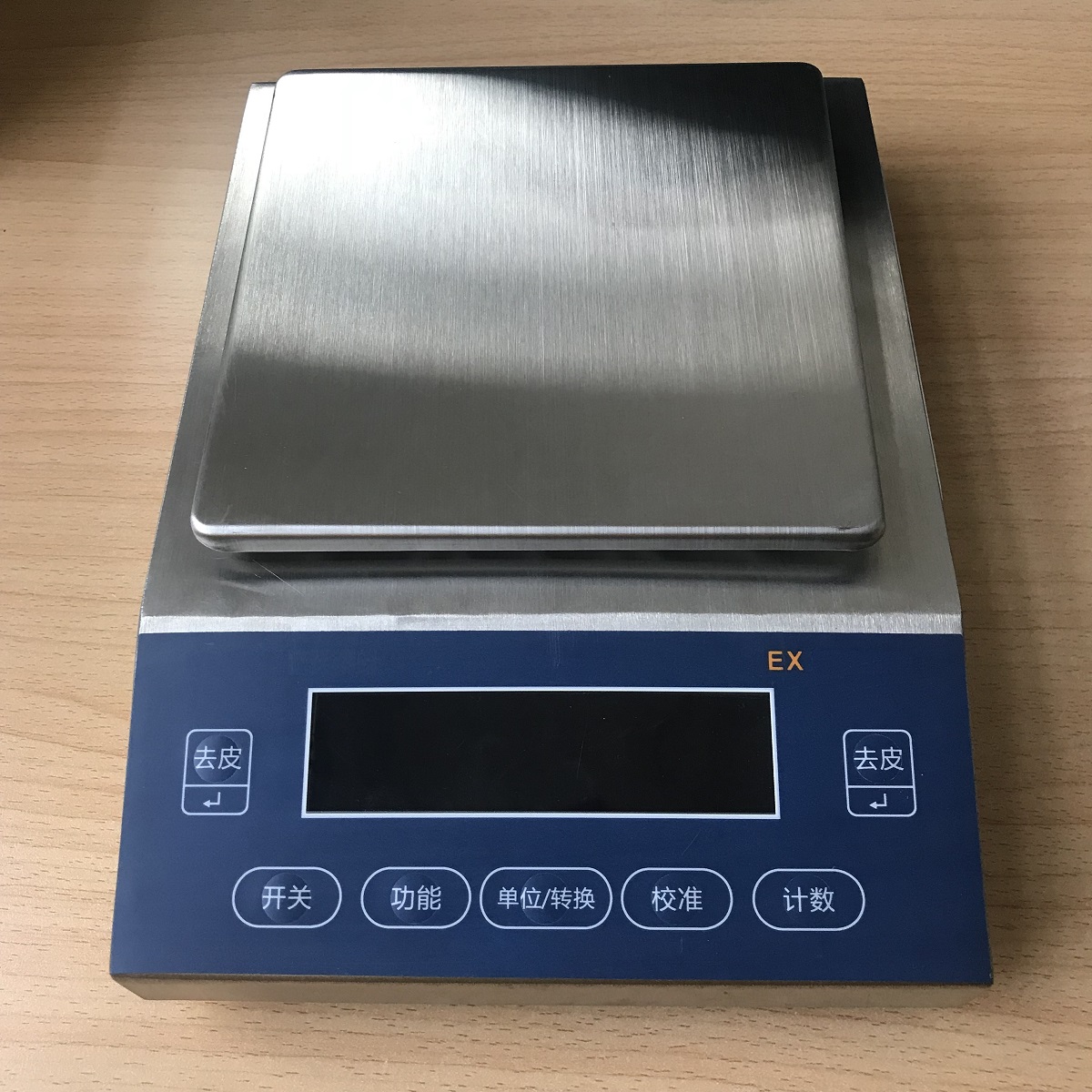

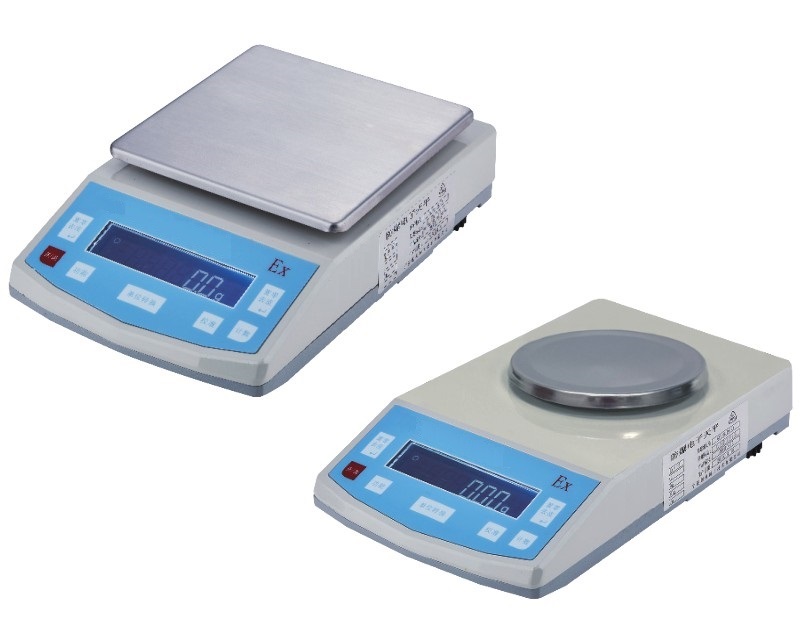

Ex-300 series explosion proof electronic scale 0.1g ~ 0.001g explosion-proof electronic balance
Technical parameters:
Accuracy level: Level 3
Display: 7-bit LED or LCD with backlight display
Weighting unit: g / kg
System explosion proof sign: ex IB IIC T3 / T4 GB
Power supply: de002 intrinsically safe battery pack dc7 4V/4.0Ah
Operating temperature: 15 ℃ ~ + 30 ℃, non condensing humidity: 40% R.H ~ 80% R.H
Functional features:
Zero setting, full range peeling, weight counting, counting function, automatic external weight calibration
It has the functions of memory, fault display, full-automatic fault detection and overload protection
Precision cast aluminum alloy shell structure, with strong anti-interference ability
Plastic spraying and paint baking treatment process on the surface, corrosion resistance
304 stainless steel tray and high precision single point load cell
Optional RS232 communication interface, external printer
Specification selection:
Product model | weighing | Division value | Pan size |
Ex-300 | 100~300g | 0.001g | φ 125mm |
Ex-300 | 0.5~2kg | 0.01g | φ 125mm |
Ex-300 | 3~6kg | 0.01g | 180*180mm |
Ex-300 | 10~30kg | 0.1g | 180*180mm |
Applications: petroleum, chemical, pharmaceutical, smelting, coking, gunpowder, granary, coating, flour mill, finishing and other occasions
Ex-a8 explosion-proof instrument, ex-xk3150 explosion-proof instrument
Stainless steel intrinsically safe explosion-proof instrument is suitable for all kinds of explosion-proof electronic weighing systems
It is used in most explosive gas occasions such as explosion-proof platform scale, platform scale and weighing module
Exd flameproof electronic scale weighing instrument
Steel plate welding type, surface shot blasting and plastic spraying treatment
Fully sealed, waterproof, oil proof and anti-corrosion
Working temperature: - 10 ° C ~ + 40 ° C, humidity: ＜ 85% R.H
Explosion proof sign: Exd [IA iicga] IIBT6Gb
National instrument certification explosion-proof safety supervision and inspection station
Flameproof weighing instrument Flameproof electronic scale control instrument
Explosion proof sign: Exd [iaiic GA] IIB T6 GB
Filling scale Quantitative filling, automatic cut-off
Intrinsically safe, explosion-proof or flameproof, safe and reliable, one piece setting, simple weighing
Explosion proof electronic platform scale
Measuring range: 500kg ~ 10t
Intrinsically safe explosion-proof or flameproof explosion-proof optional
More weighing, table size and scale style are available
Explosion proof weighing scales for different applications can be selected according to the actual use needs of users
Explosion proof electronic balance 100g ~ 3kg weighing is explosion-proof balance
3 ~ 30kg weighing is explosion-proof electronic scale
High precision explosion-proof electronic balance
Intrinsically safe explosion-proof electronic scale, explosion-proof hanging scale
1t ~ 10t range optional, all stainless steel explosion-proof scale body
Explosion proof grade: exib iictsgb
Professional explosion-proof hanging scale good quality hanging scale
Intrinsically safe explosion-proof electronic scale, explosion-proof platform scale
30kg ~ 1000kg range optional, stainless steel explosion-proof instrument
High quality stainless steel scale body, high-precision weighing element, large screen LCD display
It can be used for direct weighing and data transmission in complex and harsh environment
RS232 / 485 interface or 4-20mA communication can be configured
Shanghai Quanfu Industrial Co., Ltd. specializes in high-end and high-quality weighing instruments. For more than 10 years, it has devoted itself to the development, production and sales of electronic weighing instruments. Its products are used in laboratories, industrial production and manufacturing and food retailing.
