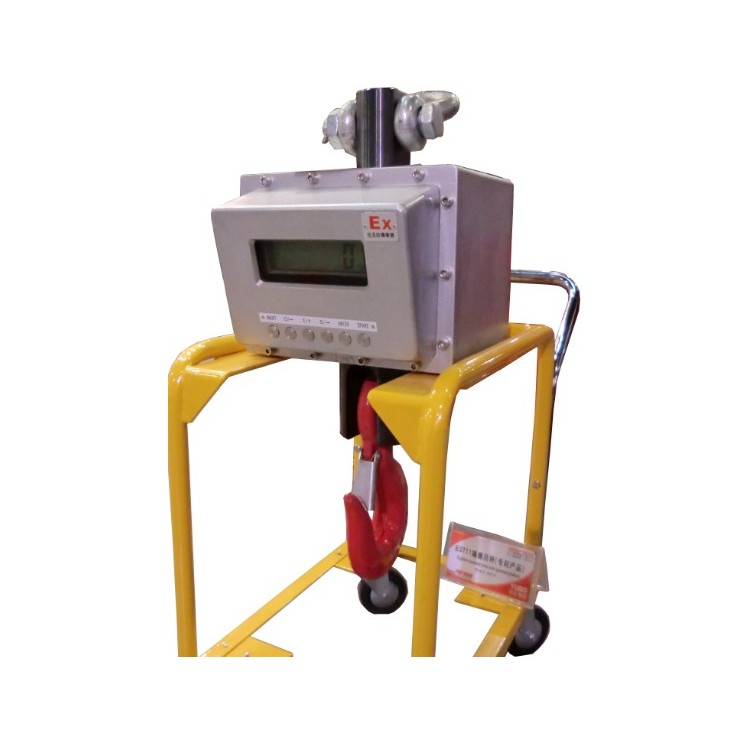

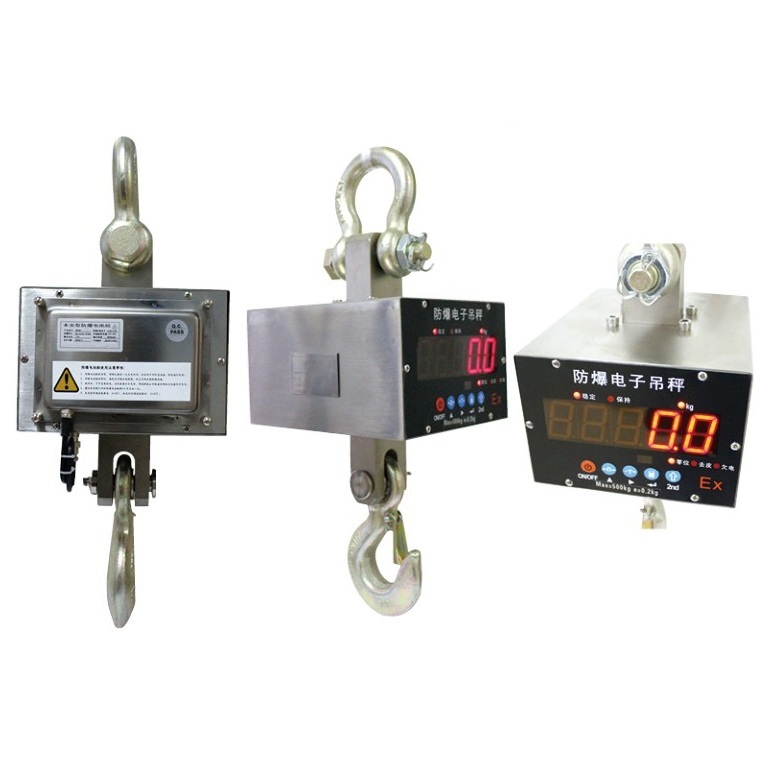

OCS ex series explosion-proof electronic hanging scale, The low-power design technology of intrinsically safe circuit is adopted. The display controller and the weighing system form an integrated structure.

It has the characteristics of small volume, light weight, convenient mobile maintenance, safety and reliability.

Technical parameters:

Accuracy class: III

Display: 5-digit 38mm led nixie tube or 40mm LCD with backlight display

System explosion proof sign: exib iictsgb

Power supply: DC de001 intrinsically safe battery pack dc7 2V/4.0Ah

Battery life: 80-150 hours

Working temperature: - 10 ° C ~ + 40 ° C, non condensing humidity: & lt; 85%R.H

Structural features:

Integrated pull sensor design ensures weighing accuracy and strength

304 stainless steel shell design ensures structural strength

Front and rear sealing design to ensure moisture-proof performance

Strengthen the alloy steel hook assembly to ensure overload performance and safety performance

Product functions:

Zero setting, peeling, accumulation, weight counting, storage and preset tare weight

Holding function: peak holding, data holding, automatic holding and weight locking function

Store 10 times of weighing data, shutdown and save, power saving function, idle mode and automatic shutdown

It has the functions of undervoltage indication and undervoltage shutdown

Infrared remote control operation startup, shutdown and division value mode

Optional RS232 / RS485

Specification selection:

Product model	weighing	Division value	dead weight
OCS-Ex	1t/2t/3t	0.2/0.5/1kg	20kg
OCS-Ex	5t	1/2kg	25kg
OCS-Ex	10t	2/5kg	35kg
OCS-Ex	15t/20t	5kg/10kg	45kg

Note: the non-standard hanging scale can be customized according to the use requirements of customers

Explosion proof electronic weighing apparatus is based on common electronic weighing apparatus and adopts various technical measures such as voltage reduction, current limiting, isolation, sealing and optical cable communication to eliminate or block the possible ignition sources (electrical sparks, electrostatic sparks, high temperature...) in the electrical circuit in the weighing apparatus Thus, the electronic weighing instrument can work safely and reliably in the corresponding dangerous area. At present, the explosion-proof products produced by our company include explosion-proof weighing sensors, explosion-proof junction boxes, intrinsically safe weighing instruments, explosion-proof weighing instruments, safety barrier components, explosion-proof electronic platform scales, explosion-proof electronic hanging scales, explosion-proof scales and other special explosion-proof products for weighing instruments.
