Current Position: Home > Company Products >Explosion proof scale > Exd flameproof weighing instrument

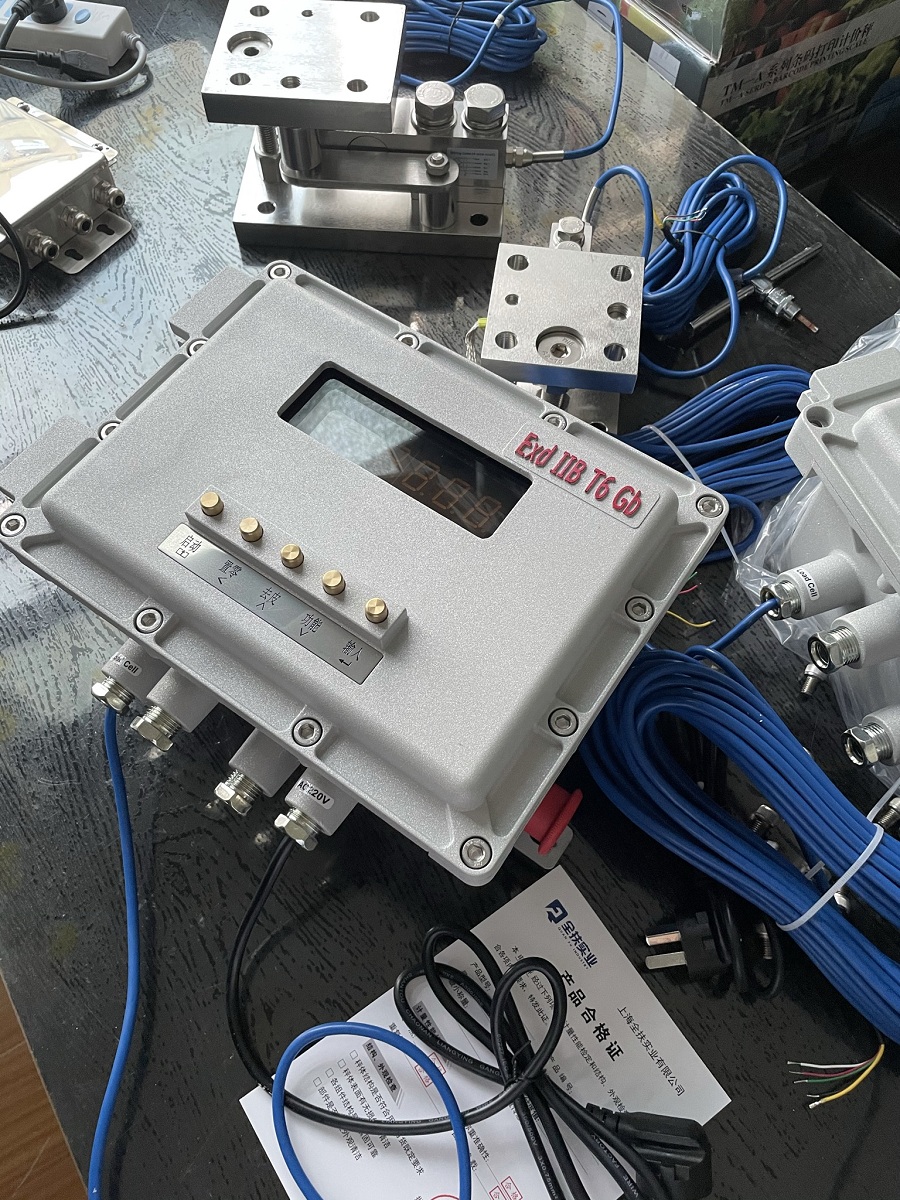

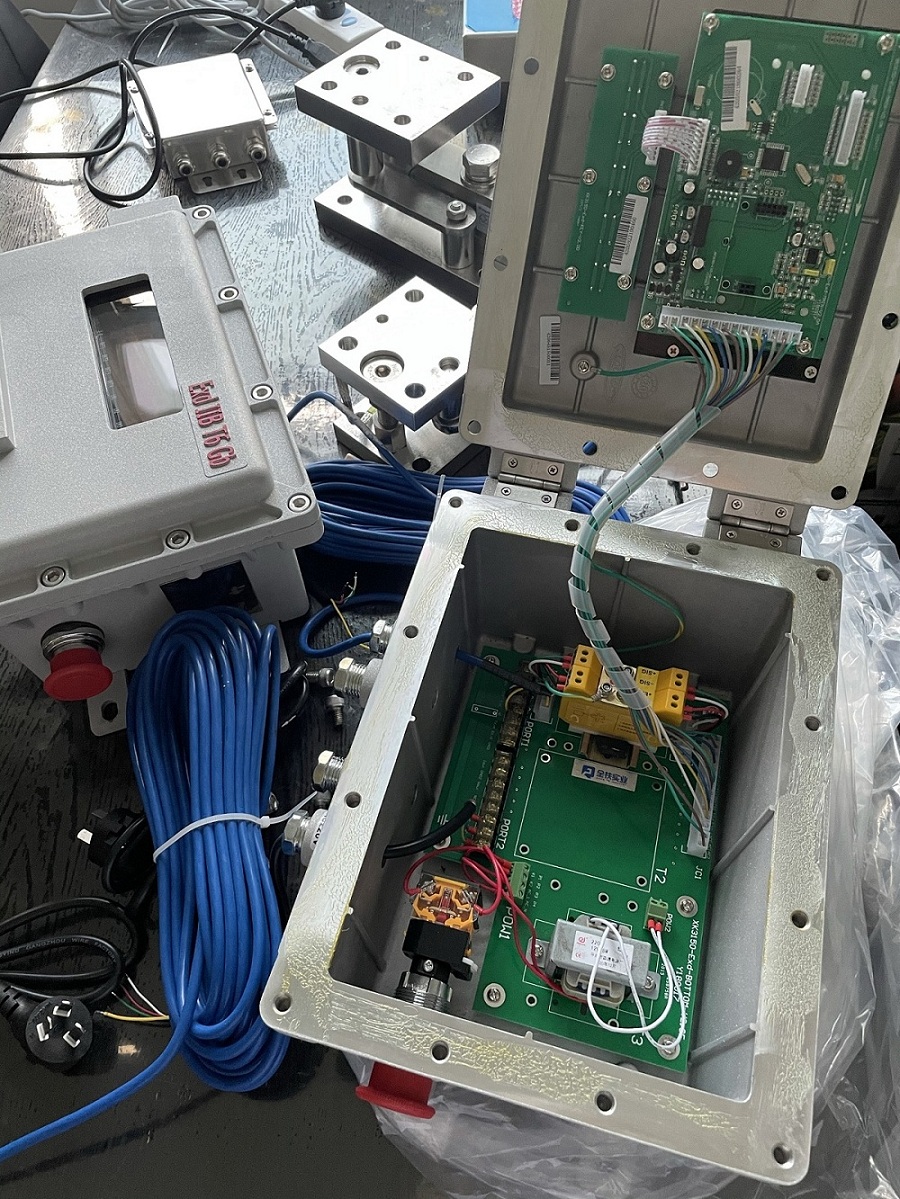

Exd flameproof electronic scale weighing instrument
Steel plate welding type, surface shot blasting and plastic spraying treatment
Fully sealed, waterproof, oil proof and anti-corrosion
Working temperature: - 10 ° C ~ + 40 ° C, humidity: ＜ 85% R.H
Explosion proof sign: Exd [IA iicga] IIBT6Gb
National instrument certification explosion-proof safety supervision and inspection station
Xk3150 Exd explosion-proof weighing instrument explosion-proof weighing scale explosion-proof electronic scale explosion-proof instrument
Technical parameters:
Accuracy level: Level 3
Display: 6 Bit 20mm LED
OAD Conversion: z-a, 24bit
Input signal range: - 30mV ~ 30mV
Minimum resolution: 0.3uv/d
Bridge supply voltage: 5V DC
Driving capacity: 4 350q analog sensors

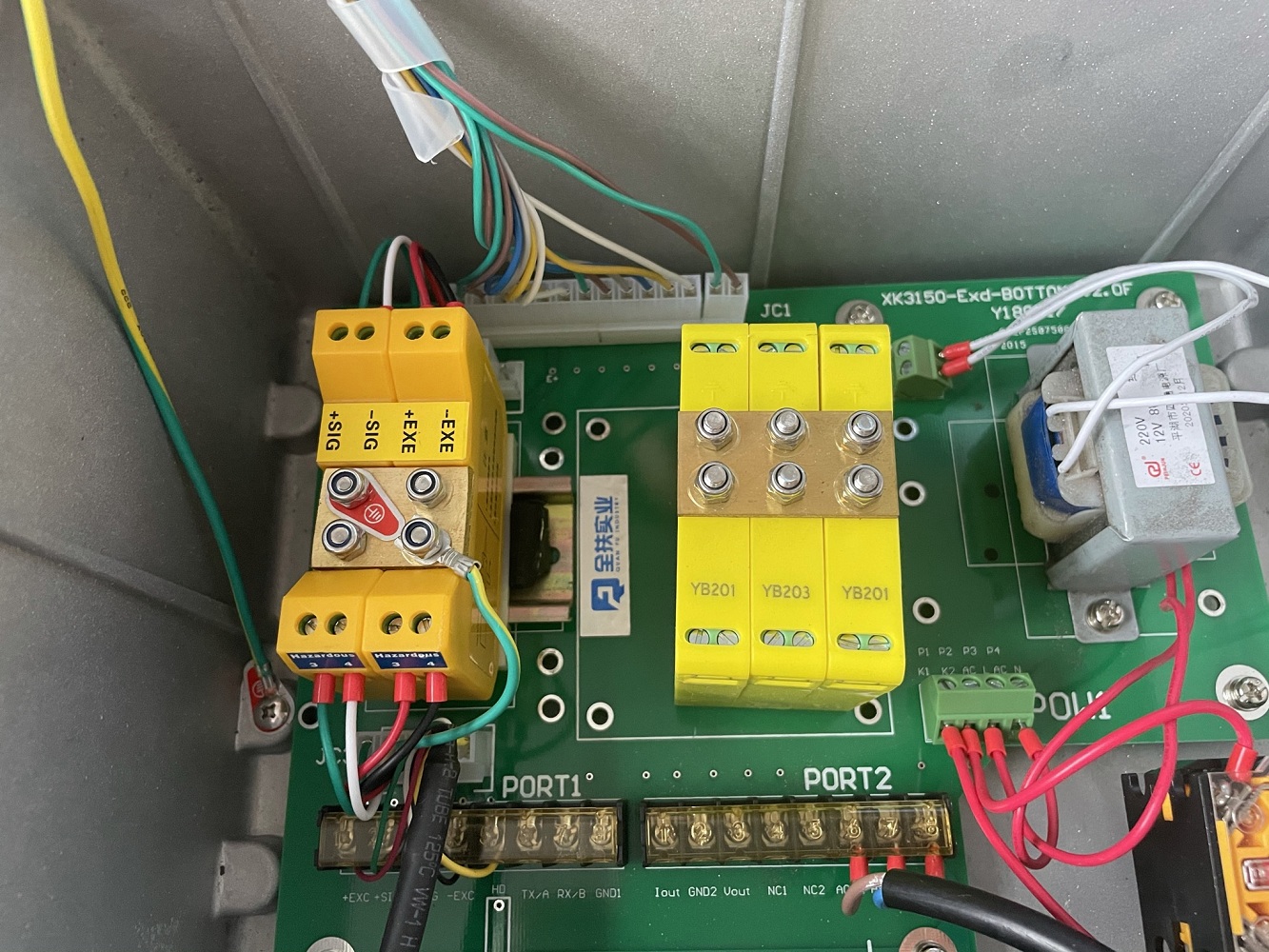

Sensor interface: 4-wire system
Optional functions:
Large screen output interface : Isolated serial RS232 output
Serial communication interface : Isolated serial RS232 / RS485 mode, baud rate: 600-9600 optional
The upper and lower limit alarm function can be externally connected with explosion-proof alarm lamp
Relay output: 4-way solid state relay (ac250v3a)
Switching value input: empty contact or active contact, photoelectric isolation, Isolation voltage 2500V
Analog output: isolated 0-20mA / 4-20mA / 0-5V (choose one of the three modes)
Extensible multi class industrial bus interface: Modbus-RTU/TCP、 Profibus-DPs Ethernet interface
Functional features:
Basic functions: zero setting, peeling, weighing, PLC connection, setting value, batching, sorting scale function, weight checking scale function
Extended functions: input metering, discharge metering, upper and lower limit alarm function, fixed value output, etc
Power supply: AC 220V50 〜 60Hz Or DC 24V
Advantages: Shanghai Quanfu only makes high-quality flameproof weighing instruments, which can stand the test.
Application: equipped with various explosion-proof weighing systems, constant value control scales, batching control system scales, explosion-proof platform scales, explosion-proof weighing modules and other explosion-proof weighing scales that can be connected with PLC or DCS systems.
Ex-a8 explosion-proof instrument, ex-xk3150 explosion-proof instrument
Stainless steel intrinsically safe explosion-proof instrument is suitable for all kinds of explosion-proof electronic weighing systems
It is used in most explosive gas occasions such as explosion-proof platform scale, platform scale and weighing module

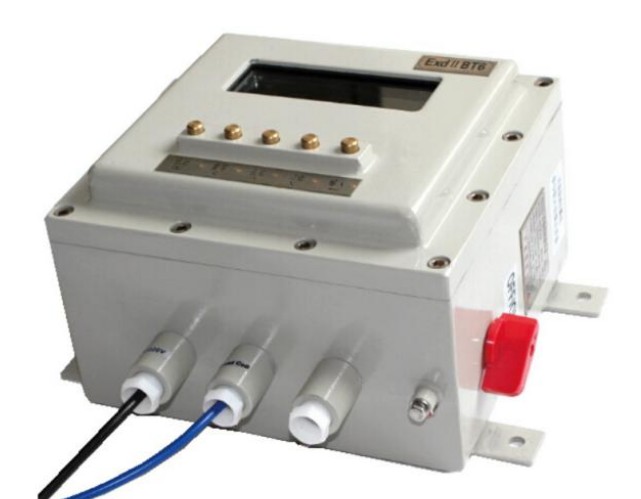

Exd flameproof electronic scale weighing instrument
Steel plate welding type, surface shot blasting and plastic spraying treatment
Fully sealed, waterproof, oil proof and anti-corrosion
Working temperature: - 10 ° C ~ + 40 ° C, humidity: ＜ 85% R.H
Explosion proof sign: Exd [IA iicga] IIBT6Gb
National instrument certification explosion-proof safety supervision and inspection station
Flameproof weighing instrument Flameproof electronic scale control instrument
Explosion proof sign: Exd [iaiic GA] IIB T6 GB
Filling scale Quantitative filling, automatic cut-off
Intrinsically safe, explosion-proof or flameproof, safe and reliable, one piece setting, simple weighing
Explosion proof electronic platform scale
Measuring range: 500kg ~ 10t
Intrinsically safe explosion-proof or flameproof explosion-proof optional
More weighing, table size and scale style are available
Explosion proof weighing scales for different applications can be selected according to the actual use needs of users
Explosion proof electronic balance 100g ~ 3kg weighing is explosion-proof balance
3 ~ 30kg weighing is explosion-proof electronic scale
High precision explosion-proof electronic balance
Intrinsically safe explosion-proof electronic scale, explosion-proof hanging scale
1t ~ 10t range optional, all stainless steel explosion-proof scale body
Explosion proof grade: exib iictsgb
Professional explosion-proof hanging scale good quality hanging scale
Intrinsically safe explosion-proof electronic scale, explosion-proof platform scale
30kg ~ 1000kg range optional, stainless steel explosion-proof instrument
High quality stainless steel scale body, high-precision weighing element, large screen LCD display
It can be used for direct weighing and data transmission in complex and harsh environment
RS232 / 485 interface or 4-20mA communication can be configured
Shanghai Quanfu Industrial Co., Ltd. specializes in high-end and high-quality weighing instruments. For more than 10 years, it has devoted itself to the development, production and sales of electronic weighing instruments. Its products are used in laboratories, industrial production and manufacturing and food retailing.
