Current Position: Home > Company Products >SCS small weighbridge > Scs-a electronic weighbridge

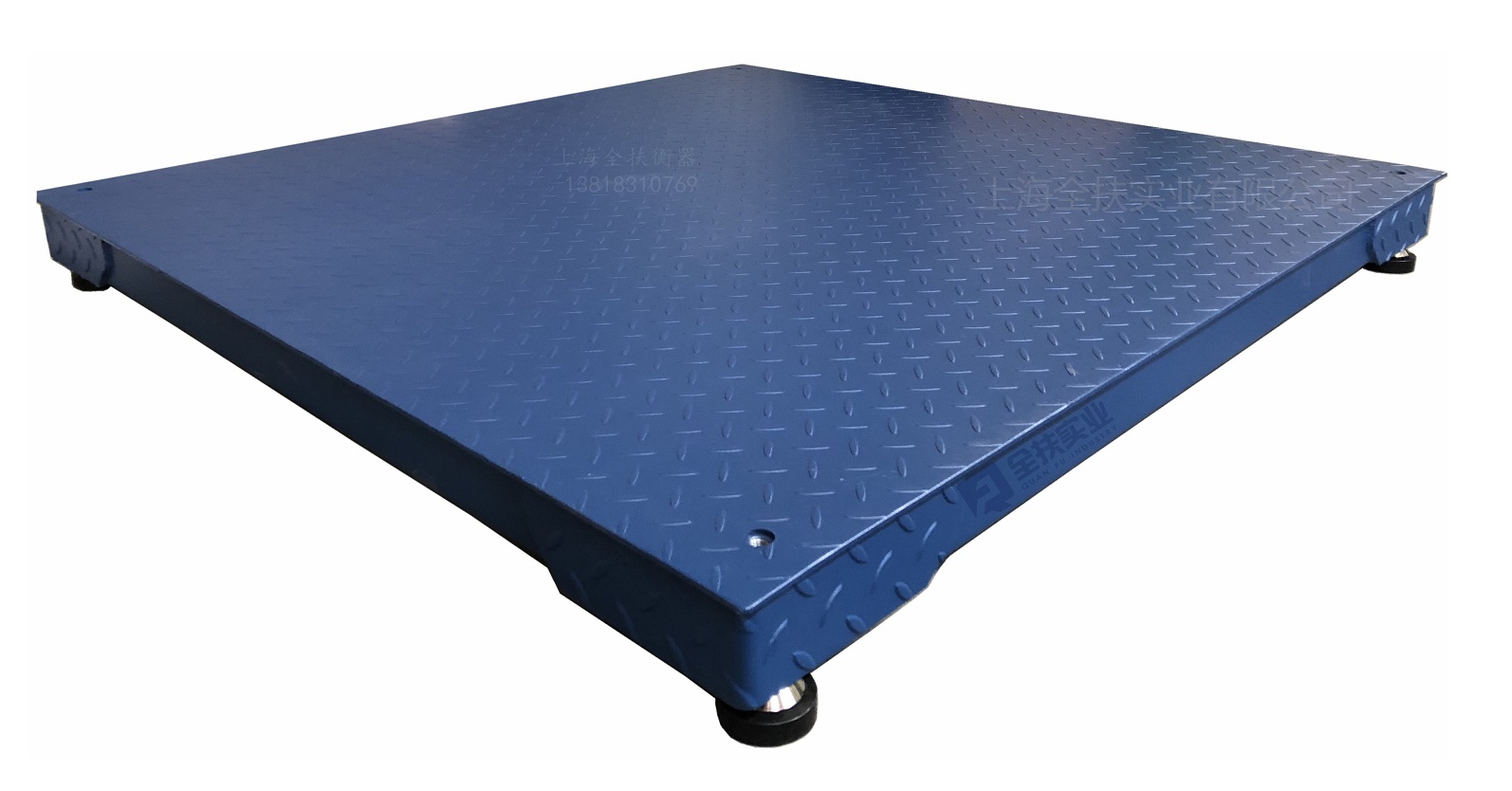

Basic electronic industrial scale electronic weighbridge small weighbridge
Weighing range: 300kg to 10t platform scale
Scale size: 0.8mx0 8m to 2mx4m and other specifications
High quality carbon steel or stainless steel is optional, and medium and high-grade quality is optional
Scs-a series electronic weighbridge is a rugged electronic platform scale with multi-function and high cost performance. It has no frame scale, and is equipped with four high-precision cantilever sensors and intelligent weighing instruments. All components have undergone strict fatigue loading test and inspection before leaving the factory to ensure the consistent high quality of all components, so as to ensure stable and reliable measurement accuracy and measurement repeatability, This series of platform scales are suitable for weighing on many occasions. They are widely used in factory workshops, warehouses, chemical industry, agriculture, logistics centers and other fields. They are suitable for pallet weighing, ton package, material irrigation, trolley, agricultural breeding and other small goods.
Technical parameters:
Maximum weight: 300kg to 10t (more ranges are optional)
Division value: 0.1kg ~ 5kg (high precision and customizable)
Accuracy level：III
Table size: 0.8 * 0.8m ~ 2m * 4m
Weighing display: LED or LCD display
Power supply: AC220V, built-in lead-acid battery 6V / 4ah
Operating temperature: - 10 ℃ ~ ± 40 ℃
Scale structure：

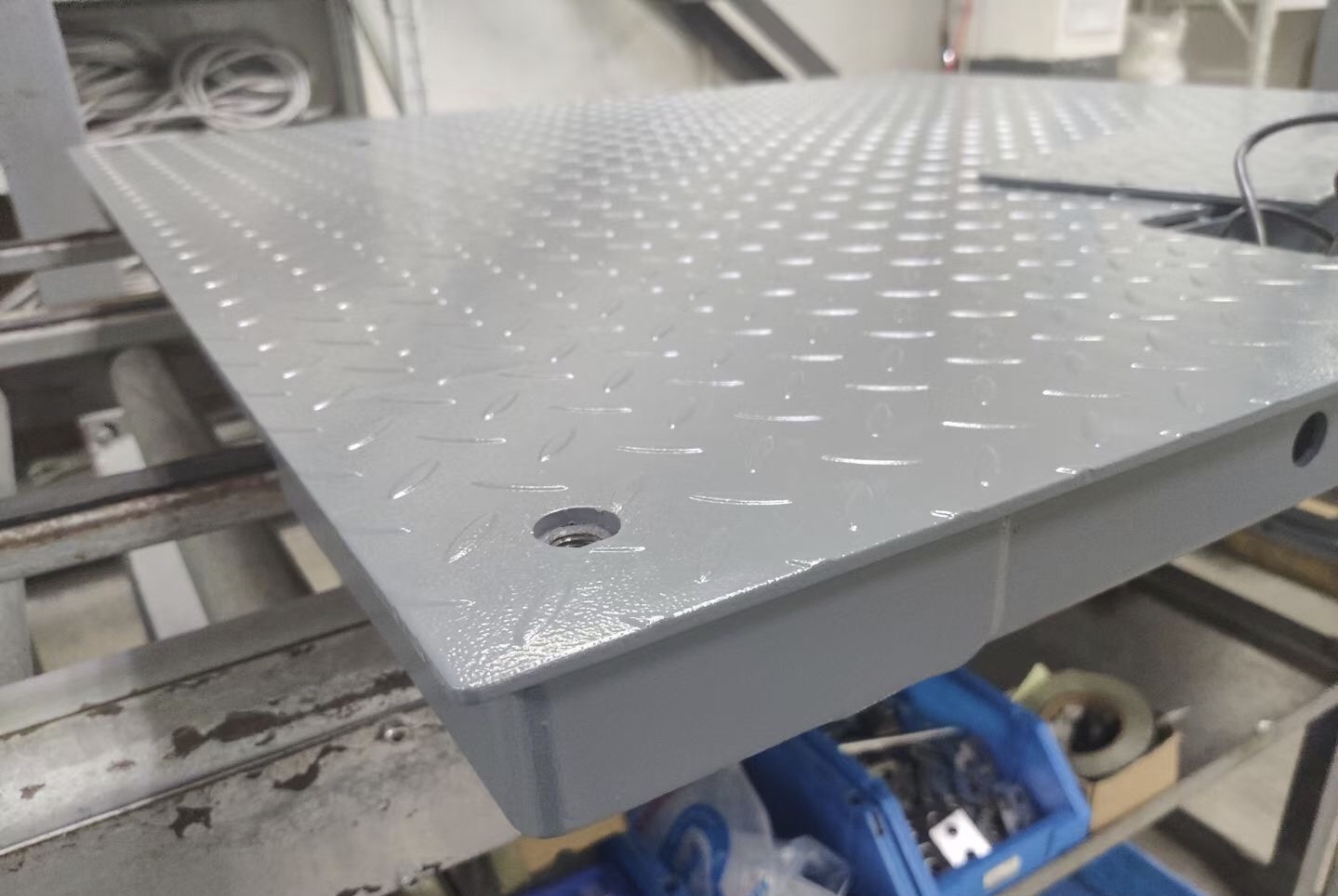

Scale platform: 5mm / 6mm / 8mm steel plate U-beam assembly welding structure, high-strength design
Scale body material: carbon steel or stainless steel, checkered plate or flat plate
Carbon steel weighing platform: plastic spraying or electrostatic spraying paint baking treatment after shot blasting (scale color optional)
Stainless steel scale platform: carbon steel scale body, stainless steel table, polishing and wire drawing treatment (composite platform scale)

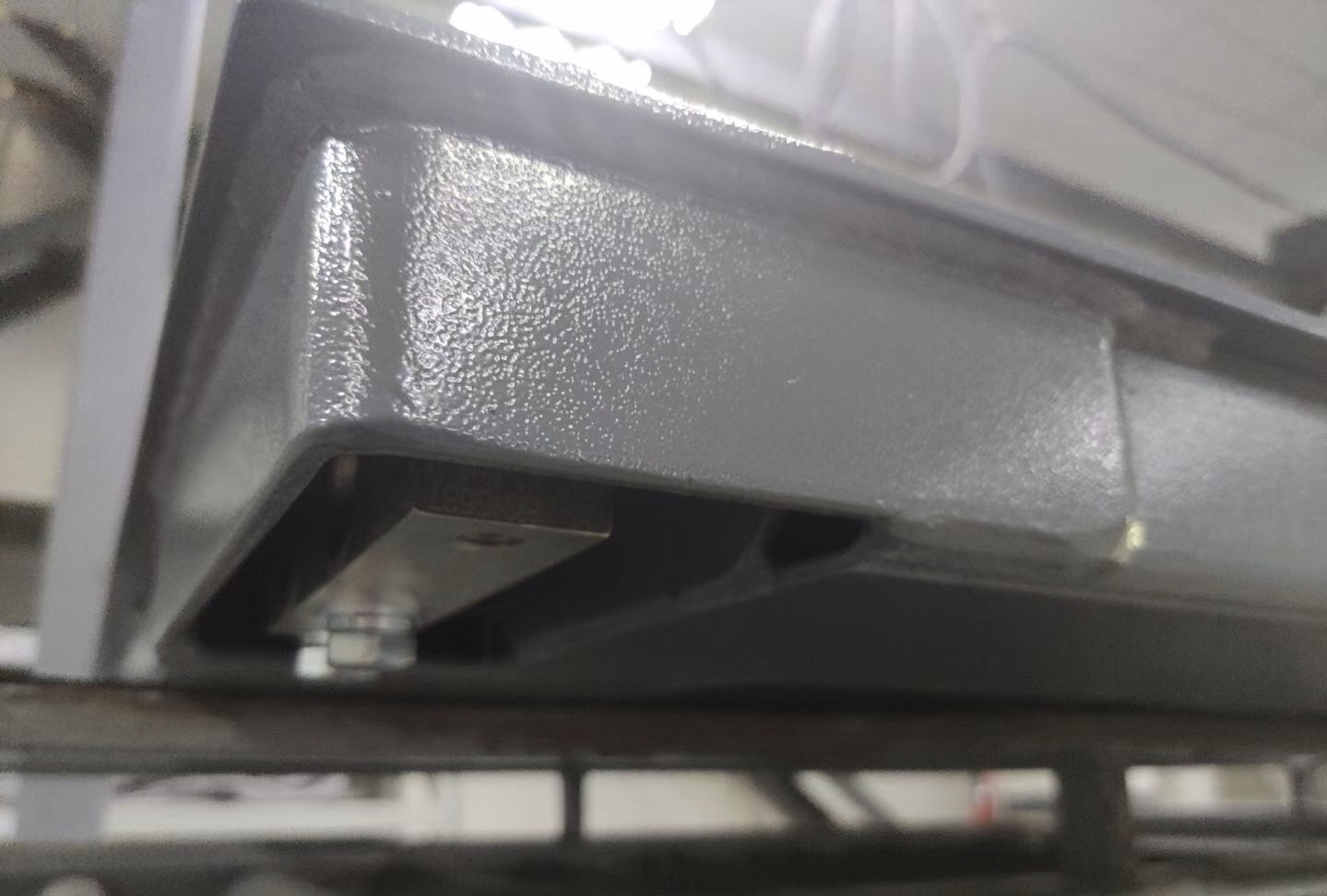

The overall configuration includes: four high-precision shear beam sensors, a high stability junction box, a signal cable and a weighing display instrument in the scale platform
Weighing accessories: with adjustable scale feet, the requirement for horizontal is low
Optional: approach slope, instrument support and pole assembly
Functional features:
Basic functions: weight counting, counting, zero setting, peeling, accumulation and printing;
Extended functions: Animal weighing, holding, weight checking, sorting, upper and lower limit alarm, etc;
Optional functions: external printer, computer, RS232 / 485, MODBUS, 4 ~ 20mA analog output, wireless output, I / O card, relay output, etc.
Common specifications:
Product name | Electronic platform scale (small weighbridge) | |||||
Product model | SCS-A | |||||
Scale body material | All carbon steel or stainless steel veneer | |||||
Scale structure | Ground scale (frameless) | |||||
maximum capacity | 0.5t | 1t | 2t | 3t | 5t | 10t |
Division value | 0.1kg | 0.2kg | 0.5kg | 1kg | 2kg | 5kg |
Accuracy level | III | |||||
Scale platform size (length) × (width) | Maximum weighing | Maximum weighing | Maximum weighing | Maximum weighing | Maximum weighing | Maximum weighing |
800×800mm | 500kg | 1000kg | 2000kg | |||
1000×1000mm | 500kg | 1000kg | 2000kg | 3000kg | ||
1200×1200mm | 500kg | 1000kg | 2000kg | 3000kg | ||
1200×1500mm | 1000kg | 2000kg | 3000kg | 5000kg | ||
1500×1500mm | 2000kg | 3000kg | 5000kg | |||
1500×2000mm | 2000kg | 3000kg | 5000kg | 10000kg | ||
2000×2000mm | 3000kg | 5000kg | 10000kg | |||
2000×3000mm | 3000kg | 5000kg | 10000kg | |||
2000×4000mm | 3000kg | 5000kg | 10000kg | |||

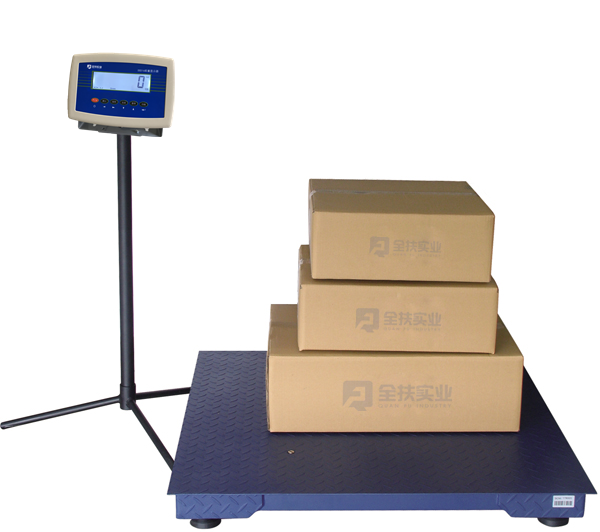

上海全扶高品质电子平台秤：实物参考图
Note: basic electronic platform scale, high quality Carbon steel small weighbridge , various configurations are optional, and customized production is available according to different application requirements.
High precision industrial electronic weighbridge high precision platform scale
Integrated with high-precision weighing sensor and high-precision weighing instrument
Carry out high-precision weighing in harsh environment, weigh copper, medicine, precious metal, etc
High end weighbridge has short stability time, and high-speed weighing can help users improve production efficiency and ensure weighing accuracy
The height of the customized ultra-thin electronic scale platform is about 6 cm
Carbon steel weighing frame, stainless steel countertop or all stainless steel ultra-thin weighbridge
Weighing below 300kg, the scale size is customized according to the user's requirements
Mobile platform scale, mobile electronic weighbridge
It adopts a double-layer weighbridge body, with a frame as a whole, and a hand push mobile integrated type
Carbon steel or stainless steel optional
Maximum weighing 2500kg
Material tank platform scale, frame scale
The filling electronic scale is a customized reinforced ground scale, and the filling legs can be directly fixed on the platform scale
Leave a round hole or square hole on the weighing platform to facilitate weighing and discharging
300kg ~ 10t weighing can be customized
U-shaped electronic scale, portable platform scale, small floor area
It is suitable for weighing all kinds of goods or forklift transportation
The length and width of the weighing platform can be specially customized according to the environmental requirements
Strip electronic scale, also known as chopstick scale, portable weighing bar
Modular weighing, portable, weighing anytime, anywhere
A single weighing plate can carry 1500kg, and two weighing plates are equipped as standard
Multiple weighing plates can also be configured, and the use range can reach 5000kg
Optional wireless Bluetooth communication function
Livestock electronic platform scale is a special electronic scale specially designed for animal husbandry and slaughtering industry. The fence gate is added on the basis of the ordinary platform scale, which is especially suitable for weighing all kinds of live livestock.
Electronic buffer scale is a kind of scale developed for weighing metallurgical, copper and precious metal materials. The weighing mechanism includes a bottom frame, a scale platform, a buffer table, a buffer mechanism, a limit mechanism, a high-precision shear sensor, a junction box assembly and an intelligent weighing instrument to form a complete weighing system. It can be configured with a printer or a wireless continuous weighing display. This buffer scale has the characteristics of strong impact resistance, high stability and high precision weighing.
Washable stainless steel platform scale Ultra low stainless steel platform scale
It's really a waterproof weighbridge. It can be directly washed with water, and the scale body can be lifted
The waterproof grade can reach IP68 standard, and the sanitary grade meets the requirements of food factories and pharmaceutical factories
Stainless steel ultra-low platform scale
The height of the scale body is 3.5 ~ 4.5cm, with double-sided or single-sided slope
Smooth stainless steel flat plate or checkered plate can be customized
300 kg to 2000 kg optional
Chemical plant explosion-proof optional
Stainless steel electronic platform scale double-layer stainless steel weighbridge
Weighing range: 300kg to 10t stainless steel platform scale with frame
Simple weighing, weighing, counting, upper and lower limit control and other multi-functional industrial platform scales
The stainless steel floor scale is easy to clean, and the sanitary level meets the requirements of food factories and pharmaceutical factories
It can replace Toledo PFA Series platform scale
Stainless steel electronic weighbridge waterproof weighbridge stainless steel weighbridge
Weighing range: 300 kg to 10 tons of stainless steel platform scale
Basic industrial platform scale with simple weighing, weighing, counting and accumulation functions
The stainless steel floor scale is characterized by easy cleaning and sanitary grade, which is in line with the use of food factories and pharmaceutical factories
